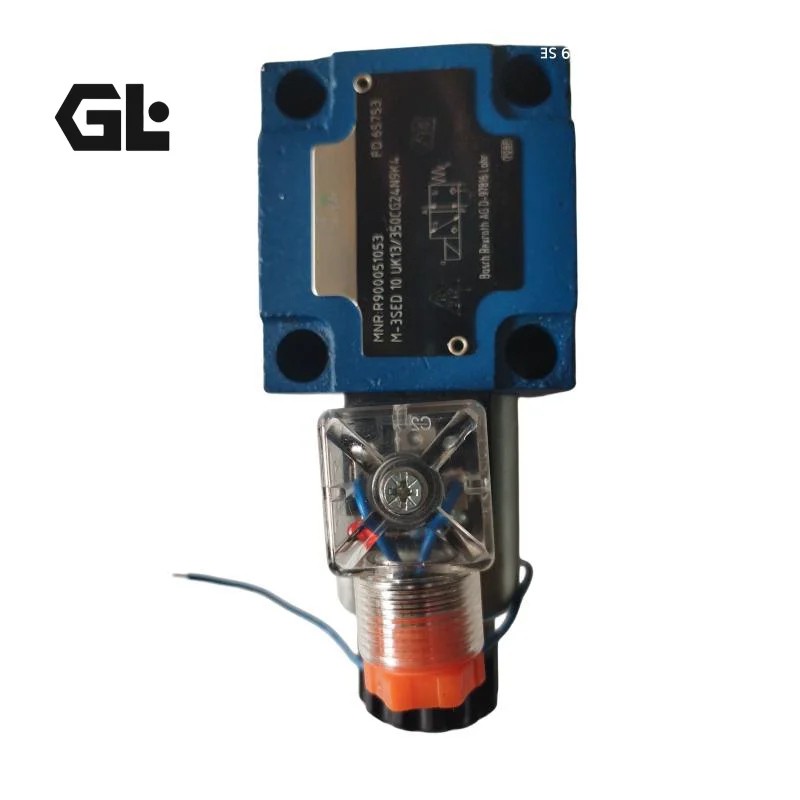

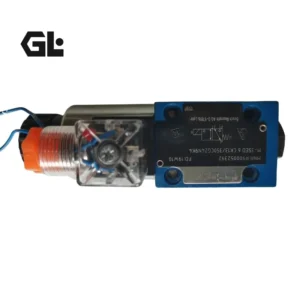

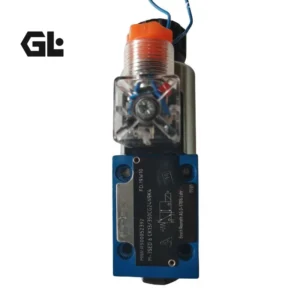

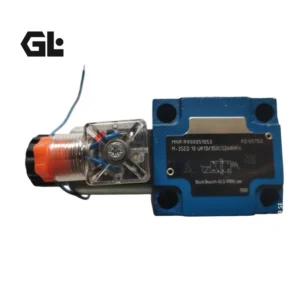

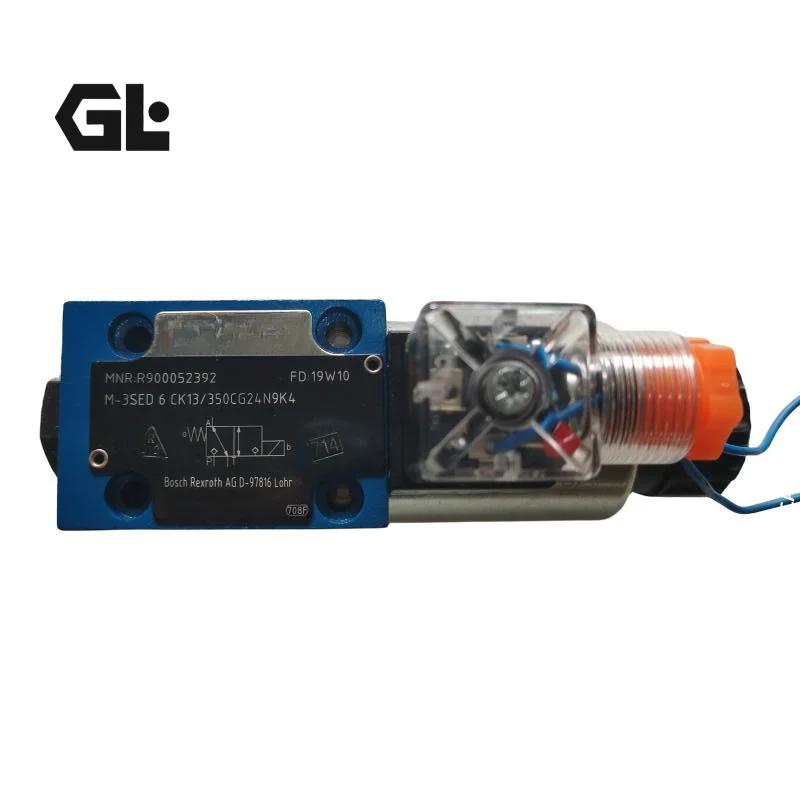

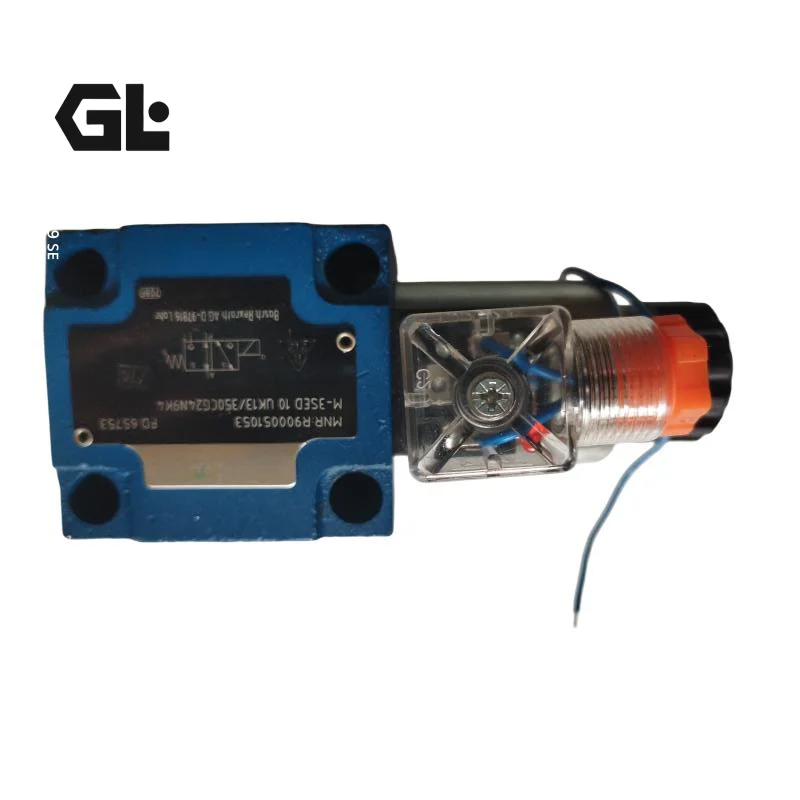

M-4SED6D13/350CG24N9K4 Rexroth Poppet Valve

Model Number	M-4SED10Y13/350CG24N9K4, M-4SED6D13/350CG24N9K4

Product Description

Product Overview

The M-2SEW, M-3SEW, M-3SED, M-4SED, M-4SED10, M-4SED6D13/350CG24N9K4 and M-4SED10Y13/350CG24N9K4 belong to the Bosch Rexroth M-.SED series of solenoid-actuated directional poppet (seat) valves. These direct-operated poppet/ball-seat valves provide leak-free shut-off when closed and reliable switching even after prolonged periods under pressure. Available as 2/2, 3/2 or 4/2 configurations with ISO 4401 subplate mounting. Fully interchangeable with original Rexroth units, every valve undergoes 100% simulated operating-condition testing for zero-leakage high-pressure directional control.

Technical Specifications

Model: M-4SED6D13/350CG24N9K4 / M-4SED10Y13/350CG24N9K4 etc. (M-.SED series)
Type: Solenoid-actuated directional poppet valve (direct-operated seat valve)
Nominal size: NG6 / NG10
Maximum operating pressure: 350 bar
Maximum flow: NG6 approx. 25 L/min; NG10 approx. 40 L/min
Solenoid: Wet-pin DC, detachable coil (common G24 = 24 V DC)
Power consumption: approx. 30 W
Switching time: ON 20–70 ms (size-dependent)
Mounting: Subplate (ISO 4401)
Weight: NG6 approx. 1.5–2.3 kg; NG10 approx. 2.6–3.9 kg
Seals: NBR or FKM
Viscosity range: 2.8–500 mm²/s

Key Technical Advantages

Leak-free poppet design: Ports are tightly sealed when closed, ideal for high-pressure circuits requiring strict zero leakage.
Reliable switching under pressure: Continues to operate reliably even after long standstill periods under pressure.
Wet-pin detachable coil: Coil can be rotated 90° and replaced without opening the pressure-tight chamber, simplifying maintenance.
True interchangeability and full testing: Fully compatible with original Rexroth M-.SED series; every unit is 100% verified under simulated operating conditions.

Application Areas

High-pressure clamping and holding circuits
Safety shut-off and emergency unloading
Directional control on injection molding and die-casting machines
Machine tools and industrial hydraulic power units
Actuator control requiring zero leakage

Expert Maintenance Tips

Ensure the mounting surface is clean and flat; tighten to the specified torque. Maintain fluid cleanliness at ISO 4406 20/18/15. Match solenoid voltage and polarity correctly. Periodically check switching action and sealing performance. If internal leakage or delayed response occurs, first inspect fluid contamination. For long-term storage keep the valve filled with oil. Always use original-specification coils and seals when servicing.
