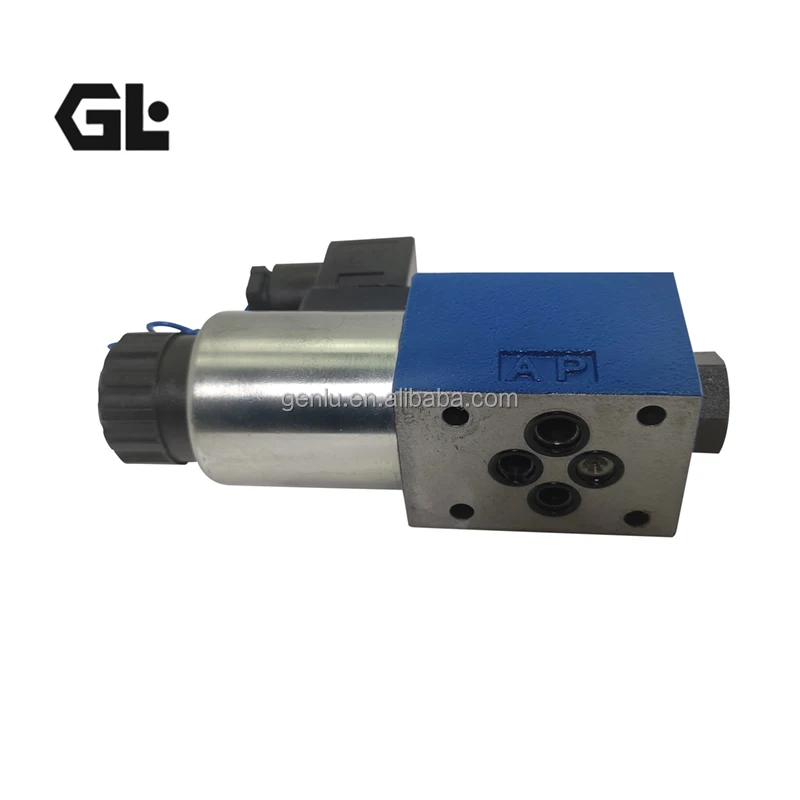

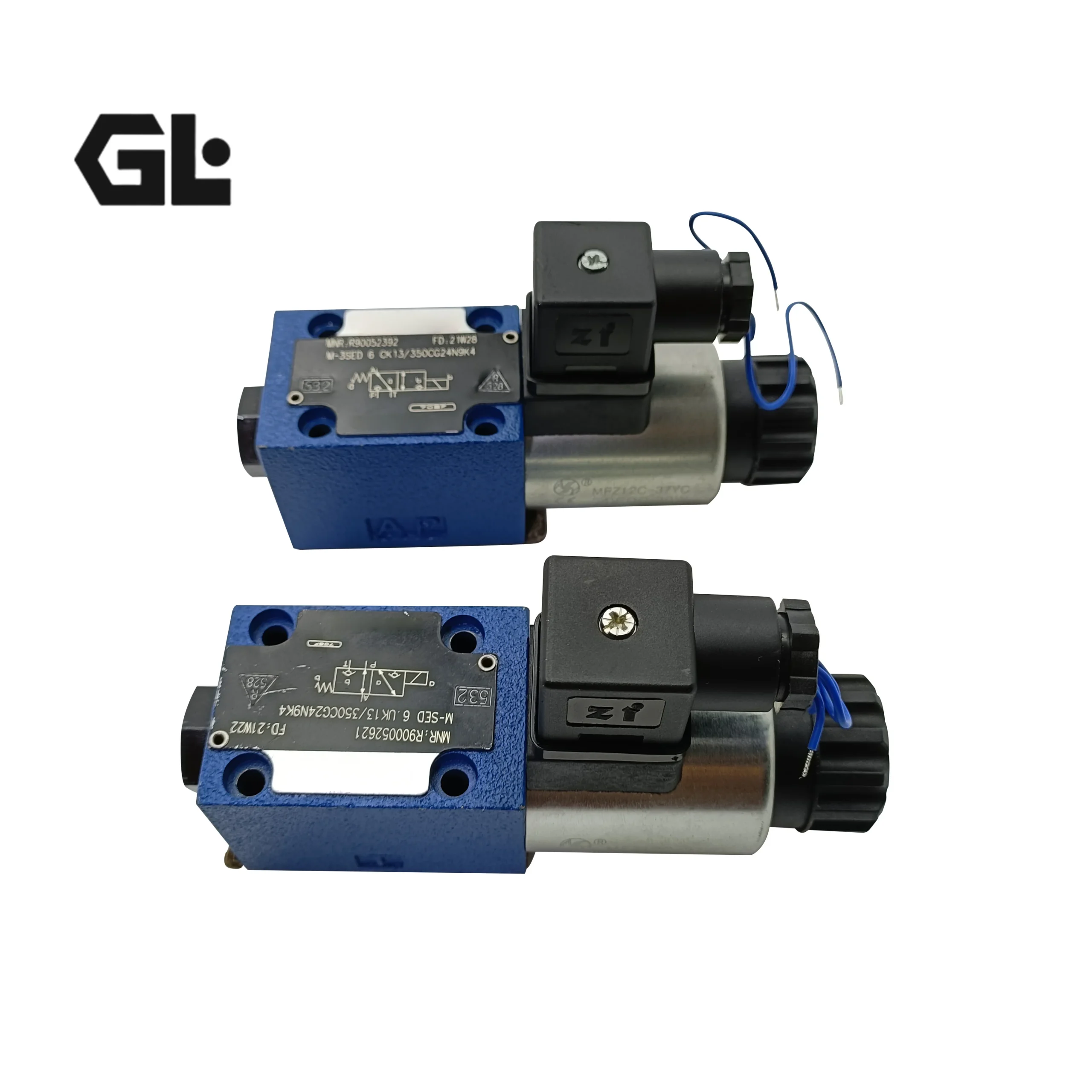

M-3SED6CK1X/350CG24N9K4/V

Product Overview

The M-3SED6CK1X/350CG24N9K4/V is a Bosch Rexroth M-3SED6 series direct-operated directional poppet valve, NG6 (CETOP 3) size, with mounting pattern conforming to ISO 4401-03-02-0-05 [10†L8-L9]. This 3/2-way directional poppet valve features CK spool symbol with direct-operated construction [5†L15][7†L9]. It is equipped with FKM (fluoroelastomer) seals for broad fluid compatibility [7†L8].

The M-3SED6 series features poppet-type construction with extremely low leakage in the closed position, enabling reliable switching even after long periods under pressure [1†L27-L28]. The valve is equipped with a wet-pin DC solenoid with detachable coil [1†L13]. The solenoid coil is rotatable by 90° and can be replaced without opening the pressure-tight chamber [6†L30-L32]. This model features a concealed manual override (standard) [7†L7] and an inductive position switch (QM) for monitored switching position feedback [5†L13-L14]. Seals are NBR and FKM (/V suffix) [5†L26][7†L8].

Model Code Breakdown:

• M-3SED: Direct-Operated Directional Poppet Valve

• 6: NG6 Size (CETOP 3)

• CK: Spool Symbol (CK type)

• 1X: 1X Component Series (10–19)

• 350: Maximum Operating Pressure 350 bar

• C: With wet-type solenoid

• G24: DC 24V supply (G = DC)

• N9: With concealed manual override

• K4: Without mating connector (DIN EN 175301-803) [1†L14]

• V: FKM seals [7†L8]

• QM: With inductive position switch [5†L13]

Technical Specifications (Bulleted List)

• Model: M-3SED6CK1X/350CG24N9K4/V

• Material Number: R900224529 [5†L3-L4]

• Brand: BOSCH REXROTH

• Product Type: Direct-Operated Directional Poppet Valve

• Spool Configuration: 3/2-way

• Spool Symbol: CK [5†L15]

• Nominal Size: NG6 (6 mm) [0†L21]

• Mounting Standard: ISO 4401-03-02-0-05 / NFPA T3.5.1 R2 D03 [10†L8-L9][5†L16]

• Maximum Operating Pressure: 350 bar (5075 psi) [0†L7]

• Maximum Flow Rate: 25 L/min [0†L18][7†L8]

• Switching Positions: 2 [5†L13]

• Coil Voltage: 24V DC [0†L6]

• Power Consumption: 30 W (fixed) [4†L37]

• Voltage Tolerance: ±10% [4†L37]

• Duty Rating: 100% Continuous [4†L38]

• Maximum Coil Temperature: 150°C [4†L37-L38]

• Seal Material: FKM (Fluoroelastomer) (/V suffix) [7†L8]

• Hydraulic Fluids: HL, HLP, HLPD, HVLP, HVLPD, HFC [5†L25]

• Manual Override: Equipped (concealed) [5†L21]

• Electrical Connector: 3-pin device plug (2 + PE) per EN 175301-803 [10†L11-L13]

• Weight: 1.40–1.43 kg [0†L22][10†L16]

M-3SED10UK1X/350CG24N9K4

Product Overview

The M-3SED10UK1X/350CG24N9K4 is a Bosch Rexroth M-3SED10 series direct-operated directional poppet valve, NG10 (CETOP 5) size. This 3/2-way directional poppet valve features UK spool symbol with direct-operated construction [7†L6]. It is equipped with NBR seals [7†L8]. Maximum operating pressure is 350 bar with a maximum flow rate of 25 L/min [7†L8].

The M-3SED10 series features poppet-type construction with extremely low leakage in the closed position, enabling reliable switching even after long periods under pressure [1†L27-L28]. The valve is equipped with a wet-pin DC solenoid with detachable coil [8†L9-L10]. The solenoid coil is rotatable by 90° and can be replaced without opening the pressure-tight chamber [1†L29]. This model features a concealed manual override (standard) [7†L7].

Model Code Breakdown:

• M-3SED: Direct-Operated Directional Poppet Valve

• 10: NG10 Size (CETOP 5)

• UK: Spool Symbol (UK type)

• 1X: 1X Component Series (10–19) [8†L8]

• 350: Maximum Operating Pressure 350 bar

• C: With wet-type solenoid [8†L9]

• G24: DC 24V supply (G = DC) [8†L10]

• N9: With concealed manual override [8†L10]

• K4: Without mating connector [8†L10]

Technical Specifications (Bulleted List)

• Model: M-3SED10UK1X/350CG24N9K4

• Material Number: R900215488 [7†L16]

• Brand: BOSCH REXROTH

• Product Type: Direct-Operated Directional Poppet Valve

• Spool Configuration: 3/2-way

• Spool Symbol: UK [7†L6]

• Nominal Size: NG10 (10 mm) [7†L6]

• Maximum Operating Pressure: 350 bar [7†L6]

• Maximum Flow Rate: 25 L/min [7†L8]

• Switching Positions: 2

• Coil Voltage: 24V DC [7†L13]

• Duty Rating: 100% Continuous

• Seal Material: NBR

• Manual Override: Equipped (concealed) [7†L7]

• Electrical Connector: Per DIN EN 175301-803 [7†L13-L14]

• Weight: 2.34 kg [7†L15]

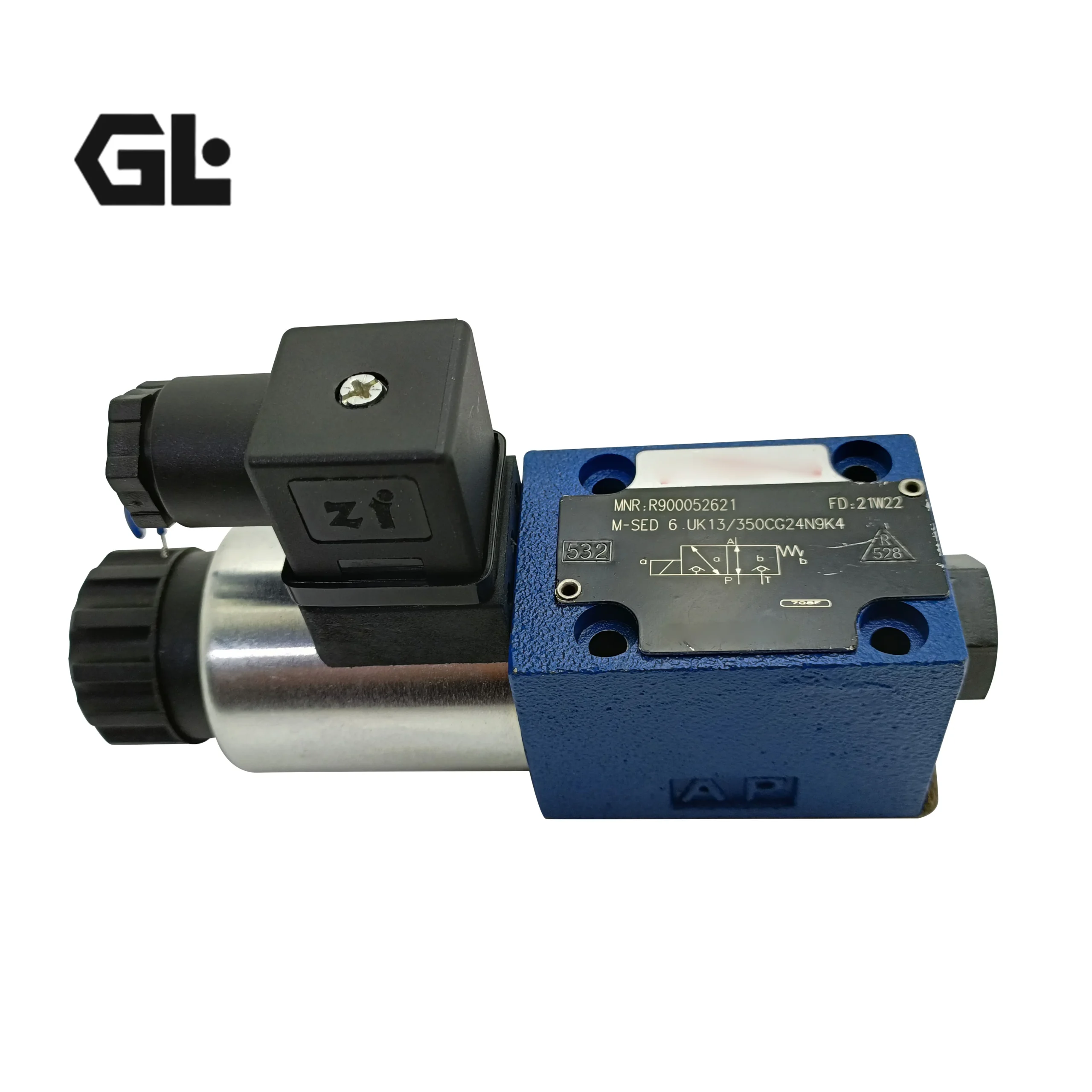

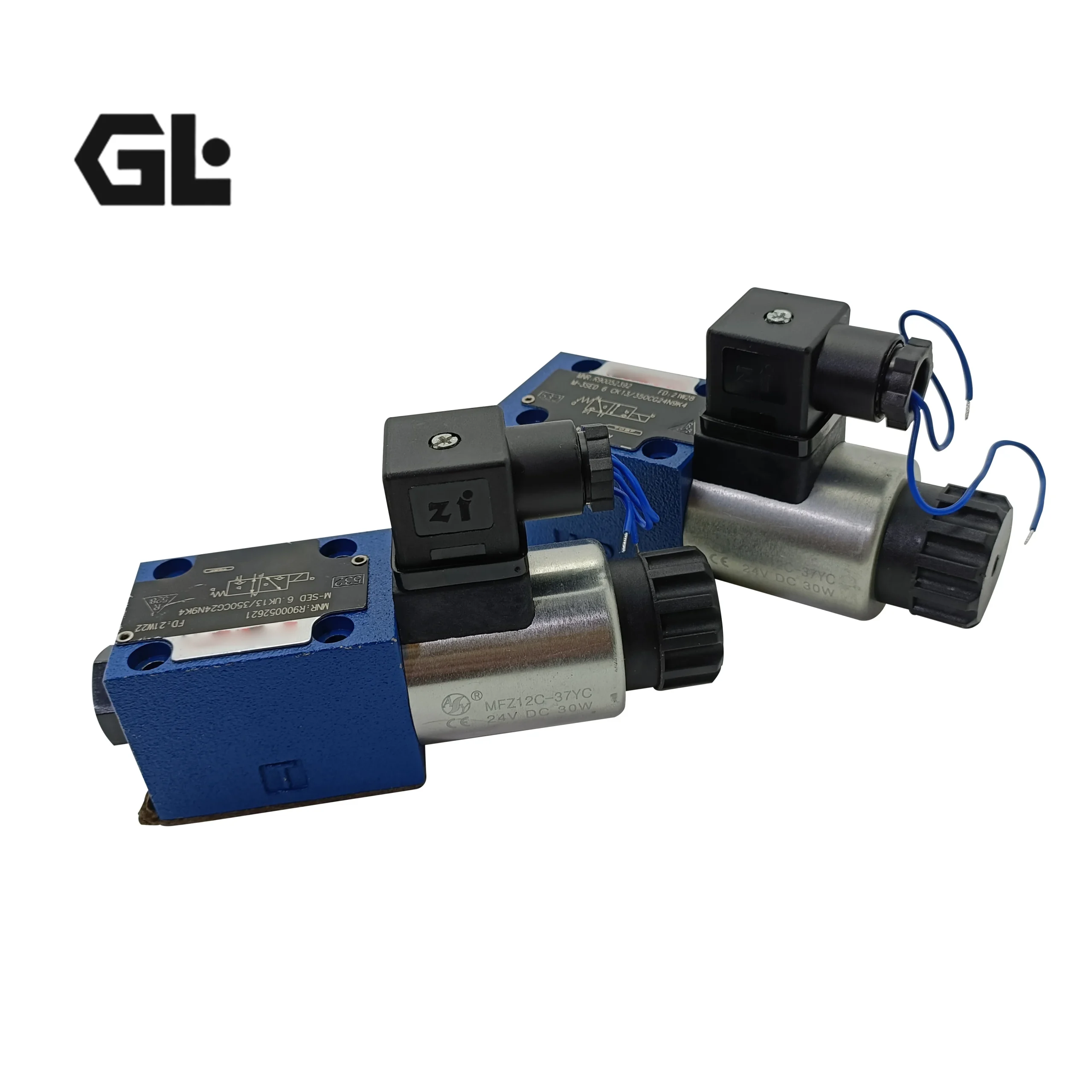

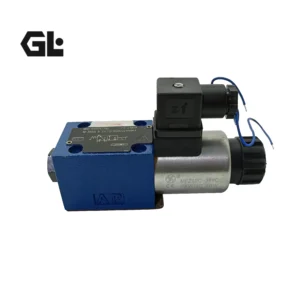

M-3SED6UK1X/350CG24N9K4

Product Overview

The M-3SED6UK1X/350CG24N9K4 is a Bosch Rexroth M-3SED6 series direct-operated directional poppet valve, NG6 (CETOP 3) size, with mounting pattern conforming to ISO 4401-03-02-0-05 [10†L8-L9]. This 3/2-way directional poppet valve features UK spool symbol [10†L7]. It is equipped with NBR seals [10†L10]. Maximum operating pressure is 350 bar with a maximum flow rate of 25 L/min [10†L13].

The M-3SED6 series features poppet-type construction with extremely low leakage in the closed position, enabling reliable switching even after long periods under pressure [1†L27-L28]. The valve is equipped with a wet-pin DC solenoid with detachable coil [11†L16]. The solenoid coil is rotatable by 90° and can be replaced without opening the pressure-tight chamber [11†L18]. This model features a concealed manual override [11†L12].

Model Code Breakdown:

• M-3SED: Direct-Operated Directional Poppet Valve

• 6: NG6 Size (CETOP 3)

• UK: Spool Symbol (UK type)

• 1X: 1X Component Series (10–19) [8†L8]

• 350: Maximum Operating Pressure 350 bar

• C: With wet-type solenoid [8†L9]

• G24: DC 24V supply (G = DC) [8†L10]

• N9: With concealed manual override [8†L10]

• K4: Without mating connector [8†L10]

Technical Specifications (Bulleted List)

• Model: M-3SED6UK1X/350CG24N9K4

• Material Number: R900052621 [10†L4]

• Brand: BOSCH REXROTH

• Product Type: Direct-Operated Directional Poppet Valve

• Spool Configuration: 3/2-way

• Spool Symbol: UK [10†L7]

• Nominal Size: NG6 (6 mm) [10†L7]

• Mounting Standard: ISO 4401-03-02-0-05 [10†L8-L9]

• Maximum Operating Pressure: 350 bar (5075 psi) [11†L14]

• Maximum Flow Rate: 25 L/min [10†L13]

• Switching Positions: 2 [10†L9]

• Coil Voltage: 24V DC [10†L7]

• Voltage Tolerance: ±10% [4†L37]

• Power Consumption: 30 W [4†L37]

• Duty Rating: 100% Continuous [4†L38]

• Maximum Coil Temperature: 150°C [4†L37-L38]

• Seal Material: NBR [10†L10]

• Hydraulic Fluids: HL, HLP, HLPD, HVLP, HVLPD, HFC [10†L10-L11]

• Manual Override: Equipped (concealed) [11†L12]

• Electrical Connector: 3-pin device plug (2 + PE) per EN 175301-803 [10†L11-L13]

• Weight: 1.42 kg [10†L16]

Key Technical Advantages (M-3SED Series Common)

1. Poppet-Type Leakage-Free Design — Superior Sealing Performance

The M-3SED series features poppet-type construction, achieving metal-to-metal sealing against the seat in the closed position. Unlike spool-type valves, the poppet design delivers extremely low internal leakage in the closed state, enabling reliable switching even after long periods under pressure [1†L27-L28]. Blocked connections are leak-tight [1†L26-L27].

2. 350 bar High Pressure and 25 L/min Flow Capacity

Delivers 350 bar (5075 psi) maximum operating pressure and 25 L/min flow capacity in a compact NG6/NG10 package [0†L7][7†L8]. Suitable for diverse medium-to-high pressure hydraulic systems requiring precise directional control.

3. Wet-Type Solenoid Design for Quiet, Long-Life Operation

Features wet-pin DC solenoid design—the movable iron core operates fully submerged in hydraulic oil, providing lubrication to reduce wear and cushioning against switching impact and vibration [7†L12]. The solenoid coil is rotatable by 90° for flexible electrical connection orientation [1†L29]. Coils can be replaced without opening the pressure-tight chamber [6†L30-L32].

4. 100% Continuous Duty Rating with 150°C Temperature Resistance

Coils are rated for 100% continuous duty, with maximum coil temperature reaching 150°C [4†L37-L38]. Ensures long-term stable operation under sustained high-load conditions.

5. Concealed Manual Override for System Safety

All models feature a concealed manual override as standard [7†L7][11†L12]. In case of power failure or emergency, the valve can be manually actuated for emergency directional control, ensuring system safety.

6. Multiple Seal Options with Broad Fluid Compatibility

The M-3SED series offers NBR (standard) [10†L10] and FKM (/V suffix for heat and chemical resistance) [7†L8] seal options. Compatible with HL, HLP, HLPD, HVLP, HVLPD, HFC, and other hydraulic fluids [5†L25][10†L10-L11].

7. International Standard Compliance for Global Interchangeability

Mounting conforms to ISO 4401-03-02-0-05 (NG6) [10†L8-L9] and NFPA T3.5.1 R2 D03 [5†L16] international standards. Fully compatible with globally adopted interfaces for direct replacement of same-series, same-specification products.

Application Areas

• Injection Molding Machinery — Directional control and flow switching for hydraulic systems

• Hydraulic Presses and Forging Equipment — Directional control for presses and forming equipment

• CNC Machine Tools — Directional control for machine tool hydraulic systems

• Die-Casting Machines — Directional control for high-pressure casting equipment

• Construction Machinery — Hydraulic directional control for excavators, loaders, and mobile equipment

• Industrial Automation Production Lines — Hydraulic actuator control for automated production lines

• General Industrial Hydraulic Systems — Various applications requiring low-leakage directional control

Expert Maintenance Tips

1. Installation Guidelines

• M-3SED6 mounting must conform to ISO 4401-03-02-0-05 / CETOP 3 standards [10†L8-L9].

• M-3SED10 mounting must conform to corresponding NG10 standards.

• Thoroughly clean the mounting surface and all ports before installation to prevent foreign particles from entering and causing seal damage or spool sticking.

• Tighten mounting bolts evenly to the specified torque to ensure proper sealing between the valve body and mounting surface.

2. Hydraulic Fluid Cleanliness

• Compatible fluids: HL, HLP, HLPD, HVLP, HVLPD, HFC [5†L25][10†L10-L11].

• Seal material: NBR (standard) or FKM (/V suffix) [7†L8][10†L10].

• Install a return line filter with minimum 10 μm filtration rating.

3. Electrical Connection Specifications

• All models use 24V DC supply [0†L6][7†L13].

• Voltage tolerance: ±10% [4†L37].

• Power consumption: 30 W (fixed) [4†L37].

• Electrical connector: 3-pin device plug (2 + PE) per EN 175301-803 [10†L11-L13].

• Ensure the connector is fully locked to maintain effective protection.

4. Coil Replacement Notes

• Solenoid coils can be replaced without opening the pressure-tight chamber [6†L30-L32].

• Coils are rotatable by 90° — adjust coil orientation according to wiring requirements during installation [1†L29].

• For AC voltage supply, a rectifier can be used [1†L28].

5. Manual Override

• All models feature a concealed manual override [5†L21][7†L7].

• Manual operation is for emergency use only and is not recommended for continuous duty.

6. Periodic Maintenance Inspection

• Inspect the valve body for external oil leakage every 2,000 operating hours or at least annually.

• Check electrical connectors for looseness, oxidation, or moisture ingress.

• If response lag or unstable shifting is observed, first check system fluid cleanliness and poppet seal condition.

• The M-3SED series poppet design features extremely low internal leakage—if abnormal leakage increase is observed, inspect the valve seat sealing surface for damage.
