Product Overview
The M4 Series hydraulic motor is Parker Denison’s classic medium-duty fixed-displacement vane motor, specifically designed for longer life in severe duty applications. The M4 Series encompasses multiple sub-families including M4C, M4C1, M4SC, M4SC1, M4D, M4D1, M4SD, M4SD1, M4E, M4E1, M4SE, and M4SE1, with displacements ranging from 24.4 to 222.0 cm³/rev and four flange sizes — SAE A, SAE B, SAE C, and SAE D. The M4 Series operates at working pressures up to 230 bar and speeds up to 4000 rpm, even with low-lubricity hydraulic fluids (HF-1, etc.). The series features a pressure-balanced vane-rotor-cam ring cartridge design, where the vane, rotor, and cam ring are pressure balanced to increase motor lifetime and efficiency over the full speed range.
User Model Technical Breakdown:

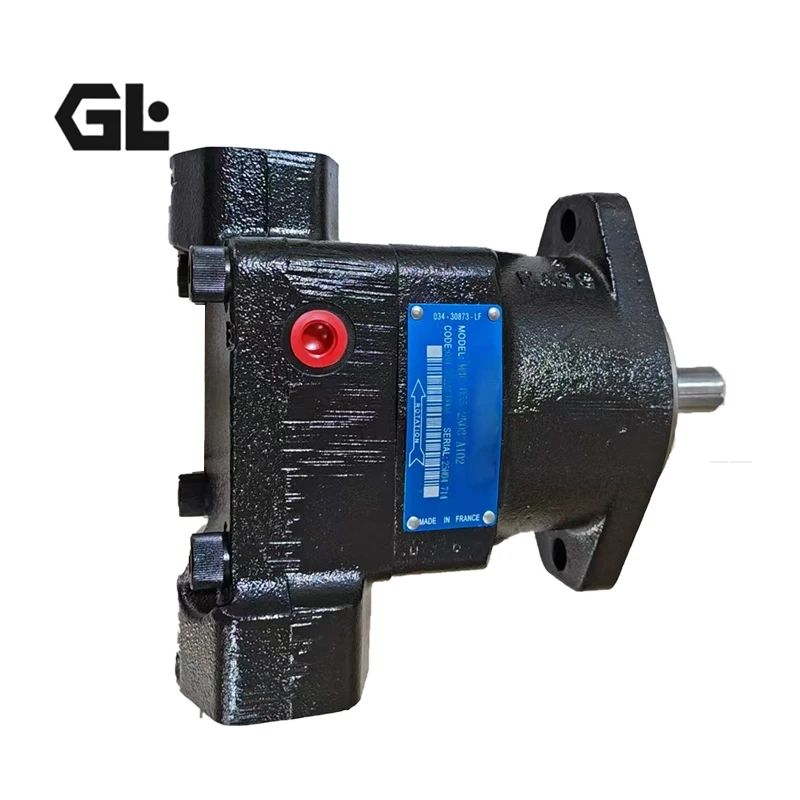

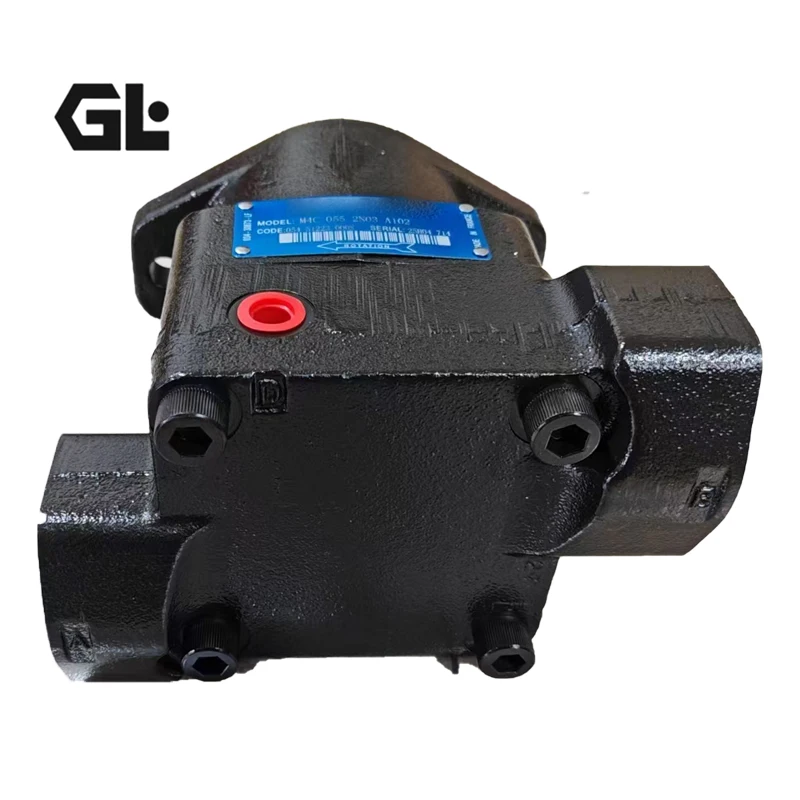

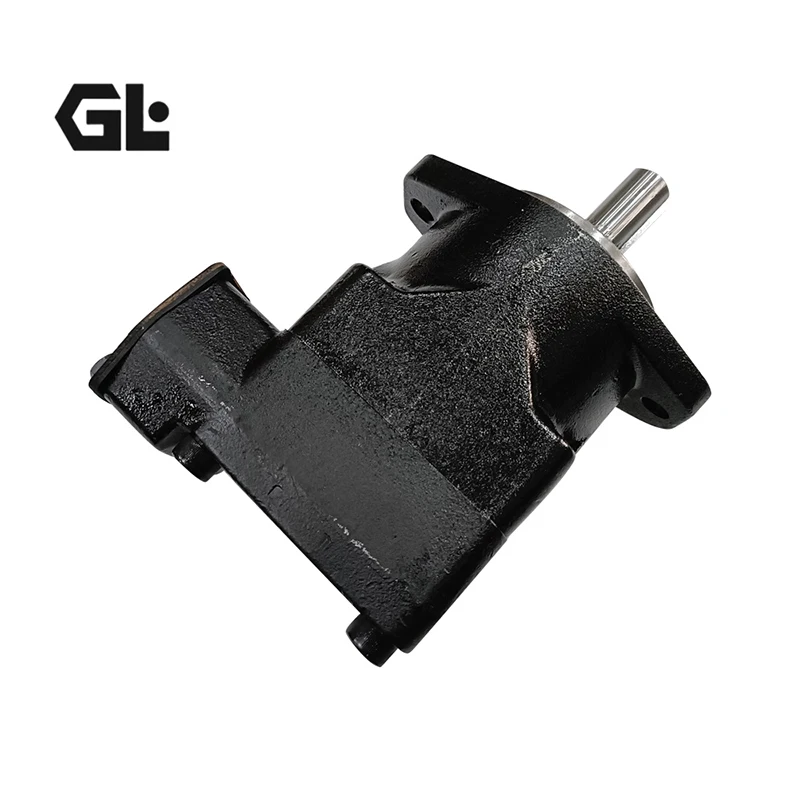

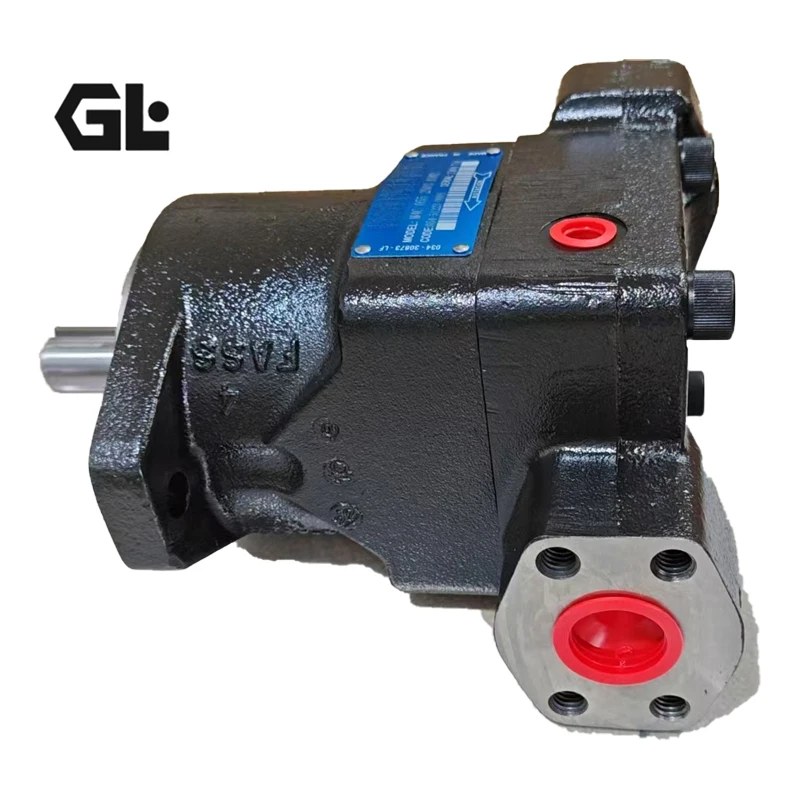

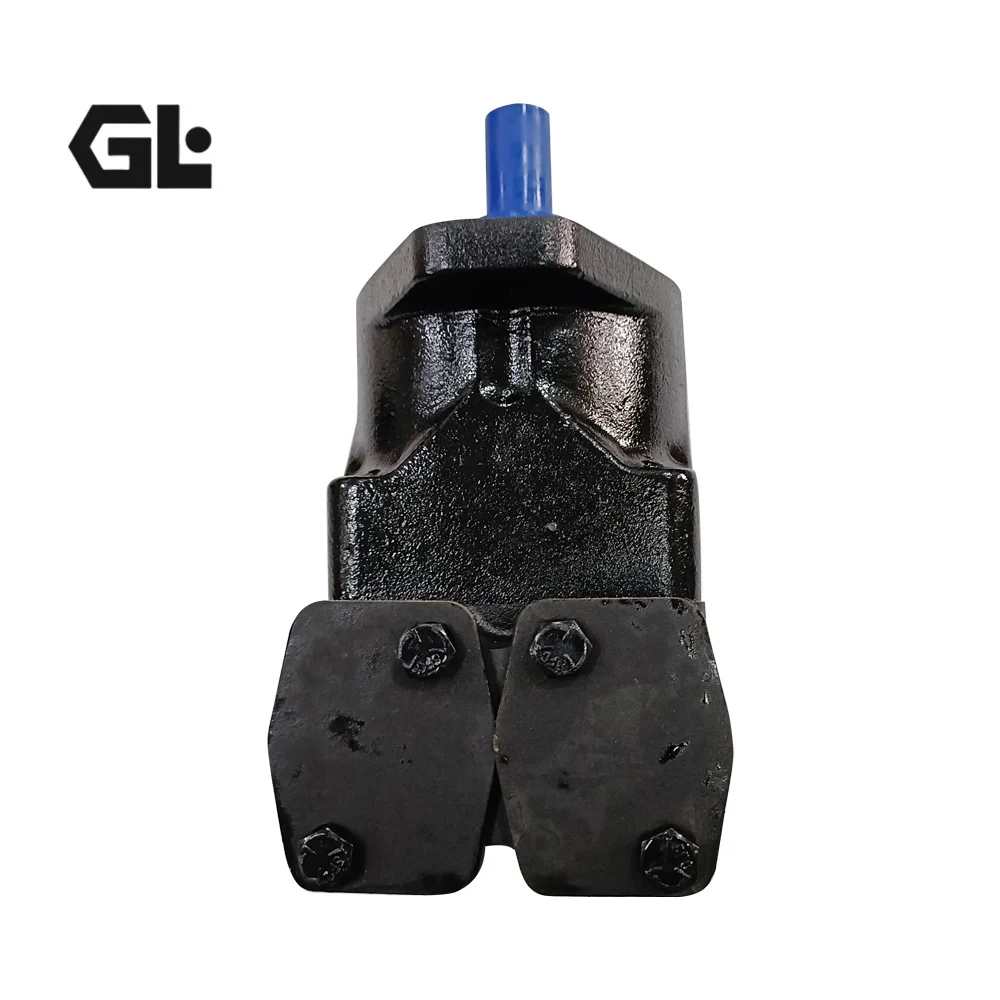

The M4C 055 2N03 A102 belongs to the M4C Series (SAE B flange version), with a displacement of 58.8 cm³/rev, torque rating of 198 Nm @175 bar, maximum operating pressure of 175 bar, and rated speed of 4000 RPM. The model code “055” indicates the displacement code, “2N03” indicates the mounting and port configuration, and “A102” represents the special option code.
The M4D1 102 1N00 B102 belongs to the M4D1 Series (SAE C flange version), with a displacement of 105.5 cm³/rev, torque rating of 264 Nm @175 bar, maximum operating pressure of 175 bar, rated speed of 3000-4000 RPM, and SAE C keyed shaft. The “1N00” code indicates the keyed shaft configuration, and “B102” indicates the B-series mounting code.
The M4C075-1-N-00-B1 belongs to the M4C Series, with a displacement of 80.1 cm³/rev, torque rating of 198 Nm @175 bar, maximum operating pressure of 175 bar, rated speed of 4000 RPM, and SAE B flange with SAE B 13-tooth splined shaft. The “1-N-00” code indicates keyed shaft / bi-directional / standard configuration, and “B1” is the SAE B flange code.
This product is a drop-in interchange replacement for genuine Parker Denison M4 Series hydraulic motors. Mounting flange, shaft extension, port configurations, and drain port location are dimensionally identical to OEM specifications, enabling direct replacement without hydraulic circuit or mounting modification. Every motor is subjected to 100% simulated actual-load testing before shipment, ensuring volumetric efficiency, output torque, and sealing performance meet OEM technical standards.
OEM Part Number Coverage:
M4C Series: M4C-055-2N03-A102, M4C-075-1-N-00-B1, M4C-024-3N00-A1M4, M4C-024-3N01-A1Y4, M4C-067-3N02-A101
M4D Series: M4D1-102-1N00-B102, M4D-062-3N00-B102 (024-03214-000), M4D-102-3N00-B102 (024-03209-000), M4D-113-3N00-B102 (024-03224-000), M4D-128-1N00-B104 (024-03211-000)
M4SC/M4SD Series: M4SC-024 to M4SC-075, M4SD-088 to M4SD-138
Full Series Coverage: M4C, M4C1, M4SC, M4SC1, M4D, M4D1, M4SD, M4SD1, M4E, M4E1, M4SE, M4SE1
Technical Specifications
M4C 055 2N03 A102 Core Specifications:
Model Code: M4C 055 2N03 A102
Series: M4C Series (SAE B flange version)
Product Type: Fixed displacement vane motor, pressure-balanced cartridge design, bi-rotational
Geometric displacement: 58.8 cm³/rev (3.59 in³/rev)
Max continuous pressure: 175 bar (2500 PSI)
Max intermittent pressure: 210 bar (3050 PSI)
Max speed: 4000 RPM (rated)
Torque rating: 198 Nm (@175 bar)
Theoretical torque: 0.93 Nm/bar
Control type: Fixed displacement, pressure-balanced vane cartridge design
Mounting flange: SAE B
Shaft type: SAE B splined (13-tooth) or keyed
Main ports: 1″ SAE 3000 – UNC thread, rear ports
Drain port: SAE 4 – 7/16″ UNF
Rotation: Bi-directional
Seal material: Buna-N (NBR) standard
Weight: Approx. 15.5 kg
M4D1 102 1N00 B102 Core Specifications:
Model Code: M4D1 102 1N00 B102
Series: M4D1 Series (SAE C flange version)
Product Type: Fixed displacement vane motor, pressure-balanced cartridge design, bi-rotational
Geometric displacement: 105.5 cm³/rev (6.44 in³/rev)
Max continuous pressure: 175 bar (2500 PSI)
Max intermittent pressure: 310 bar (M4D 102 specific configuration)
Max speed: 3000 RPM (standard) / 4000 RPM (some configurations)
Torque rating: 264 Nm (@175 bar)
Control type: Fixed displacement, pressure-balanced vane cartridge design
Mounting flange: SAE C
Shaft type: SAE C keyed shaft
Main ports: 1-1/4″ SAE 3000 – UNC thread, rear ports
Drain port: SAE 8 – 3/4″ UNF, internal drain option
Rotation: Bi-directional
Seal material: Viton® (Fluorocarbon)
Weight: Approx. 27.0 kg
M4C075-1-N-00-B1 Core Specifications:
Model Code: M4C075-1-N-00-B1
Series: M4C Series (SAE B flange version)
Product Type: Fixed displacement vane motor, pressure-balanced cartridge design, bi-rotational
Geometric displacement: 80.1 cm³/rev (4.89 in³/rev)
Max continuous pressure: 175 bar (2500 PSI)
Max speed: 4000 RPM
Torque rating: 198 Nm (@175 bar)
Theoretical torque: 1.27 Nm/bar
Control type: Fixed displacement, pressure-balanced vane cartridge design
Mounting flange: SAE B
Shaft type: SAE B 13-tooth splined
Main ports: 1″ SAE 3000 – Metric thread
Drain port: 1/4″ BSPP, external drain
Rotation: Bi-directional
Seal material: Buna-N (NBR) standard
Weight: Approx. 15.4 kg
M4 Series Full Model Displacement & Torque Reference:
M4C/M4SC Series (SAE B flange): 024 (24.4 cc), 027 (28.2 cc), 031 (34.5 cc), 043 (46.5 cc), 055 (58.8 cc), 067 (71.1 cc), 075 (80.1 cc)
M4D/M4SD Series (SAE C flange): 062 (65.1 cc), 074, 088 (91.1 cc), 102 (105.5 cc), 113 (116.7 cc), 128 (132.4 cc), 138
M4E/M4SE Series (SAE D flange): 153, 185, 214, 222
Torque classification: 60.5–198 Nm (M4C Series @175 bar)
Max operating pressure range: 175–230 bar
Rated speed range: 2500–4000 rpm
General Configuration Parameters (M4 Series):
Control type: Fixed displacement, pressure-balanced vane-rotor-cam ring cartridge design
Mounting flange: SAE A/B/C/D 2-bolt or 4-bolt
Shaft options: Keyed or splined (SAE standard)
Port type: Rear ports (standard), 4-bolt UNC or metric thread
Rotation: Bi-directional
Seal material: Buna-N (NBR) standard, Viton® optional
Operating fluid: Mineral-based hydraulic oil, compatible with HF-1 low-lubricity fluids
Case pressure limit: M4 Series low-pressure port must not exceed 3.5 bar (peak 7 bar)
Brand: Denison
Markets: Mobile, Marine
Key Technical Advantages
1. Pressure-Balanced Cartridge Design with High Volumetric Efficiency
The M4 Series features Parker Denison’s patented pressure-balanced vane, rotor, and cam ring cartridge design. The vane, rotor, and cam ring are pressure balanced to significantly reduce internal leakage and improve volumetric efficiency across the full speed range. Vane motors begin life with high volumetric efficiency and maintain that efficiency throughout their operating life, without the sharp efficiency decline associated with wear. The cast iron housing provides robust structural support, ensuring long-term reliable operation under demanding conditions.
2. High Starting Torque with Smooth Start Without Pressure Overshoots
The M4 Series vane motors deliver exceptionally high starting torque efficiency. Light springs urge the vanes radially against the cam contour, assuring a seal at zero speed so the motor can develop starting torque immediately. This characteristic allows the motor to start under high load without pressure overshoots, jerks, or high instantaneous horsepower loads. This characteristic is critical for winch and swing drive applications requiring loaded starts.
3. Very Low Torque Ripple with Smooth Low-Speed Operation
When operating at very low speeds on applications such as swing and load hoist drives, the M4 Series vane motor exhibits very low torque ripple. The pressure-balanced cartridge design combined with optimized cam ring profile enables smooth torque output even at minimum speeds, without crawling, delivering excellent operating quality.
4. Wide Speed Range with Low-Lubricity Fluid Adaptability
The M4 Series is specifically designed for longer life in severe duty applications, operating at 175–230 bar pressures and 2500–4000 rpm speeds, with excellent adaptability to low-lubricity hydraulic fluids (such as HF-1 fire-resistant fluids). When used with fire-resistant fluids (HF-3, HF-4, HF-5), the operating pressure limits must be multiplied by a coefficient of 1.5 for adjustment. M4 Series motors feature a robust and compact design with high radial and axial bearing capacity, suitable for both open and closed loop hydraulic systems.
Application Areas
Winch Drives (Core Application): The high starting torque characteristics of the M4 Series make it ideal for winch drive applications — engineering winches, marine winches, mining winches
Swing Drives: Excavator swing mechanisms, crane swing mechanisms, rotary drilling rig swing drives
Propulsion Drives: Wheeled engineering vehicle travel drives, tracked vehicle travel drives
Mobile Machinery: Concrete mixer truck drives, road roller drives, paver drives
Marine & Offshore: Deck winch drives, anchor windlass drives, steering gear drives
Industrial Equipment: Shredder drives, heavy-duty conveyor drives, metallurgical equipment drives
Material Handling: Conveyor drive drum, heavy-duty forklift drives, stacker drives
Expert Maintenance Tips
Pre-Installation Preparation:
Clean all ports and mounting flanges with lint-free wipes or clean compressed air before installation. Verify O-ring integrity. The M4C Series uses an SAE B 2-bolt flange, while the M4D Series uses an SAE C 2-bolt flange — confirm the flange specification matches the system before installation. Torque mounting bolts in a diagonal sequence over 2–3 passes. After installation, manually rotate the output shaft to confirm free and smooth rotation without binding.
Drain Port Management:
The M4 Series is an externally drained motor (some configurations offer internal drain option) — the case drain port must be connected to a drain line routed separately back to the reservoir with the end submerged below the oil level. Drain line back pressure must not exceed 2 bar; excessive back pressure will damage the shaft seal. The M4 Series low-pressure port pressure peak must not exceed 3.5 bar (peak 7 bar) — pay special attention to return line back pressure control during system design.
Hydraulic Fluid Selection & Viscosity Management:
Hydraulic fluid viscosity selection is critical for the M4 Series vane motor. The hydraulic fluid should be chosen so that the operating viscosity in the operating temperature range is within the optimum range; select the higher viscosity class in each case (e.g., VG 68 over VG 46). The M4 Series is designed to be compatible with low-lubricity hydraulic fluids (such as HF-1 fire-resistant fluids). When using HF-3, HF-4, HF-5 fire-resistant fluids, the operating pressure limits must be multiplied by a coefficient of 1.5 for adjustment. The case drain temperature, which is affected by pressure and speed, is always higher than the circuit temperature. At no point in the system may the temperature be higher than 115°C.
Cold Start Procedure:
For cold starts, the motor should be operated at low speed and pressure until the fluid warms up to an acceptable viscosity for full power operation. Sudden application of full load may cause insufficient lubrication between the vanes and cam ring, resulting in abnormal wear. Internal parts are lubricated by the operating fluid itself; therefore, preventive maintenance is limited to keeping the fluid clean and maintaining an acceptable viscosity range. System filters should be replaced frequently.
Periodic Inspection:
Check volumetric efficiency every 500 operating hours or quarterly. Test method: lock the output shaft at rated pressure and measure leakage flow. If leakage exceeds 10% of rated flow, internal wear has entered an accelerated phase — schedule service or replacement. Also inspect shaft seals for seepage and output shaft for abnormal noise or vibration. The vane, rotor, and cam ring cartridge assembly is interchangeable — replacing the cartridge can restore motor performance.
