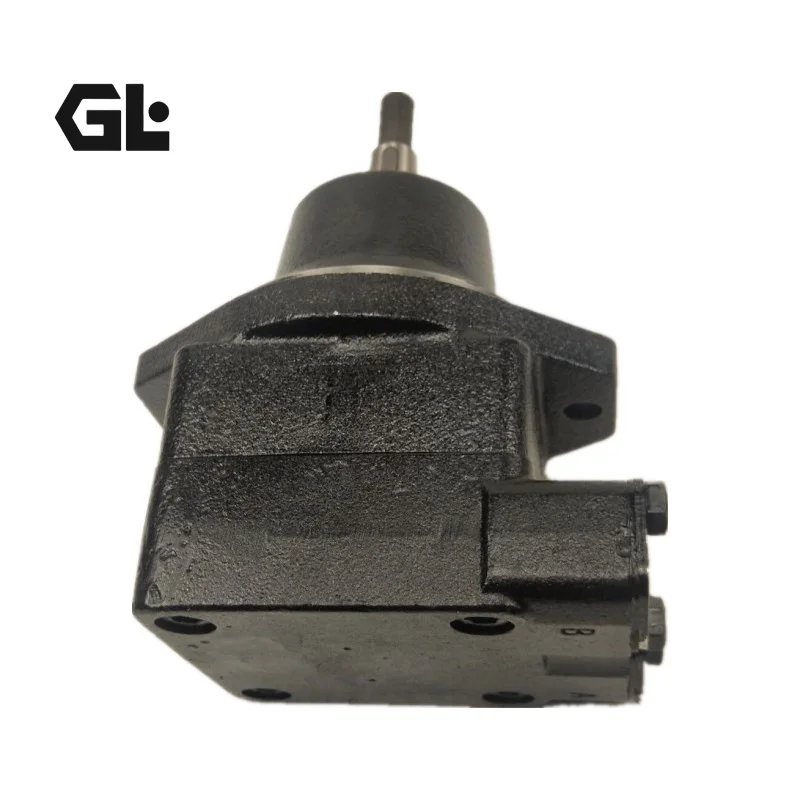

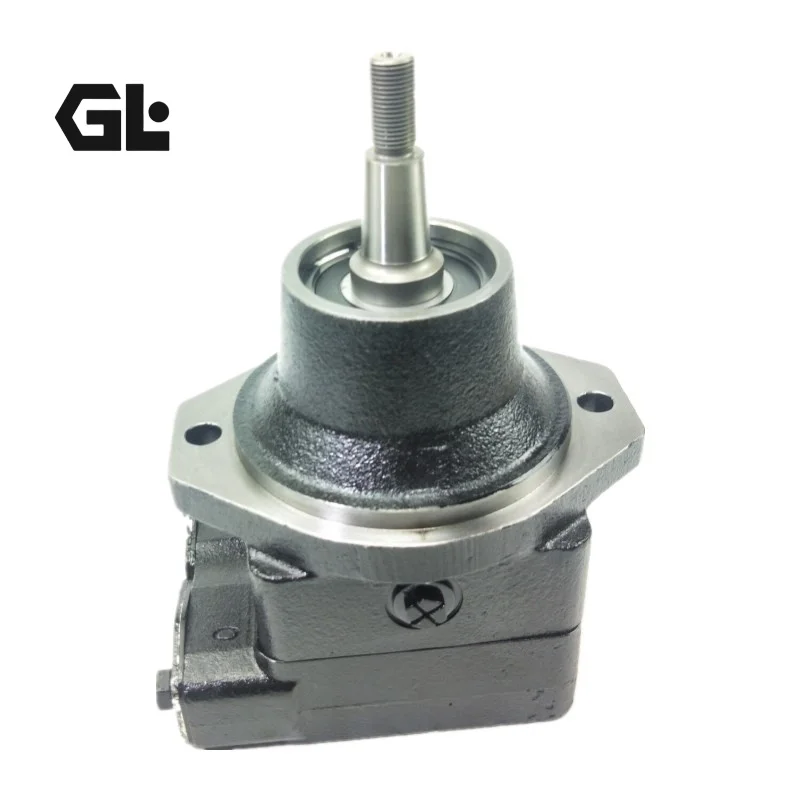

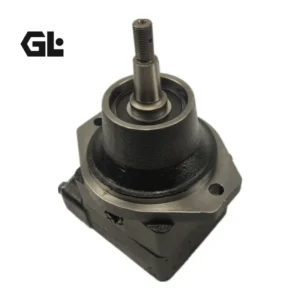

M5BS0183N00B102 Parker Denison Vane Motor 18cc 320bar

Product Overview

The M5BS0183N00B102 is a Parker Hannifin Denison M5B Series heavy-duty vane-type hydraulic motor. Engineered specifically for severe-duty applications, this fixed-displacement motor delivers reliable high-pressure, high-speed performance even under conditions of low fluid lubricity.

As a direct OEM-equivalent replacement solution for the Parker Denison M5B Series, this product offers complete in-situ interchangeability, strictly adhering to Denison’s original design specifications and mounting interface standards (SAE J744, ISO 3019-2). Every unit undergoes 100% simulated duty-cycle testing, ensuring that key performance metrics—including volumetric efficiency, torque characteristics, and case drain flow at rated pressure and full displacement—meet or exceed original factory specifications.

The complete ordering code M5BS0183N00B102 precisely defines every design detail: series designation (M5BS), displacement rating (018 = 18 cc/rev), control code (3N00), and shaft/port configuration (B102). This model features bi-directional rotation with external drainage, making it ideal for complex hydraulic systems requiring forward/reverse operation.

Technical Specifications

• Model Number: M5BS0183N00B102

• Series: Parker Denison M5B Series

• Motor Type: 12-Vane Hydraulic Motor

• Displacement: 18.0 cm³/rev

• Continuous Pressure Rating: 260–300 bar

• Intermittent Maximum Pressure: 320 bar (4650 PSI)

• Intermittent Maximum Speed (low load): 6000 RPM

• Rated Speed: 4000 RPM

• Rotation: Bi-directional

• Drain Type: Externally drained

• Mounting Flange: SAE “B” J744c (2/4 bolts – 4.00″ DIA / 101.6 mm)

• Port Connection: SAE 3/4″ 3000 psi (UNC or metric threads)

• Drain Port Size: SAE 6 – 9/16″ UNF, M12 x 1.5 Metric thread, 1/4″ BSPP, M18 x 1.5 Metric thread

• Shaft Type: Splined (SAE “B”, 13 teeth)

• Seal Material: Buna-N

• Hydraulic Fluid: Mineral Oil (HF-0, HF-2 types)

• Overall Efficiency: Up to 90% at 4650 PSI

• Torque Ripple: Typical ±1.5%

• Weight: Approx. 15–18 kg (configuration dependent)

Key Technical Advantages

1. 12-Vane Design with Ultra-Low Torque Ripple
The M5B Series features a 12-vane design combined with an advanced cam ring profile, delivering two torque cycles per revolution with minimal internal dead volumes. This engineering approach ensures exceptionally low torque ripple (typically ±1.5%) across the entire speed range—including low-speed operation—providing smooth and precise torque output.

2. Fully Pressure-Balanced Construction for Extended Service Life
The vanes, rotor, and cam ring are fully pressure-balanced across the entire speed range, significantly extending motor service life. Double-lip vanes reduce sensitivity to fluid contamination, enhancing system fault tolerance.

3. Superior Starting Torque Efficiency
Vane-type motors deliver exceptional starting torque efficiency, enabling smooth start-up under heavy loads without pressure overshoots, jerks, or instantaneous horsepower spikes. This characteristic is critical for applications requiring frequent start-stop cycles or heavy-load starting.

4. Ultra-Quiet Operation
The Denison vane technology is renowned for its superior noise control capabilities. The 12-vane configuration with patented cartridge design ensures remarkably low noise levels across the entire operating speed range. This makes the M5BS ideal for mobile equipment with stringent noise emission requirements.

5. Interchangeable Rotating Groups for Maximum Flexibility
Precision manufacturing enables complete interchangeability of all rotating group components. Rotating groups can be easily replaced to either refurbish the motor or adjust displacement to suit changing speed or torque requirements.

6. High-Alloy Steel Materials with Precision Surface Finishing
Vanes, rotor, and cam ring are manufactured from hardened high-alloy steels. The cast iron port plate and end cap are chemically etched to provide a fine crystalline surface, enabling improved lubrication during start-up. This material and process combination ensures long-term reliability under high-pressure, high-speed, and low-lubricity conditions.

Application Areas

• Fan Drive Systems: Directly mountable on radiator supports with minimal overall length—ideal for mobile equipment hydraulic cooling systems

• Construction Equipment: Excavators, Wheel Loaders

• Agricultural Machinery: Large Harvesters, Tractors

• Material Processing Equipment: Mixers, Shredders

• Compressor and Generator Drives

• Industrial and Marine Hydraulic Systems

Expert Maintenance Tips

1. Pre-Installation Inspection: Thoroughly review the Parker Denison M5 Series service manual prior to installation. Ensure alignment between the motor mounting flange and the drive mechanism meets SAE J744 or ISO 3019-2 specifications. The M5B-M5BS series is primarily designed for coaxial drives—avoid imposing axial or side loading on the shaft.

2. Fluid Cleanliness Control: Although the double-lip vane design reduces contamination sensitivity, maintain system fluid cleanliness at ISO 18/15/13 or higher. Perform complete system flushing before initial start-up.

3. Drain Line Configuration: This model features external drainage. Ensure the drain line returns directly to the reservoir with minimal back pressure (case drain pressure should not exceed 1.5–2 bar absolute). The drain line must remain unobstructed and should not be paralleled with high-pressure return lines.

4. Initial Start-Up & Priming: Before first start-up, pre-lubricate the motor by filling the housing with clean hydraulic fluid through the drain port. After start-up, run the motor at low load for several minutes to purge air from the motor and system lines.

5. Bi-Directional Rotation Precautions: This model supports bi-directional rotation. When reversing rotation direction, ensure system pressure has been fully released to prevent shock damage from high-pressure switching.

6. Scheduled Maintenance & Rotating Group Inspection: Follow the maintenance intervals specified in the Parker Denison service manual. Pay particular attention to vane, rotor, and cam ring wear. Thanks to the interchangeability of rotating groups, complete rotating group replacement can be performed when necessary to restore motor performance or adjust displacement specifications.
