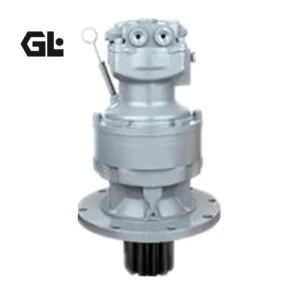

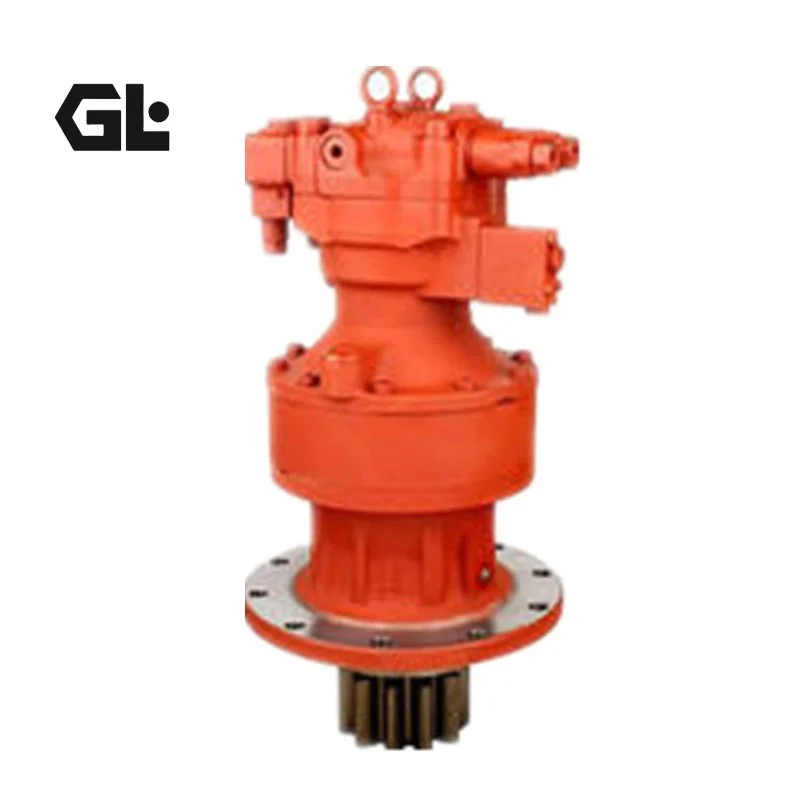

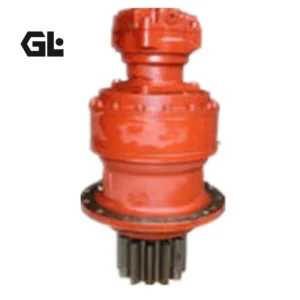

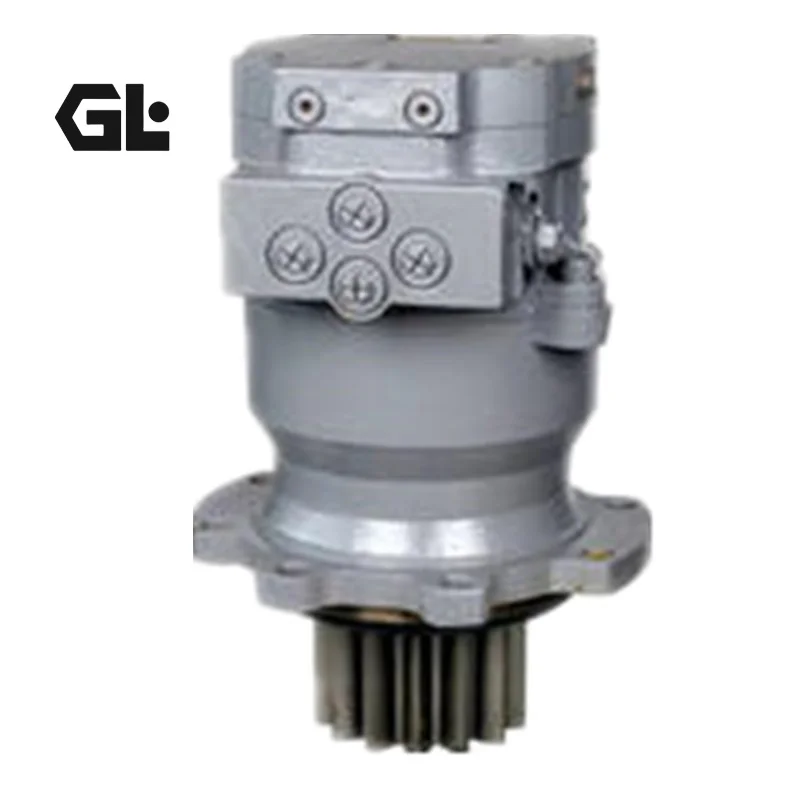

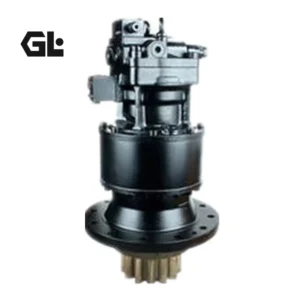

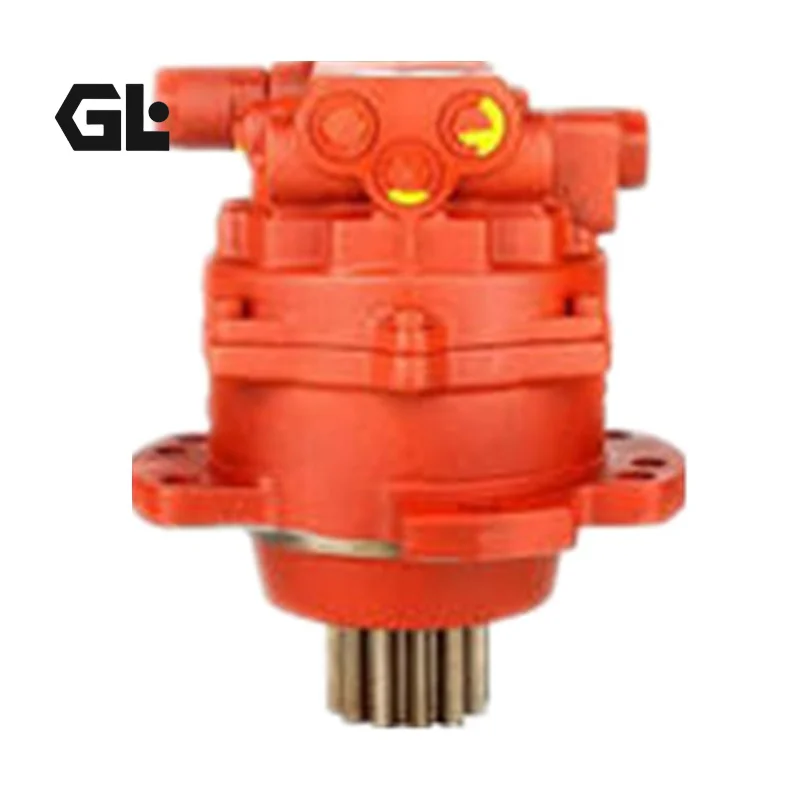

Kawasaki M5X180 Hydraulic Swing Motor | M5X180CHB-12A-A Excavator Swing Device

Genlu Hydraulic proudly presents the M5X Series hydraulic swing motors, meticulously engineered as high-performance power units tailored for the swing circuits of mid-to-large-sized excavators. This series comprehensively covers the iconic M5X180CHB-12A-A model and is backwards compatible with the M2X series (e.g., M2X70). As the heart of your swing assembly, Genlu’s M5X180 delivers 100% Drop-in Interchangeability in housing structure, valve plate design, rotating group assembly, and output shaft specifications with original Kawasaki units, requiring zero modifications to your existing installation space or plumbing. Backed by our rigorous 100% Simulation Load Testing, each motor undergoes comprehensive validation for starting torque, high-pressure leakage calibration, and dynamic rotation stability before dispatch. This ensures relentless torque delivery and superior system stability under continuous heavy-load swing operations.

Technical Specifications

• Product Series: Kawasaki M5X Series Bent-Axis/Piston Swing Motor

• Representative Model: M5X180CHB-12A-A (Suitable for 20-30 ton class excavators)

• Geometric Displacement: 180 cc/rev

• Rated Operating Pressure: 28 MPa (280 bar / 4060 psi)

• Max Peak Pressure: 35 MPa (350 bar / 5075 psi)

• Rated Speed: 1100 – 1300 rpm (Variable by displacement and motor configuration)

• Control Mode: Integrated control block with internal safety relief valves and brake release valves

• Product Weight: Approx. 85 kg – 95 kg (Varies by mounting flange configuration)

Key Technical Advantages:

• High-Pressure Bent-Axis Piston Architecture: Utilizing an advanced bent-axis design offers higher mechanical efficiency and superior lateral load resistance compared to conventional axial piston designs. This enables the motor to handle the immense shock torque generated during the rapid startup and braking of heavy swing assemblies.

• Integrated Precision Valve Plate: The valve plate is crafted from specialized high-hardness, wear-resistant alloys and precision-lapped to micron-level tolerances. This ensures high volumetric efficiency while minimizing “stick-slip” at low speeds, resulting in smooth, seamless swing starts and stops.

• Heavy-Duty Output Shaft & Anti-Wear Coating: The main output shaft is forged from high-tensile steel, subjected to deep-case carburizing and precision grinding. Coupled with reinforced deep-groove ball bearings, it maintains high coaxiality under heavy radial loads, preventing overheating and premature seal failure.

• Built-in Brake Safety Module: The motor rear-end features an integrated brake release valve and backpressure compensation valve. This ensures smooth unloading and rapid, secure braking during high-speed deceleration, protecting the entire machine’s swing bearing from hydraulic shock damage.

Application Areas:

• Construction Excavators: Upper-structure swing systems for 20-30 ton tracked excavators.

• Specialty Lifting Equipment: Hydraulic cranes and rotating platforms requiring precise positioning.

• Heavy-Duty Machinery: Swing power units for port material handlers and aerial work platforms.

Expert Maintenance Tips:

• Brake Relief Check: If you experience jerky rotation or weak braking performance, immediately check the pressure setting of the brake release valve. Ensure the brake is fully disengaged during operation to prevent internal dragging and excessive heat generation.

• Backpressure Limitation: Avoid high backpressure in the return line at all costs. Excessive backpressure not only drains motor output torque but also induces leakage at the shaft oil seal. Ensure your return-line filter is unblocked and maintain backpressure below 0.5 MPa.

• Never Run Dry: Upon installation, always fill the motor housing with clean hydraulic fluid through the top drain port. Starting the motor without pre-filling leads to dry friction between pistons and the valve plate, causing immediate, catastrophic metal-on-metal scoring.
