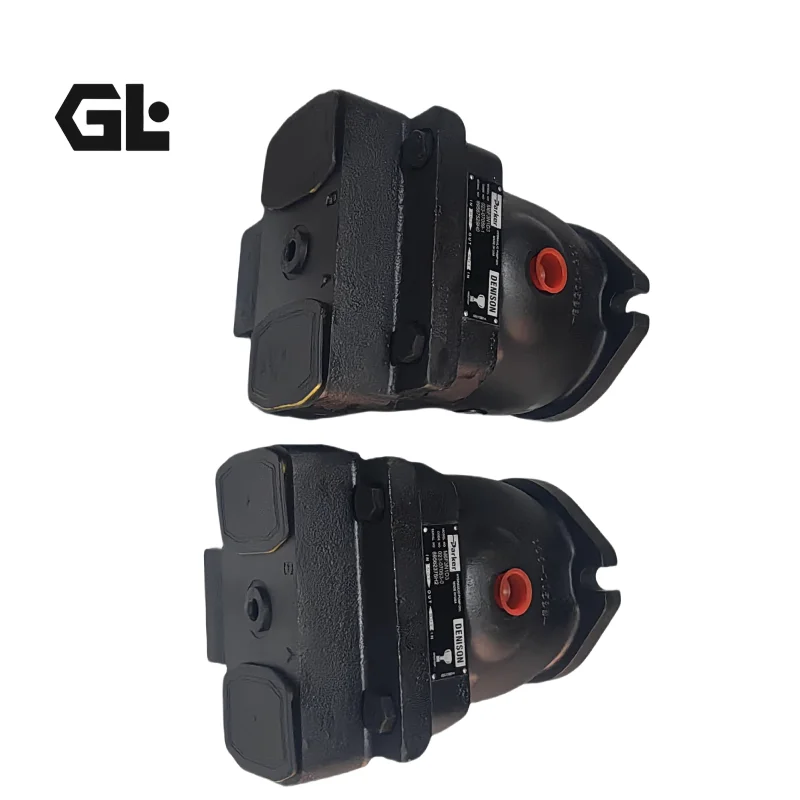

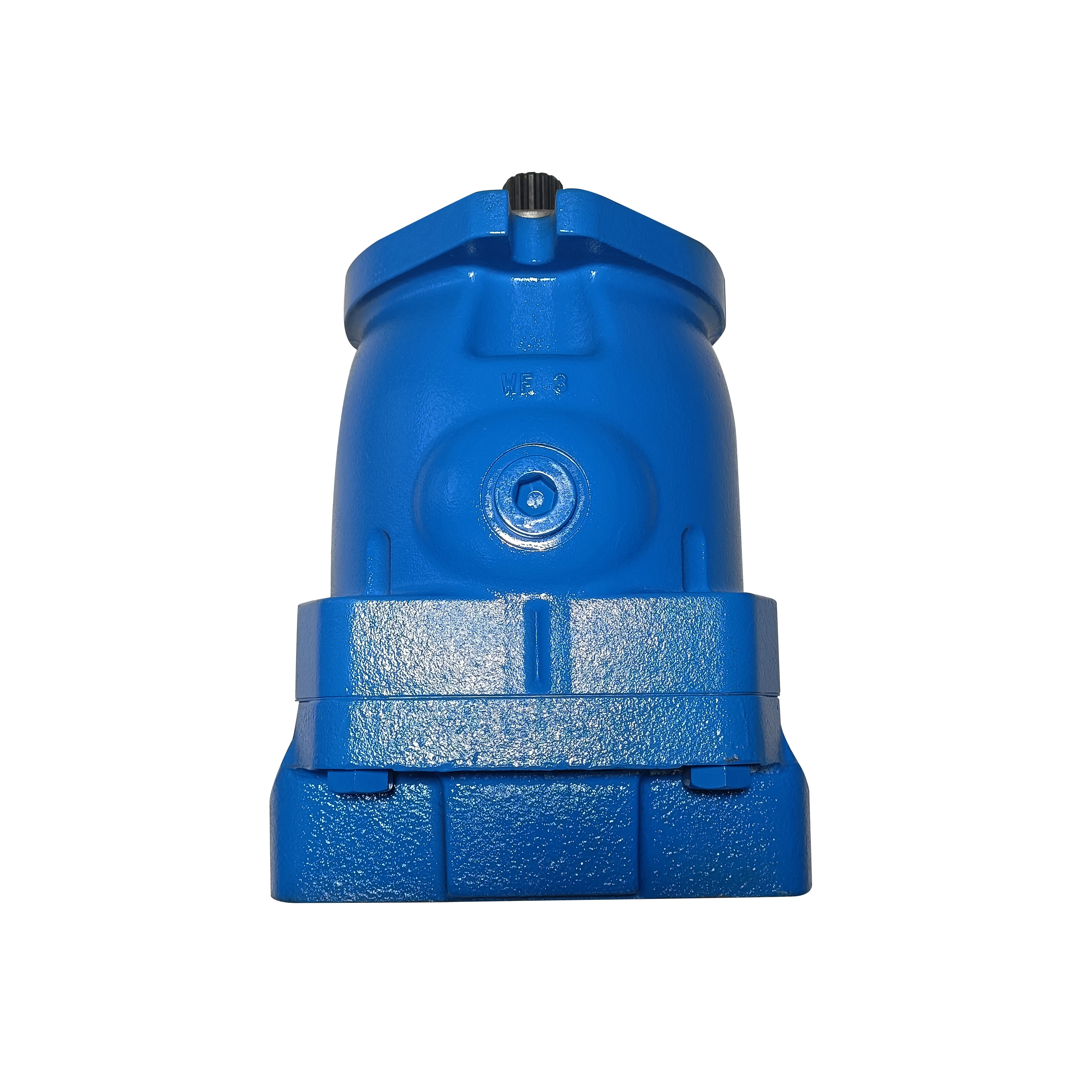

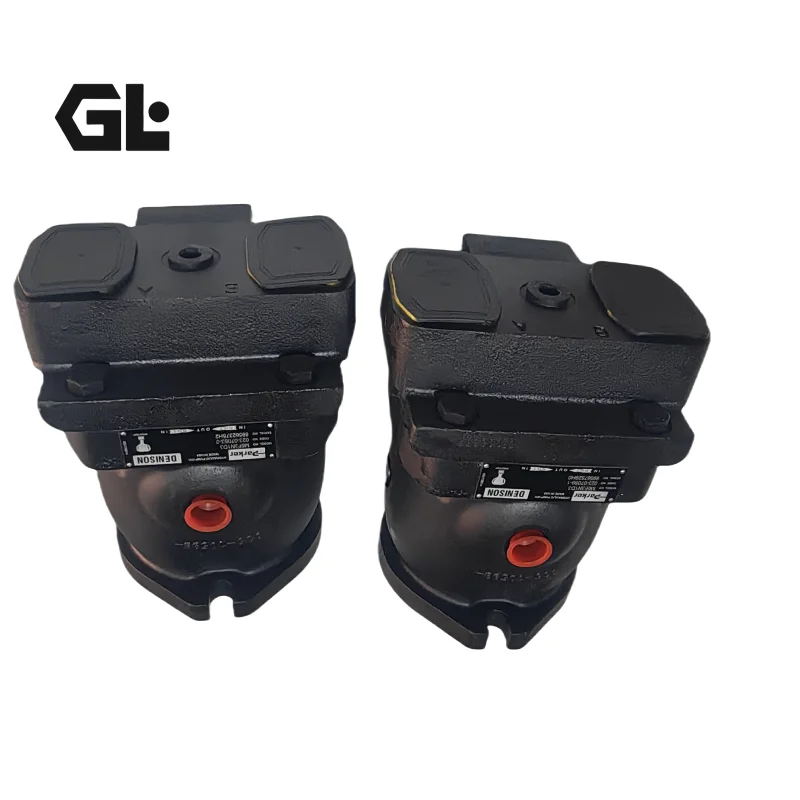

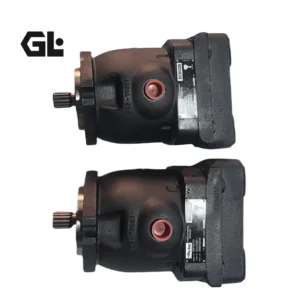

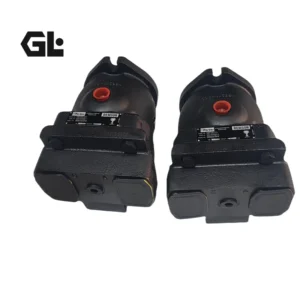

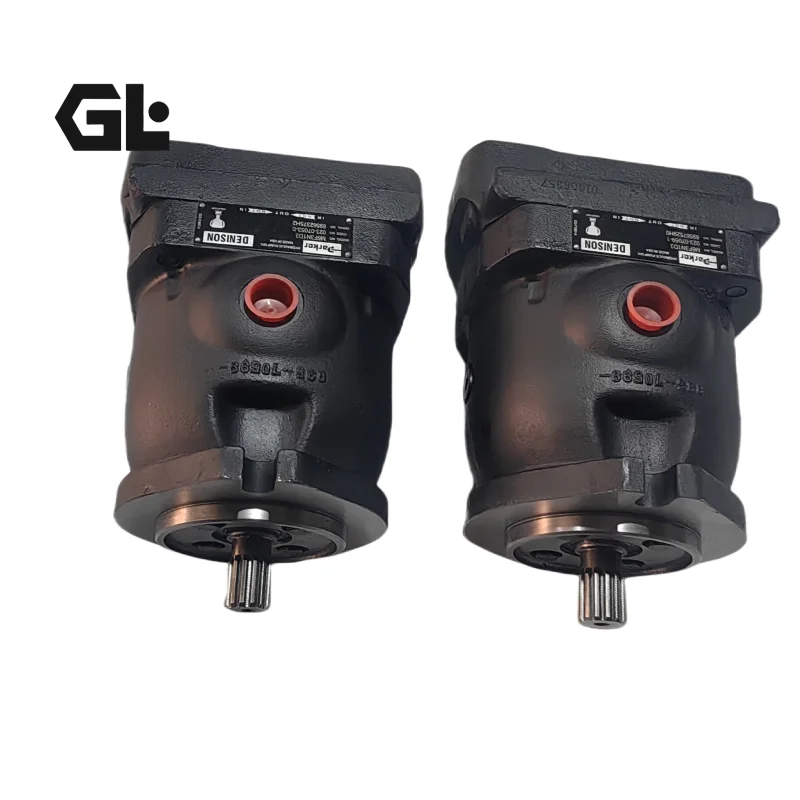

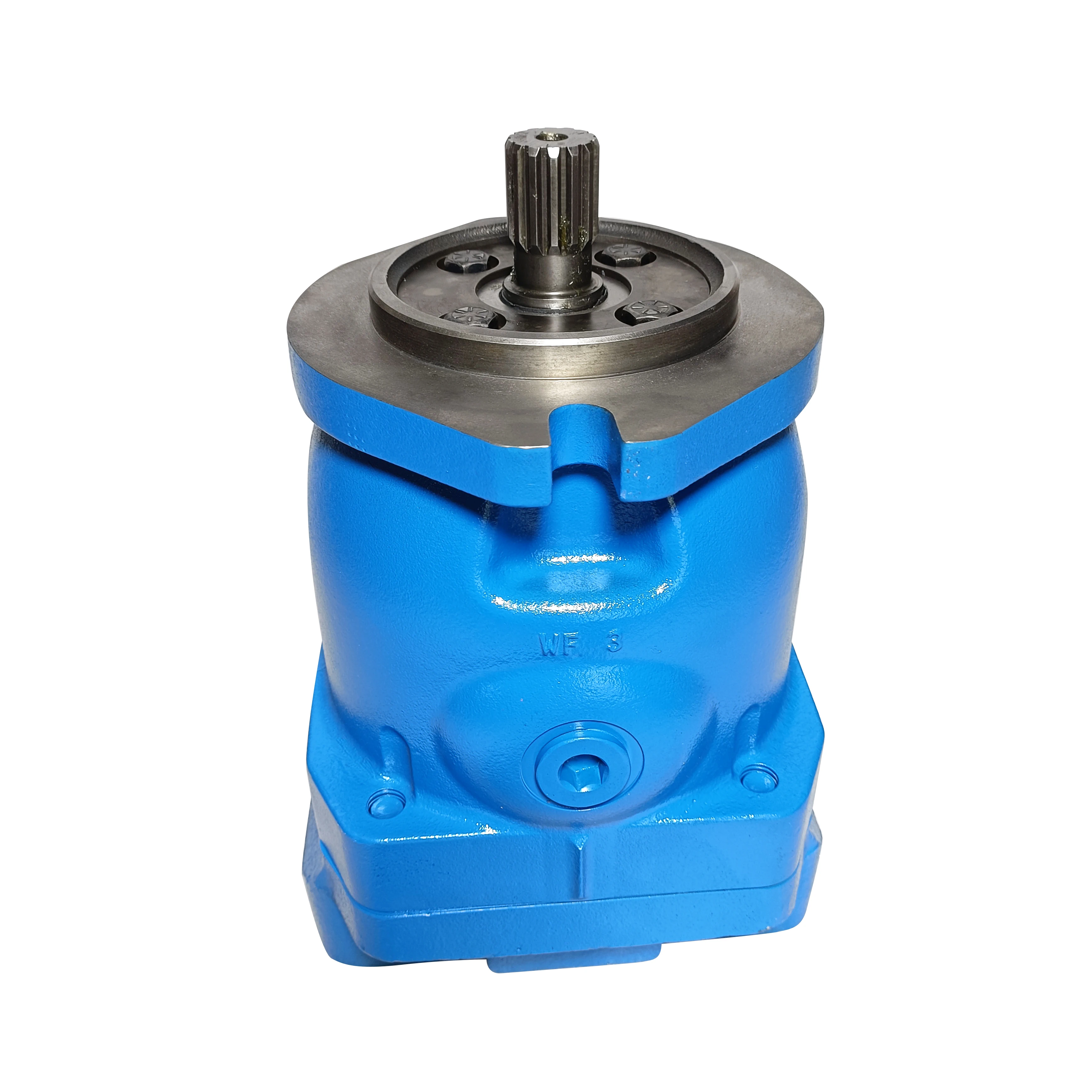

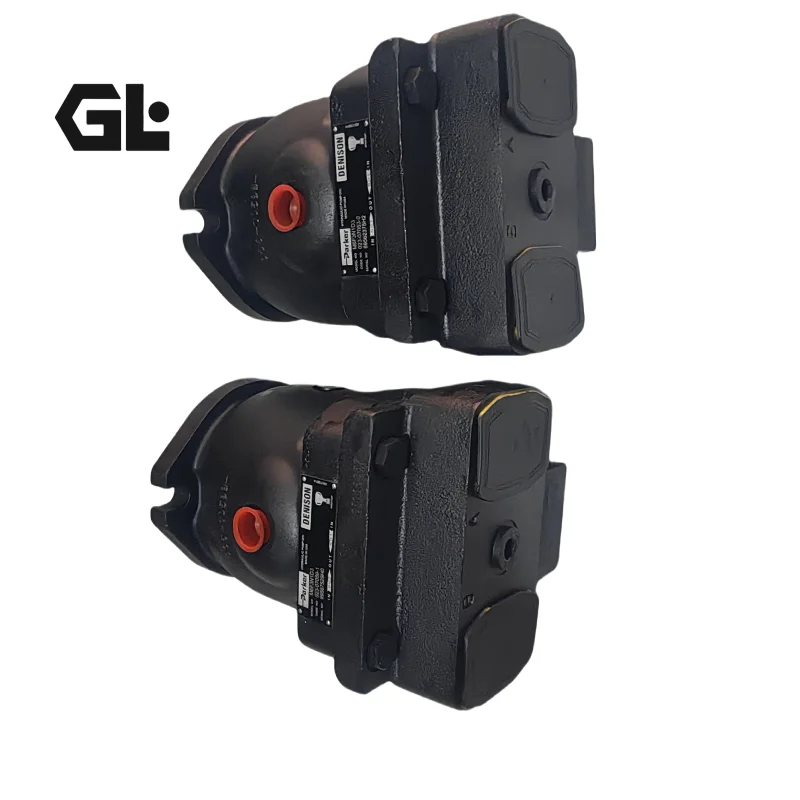

Denison Gold Cup M6F Pump Replacement | M6F2N1D M6F3N1D Hydrostatic Pump

Genlu Hydraulic retrofits, engineers, and supplies premium, closed-loop fluid technology and ultra-high pressure axial piston units optimized for the world’s most severe marine, subsea, and heavy industrial applications. The Denison Gold Cup M6F Series Heavy-Duty Hydrostatic Pump/Motor is purpose-built as a precision-machined, high-volumetric-efficiency, and 100% drop-in interchangeable alternative to the definitive elite baseline of heavy hydrostatic drives—the Parker Denison Gold Cup product lines (encompassing M6, M7, M11, M14, M24, and M30 frame sizes across F & G variations). We maintain advanced flexible production protocols and a ready-to-ship distribution network for all prominent part numbers and control configurations, including M6F2N1D (Part Number: 023-06843-5), M6F2N5D3, M6F3N1D2, and M6F3N5D.

The Denison Gold Cup platform is globally respected for its outstanding resistance to fluid contamination, microsecond servo responsiveness, and continuous operational pressure thresholds up to 420 bar. It serves as the primary muscle driving heavy hydraulic pile hammers, deep-sea winches, tunnel boring machine (TBM) cutterheads, and high-capacity mining machinery. Genlu’s M6F series hydrostatic units align perfectly with original Denison product manuals. We guarantee full drop-in mechanical interchangeability across standard SAE mounting flanges, dual-列 tapered bearing stabilization zones, internal rocker-cam servo linkages, and standard involute splined or straight keyed drive shaft tolerances. Prior to shipping clearance, every hydrostatic assembly undergoes 100% Full-Simulation Condition Testing on high-power digitized test loops to verify continuous cross-port pressure stability, precise servo tracking, and internal auxiliary charge pressure relief parameters under maximum rated load conditions.

Technical Specifications

• Product Series: Gold Cup M6F Series Heavy-Duty Hydrostatic Piston Pump/Motor (100% cross-compatible with Denison 6 Series)

• Core Covered Specific Configurations:

  • M6F2N1D Model (Part Number: 023-06843-5, M6F frame, integrated auxiliary charge pump, SAE C 4-bolt flange, standard splined drive shaft)

  • M6F2N5D3 Model (M6F frame, modified with custom pilot control valve assembly or thru-drive configuration rear extensions)

  • M6F3N1D2 Model (M6F frame, configured without internal charge pump variant or calibrated for specific servo metering)

  • M6F3N5D Model (M6F frame, tailored for remote external auxiliary charge oil supply configurations)

• Geometric Displacement Metric: 98.3 $cm^3/rev$ ($6.00\,in^3/rev$ per single rotating group. Gold Cup platform extends from M6 up to M30 envelopes)

• Continuous Rated Operating Pressure: 350 bar (35.0 MPa / 5075 psi) continuous closed-loop circuit loading

• Maximum Intermittent Peak Pressure: Rated up to 420 bar (42.0 MPa / 6000 psi) transient shock load capability

• Maximum Permissible Continuous Velocity: Up to 3000 rpm (Conditioned under optimized absolute auxiliary inlet boost pressure)

• Control Device Logic Designation: Code 2N/3N (Heavy-duty mechanical servo actuator or hydraulic proportional pilot control, equipped with integrated adjustable cross-port high-pressure relief valves)

• Drive Shaft Profiles: Code 1 – SAE Standard Involute Splined Shaft; Code 5 – High-Torque Cylindrical Keyed Shaft extension

• Main Fluid Connection Interfaces: Standard SAE 4-bolt split flange ports (Main lines configured with 1″ or 1-1/4″ SAE 6000 psi high-pressure specifications)

• Total Assembly Dry Mass: Approximately 69.0 kg (High power-density structural allocation)

Key Technical Advantages:

• Hydrostatically Balanced Rocker Cam Swashplate Architecture: Unlike standard piston pumps that utilize trunnion-mounted swashplates, the M6F features a wide-contact cradle rocker-cam design riding on heavy needle bearings, backed by a constant hydrostatic oil balancing film on the rear track. This mechanical design reduces friction forces near zero when shifting orientation under full 420 bar loads, enabling microsecond response times and eliminating the localized metal spalling common in regular swashplates.

• All-in-One Integrated Closed-Loop Valve Package: The rear manifold valve block integrates dual high-pressure cross-port relief valves, an internal closed-loop system hot-oil shuttle valve, and an auxiliary charge relief regulator. This highly integrated design eliminates extensive external plumbing, prevents oil leaks caused by high-frequency pressure spikes, and maintains hot-oil exchange circulation efficiency.

• Mechanical Slipper Retainer & High-Wear Bi-Metallic Port Plate: To mitigate piston cylinder scuffing common in aggressive mobile environments, the rotary group features a rigid mechanical slipper retainer plate that forces the piston slippers to track flat against the swashplate face, completely eliminating slipper lift-off. The cylinder block and port plates are joined using a thermal diffusion bonding process to fuse high-wear bronze alloy to a steel substrate, enhancing resistance to localized friction scoring.

• Full-Power Thru-Drive Capacity for Simplified PTO Modular Cascading: The primary drive shaft is stabilized by high-capacity front and rear heavy bearings, engineered to support 100% full-power thru-drive power take-offs (PTO). Users can directly stack secondary auxiliary axial piston units, medium-pressure gear auxiliary charge units, or multi-stage pilot pumps onto the rear flange without using an external splitter gearbox, saving engine compartment space.

Application Areas:

• Marine Engineering & Subsea Logistics Instruments: High-torque maritime deck machinery systems, deep-sea non-linear winch drums, and primary hoisting circuits on offshore cranes.

• Underground TBM & Heavy Mining Automation: Closed-loop hydraulic motor drives powering tunnel boring machine cutterheads and track drive systems for heavy-duty mining blast-hole drills.

• Heavy Duty Infrastructure & Specialized Geotechnical Rigs: Slurry wall grab mechanisms, high-frequency hydraulic impact piling hammers, and main hydrostatic transmission loops for deep rotary drilling units.

Expert Maintenance Tips:

• Rigorous Monitoring of Auxiliary Charge Pressure and Hot-Oil Exchange Balance: The M6F2N1D hydrostatic pump relies on its internal charge boost loop to supply cooling and lubricating oil to the slipper pads and to actuate the servo controls. Install a calibrated charge pressure gauge; the circuit must maintain between 24-28 bar during operation. If charge pressure drops below 18 bar, stop the machine immediately to check the filters. Low charge pressure can cause high-pressure cross-port cavitation, leading to rapid, catastrophic piston seizure.

• Mandatory Configuration of Case Flushing Infrastructure: Because Gold Cup pumps operate continuously above 300 bar in a closed hydrostatic loop, the internal friction heat generation is substantial. To manage temperatures, utilize the integrated hot-oil shuttle valve in the rear end-cover to route a dedicated case flushing line back to the reservoir via a heat exchanger. This continuous exchange keeps the pump case oil temperature below 65°C, preventing premature thermal hardening and breakdown of the high-pressure viton shaft seals.

• Synchronize Servo Ramp Settings When Swapping Units: When replacing an existing pump assembly (such as OEM part number 023-06843-5) with a Genlu replacement, verify the internal pilot orifice screw specifications on the servo block before initial startup. In dual-pump installations driving a single large-displacement motor, the servo pilot response timing must be perfectly matched to balance the load evenly across both pumps, preventing mechanical resonance or engine lugging.
