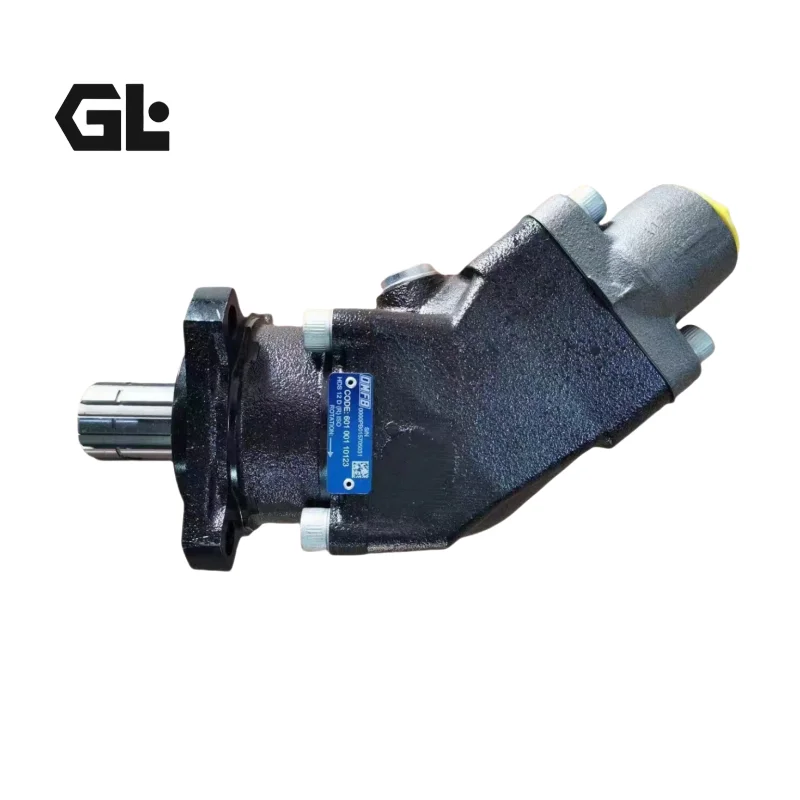

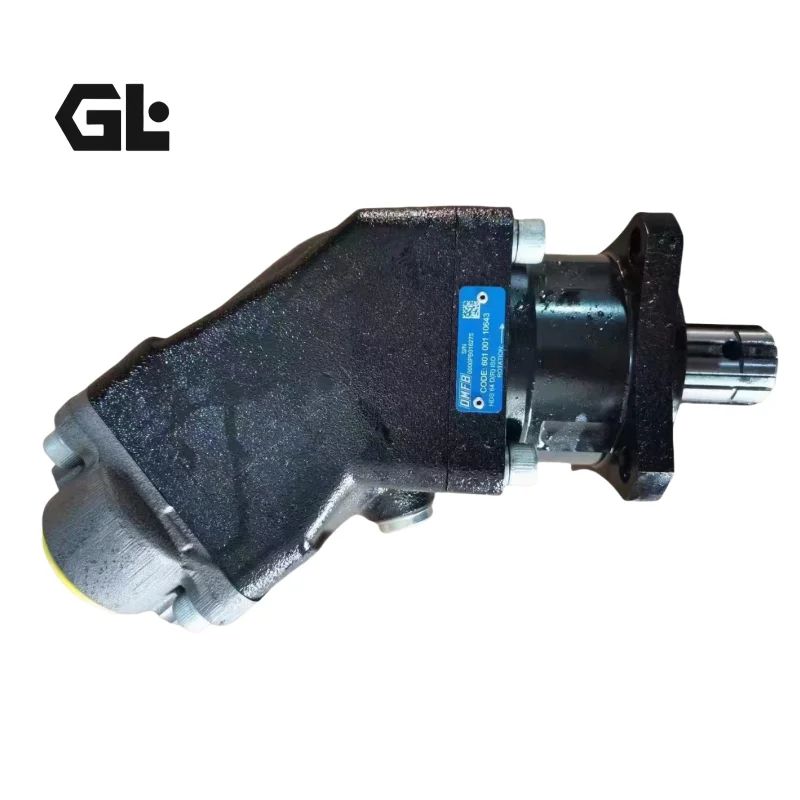

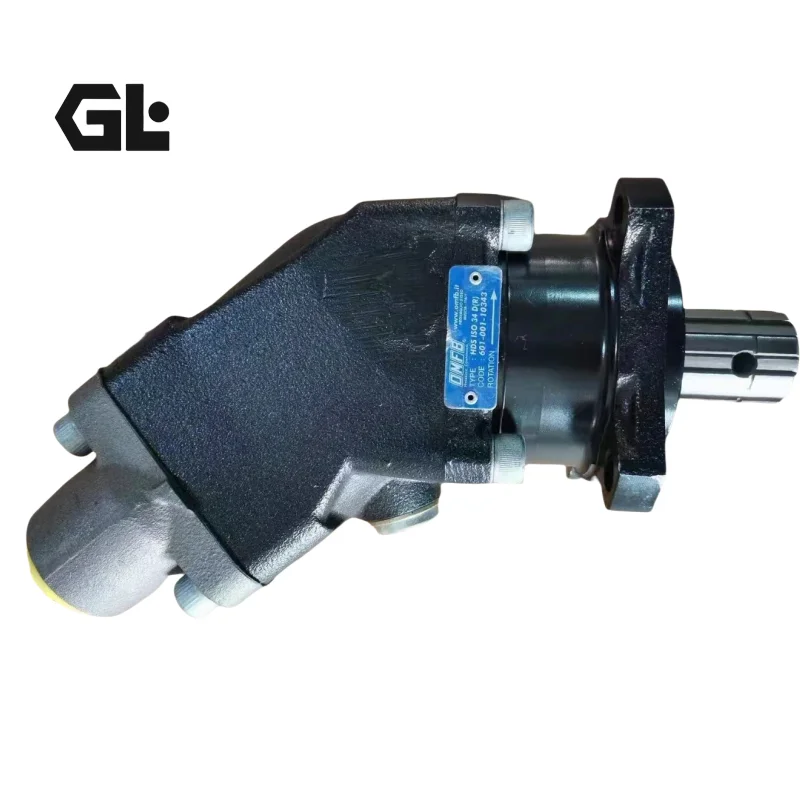

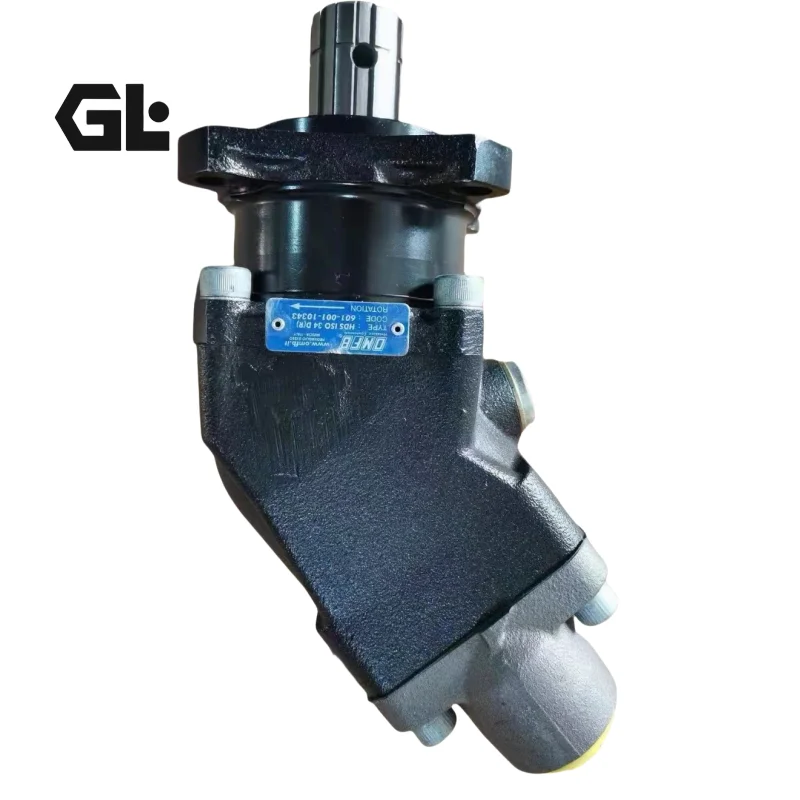

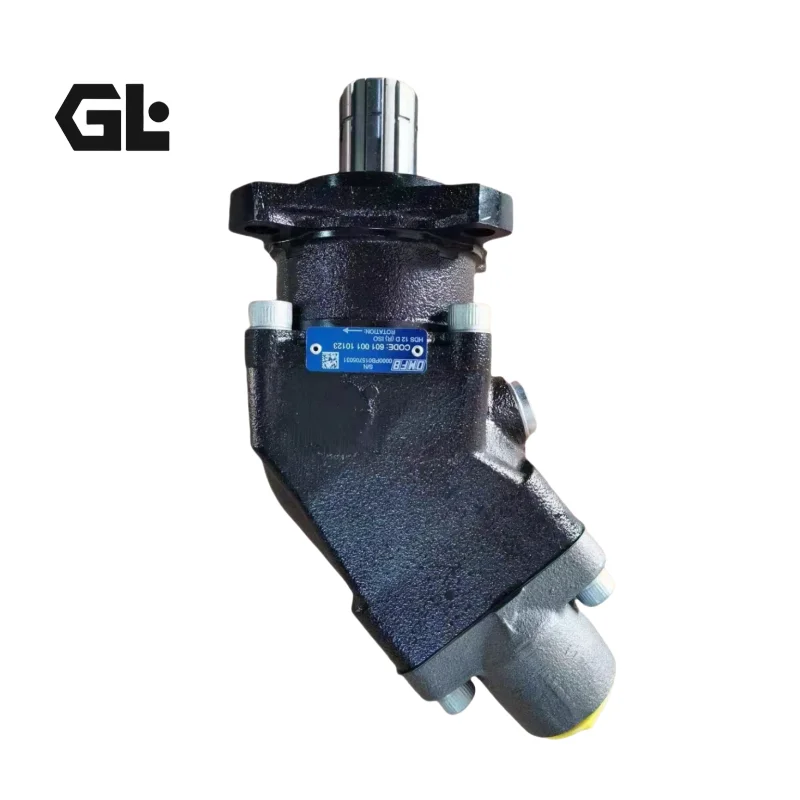

MA80 Series Bent Axis Hydraulic Motor 80cc Replacement

Genlu Hydraulic stands as an elite-tier global developer and precision manufacturer of industrial heavy-duty fluid power machinery, high-pressure bent-axis piston motors (Bent-Axis Motors), and specialized motion control systems for global B2B supply channels. The MA80 Series High-Performance Bent-Axis High-Pressure Hydraulic Axial Piston Motor Line—featuring a premium 80cc/rev fixed displacement configuration and engineered as a 100% drop-in interchangeable high-tier alternative to the definitive 40 MPa high-speed bent-axis technical standard deployed across global heavy machinery engineering and planetary winches (directly matching specific operational configuration codes such as MA80 C S1 MO U2 0 0 SV F)—represents a highly reliable rotary drive solution. Celebrated throughout heavy industrial mobile platforms for its classic 40° steep-angle spherical valve plate kinematics, this series generates extreme power density, excellent mechanical starting efficiency, and massive transient torque output within a highly optimized envelope.

Under brutal job-site environments—such as a heavy-duty concrete mixer truck fighting thick mud while fully loaded, a rotary drilling rig penetrating hard granite bedrock, or an industrial wood tub grinder digesting hardwood logs—the hydraulic motor functions as the ultimate high-strain workhorse. It continuously endures harsh alternating peak overpressures frequently surging beyond 45 MPa, alongside intense centrifugal dynamics and heavy lateral shear stresses inside the rotating barrel assembly. Low-grade aftermarket alternatives failing to secure deep uniform induction-hardening across the piston-connecting rod ball heads, or utilizing low-density bimetallic sintering on the curved spherical valve plate, fail under thermal spikes above 75°C. This results in connecting-rod breakage, complete cylinder barrel separation from the valve plate that causes immediate loss of drive torque, or catastrophic driveshaft bearing disintegration that cripples the machine’s entire drivetrain. Genlu’s premium MA80 series replacement line is reverse-engineered to duplicate the exact factory 40° bent-axis channel topology, high-strength monoblock cast iron housing metallurgy, and hydrostatically balanced spherical matching interfaces specified in technical manuals. Whether validating standard ISO 4-bolt / SAE heavy-duty mounting flanges, high-torque splined driveshafts, or specific rear-port configurations (including U2-style dual side/rear ports, integrated purge systems, or speed sensor provisions), our bent-axis motors guarantee 100% mechanical and functional drop-in interchangeability. Prior to delivery, each assembly is verified on our 160 kW Digital Closed/Open-Loop Motor Test Stands under Full-Simulation Conditions to evaluate high-pressure starting torque, volumetric sealing efficiency under high RPMs, and case pressure limits, ensuring immediate out-of-the-box performance.

Technical Specifications

• Product Valve Classification: MA80 Series High-Pressure Ultra-Low-Noise Bent-Axis Axial Piston Hydraulic Motor Platform

• Nominal Geometric Displacement: 80.0 $cc/rev$ (High-power-density frame configuration)

• Core Cross-Reference Complete Technical Ordering Code: MA80 C S1 MO U2 0 0 SV F

• Model Identification Technical Code Breakdown:

  • MA80: Core Series Identifier and Nominal Geometric Volumetric Displacement (80cc Frame Size)

  • C: Bent-Axis Piston Layout Designation (Classic 40° steep-angle rotating barrel group)

  • S1: Main Driveshaft Interface Type (Standard high-torque involute splined shaft optimized for heavy industrial/mobile machinery)

  • MO: Mounting Flange Standard (Universal heavy-duty 4-bolt industrial mounting flange)

  • U2: Rear Cover Port Configuration (Standard U2 side/rear symmetric threaded working ports for simplified plumbing)

  • 0 0: Non-Variable Direct Displacement Setting (Fixed displacement configuration)

  • SV: Integrated Circuit Safeguard Interface (Equipped with or prepared for an integrated loop flushing/shuttle valve assembly for closed-loop thermal cooling management)

  • F: Standard High-Wear Retaining Seal (Equipped with high-performance NBR or Viton FKM heavy-duty shaft seal)

• Continuous Rated Nominal Operating Pressure Boundary: 40.0 MPa (400 bar / 5800 PSI) for prolonged high-pressure cycles

• Maximum Permissible Transient Peak Overpressure Shock Threshold: Up to 45.0 MPa (450 bar / 6525 PSI) to resist severe systemic spikes

• Maximum Permissible Continuous Rotational Speed Limits: Rated from 4500 RPM up to 5000 RPM depending on minimum circuit loop backpressures

• Maximum Theoretical Dynamic Output Torque Capability: Delivers over 500 N·m of continuous torque at a nominal 40 MPa pressure differential

Key Technical Advantages:

• 40° Steep-Angle Spherical Valve Plate Technology: Features an advanced self-aligning spherical interface between the rotating cylinder barrel and the valve plate. Under high speeds and heavy pressure cycles, the cylinder is hydrostatically pressed against the plate, automatically compensating for micro-scale deviations caused by external vibrations to maintain volumetric efficiency above 96%.

• Monoblock Forged High-Alloy Connecting Rod Pistons: Piston and connecting rod assemblies are precisely forged from military-grade chrome-nickel alloy steel, with the rod ball heads subjected to deep induction hardening. With surface hardness exceeding HRC 60, these components withstand rapid alternating stresses at 45 MPa, preventing rod breakage or joint separation under sudden heavy load changes.

• Integrated Loop Flushing Valve Assembly (SV – Shuttle Valve): Features an integrated high-response loop flushing and shuttle valve block in the rear cover. When running in a closed-loop system, the valve automatically diverts 1.5–3 L/min of hot fluid from the low-pressure side into the housing to carry away frictional heat through the case drain, ensuring reliable oil film lubrication even at 80°C oil temperatures.

• Large-Span Opposed Tapered Roller Driveshaft Bearings: The main driveshaft is supported by a large-span array of premium opposed tapered roller bearings at the front end. This layout handles severe combined axial and radial forces, allowing the shaft to be driven directly via gears or belts while withstanding high belt tension or gear meshing loads for over 6,000 hours of continuous service.

Application Areas:

• Heavy Construction Engineering and Concrete Logistics: Drum drive systems for heavy concrete mixer trucks (6 to 10-cubic-meter capacities) and high-load hoisting winches for diaphragm wall grabs.

• Specialized Geotechnical Piling Machinery and Trenchless Equipment: High-capacity auxiliary rotary heads for crawler drilling rigs and primary rotation/thrust drives for horizontal directional drilling (HDD) units.

• Industrial Heavy Lifting, Deck Machinery, and Forestry Equipment: High-pressure crane winches for large-tonnage truck or crawler cranes and high-speed rotor knife drives for heavy industrial wood chippers.

Expert Maintenance Tips:

• Mandatory Pre-Fill Sequence Prior to On-Site Commissioning: High-speed bent-axis motors rely entirely on fluid inside the case to lubricate the front bearings and connecting rod joints. Before connecting the case drain line and initiating startup, fill the motor housing with clean hydraulic oil through the highest available case drain plug. Manually rotate the driveshaft 5–8 times by hand to distribute a protective oil film across the spherical valve plate and bearing races to prevent immediate dry-run damage.

• Unrestricted Large-Diameter Case Drain Pipe Line Rule: At operating speeds above 3,000 RPM, internal case leakage increases as part of normal operation. Route the independent case drain line directly to the reservoir without passing through filters or coolers, and do not combine it with main system return lines. Ensure continuous case internal pressure stays below 0.2 MPa (2 bar) with transient spikes under 0.4 MPa to prevent shaft seal failure or piston linkage instability.

• Maintain Hydraulic Fluid Cleanliness Above NAS Grade 8 with Scheduled Leakage Testing: Due to the high surface velocities across the spherical valve interface, bent-axis motors are sensitive to abrasive particulate contamination. Maintain system fluid cleanliness at or above NAS Grade 8 (ISO 4406 18/15/12) using high-efficiency 10-micron filters. Measure the case drain volume every 2,000 hours of operation; a noticeable increase in case leakage indicates wear on the spherical valve plate and means it should be serviced to avoid system-wide contamination.
