MBC5000-1011-1CB04 064G1118 060G3628 Danfoss Pressure Switch Transmitter

Product Overview

This product range covers three major Danfoss product lines: MBC 5000 series pressure switches, MBS 8250 series pressure transmitters, and MBS 3050 series pressure transmitters, specifically designed for marine, industrial hydraulic, and heavy-duty applications.

• MBC5000-1011-1CB04 (061B201266) : Part of the Danfoss MBC 5000 series compact pressure switches, featuring a bellows sensing element for low-pressure monitoring in harsh marine environments such as ship engine rooms. Based on Danfoss modular block design, the MBC series offers extremely high vibration resistance and is approved by all major marine classification societies (ABS, BV, DNV, GL, LR, etc.). The fixed, low differential pressure ensures accurate monitoring of critical pressures.

• 064G1118 (MBS8250-2011-C1GB04-1) : Part of the Danfoss MBS 8250 series compact pressure transmitters, range 0–250 bar, equipped with an integrated pulse snubber, specifically designed for severe hydraulic applications with cavitation, liquid hammer, or pressure peaks.

• 060G3628 (MBS3050-3431-E3GB04-2) : Part of the Danfoss MBS 3050 series compact heavy-duty pressure transmitters, range 0–250 bar, sealed gauge reference, 4–20mA output. Designed for hydraulic applications with severe media influences such as cavitation, liquid hammer, or pressure peaks.

Our complete range of Danfoss products strictly adheres to OEM technical standards, achieving 100% direct interchangeability with original components. Every unit undergoes 100% simulated operating condition bench testing prior to shipment, ensuring performance parameters are fully consistent with genuine Danfoss products. Direct replacement significantly reduces equipment downtime and maintenance costs.

Technical Specifications

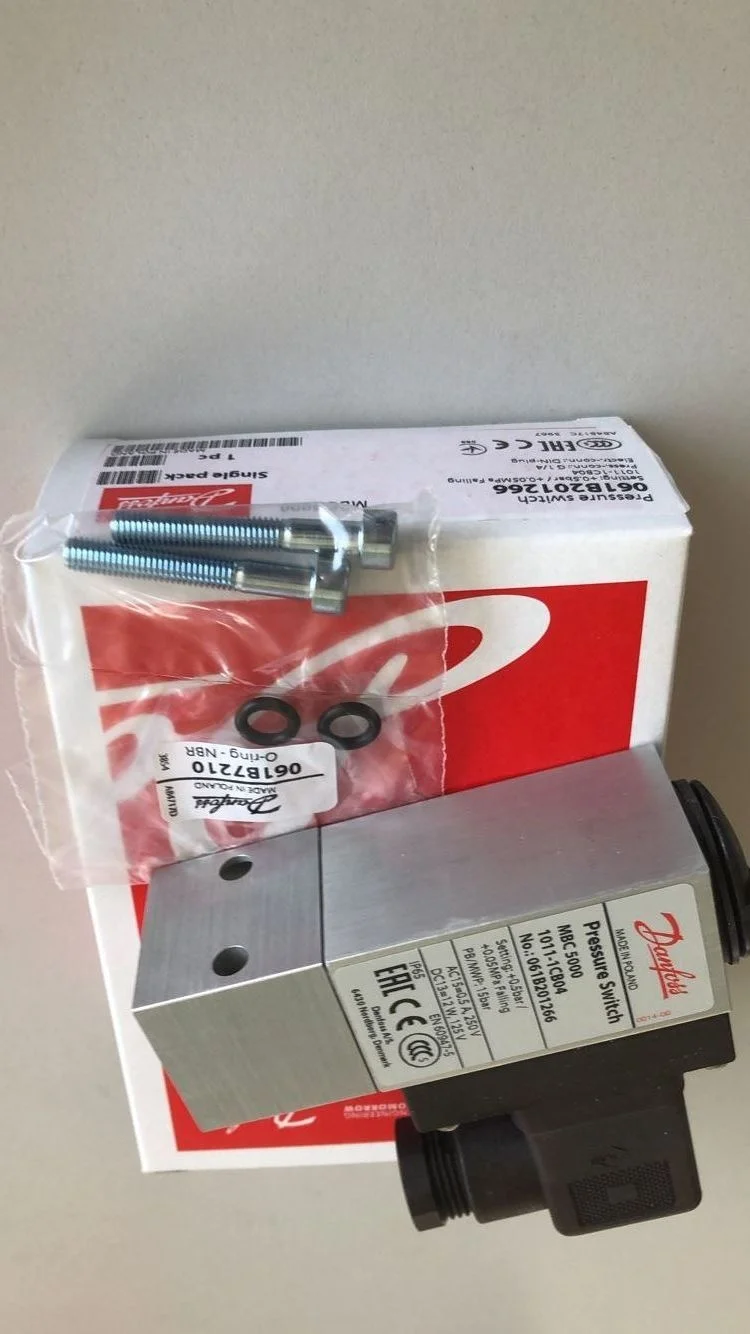

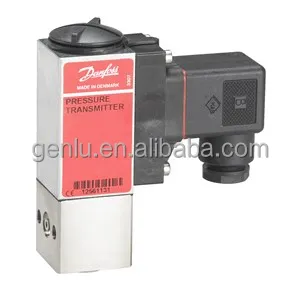

MBC5000-1011-1CB04 (061B201266)

• Product Series: Danfoss MBC 5000 series compact pressure switch

• Model Code: MBC5000-1011-1CB04

• Material Number: 061B201266

• Brand: Danfoss

• Product Type: Compact pressure switch

• Regulation Range: -0.2 – 1 bar

• Factory Setting: 0.5 bar (falling)

• Differential (@Min–@Max Setting) : 0.3 – 0.45 bar

• Sensing Element: Bellows

• Contact Form: SPDT

• Contact Rating: AC15=0.5 A / 250 V; DC13=12 W / 125 V

• Max. Working Pressure: 15 bar

• Test Pressure: 15 bar

• Burst Pressure: 30 bar

• Ambient Temperature Range: -40°C to +85°C

• Pressure Connection: G1/4″ female (ISO 228-1)

• Electrical Connection: PG11 plug (DIN 43650 A / EN 175301-803-A)

• Enclosure Rating: IP65

• Weight: Approx. 0.188 kg

• Approvals: CCC, CE, EAC, LVD, RoHS, UKCA, etc.

064G1118 (MBS8250-2011-C1GB04-1)

• Product Series: Danfoss MBS 8250 series compact pressure transmitter

• Model Code: MBS8250-2011-C1GB04-1

• Material Number: 064G1118

• Brand: Danfoss

• Product Type: Compact pressure transmitter

• Pressure Reference: Gauge

• Measuring Range: 0 – 250 bar

• Output Signal: 4 – 20 mA

• Response Time (10–90%) : < 4 ms

• EMC Protection: 100 V/m

• Integrated Pulse Snubber: Yes

• Media Temperature Range: -40°C to +125°C

• Wetted Parts Material: AISI 316L stainless steel

• Enclosure Rating: IP65 / IP67

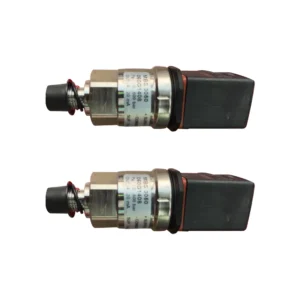

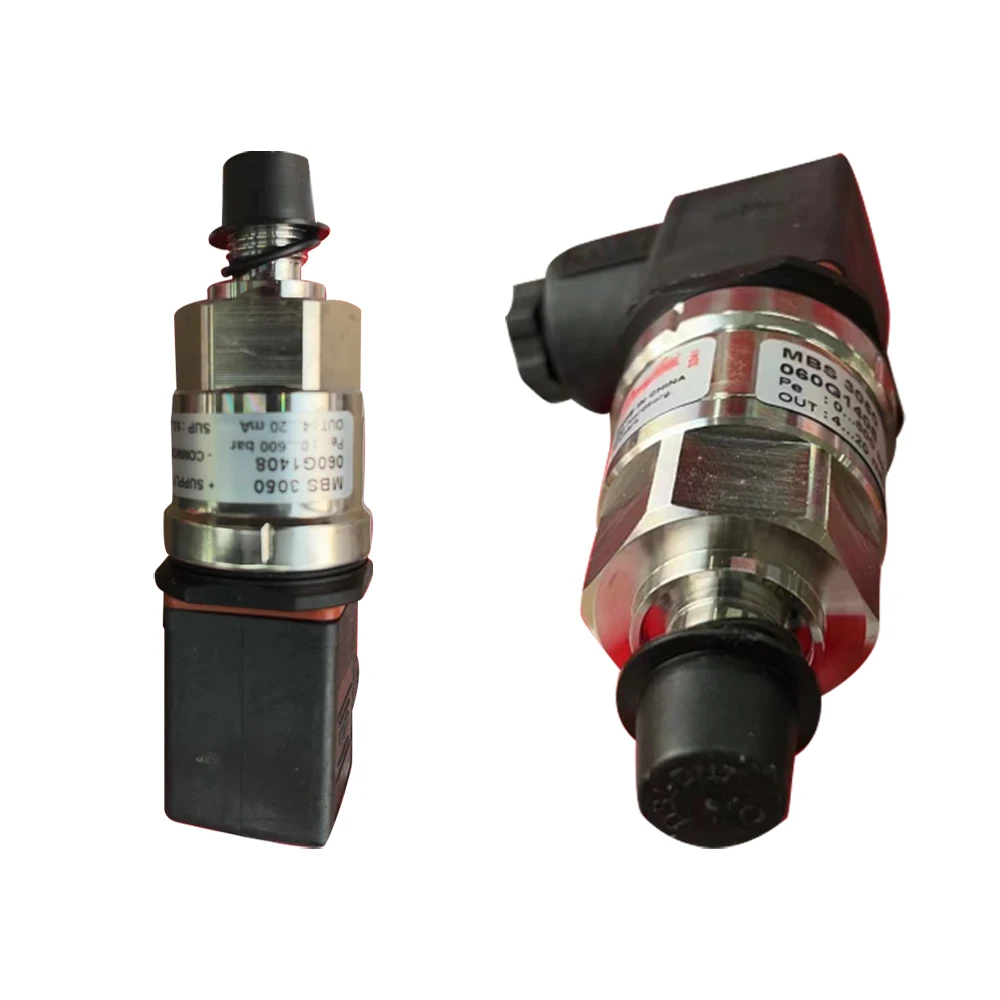

060G3628 (MBS3050-3431-E3GB04-2)

• Product Series: Danfoss MBS 3050 series compact heavy-duty pressure transmitter

• Model Code: MBS3050-3431-E3GB04-2

• Material Number: 060G3628

• Brand: Danfoss

• Product Type: Compact pressure transmitter

• Pressure Reference: Sealed gauge

• Measuring Range: 0 – 250 bar

• Output Signal: 4 – 20 mA

• Accuracy (Typical) : ≤ ±0.5% FS

• Accuracy (Max) : ≤ ±1% FS

• Non-linearity (BFSL) : ≤ ±0.5% FS

• Overload Pressure (Max) : 1500 bar

• Autofrettage Pressure: 1600 bar

• Supply Voltage: 9 – 32 V DC

• Electrical Connection: M12×1 / 4-pin

• Pressure Connection: G1/4″ male (DIN 3852-E / ISO 1179-2)

• Pressure Connection Hex Size: 27 mm

• Ambient Temperature Range: -25°C to +85°C

• Media Temperature Range: -40°C to +85°C

• Compensated Temperature Range: 0°C to +80°C

• Enclosure Rating: IP67

• Approvals: CE, C UL US (UL Recognized)

• Net Weight: Approx. 0.142 kg

Key Technical Advantages

1. Three-Series Coverage – Marine-Grade Switches and Heavy-Duty Transmitters

The MBC 5000 series is a marine-grade compact pressure switch based on Danfoss modular block design, approved by all major classification societies. The MBS 8250 and MBS 3050 series are heavy-duty pressure transmitters designed for hydraulic applications with cavitation, liquid hammer, or pressure peaks. Together, these three series cover the full application spectrum from marine pressure monitoring to industrial hydraulic measurement.

2. Integrated Pulse Snubber for Severe Media Influences (MBS 8250)

The MBS 8250 series is equipped with an integrated pulse snubber, specifically designed for hydraulic applications with cavitation, liquid hammer, or pressure peaks. This design effectively protects the sensor from pressure shock damage, significantly extending service life.

3. High Accuracy and Fast Response

The MBS 3050 series delivers typical accuracy ≤ ±0.5% FS. The MBS 8250 series offers response time < 4 ms, meeting the demanding requirements of dynamic pressure measurement.

4. Excellent Vibration Stability and EMC Performance

The MBC 5000 series offers extremely high vibration resistance, specifically designed for harsh marine environments such as ship engine rooms. The MBS 8250 and MBS 3050 series provide EMC protection up to 100 V/m, delivering stable, accurate signals even near strong electromagnetic interference sources.

5. Wide Temperature Operating Range

The MBC 5000 series supports an ambient temperature range of -40°C to +85°C. The MBS 8250 series supports media temperatures up to +125°C. The MBS 3050 series supports a media temperature range of -40°C to +85°C. From freezing environments to high-temperature operations, stable measurement performance is maintained.

6. Compact Robust Design for Space-Saving Installation

The MBC 5000 series is based on a modular block design with compact footprint. The MBS 3050 series weighs only 0.142 kg, with M12×1 electrical connection and G1/4″ pressure connection significantly saving installation space. With IP65–IP67 ingress protection, reliable operation is ensured in dusty, splash-water, and harsh environments.

7. 100% Direct Interchangeability and Simulated Condition Testing

All models strictly adhere to Danfoss original mounting dimensions and interface standards, enabling direct drop-in replacement of original products without piping modification or system adjustment. Every unit undergoes 100% simulated operating condition bench testing prior to shipment, ensuring consistent, stable performance at rated pressure and temperature.

Application Areas

MBC5000-1011-1CB04 (Pressure Switch) :

• Marine & Offshore: Engine room pressure monitoring, ballast water systems, fuel oil systems, lubrication oil system pressure alarming

• Industrial Hydraulic Systems: Limit value alarming for hydraulic power units and stations

• Compressed Air Systems: Pressure monitoring for low-pressure pneumatic systems

064G1118 / 060G3628 (Pressure Transmitters) :

• Marine & Offshore: Pressure measurement for engine rooms, steering gear, ballast water systems

• Industrial Hydraulic Systems: System pressure monitoring and control for hydraulic power units and stations

• Construction Machinery: Pressure measurement for excavators, wheel loaders, and other mobile equipment

• Wind Power: Pressure monitoring for wind turbine hydraulic systems

• Process Industries: Process pressure measurement in chemical and pharmaceutical industries

Expert Maintenance Tips

1. Verify Model and Range Compatibility Prior to Installation

• MBC5000-1011-1CB04: Regulation range -0.2–1 bar, max working pressure 15 bar—do not use in systems exceeding 15 bar

• 064G1118 / 060G3628: Both have 0–250 bar range—confirm system operating pressure does not exceed 250 bar

2. Correct Installation Torque and Sealing

The MBC 5000 series features G1/4″ female thread (ISO 228-1) pressure connections. The MBS 3050 series features G1/4″ male thread (DIN 3852-E) pressure connections with hex size 27 mm. Use a torque wrench during installation to the torque value specified in Danfoss technical manuals. Use OEM-specification O-rings or bonded sealing washers—PTFE tape must not be used (it may block internal sensor passages). Ensure piping is clean prior to installation to prevent debris from damaging the sensing element.

3. Electrical Connection Precautions

• MBC5000-1011-1CB04: Features PG11 plug (DIN 43650 A / EN 175301-803-A) , SPDT contacts, contact rating AC15=0.5A/250V, DC13=12W/125V

• 060G3628: Features M12×1 / 4-pin electrical connection, supply pin Pin 1, common Pin 4

• Verify load current and voltage do not exceed contact ratings prior to wiring

4. Pulse Snubber Maintenance (MBS 8250)

The MBS 8250 series is equipped with an integrated pulse snubber. Over extended service, the snubber may become partially blocked by fine particles in the medium. Periodically check transmitter response time—if significantly slower response is observed, the pulse snubber may require cleaning or replacement.

5. Mounting Position and Vibration Protection

Both MBC 5000 and MBS series offer excellent vibration stability and can be mounted in any orientation. For extreme vibration applications, mechanical decoupling via flexible pressure hose connection is recommended.

6. Temperature Effects

The MBC 5000 series ambient temperature range is -40°C to +85°C. The MBS 3050 series compensated temperature range is 0°C to +80°C. Under extreme temperature conditions, perform zero-point calibration during system commissioning to eliminate measurement deviations caused by installation location temperature variations.

7. Periodic Calibration and Functional Checks

• MBC 5000: Perform functional checks every 2,000 operating hours or annually to verify switching point accuracy and contact reliability

• MBS 8250 / MBS 3050: Perform calibration checks every 12 months to verify that output signal vs. pressure correspondence remains within specification (≤±0.5% FS typical). If abnormal signal drift or output anomalies are observed, arrange for servicing or replacement.
