060G6101 060G6102 060G1401 060G1113 060G1125 060G1133 Danfoss Pressure Transmitter 4-20mA

Product Overview

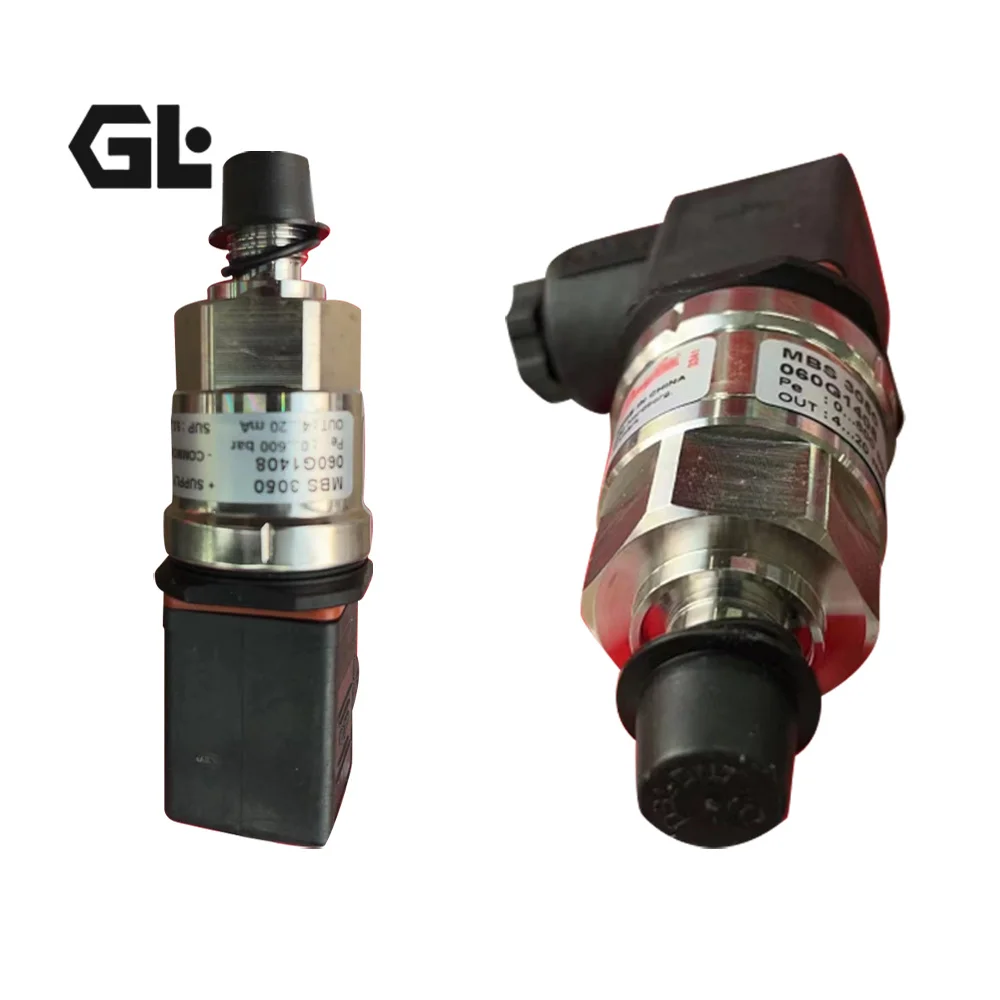

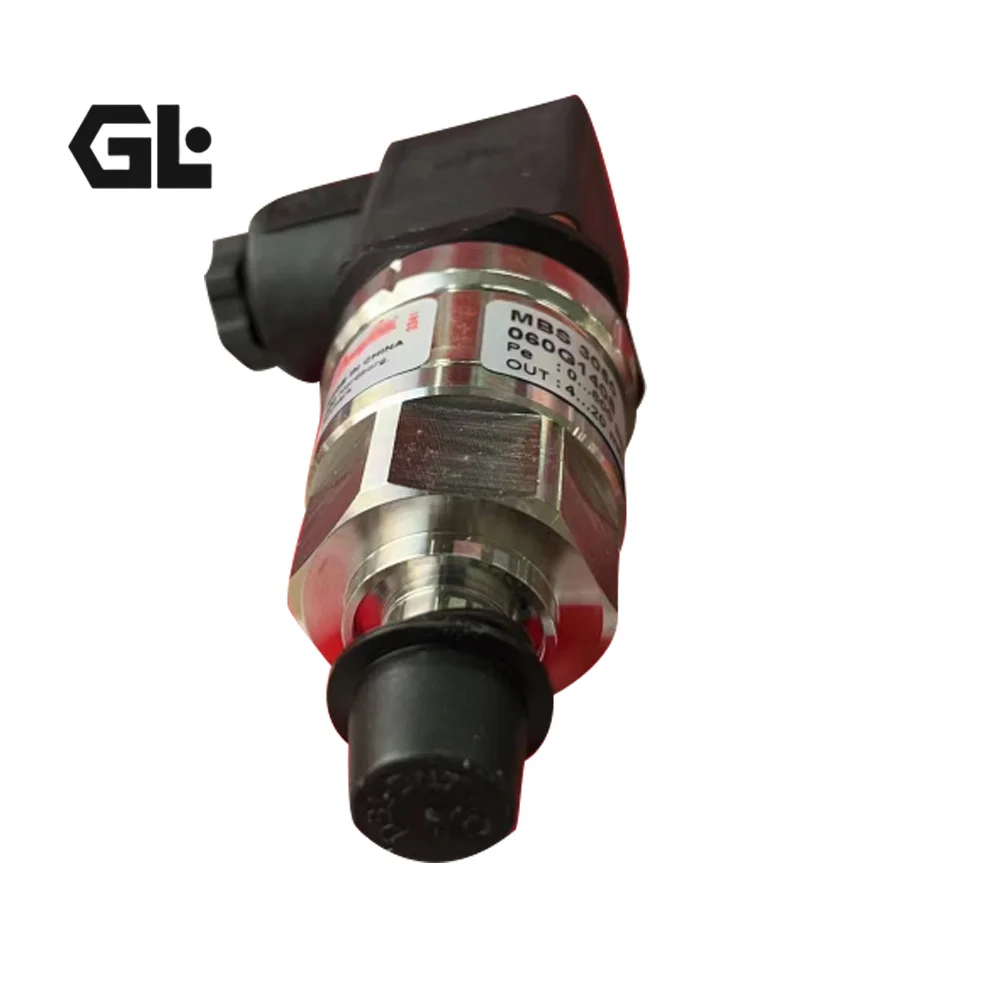

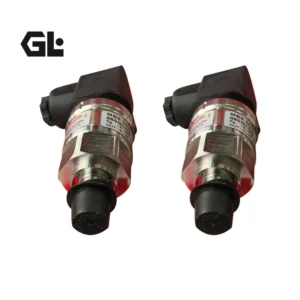

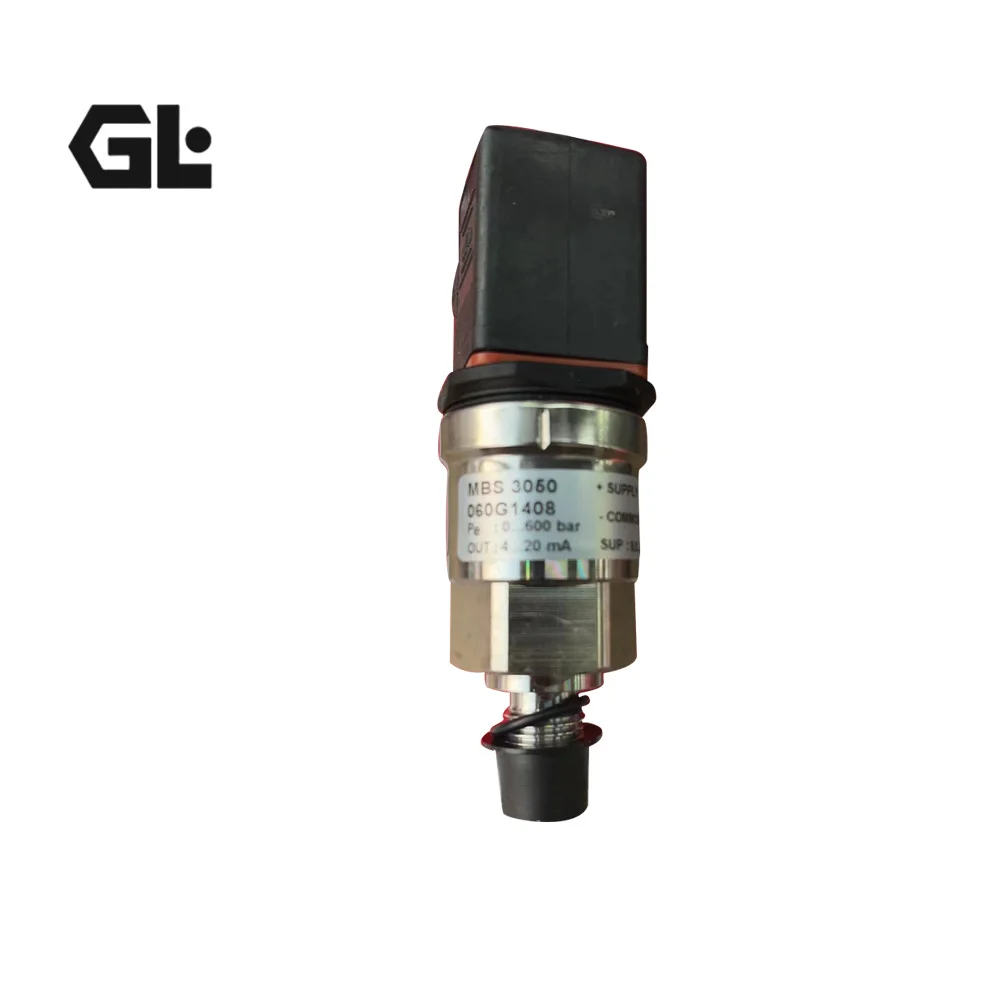

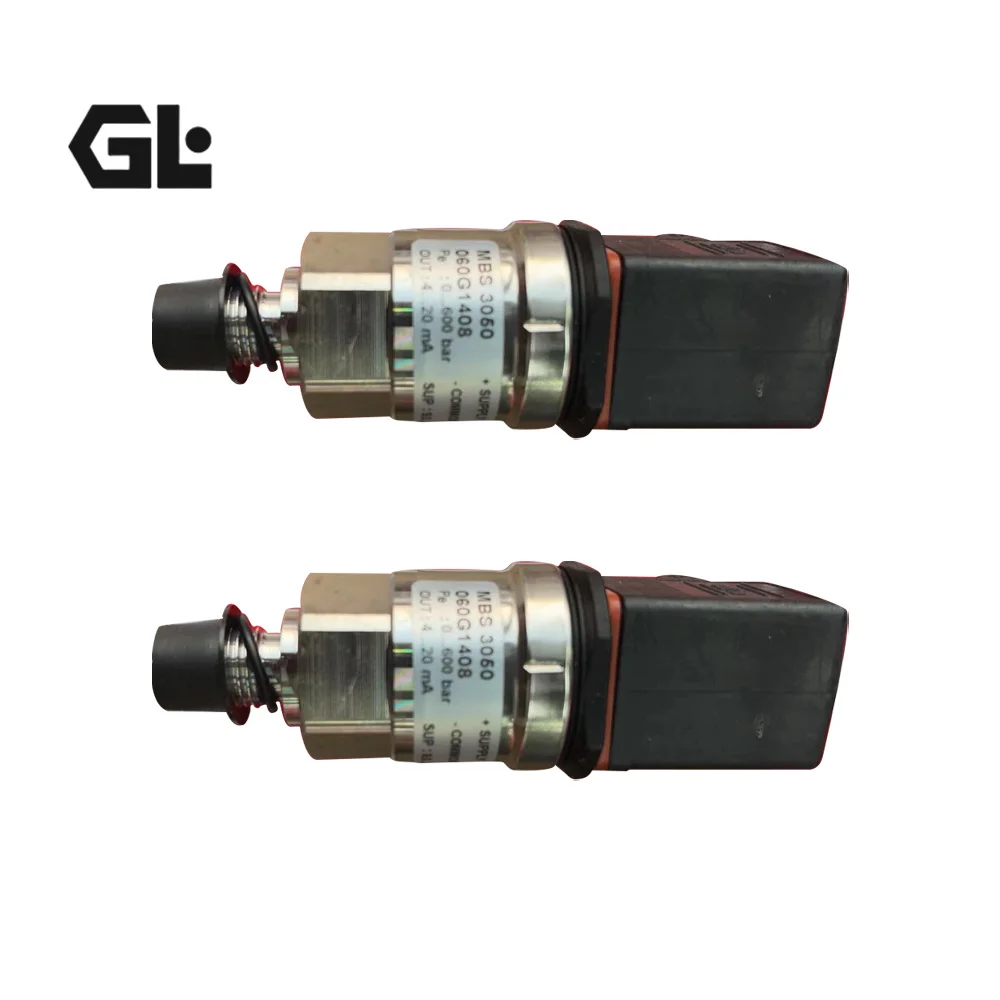

The MBS 3000 and MBS 1700 series pressure transmitters are compact pressure measurement solutions engineered by Danfoss for industrial and hydraulic applications, widely used in hydraulic systems, pneumatic equipment, and process control. Featuring advanced piezoresistive sensing technology with fully digital temperature compensation and signal conditioning, these transmitters deliver stable and reliable pressure measurements even under harsh environmental conditions.

Our complete range of Danfoss pressure transmitters strictly adheres to OEM technical standards, achieving 100% direct interchangeability with original components. Every unit undergoes 100% simulated operating condition bench testing prior to shipment, ensuring performance parameters are fully consistent with genuine Danfoss products. Direct replacement of same-model Danfoss transmitters significantly reduces equipment downtime and maintenance costs.

⚠️ Model Attribution Note: The original title references “MBC / MBS / MBC3000” as general product series descriptors. Verified sources confirm that 060G6101 and 060G6102 belong to the Danfoss MBS 1700 series; 060G1401, 060G1113, 060G1125, and 060G1133 belong to the Danfoss MBS 3000 series. MBC / MBC3000 are Danfoss pressure switch series products—a different product category from pressure transmitters. The specifications below are compiled from official Danfoss technical documentation.

Technical Specifications

MBS 1700 Series (060G6101 / 060G6102)

• Product Series: Danfoss MBS 1700

• Model Codes:

  • 060G6101: MBS 1700-2011-A1AB04-0

  • 060G6102: MBS 1700-2211-A1AB04-0

• Measuring Range:

  • 060G6101: 0 – 10 bar (0 – 145 psi)

  • 060G6102: 0 – 16 bar (0 – 232 psi)

• Pressure Reference: Gauge (relative)

• Output Signal: 4 – 20 mA

• Supply Voltage: 9 – 32 VDC

• Accuracy: ≤ ±0.5% FS (incl. non-linearity, hysteresis & repeatability)

• Pressure Connection: G1/4″ male

• Electrical Connection: Angular DIN plug (PG9, EN 175301-803-A)

• Enclosure Rating: IP65

• Operating Temperature: -40°C to +85°C

• Media Temperature: -40°C to +85°C

• Response Time: < 4 ms (for liquids with viscosity < 100 cSt)

• Sensor Material: AISI 316L stainless steel

• Weight: Approx. 0.21 kg

MBS 3000 Series (060G1401 / 060G1113 / 060G1125 / 060G1133)

• Product Series: Danfoss MBS 3000

• Measuring Range:

  • 060G1401: To be confirmed per specific configuration code (MBS 3000 series covers 0–1 bar to 0–600 bar)

  • 060G1113: 0 – 10 bar (reference similar 060G1113 configuration)

  • 060G1125: 0 – 10 bar

  • 060G1133: To be confirmed per specific configuration code

• Pressure Reference: Sealed gauge / Gauge (configuration dependent)

• Output Signal: 4 – 20 mA

• Supply Voltage: 32 VDC max

• Accuracy: ≤ ±0.5% FS (typical)

• Pressure Connection: G1/4″ or G1/2″ (configuration dependent)

• Electrical Connection: Angular connector / Cable (configuration dependent)

• Enclosure Rating: IP65 / IP67

• Operating Temperature: -40°C to +85°C

• Media Temperature: -40°C to +85°C

• Overload Pressure: Up to 60 bar (range dependent)

• Sensor Technology: Piezoresistive, fully digitally compensated

• Weight: Approx. 0.21 – 0.30 kg

Key Technical Advantages

1. High Accuracy with Full Digital Compensation
Advanced piezoresistive sensing chip combined with fully digital temperature compensation and linearization circuitry delivers accuracy up to ≤ ±0.5% FS (typical), maintaining stable measurement precision across the full temperature range (-40°C to +85°C).

2. Superior Vibration Resistance & EMC Performance
The MBS 3000 series is engineered for demanding industrial environments, featuring excellent vibration resistance and high EMC/EMI protection levels that meet the most stringent industrial requirements. Reliable operation is assured even in high-vibration applications such as marine machinery compartments.

3. Wide Range Selection & Flexible Connectivity
The product portfolio covers a complete measuring range from 0–1 bar to 0–600 bar, supporting multiple pressure reference types including gauge, sealed gauge, and absolute. Various pressure connection options (G1/4″, G1/2″) and electrical connection types (angular connector, cable) are available.

4. Fast Response & Long Service Life
Response time < 4 ms (liquid media) meets dynamic pressure measurement requirements. The sensor is constructed from AISI 316L stainless steel, offering excellent corrosion resistance. Every unit undergoes 100% simulated operating condition testing prior to shipment, ensuring long-term operational stability.

5. 100% Direct Interchangeability
All models strictly adhere to Danfoss original mounting dimensions and interface standards, enabling direct drop-in replacement of original transmitters without any piping modification or system adjustment—significantly reducing maintenance downtime.

Application Areas

• Construction Machinery & Hydraulic Systems: Pressure monitoring in excavators, wheel loaders, forklifts

• Industrial Automation & Process Control: Pneumatic systems, water treatment, compressor station pressure control & feedback

• HVAC & Refrigeration Systems: Refrigerant pressure monitoring in air conditioning units and refrigeration equipment

• Marine & Offshore Engineering: Bilge systems, ballast water systems, steering gear hydraulic systems

• Wind Power & Renewable Energy: Hydraulic pitch control systems, brake system pressure monitoring

• Injection Molding & Die-Casting: Hydraulic clamping systems, injection system pressure measurement & control

Expert Maintenance Tips

1. Verify Model Compatibility Prior to Installation
Before installation, confirm that the transmitter model code matches system requirements—pay special attention to: measuring range, pressure reference type (gauge/absolute/sealed gauge), pressure connection size (G1/4″ or G1/2″), electrical connection type, and output signal.

2. Correct Installation Torque
Use an appropriate wrench on the transmitter hexagon fitting (HEX 27 mm)—never rotate the housing during installation to avoid damaging internal sensing elements. Refer to the Danfoss official installation manual for recommended torque values.

3. Prevent Media Contamination
Ensure system piping is clean prior to installation to prevent debris from entering the pressure port and damaging the sensor diaphragm. For media containing solid particles, install a filter upstream of the transmitter.

4. Cable Shielding & Grounding
For cable-connected transmitters, use shielded cable and ensure the shield is grounded at a single point to minimize electromagnetic interference affecting the measurement signal.

5. Periodic Calibration & Inspection
Perform zero and span calibration checks every 12 months or according to system criticality. If abnormal output signal drift or sluggish response is observed, arrange for servicing or replacement.
