060G1125 060N1243 060N1201 Danfoss MBS3000 MBS5150 Pressure Transmitter 10 bar

Product Overview

The MBS 3000 and MBS 5150 series pressure transmitters are compact pressure transmitters engineered by Danfoss for industrial and marine applications, delivering reliable pressure measurement even under harsh environmental conditions. The MBS 5150 series features an integrated pulse snubber, specifically designed for severe marine applications with cavitation, liquid hammer, or pressure peaks.

Both series feature excellent vibration stability, robust construction, and high EMC/EMI protection, meeting the most stringent industrial and marine requirements. They offer standard 4-20mA current signal outputs, with measuring ranges from 0-1 bar to 0-600 bar.

This product range covers the following models:

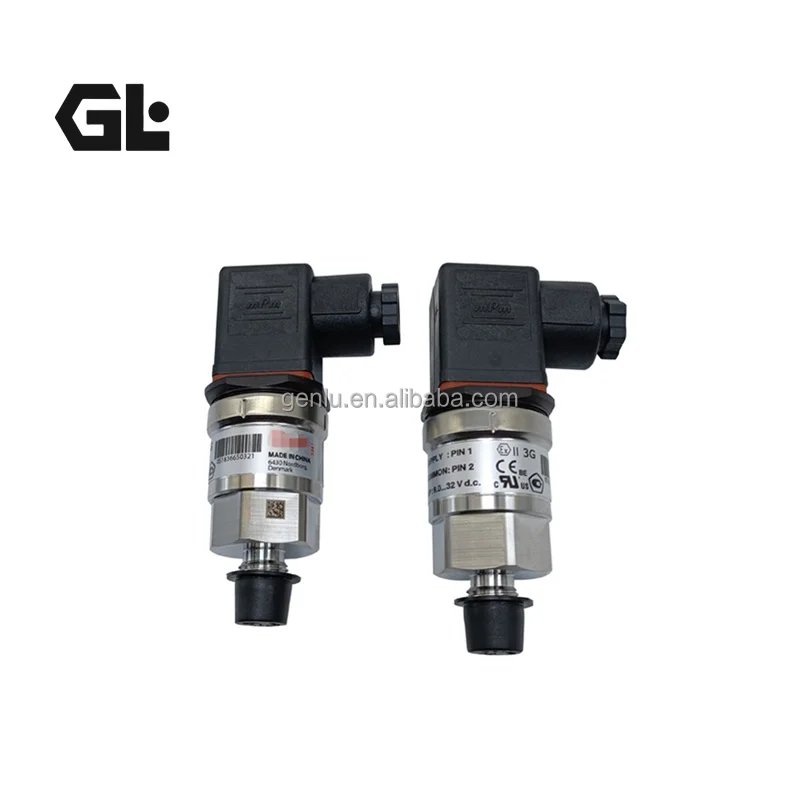

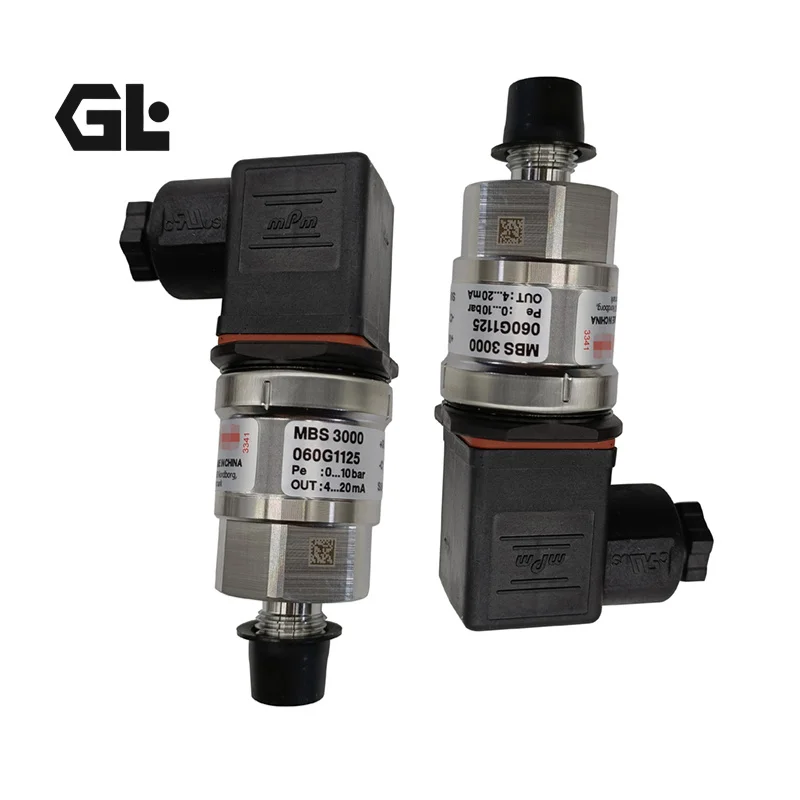

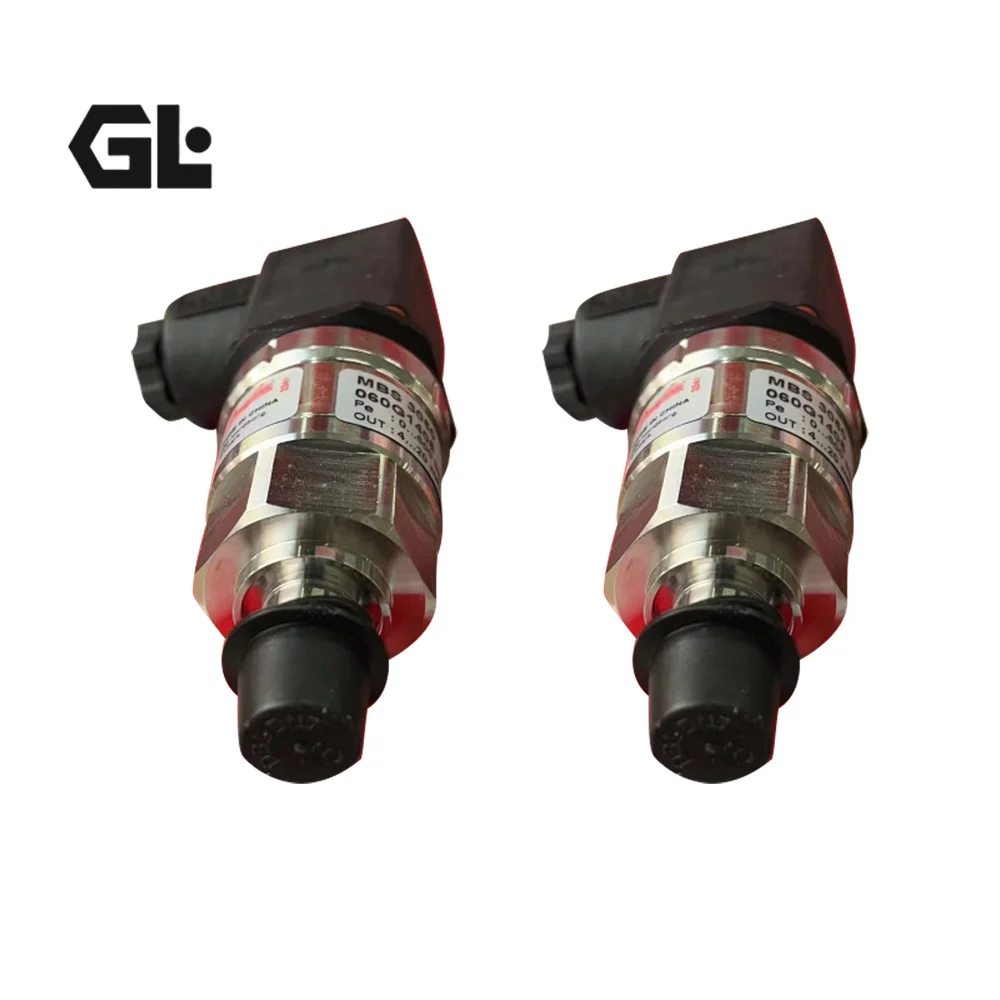

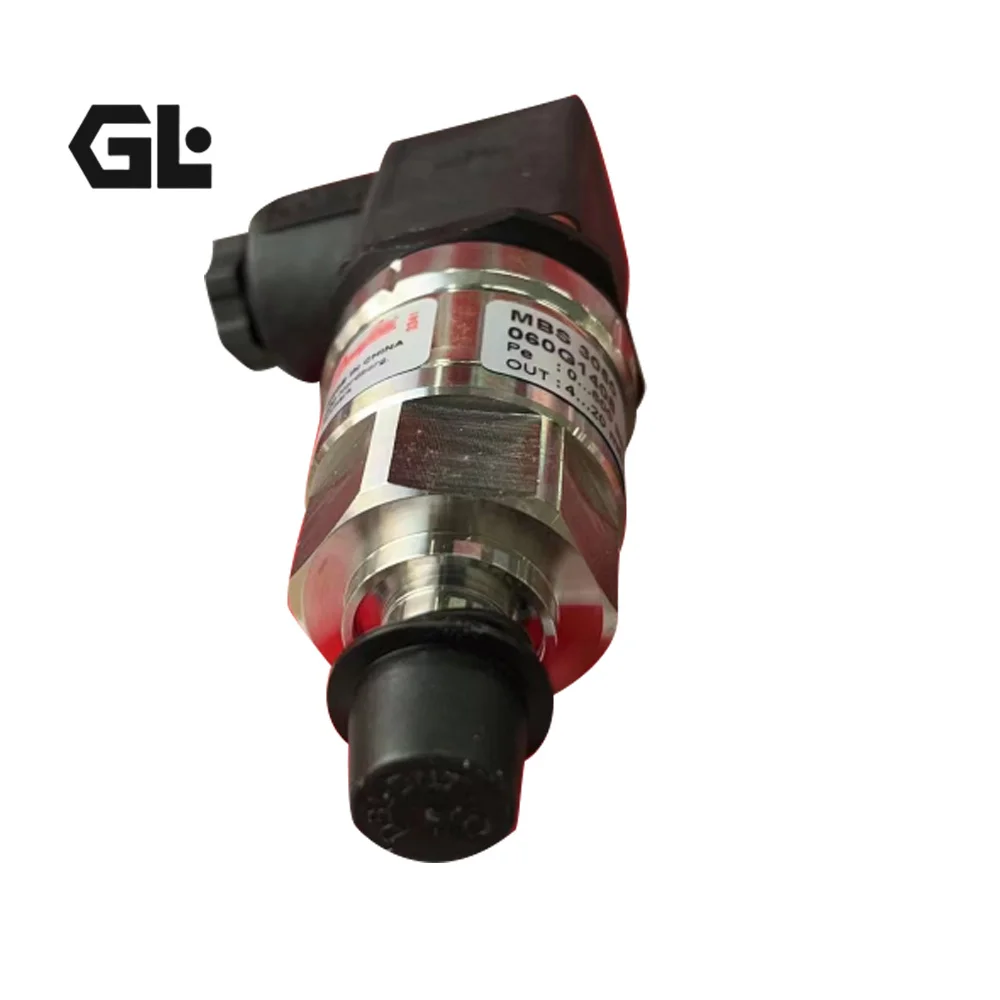

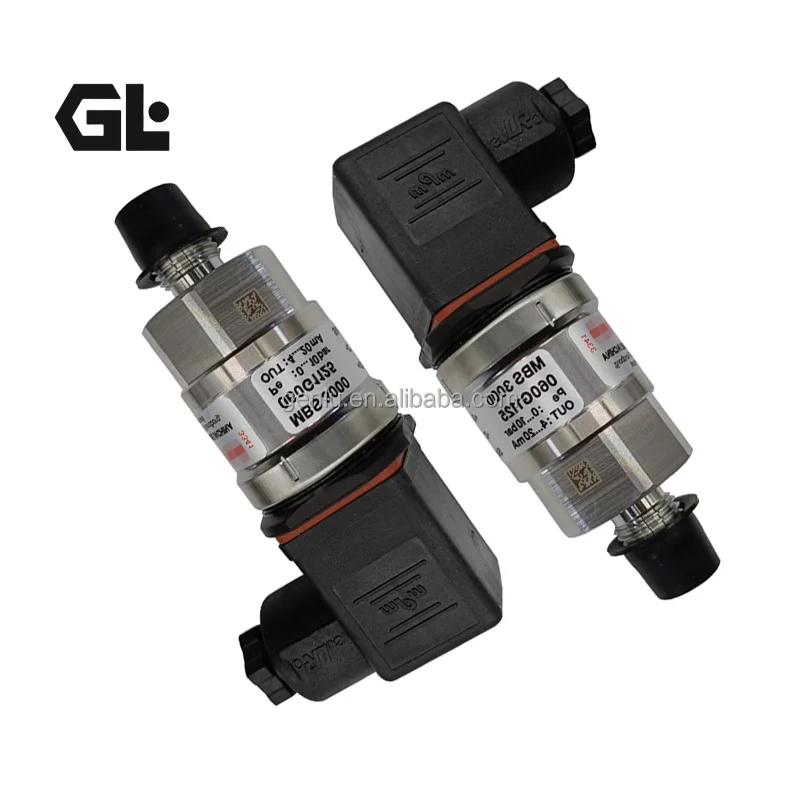

• 060G1125 (MBS3000-2011-A1AB04-0): MBS 3000 series, range 0–10 bar, 4–20mA output, G1/4″ male pressure connection, Angular connector Pg 9

• 060N1243 (MBS5150-2011-A0DB04-4): MBS 5150 series, range 0–10 bar, 4–20mA output, G1/4″ female with flange pressure connection, Angular connector 4-pin, with integrated pulse snubber

• 060N1201 (MBS5153-2011-3DA05): MBS 5153 series (OEM version), range 0–10 bar, 4–20mA output, G1/4″ pressure connection, with integrated pulse snubber

⚠️ Product Type Note: All models are pressure transmitters providing standard analog output signals (4–20mA), not mechanical pressure switches. The reference to “Pressure Switch” in the original title is descriptive; the actual product is a pressure transmitter.

⚠️ Series Notes:

• MBS 3000: Industrial-grade compact pressure transmitter for general industrial and hydraulic applications

• MBS 5150: Marine-grade block pressure transmitter with integrated pulse snubber, approved by all major classification societies

• MBS 5153: OEM version of MBS 5150, also with integrated pulse snubber

⚠️ Model Code Decoding (using 060G1125 / MBS3000-2011-A1AB04-0 as example) :

• MBS = Compact Pressure Transmitter series

• 3000 = Series code (Industrial applications)

• 20 = Specification code (0–10 bar range)

• 11 = Output signal & electrical configuration (4–20mA, Angular connector)

• A1AB04-0 = Configuration/design code

• 060G1125 = Danfoss internal material code

Technical Specifications

060G1125 / MBS3000-2011-A1AB04-0 (MBS 3000 Series)

• Product Series: Danfoss MBS 3000 series compact pressure transmitter

• Model Code: MBS3000-2011-A1AB04-0

• Material Number: 060G1125

• Brand: Danfoss

• Product Type: Compact pressure transmitter

• Pressure Reference: Gauge (relative)

• Measuring Range: 0 – 10 bar (0 – 145 psi)

• Output Signal: 4 – 20 mA

• Accuracy (Typical) : ≤ ±0.5% FS

• Accuracy (Max) : ≤ ±1% FS

• Overload Pressure (Max) : 60 bar

• Supply Voltage: 9 – 32 V DC

• Response Time: ≤ 4 ms

• Media Temperature Range: -40°C to +85°C

• Ambient Temperature Range: -40°C to +85°C

• Compensated Temperature Range: 0°C to +80°C

• Pressure Connection: G1/4″ male (EN 837)

• Pressure Connection Hex Size: 27 mm

• Electrical Connection: Angular connector, Pg 9

• Electrical Connection Standard: EN 175301-803-A

• Enclosure Rating: IP65

• Wetted Parts Material: Stainless steel

• Net Weight: 0.153 kg

• Approvals: ATEX, CE, C UL US (UL Recognized)

060N1243 / MBS5150-2011-A0DB04-4 (MBS 5150 Series)

• Product Series: Danfoss MBS 5150 series compact pressure transmitter (Marine grade)

• Model Code: MBS5150-2011-A0DB04-4

• Material Number: 060N1243

• Brand: Danfoss

• Product Type: Block pressure transmitter

• Pressure Reference: Gauge (relative)

• Measuring Range: 0 – 10 bar (0 – 145 psi)

• Output Signal: 4 – 20 mA

• Accuracy (Typical) : ≤ ±0.1% FS

• Accuracy (Max) : ≤ ±0.3% FS

• Non-linearity (BFSL) : ≤ ±0.2% FS

• Overload Pressure (Max) : 20 bar

• Supply Voltage: 10 – 32 V DC

• Media Temperature Range: -40°C to +85°C

• Pressure Connection: G1/4″ female with flange (ISO 228-1)

• Electrical Connection: Angular connector, 4-pin

• Enclosure Rating: IP65

• Integrated Pulse Snubber: Yes

• Net Weight: 0.299 kg

• Approvals: LR, DNV, GL, RINA, ABS, BV, NKK, etc. (Marine approvals)

• EAN: 5702423212774

060N1201 / MBS5153-2011-3DA05 (MBS 5153 Series, OEM Version)

• Product Series: Danfoss MBS 5153 series compact pressure transmitter (Marine OEM)

• Model Code: MBS5153-2011-3DA05

• Material Number: 060N1201

• Brand: Danfoss

• Product Type: Block pressure transmitter

• Measuring Range: 0 – 10 bar (0 – 1 MPa)

• Output Signal: 4 – 20 mA

• Supply Voltage: 10 – 32 V DC

• Pressure Connection: G1/4″ (ISO 228-1)

• Integrated Pulse Snubber: Yes

• Application: Specifically designed for marine lubrication and cooling systems

Key Technical Advantages

1. Dual Series Positioning – Universal Industrial and Full Marine Coverage

The MBS 3000 series is a general industrial-grade pressure transmitter suitable for hydraulic systems, compressed air, process industries, and more. The MBS 5150/5153 series is marine-grade, approved by all major classification societies (LR, DNV, GL, RINA, ABS, BV, NKK, etc.), specifically designed for demanding marine environments such as ship engine rooms.

2. Integrated Pulse Snubber for Severe Medium Influences (MBS 5150/5153)

The MBS 5150/5153 series is equipped with an integrated pulse snubber—a 0.3 mm orifice built into the pressure connection—specifically designed for marine applications with cavitation, liquid hammer, or pressure peaks. This design effectively protects the sensor from pressure shock damage, significantly extending service life.

3. High Accuracy and Fast Response

The MBS 5150 series delivers typical accuracy ≤ ±0.1% FSwith non-linearity ≤ ±0.2% FS, representing a high-precision standard in marine pressure measurement. The MBS 3000 series offers typical accuracy ≤ ±0.5% FSwith response time ≤ 4 ms, meeting dynamic pressure measurement requirements.

4. Excellent Vibration Stability and EMC Performance

Both the MBS 3000 and MBS 5150 series feature excellent vibration stability, robust construction, and high EMC/EMI protection, meeting the most stringent industrial and marine requirements. Even near strong electromagnetic interference sources such as variable frequency drives and motors, the transmitters deliver stable, accurate signals.

5. Wide Temperature Operating Range

Both series support a wide media and ambient temperature range of -40°C to +85°C. From freezing ship decks to hot engine rooms, they maintain stable measurement accuracy.

6. 100% Direct Interchangeability and Simulated Condition Testing

All models strictly adhere to Danfoss original mounting dimensions and interface standards (G1/4″ pressure connection, Angular connector electrical connection), enabling direct drop-in replacement of original pressure transmitters without piping modification or system adjustment. Every unit undergoes 100% simulated operating condition bench testing prior to shipment.

Application Areas

• Marine & Offshore: Engine room pressure monitoring, ballast water systems, fuel oil systems, lubrication oil systems, cooling system pressure measurement (MBS 5150/5153 series)

• Industrial Hydraulic Systems: System pressure monitoring and control for hydraulic power units and stations (MBS 3000 series)

• Construction Machinery: Pressure measurement for excavators, wheel loaders, and other mobile equipment

• Compressed Air Systems: Compressor discharge pressure monitoring and control

• Process Industries: Process pressure measurement in chemical and pharmaceutical industries

• Power Generation: Lubrication oil pressure and cooling water pressure monitoring for diesel generator sets

Expert Maintenance Tips

1. Verify Model and Range Compatibility Prior to Installation

All three models in this batch have a range of 0–10 bar. Confirm that system operating pressure does not exceed 10 bar prior to installation. Overload pressures are 60 bar (060G1125) and 20 bar (060N1243) respectively.

2. Correct Installation Torque and Sealing

The MBS 3000 series features G1/4″ male thread (EN 837) pressure connections with hex size 27 mm. The MBS 5150 series features G1/4″ female with flange pressure connections. Use a torque wrench during installation to the torque value specified in Danfoss technical manuals. Use OEM-specification O-rings or bonded sealing washers—PTFE tape must not be used (it may block internal sensor passages). Ensure piping is clean prior to installation to prevent debris from damaging the sensor diaphragm.

3. Electrical Connection Precautions

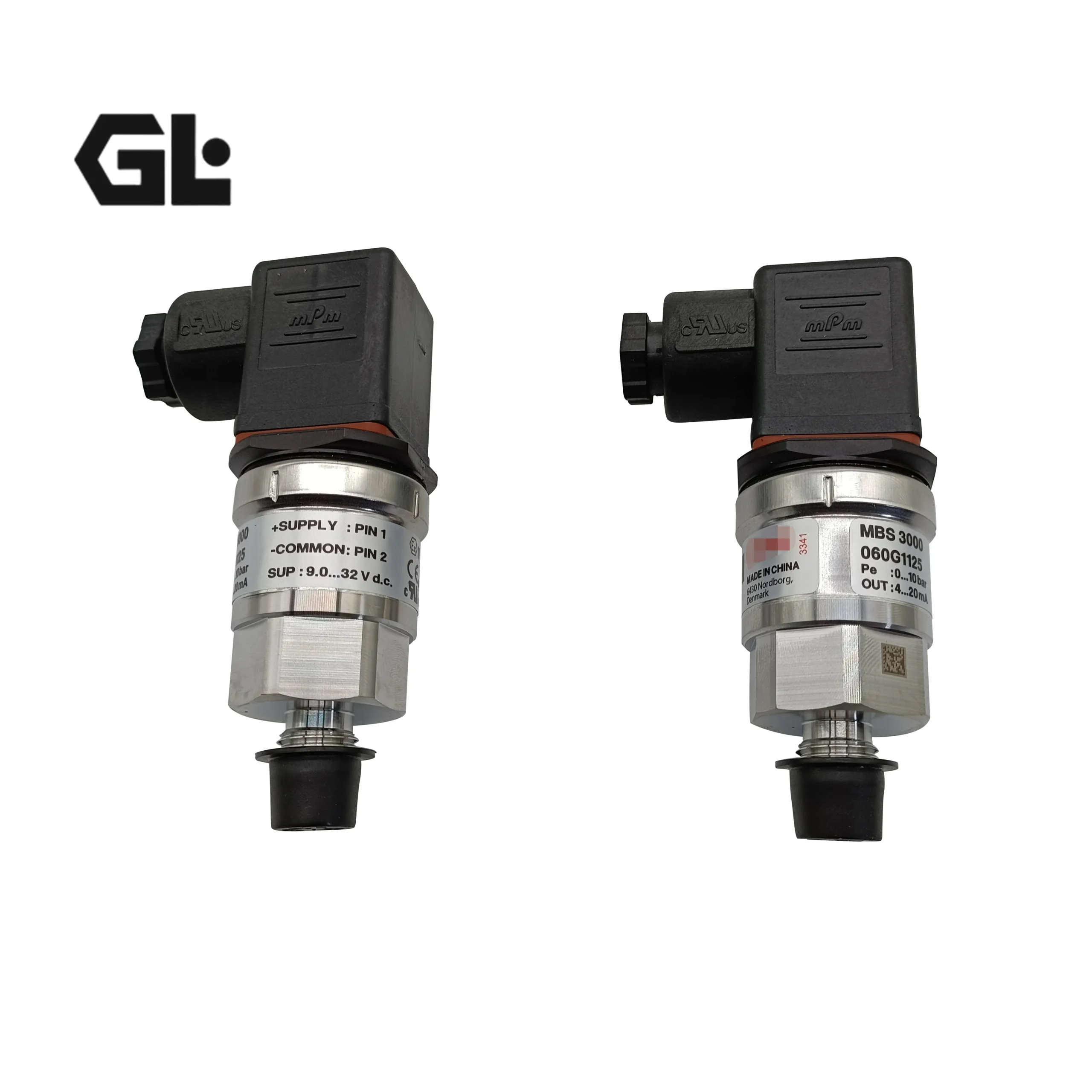

• 060G1125 features Angular connector Pg 9, standard EN 175301-803-A, supply pin Pin 1, common Pin 2

• 060N1243 features Angular connector 4-pin

• Supply voltage: 060G1125 9–32 V DC; 060N1243/060N1201 10–32 V DC

• Verify supply voltage is within allowable range and observe correct polarity prior to wiring

4. Pulse Snubber Maintenance (MBS 5150/5153 Series)

The MBS 5150/5153 series is equipped with an integrated pulse snubber—a built-in 0.3 mm orifice. Over extended service, the orifice may become partially blocked by fine particles in the medium. Periodically check the transmitter response time—if significantly slower response is observed, the pulse snubber may require cleaning or replacement.

5. Mounting Position and Vibration Protection

Both MBS 3000 and MBS 5150 series offer excellent vibration stability and can be mounted in any orientation. For extreme vibration applications, mechanical decoupling via flexible pressure hose connection is recommended.

6. Temperature Effects

Both series have compensated temperature ranges of 0°C to +80°C. Under extreme temperature conditions, perform zero-point calibration during system commissioning to eliminate measurement deviations caused by installation location temperature variations.

7. Periodic Calibration and Functional Checks

Perform calibration checks every 12 months or according to system criticality to verify that output signal vs. pressure correspondence remains within specification (060G1125: ≤±0.5% FS; 060N1243: ≤±0.1% FS typical). If abnormal signal drift or output anomalies are observed, arrange for servicing or replacement.
