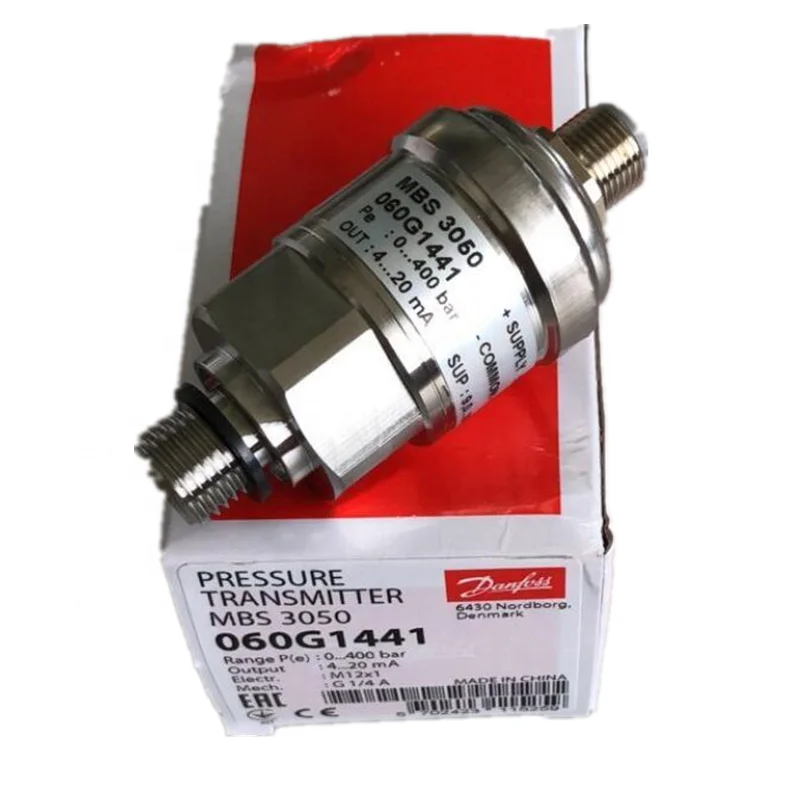

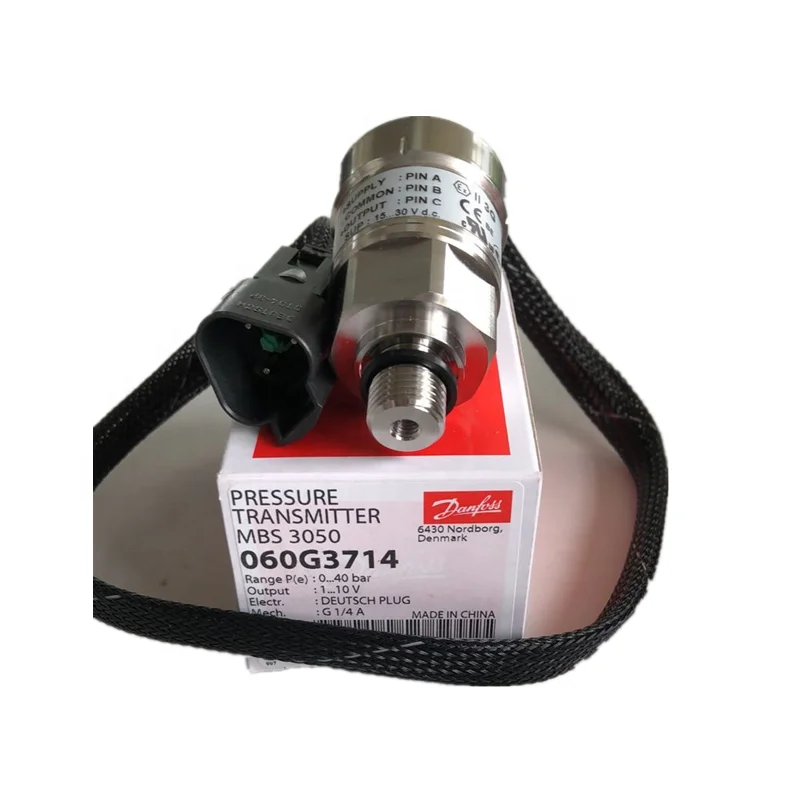

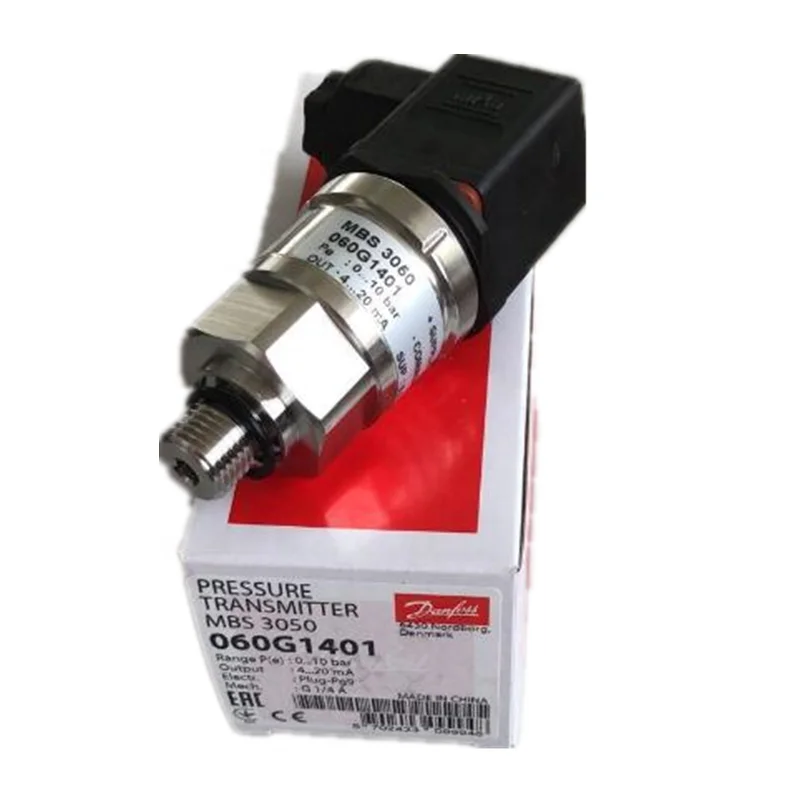

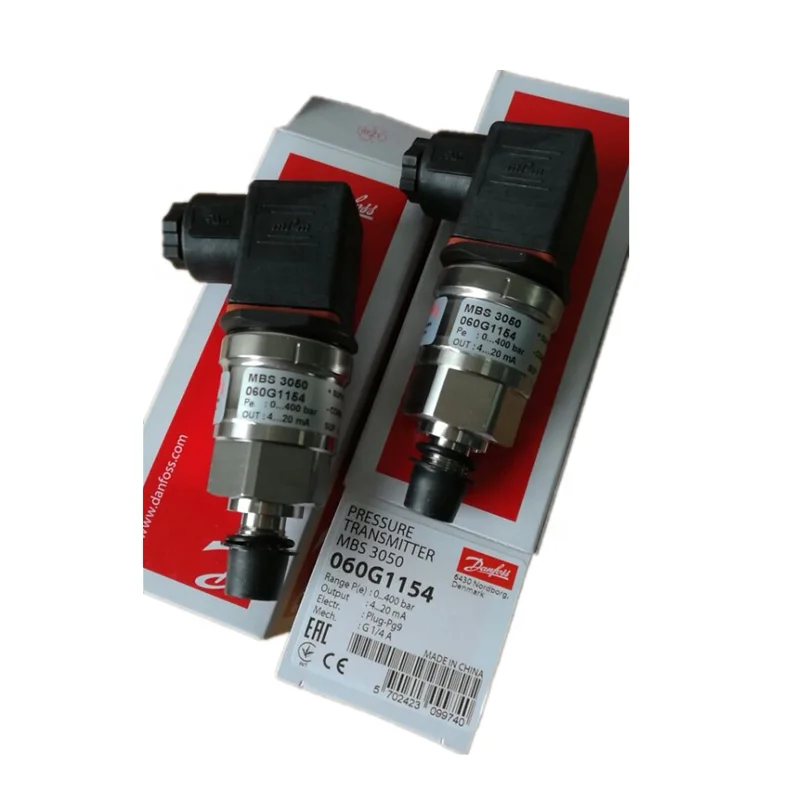

MBS3050 Series 060G1152 060G1151 060G1154 060G1409 060G1415 Protection Grade IP65 Pressure Sensor MBS2150 MBS2250 MBS3000

MBS3050 series 060G1152 060G1151 060G1154 060G1409 060G1415 Protection grade IP65 pressure sensor

Pressure sensor MBS3050 product features
1. Wide range coverage;
2. All stainless steel structure, various forms of pressure interface, with flush film type, sanitary type, anti-corrosion type and other forms, protection grade IP65;
3, the output signal form is various, the field can be adjusted, can display; Reverse polarity protection and instantaneous over current and over voltage protection, in line with EMI protection requirements;

4, the safety explosion-proof products meet the requirements of GB3836.4 standard, obtained the explosion-proof certificate, the explosion-proof mark is EXIA ⅡCT6;
5, flameproof products in line with the requirements of GB3836.2, obtained the flameproof certificate, explosion-proof mark for ExdⅡCT6;
6. Marine products meet the requirements of CCS “Steel Sea-going Ships Classification Code” (2006), and obtained the Marine Product Type Approval Certificate;
7, the product has obtained CE certification and RoHS certification;
8. The product has been obtained by the country, the number is 002 26957.0.

Operating temperature: -30℃ ~ 80℃; Explosion-proof type: -10℃ ~ 60℃

Storage temperature: -40℃ ~ 120℃

Power supply: 15 ~ 28VDC(intrinsically safe type powered by safety grid) 15 ~ 28VDC 15 ~ 28VDC
Output signal: 4 ~ 20mADC 0 ~ 10/20madc 0/1 ~ 5/10VDC
Transmission mode: two wire three wire three wire
Load resistance: ≤(U-15)/0.02Ω ≤(U-15)/0.02 x > 100K
Enclosure protection: both cable and connector connection are IP65
Electrical connection: connector or cable 1.5m Shell body: stainless steel 1Cr18Ni9Ti
Film: stainless steel 316L
O-ring: fluorine rubber
Rubber sleeve: nitrile butadiene rubber
