MCV116B2102D Danfoss Pressure Control Pilot Valve

Product Overview

The MCV116B2102D is a specific model within the Danfoss (formerly Sauer-Danfoss) MCV116 Series of Pressure Control Pilot (PCP) valves, designated as the B-type configuration. The valve employs a torque-motor actuated, double-nozzle flapper architecture — a single-stage, standalone, closed-loop pressure control valve that achieves its closed-loop characteristics through internal hydraulic pressure reactions.

The core function of the MCV116B2102D is to convert a DC current input signal into a proportional pilot differential pressure output. This differential pressure signal is used to control pilot-operated flow control valves (proportional main spool valves in the 5–50 GPM range), pilot-operated variable displacement pumps and motors, and any other device which is pilot differential pressure actuated. The valve serves as a precision pressure control core component in electrohydraulic systems and is widely applied in construction, farming, material handling, marine, mining, and industrial equipment.

As a drop-in replacement, the MCV116B2102D is fully compatible with the OEM Danfoss specification in mounting interface, electrical connection, and performance characteristics. It directly replaces the original pressure control pilot valve without modifying the hydraulic circuit or control wiring. Every unit undergoes 100% simulation-based testing prior to shipment, covering null stability, pressure linearity, hysteresis, and load pressure droop.

Technical Specifications

All parameters below are based on Danfoss MCV116 Series technical documentation and verified supplier technical pages. The complete specifications table (Table A) in the official Danfoss MCV116 technical manual is a controlled document; the parameters below are sourced from series general specifications and verified supplier data:

• Complete Model: MCV116B2102D

• Brand: Danfoss (formerly Sauer-Danfoss)

• Product Series: MCV116 Series Pressure Control Pilot (PCP) valve

• Product Type: Torque-motor actuated double-nozzle flapper valve, single-stage standalone closed-loop pressure control valve

• Operating Pressure Range: 0 – 10 MPa (adjustable), suitable for high-pressure industrial hydraulic systems

• Maximum System Pressure: Approx. 1000 psi (69 bar)

• Recommended Supply Pressure: 150 – 500 psi (approx. 10.3 – 34.5 bar)

• Coil Resistance: 23 Ω (standard value at 25°C ambient, series typical)

• Rated Control Current: ±150 mA (full-stroke pressure adjustment range, series typical)

• Maximum Allowable Current: 325 mA (limit current, series typical)

• Output Sensitivity: 2.4 PSID/mA (series reference value, based on MCV116A1101)

• Input Control Signal: DC current signal (specific range varies by configuration)

• Operating Temperature Range: -20°C to +80°C

• Weight: Approx. 0.54 kg – 1.0 kg (depending on configuration and accessories)

• Body Material: Cast iron / carbon steel

• Hydraulic Fluid: Mineral oil-based hydraulic fluid

Note: The complete specifications table (Table A — MCV116 SPECIFICATIONS) in the official Danfoss MCV116 technical manual contains precise parameters for each model variant, covering frequency response, output symmetry, minimum output range, linearity, threshold, hysteresis, typical null, load flow, load pressure droop slope, pressure null shift, temperature null shift, and saturation current. The parameters above are based on verified supplier technical pages and series general specifications. Always verify against the latest Danfoss official technical manual during selection.

Key Technical Advantages

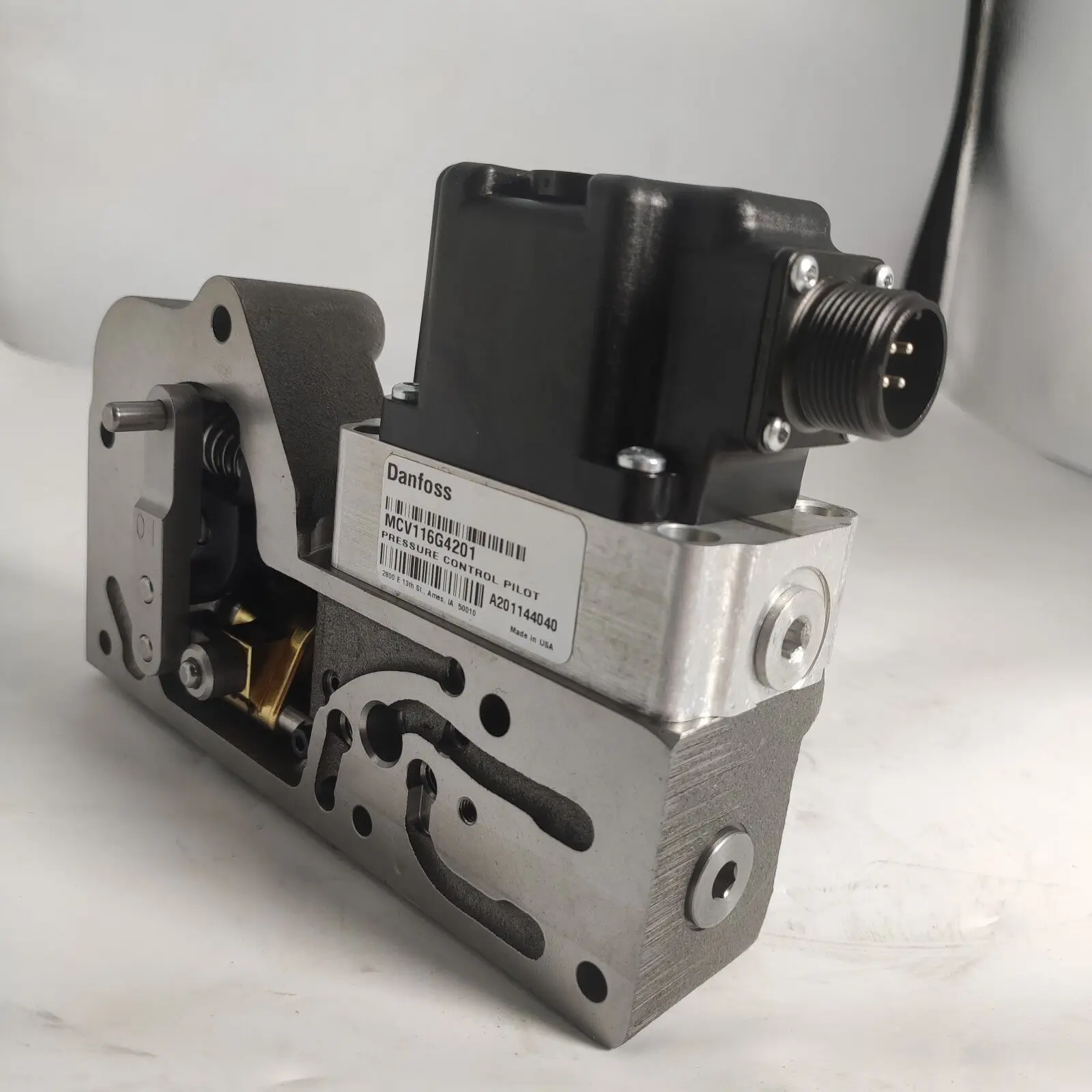

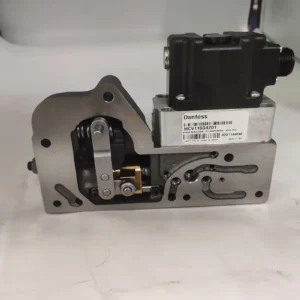

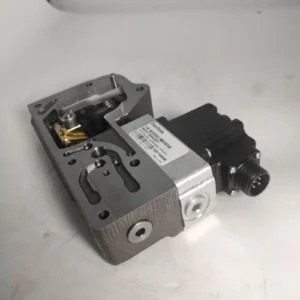

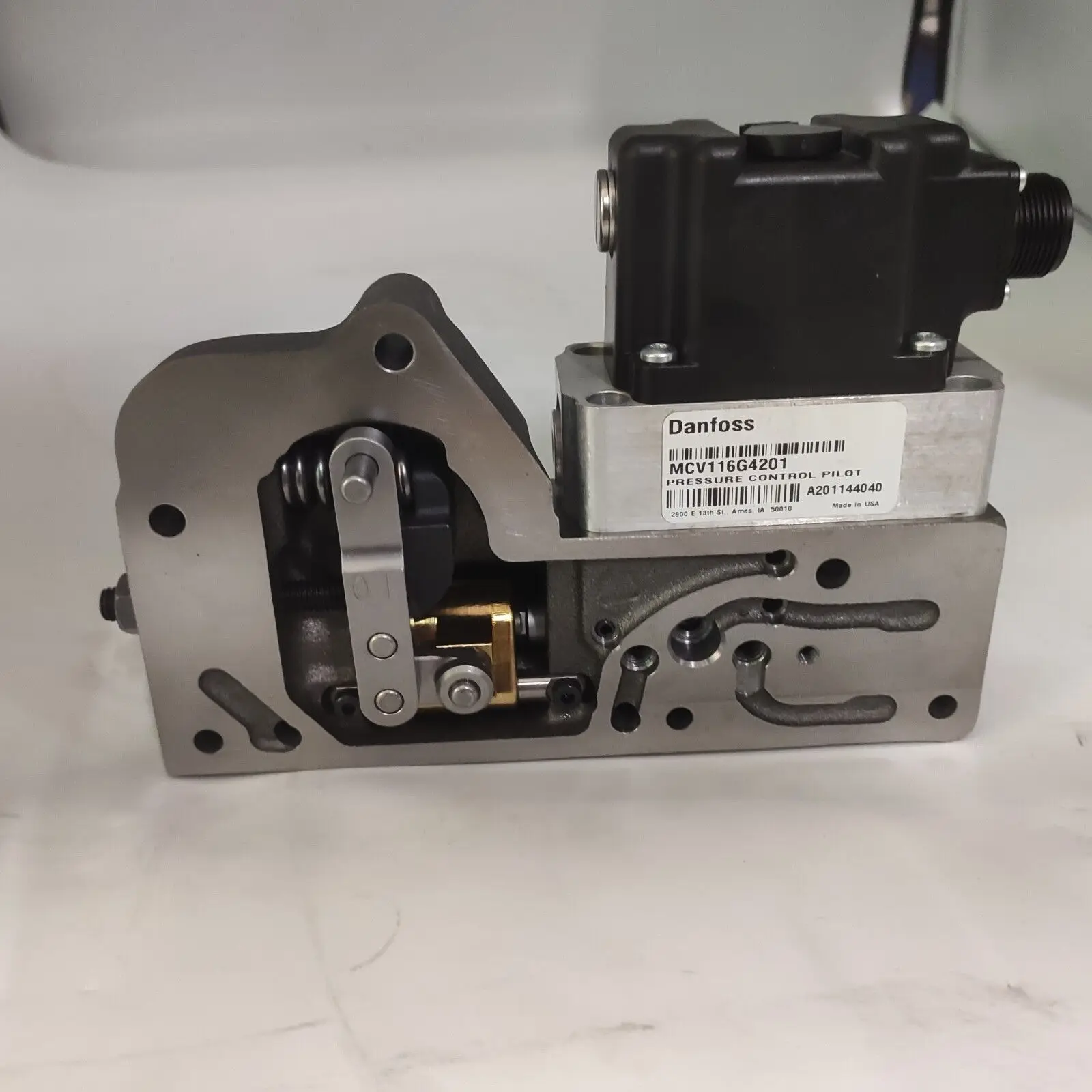

1. Torque-Motor Actuated Double-Nozzle Flapper Architecture for High-Precision Pressure Control

The MCV116B2102D employs a torque-motor actuated, double-nozzle flapper hydraulic amplification mechanism. The torque motor receives a DC current signal and generates a torque proportional to the current, deflecting the flapper between two nozzles to produce a proportional pilot differential pressure at the output. This architecture does not rely on electronic sensors, offering exceptional immunity to electromagnetic interference and long-term stability, with a well-defined linear relationship between output differential pressure and input current.

2. Intrinsic Closed-Loop Control via Internal Hydraulic Pressure Feedback

The valve employs internal hydraulic pressure feedback to achieve closed-loop control characteristics, maintaining output pressure stability and repeatability without external controllers or feedback circuits. This intrinsic feedback mechanism enables the valve to maintain precise pressure output under varying load conditions, supply pressure fluctuations, and temperature changes, while simplifying system integration.

3. Compact Standalone Single-Stage Architecture for Easy Integration

The MCV116B2102D is a standalone single-stage valve weighing approximately 0.54 kg, designed for direct mounting on pump housings or manifolds. Its compact modular design facilitates integration into existing hydraulic systems, particularly suited to space-constrained mobile hydraulic applications.

4. Broad Compatibility and System Integration

The valve is specifically designed to control pilot-operated proportional main spool valves in the 5–50 GPM range and Danfoss 90 Series variable displacement pumps. It is fully compatible with the servo control interface of Danfoss 90 Series axial piston pumps (90R, 90L), enabling system integrators to leverage existing pump control solutions without hydraulic circuit redesign.

5. Precision Manufacturing and Rigorous Testing

The spool, flapper, and nozzle components are manufactured through precision machining processes, with critical mating surfaces lapped to ensure consistent clearance tolerances. Every unit undergoes 100% simulation-based testing prior to shipment, covering output symmetry, linearity, hysteresis, threshold, and null stability.

Application Areas

• Construction Machinery: Variable pump displacement control for excavators, loaders, and bulldozers

• Agricultural Machinery: Tractor hydraulic hitch systems, combine harvester hydraulic drive control

• Material Handling: Forklifts, cranes, aerial work platforms hydraulic system pressure control

• Marine Hydraulics: Steering gear control, deck machinery hydraulic drive systems

• Mining Equipment: Underground hydraulic drives, drilling rig hydraulic control circuits

• Industrial Hydraulic Systems: Variable pump pressure/flow compound control for presses and injection molding machines

• Danfoss 90 Series Pump Control Systems: Standard pilot control valve for 90R/90L axial piston pumps

Expert Maintenance Tips

Pre-Installation Checks:

• Verify the mounting surface is clean and free of burrs; inspect O-ring seals for damage

• Flush all piping with clean hydraulic fluid prior to installation; ensure system cleanliness reaches ISO 4406 18/16/13 or better

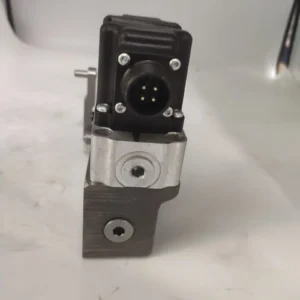

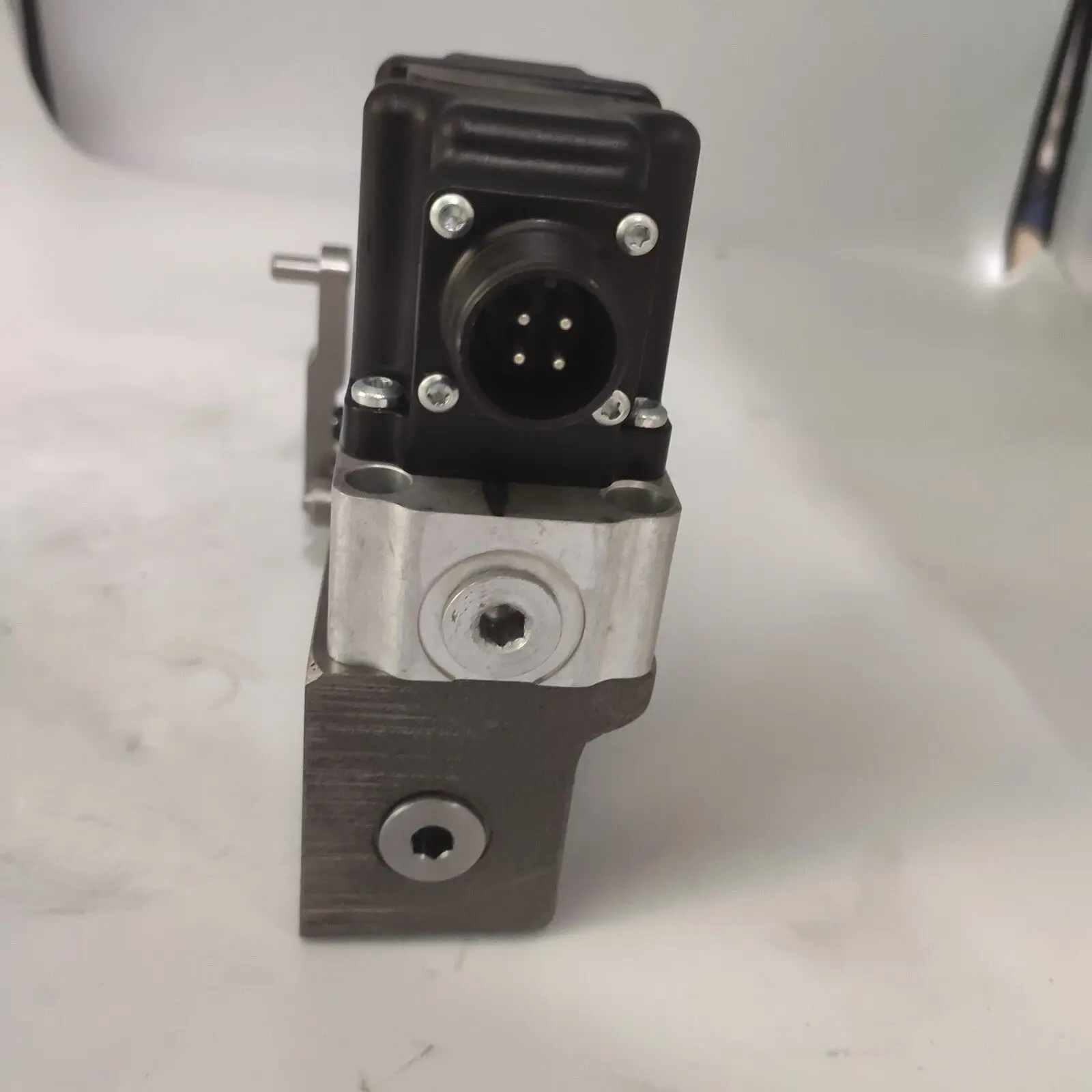

• Confirm the electrical connector (MS type) contacts are clean and secure, free from oxidation or looseness

Operational Maintenance:

• Use a 10 μm or finer pressure filter; replace filter elements at regular intervals

• Recommended hydraulic fluid: anti-wear mineral oil; maintain operating viscosity within the recommended range

• Maintain fluid temperature within -20°C to +80°C; avoid overheating that accelerates fluid degradation and seal aging

• Periodically verify coil resistance remains stable at 23 Ω (at 25°C); significant deviation indicates coil aging or damage

• Monitor null output pressure offset; a significant increase indicates wear-induced changes in the flapper-nozzle clearance

Troubleshooting Guide:

• No output or insufficient output: Verify control current reaches the coil; measure coil resistance (should be 23 Ω ±10%); confirm electrical connector engagement is reliable

• Null-point drift: After ruling out fluid contamination, inspect flapper-nozzle clearance for wear-induced changes; verify internal feedback oil passages are unobstructed

• Slow response: Check system cleanliness level; verify nozzles and orifices are not partially blocked by contaminant particles

• Output asymmetry: Verify supply pressure is stable within the recommended range (10.3 – 34.5 bar); confirm load pressure is within allowable limits
