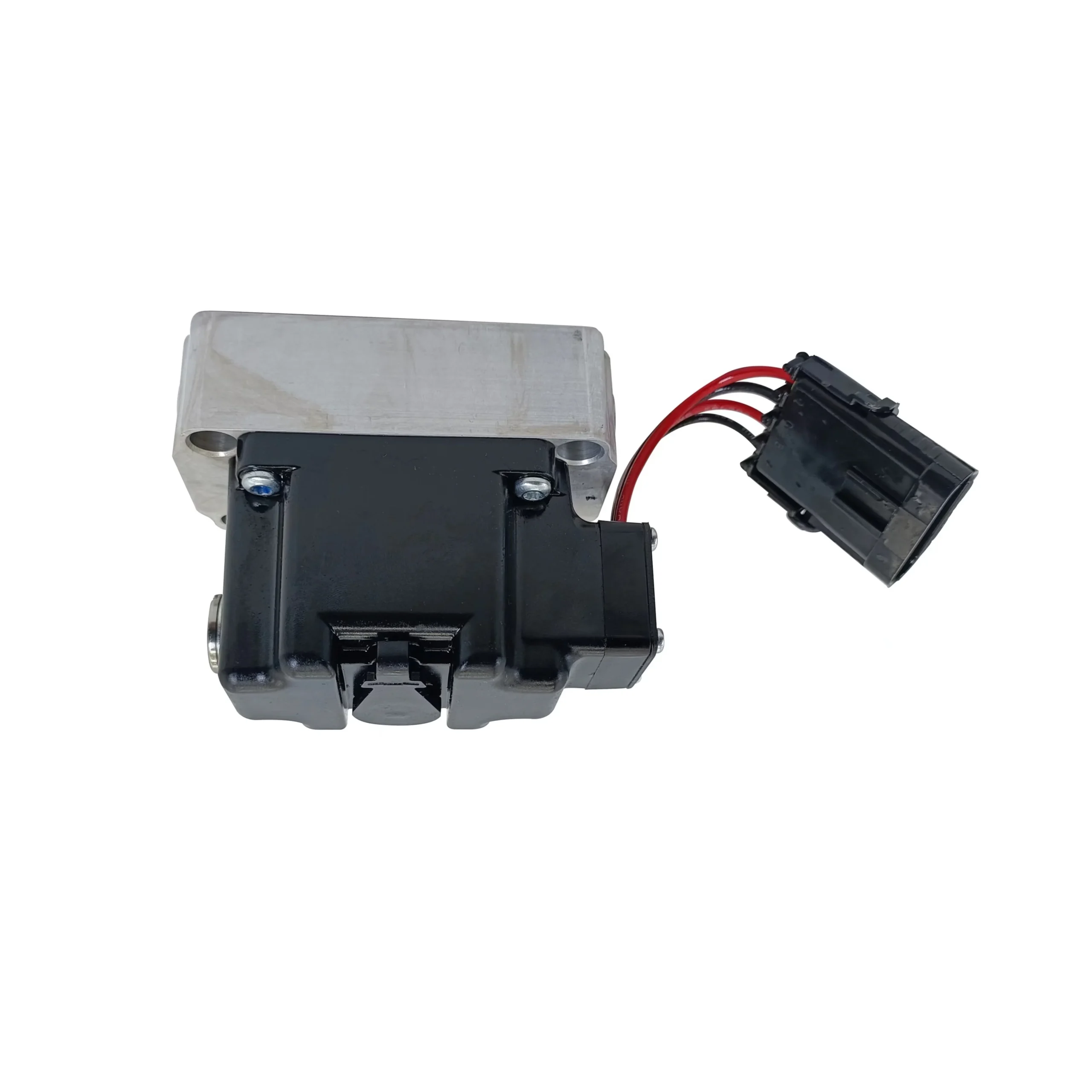

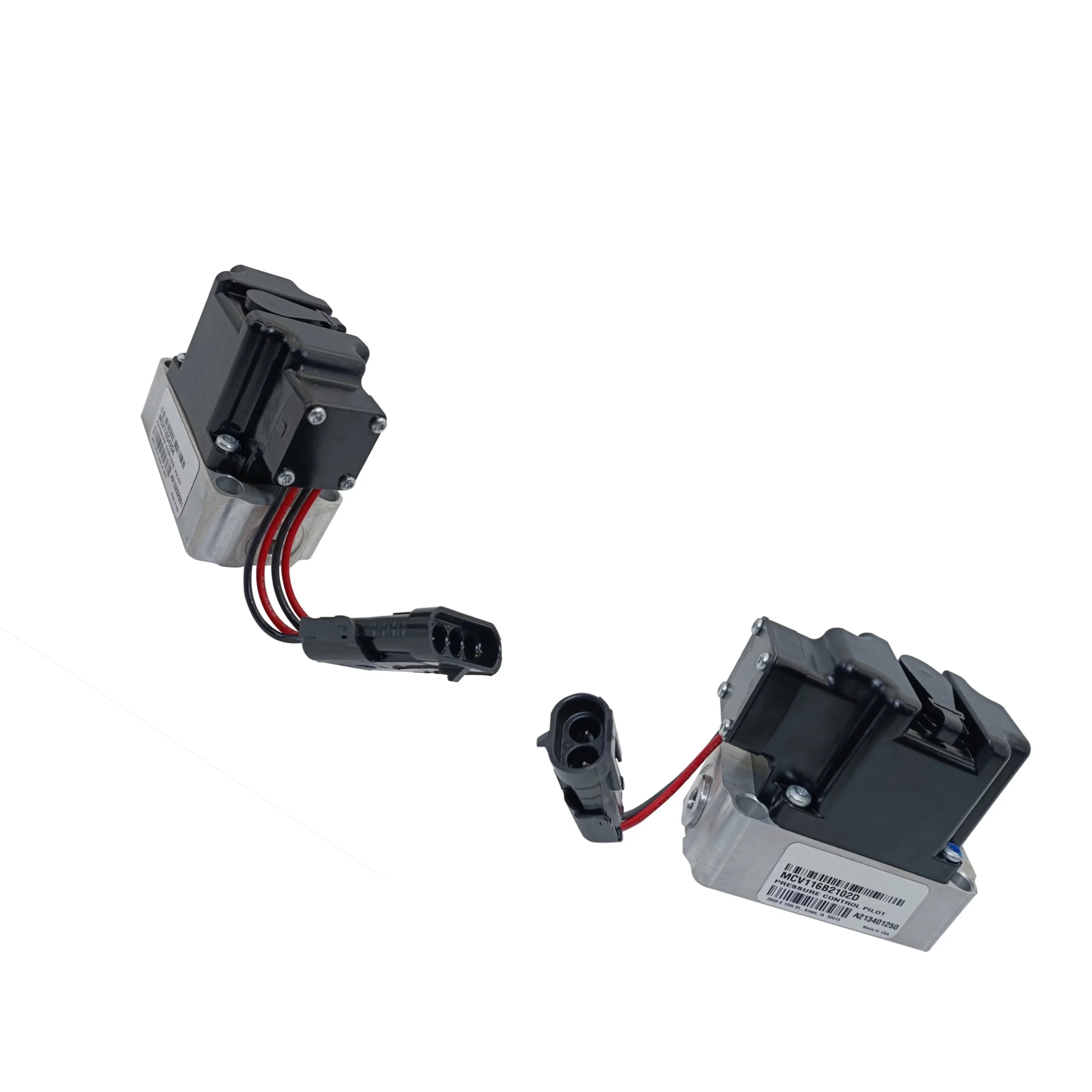

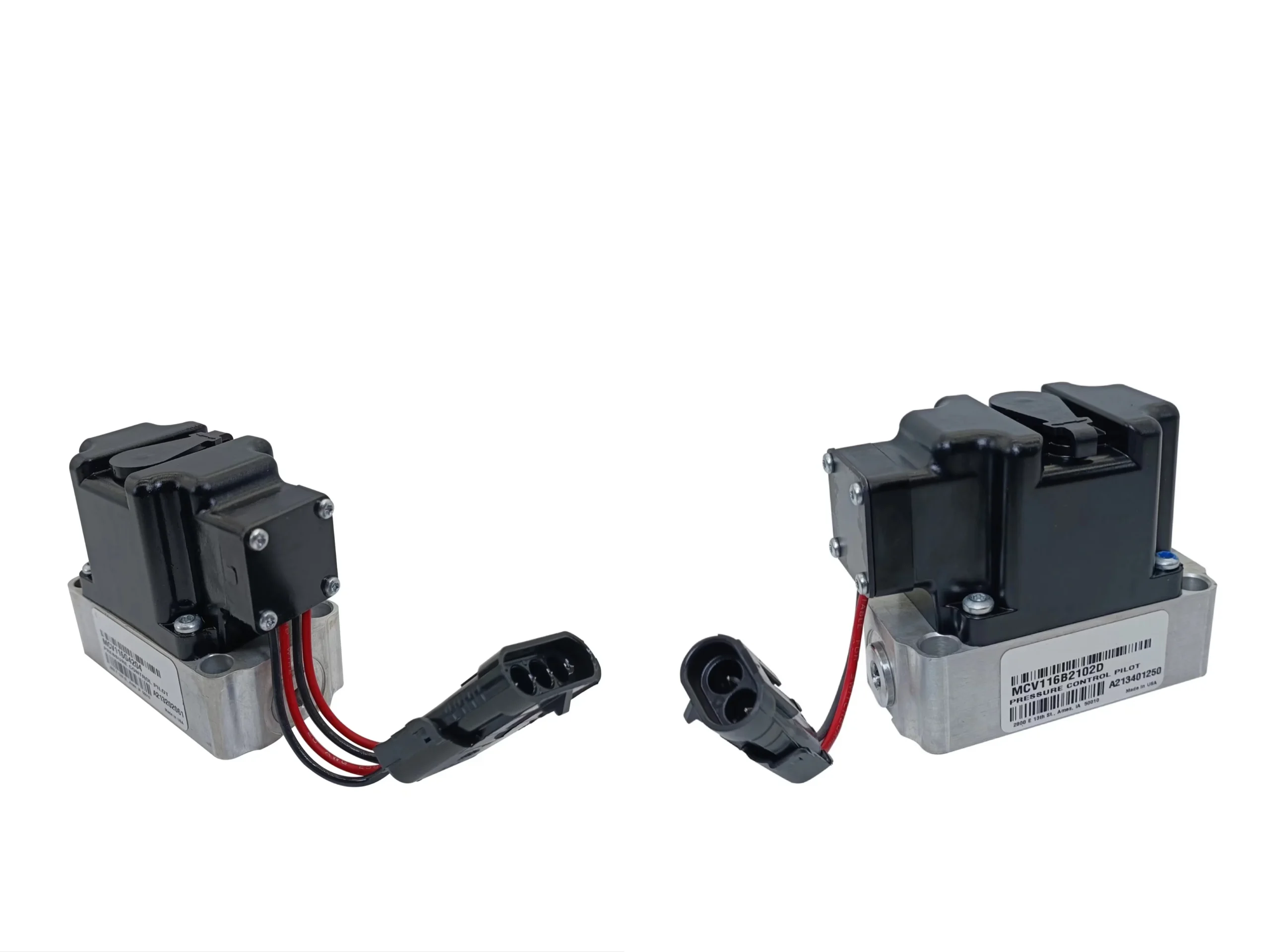

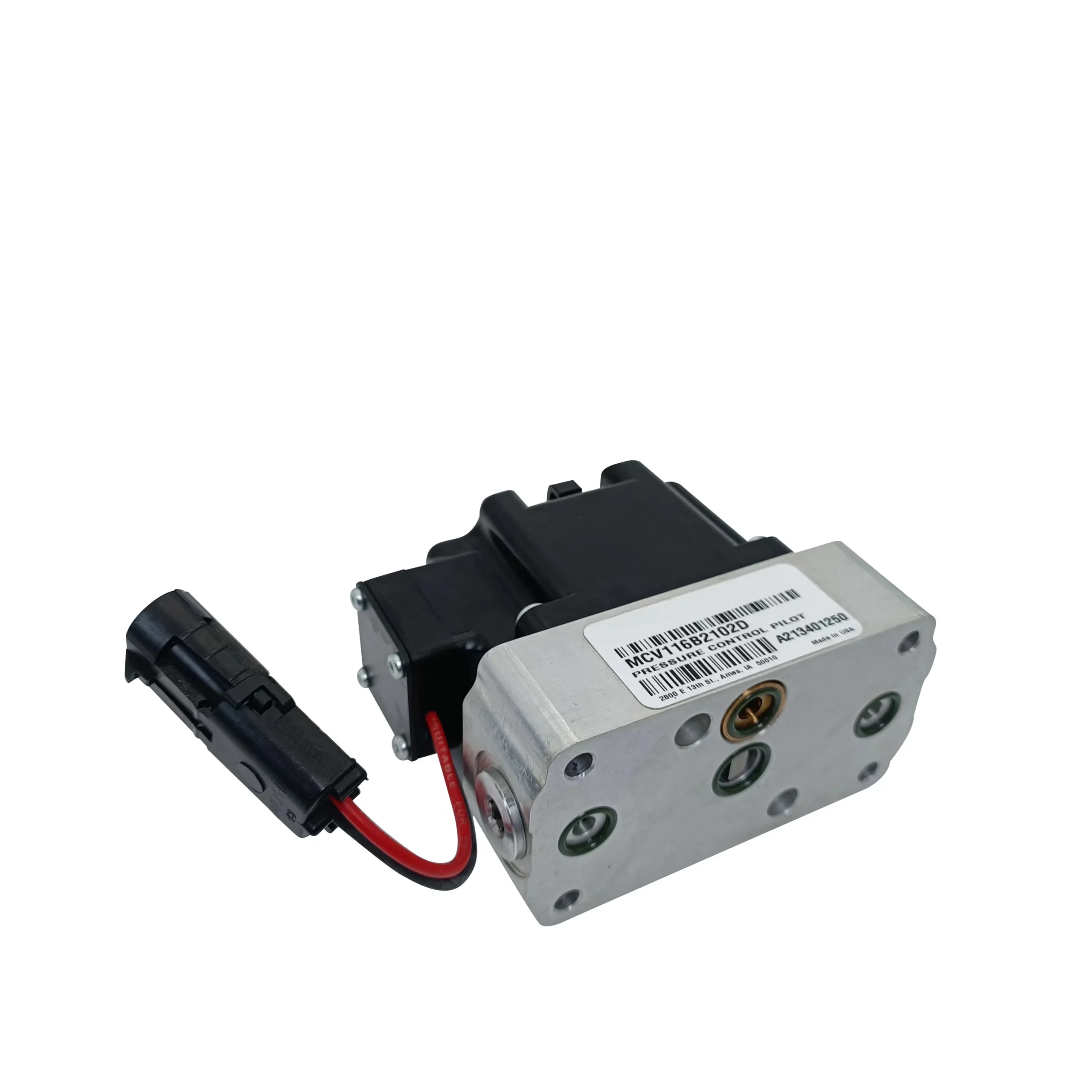

MCV116A3201 Danfoss Pressure Control Pilot

Product Overview

The Danfoss MCV116A3201, MCV116A3203, and MCV116A3204 are part of the MCV116 family of Pressure Control Pilots (PCPs) rather than conventional main hydraulic control valves.

Danfoss describes the MCV116 as a torque-motor actuated, double-nozzle flapper pressure control pilot. The PCP converts an electrical input current into a differential hydraulic pressure signal and uses internal hydraulic pressure reaction for closed-loop pressure control.

The MCV116 pilot stage is used in electrohydraulic control systems where precise pilot pressure is required to actuate a downstream spool, servo stage, proportional valve, pump control, or other hydraulic device.

The three models covered by this page are Type III dual-coil variants. They share the same nominal electrical characteristics but differ in connector configuration:

• MCV116A3201: MS connector
• MCV116A3203: Packard (2), currently identified by Danfoss PowerSource as WPACK TWIN
• MCV116A3204: Packard, currently identified as Weatherpack

For replacement applications, selecting the correct full part number is essential. A common MCV116 family designation does not automatically mean that every electrical connector variant is directly interchangeable.

Technical Specifications

MCV116A3201

• Manufacturer: Danfoss
• Series: MCV116
• Product Type: Pressure Control Pilot (PCP)
• PCP Type: Type III
• Coil Configuration: Dual coil
• Rated Current: ±220 mA
• Coil Resistance: 16/19 ohms
• Connector: MS
• Nominal Scale Factor: 0.78 psid/mA
• Current PowerSource Dimensions: 6.2 × 13.2 × 8.5 cm
• Pump Displacement: Not applicable
• Pump Rated Pressure: Not applicable
• Pump Peak Pressure: Not applicable
• Maximum Pump Speed: Not applicable
• OEM Weight: Not published on the current Danfoss PowerSource product page

MCV116A3203

• Manufacturer: Danfoss
• Series: MCV116
• Product Type: Pressure Control Pilot (PCP)
• PCP Type: Type III
• Coil Configuration: Dual coil
• Rated Current: ±220 mA
• Coil Resistance: 16/19 ohms
• Connector: Packard (2) / WPACK TWIN
• Nominal Scale Factor: 0.78 psid/mA
• Current PowerSource Dimensions: 25.4 × 16.2 × 12 cm
• Pump Displacement: Not applicable
• Pump Pressure: Not applicable
• Pump Speed: Not applicable
• OEM Weight: Not published on the current Danfoss PowerSource product page

MCV116A3204

• Manufacturer: Danfoss
• Series: MCV116
• Product Type: Pressure Control Pilot (PCP)
• PCP Type: Type III
• Coil Configuration: Dual coil
• Rated Current: ±220 mA
• Coil Resistance: 16/19 ohms
• Connector: Packard / Weatherpack
• Nominal Scale Factor: 0.78 psid/mA
• Pump Displacement: Not applicable
• Pump Pressure: Not applicable
• Pump Speed: Not applicable
• OEM Weight: Not published on the current Danfoss PowerSource product page

The important engineering distinction is that 0.78 psid/mA describes the PCP current-to-differential-pressure relationship, not the displacement or rated pressure of the hydraulic pump on which the PCP may be installed.

Key Technical Advantages

1. Torque-Motor Double-Nozzle Flapper Technology

The MCV116 uses a torque motor and double-nozzle flapper mechanism instead of a conventional direct-acting proportional solenoid.

Electrical current generates torque at the armature. Flapper displacement then modifies the hydraulic bridge pressure between the two nozzles, generating the differential pilot pressure required by the downstream control stage.

This architecture is well suited to electrohydraulic applications requiring controlled pilot pressure and fast dynamic response.

2. Self-Contained Hydraulic Feedback

The MCV116 incorporates internal hydraulic pressure feedback. The resulting pressure reaction opposes the electromagnetic torque until an equilibrium position is established.

This closed-loop principle improves the consistency of the current-to-pressure relationship compared with a simple open-loop actuator.

3. Type III Dual-Coil Configuration

A3201, A3203, and A3204 are specified as dual-coil Type III pilot stages with:

• ±220 mA rated current
• 16/19 ohm coil specification
• 0.78 psid/mA nominal scale factor

This makes correct electrical matching especially important when replacing the original PCP.

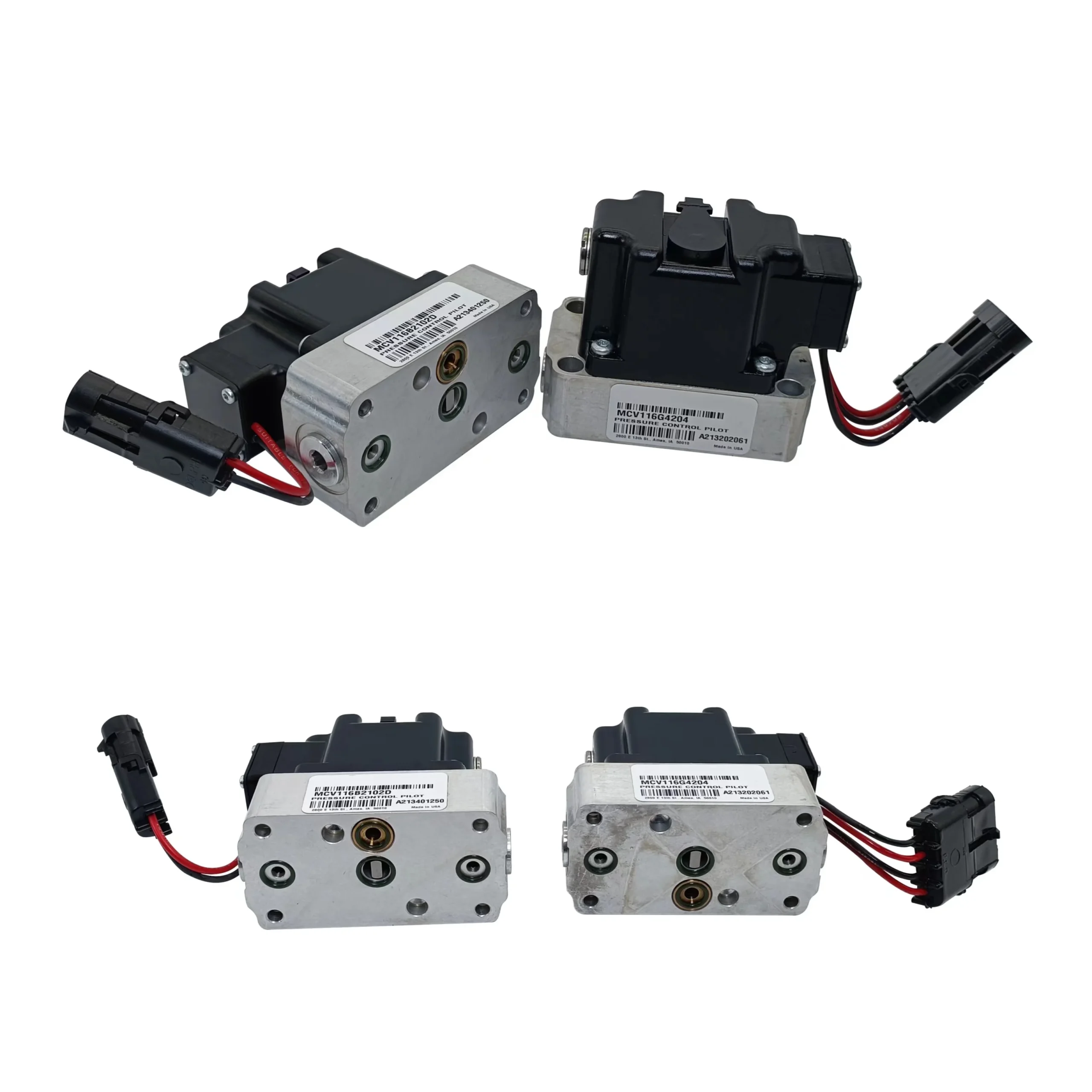

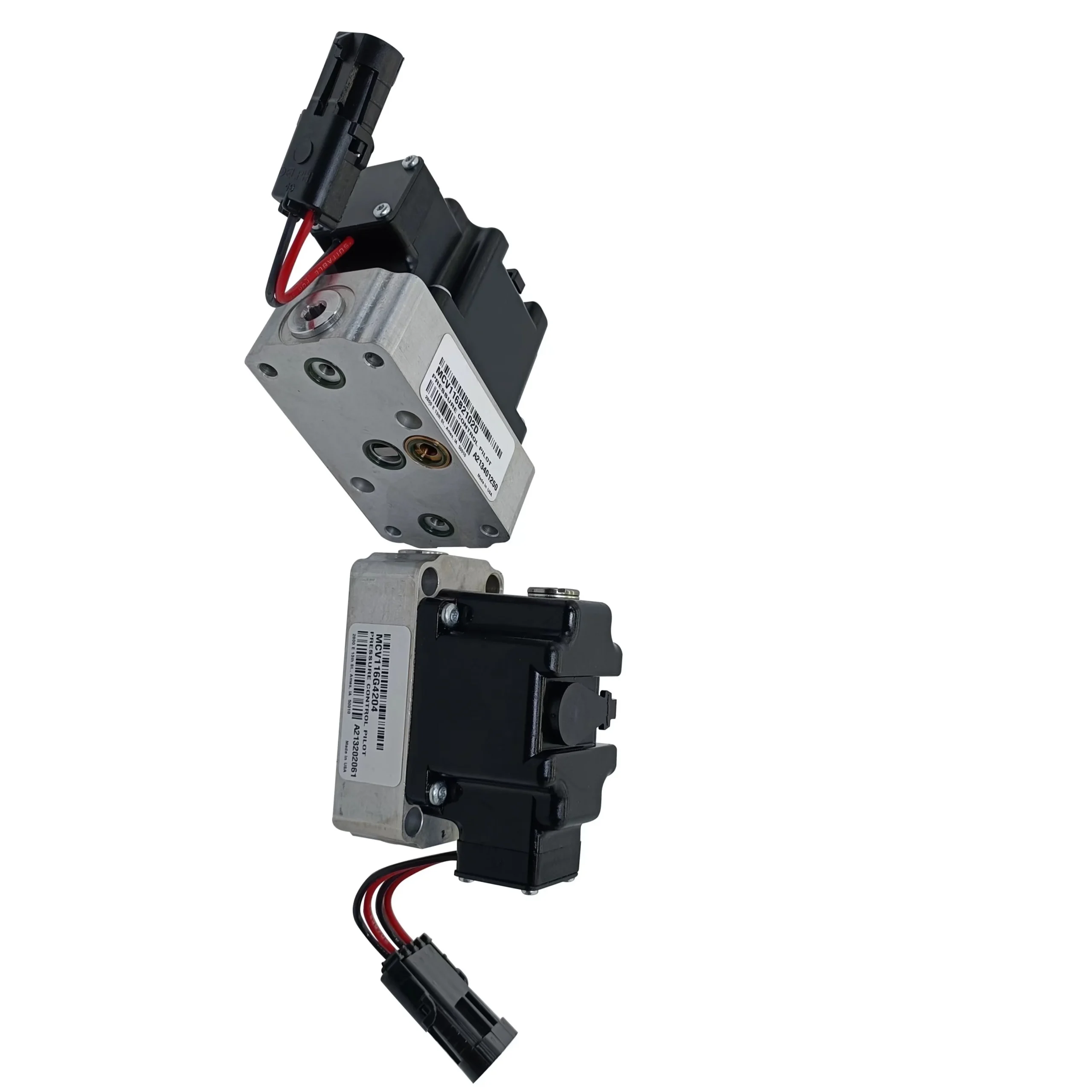

4. Multiple Connector Configurations

The MCV116 family supports different electrical connection arrangements without changing the fundamental PCP operating principle.

The three variants covered here provide:

• MS connection for A3201
• Twin Packard/Weatherpack connection for A3203
• Weatherpack/Packard connection for A3204

The correct connector must be confirmed before ordering a replacement.

5. Precision Pilot-Stage Construction

The performance of a PCP depends heavily on the accuracy and cleanliness of the torque motor, armature/flapper, nozzles, pilot passages, seals, and hydraulic interfaces.

For this type of component, engineering quality is determined less by generic housing-material claims and more by pilot geometry, magnetic consistency, hydraulic cleanliness, sealing integrity, and calibrated current-pressure response.

Danfoss-related control documentation also emphasizes filtration and hydraulic cleanliness for dependable servovalve performance.

Application Areas

Typical applications documented by Danfoss for systems incorporating MCV116 pilot technology include:

• Asphalt pavers
• Concrete pavers
• Soil stabilizers
• Material mixing machinery
• Milling machines
• Injection molding machinery
• Marine deck machinery
• Oil exploration equipment
• Product testing machinery
• Industrial robots and manipulator arms
• Motion simulators
• Paper mill machinery
• Air cargo loading systems
• Positioning and edge-guide equipment
• Synchronized servo drives

The MCV116 should therefore be viewed as a precision electrohydraulic pilot component, not simply as a generic hydraulic directional valve.

Expert Maintenance Tips

Verify the Complete Part Number

Before replacement, confirm:

Pump or valve model + control code + MCV116 part number + connector + coil configuration + controller type

Do not select a replacement based only on “MCV116”.

Check Electrical Characteristics

For A3201/A3203/A3204, verify the ±220 mA configuration and 16/19 ohm coil specification before connecting the replacement pilot.

Be Careful With PWM Drivers

Danfoss dual-coil PCPs have magnetic characteristics that differ from many conventional proportional solenoids. An unverified generic PWM strategy can therefore introduce diagnostic or response problems.

Keep the Pilot Circuit Clean

Contamination can affect the nozzle/flapper relationship, pilot passages, filter elements, and hydraulic feedback response.

Clean all hydraulic interfaces before installation and maintain the recommended system filtration level.

Do Not Diagnose the PCP by Coil Resistance Alone

A correct resistance reading does not prove correct hydraulic performance.

A professional validation sequence should include:

Input Current → C1/C2 Differential Pressure → Pilot Response → Second-Stage Movement → Final System Output

Verify the Entire Control Chain

The MCV116 may be only the first stage of a larger electrohydraulic control system. A fault in the second-stage spool, feedback mechanism, pump neutral setting, servo cylinder, or controller can appear similar to PCP failure.

Replacement Validation

For replacement units, the preferred engineering validation should include electrical inspection, pressure-response testing, null verification, leakage inspection, dynamic response testing, and complete system simulation.

For industrial aftermarket applications, our replacement approach can emphasize in-place interchangeability verification and 100% simulated working-condition testing, helping ensure that the replacement MCV116 performs correctly as part of the complete hydraulic control system rather than only passing a static bench inspection.
