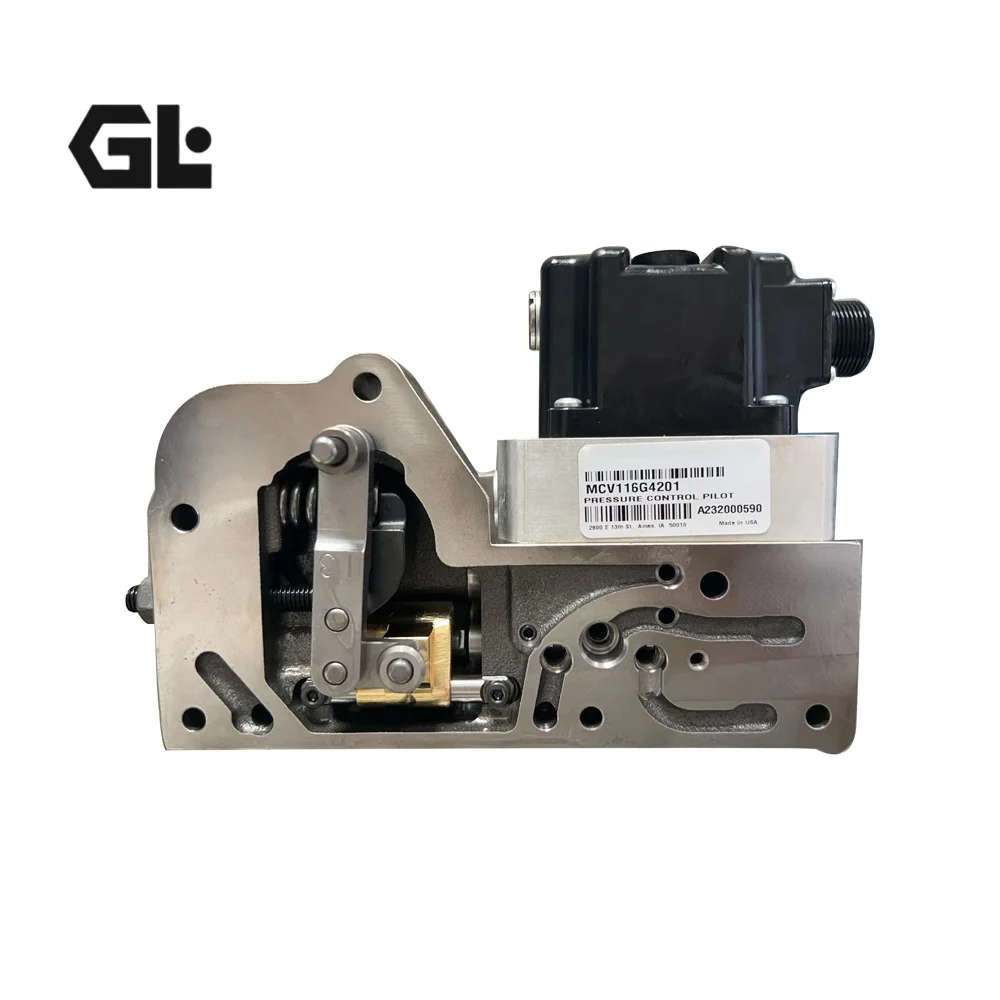

Product Overview

The Danfoss MCV116F4201 is a Type IV Pressure Control Pilot (PCP) used in electrohydraulic displacement-control systems, particularly Danfoss Series 90 EDC applications.

It is not a conventional main-stage hydraulic directional valve. In the Danfoss KVEB architecture, the MCV116 PCP forms the first stage of a two-stage electrohydraulic pump-stroke control system. The PCP uses a torque motor and double-nozzle flapper mechanism to convert an electrical input into differential pilot pressure. The second-stage control then uses this pressure to drive the pump servo cylinders and regulate swashplate angle.

Danfoss identifies MCV116F4201 as a legacy Type IV PCP with a 120–160 psi pressure range, used with KVEA configurations. The later MCV116G4201 is listed as the replacement PCP for KVEB configurations with a 60–80 psi pressure range.

This distinction is critical when selecting replacement parts.

Technical Specifications

MCV116F4201

• Manufacturer: Danfoss / Sauer-Danfoss
• Series: MCV116
• Product Type: Pressure Control Pilot (PCP)
• Type: Type IV
• Actuation: Torque motor
• Hydraulic Principle: Double-nozzle flapper
• Coil Configuration: Dual coil
• Connector: MS
• Associated Control: KVEA EDC
• PCP Pressure Range: 120–160 psi
• Pump Displacement: Not applicable
• Pump Rated Pressure: Not applicable
• Pump Peak Pressure: Not applicable
• Maximum Pump Speed: Not applicable
• Control Method: Electrohydraulic pilot-pressure control
• Output: Differential pressure for the EDC second stage
• OEM Weight: Not published in the verified Danfoss documentation

MCV116F4204

• Product Type: Pressure Control Pilot
• Type: Type IV
• Coil Configuration: Dual coil
• Connector: Weather Pack
• Scale Factor: 1.15 configuration
• Legacy KVEA Pressure Range: 120–160 psi
• Current PowerSource Description: PCP, Type IV, dual Weather Pack, 1.15 S.F.
• PowerSource Dimensions: 10 × 11.8 × 5 cm
• Pump Displacement: Not applicable
• Pump Pressure: Not applicable
• Pump Speed: Not applicable
• OEM Weight: Not published on the current Danfoss PowerSource page

MCV116F3118

• Product Type: Pressure Control Pilot
• Type: Type III
• Coil Configuration: Single coil
• Coil Resistance: 23 Ω
• Connector: 2-pin Deutsch
• PowerSource Description: PCP, III, single, 23 ohm, 2-pin Deutsch
• PowerSource Dimensions: 6.2 × 10.2 × 7.8 cm
• Series 90 Application: KF control configuration documented in Danfoss parts documentation
• Pump Displacement: Not applicable
• Pump Rated Pressure: Not applicable
• Maximum Pump Speed: Not applicable

MCV116G4212

• Product Family: MCV116
• OEM Verification: Exact complete part number not sufficiently verified in currently accessible Danfoss OEM documentation
• Type: Not confirmed
• Coil Configuration: Not confirmed
• Connector: Not confirmed
• Scale Factor: Not confirmed
• Pressure Range: Not confirmed

Because public aftermarket listings are not sufficient to establish OEM specifications, these values should not be invented.

MCV104A5926E

• Product Family: Danfoss Series 20 control components
• Closest verified Danfoss part: MCV104A5926
• Official spare-parts classification: EDC Kit, Series 20
• Exact “E” suffix: Not sufficiently verified
• Pump Displacement: Must be confirmed against the complete Series 20 pump model
• Pressure Rating: Must be confirmed against the complete pump/control code
• Maximum Speed: Must be confirmed against the complete pump model

Key Technical Advantages

1. Torque-Motor Double-Nozzle Flapper Design

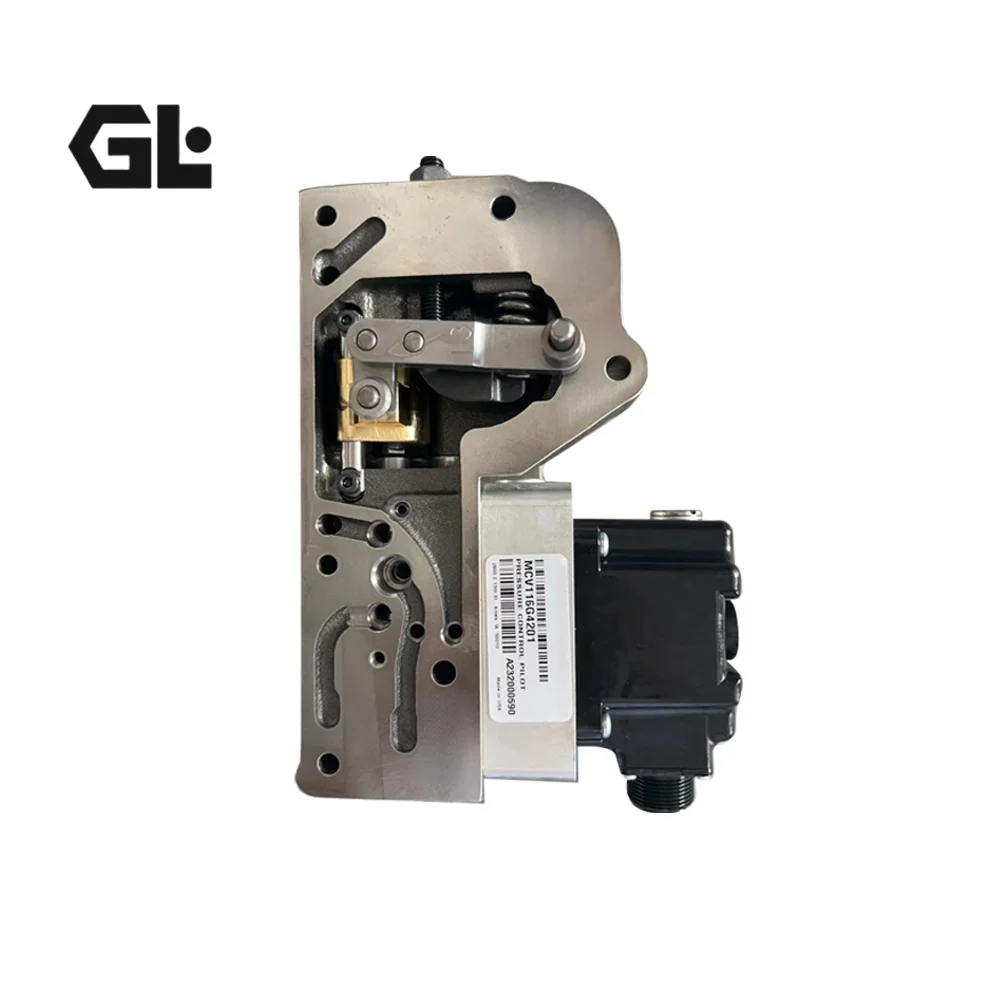

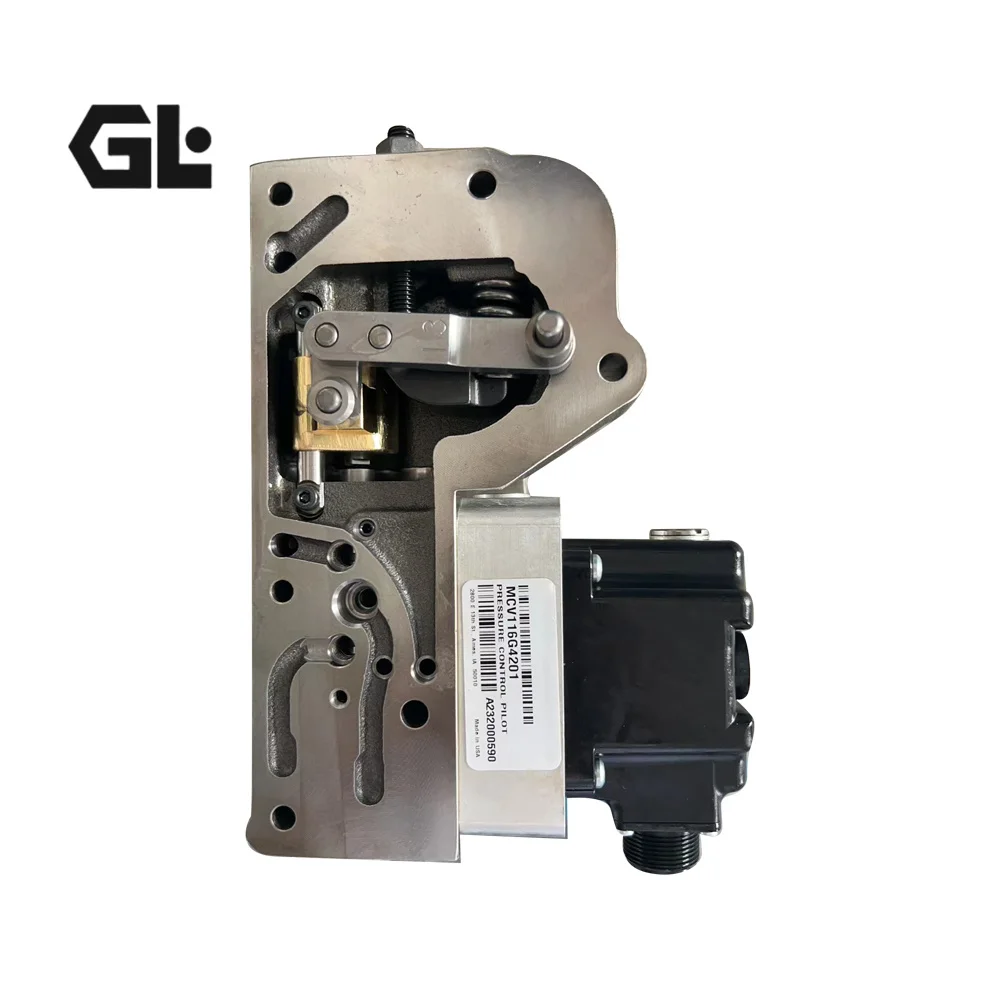

The MCV116 PCP uses a torque motor and double-nozzle flapper hydraulic stage.

The electrical input produces torque at the armature/flapper, while the hydraulic bridge generates differential pressure for the EDC second stage.

This architecture enables controlled pilot-pressure generation without requiring the PCP itself to handle the main pump flow.

2. Closed-Loop Electrohydraulic Displacement Control

The MCV116 acts as the first stage in a larger EDC loop.

The sequence is:

Electrical Current → PCP Differential Pressure → Second-Stage Spool → Servo Cylinder → Swashplate

Danfoss uses mechanical feedback to establish closed-loop swashplate-angle control on Series 90 pumps.

3. Clearly Defined Legacy-to-New Replacement Path

For the Type IV configuration, Danfoss documents:

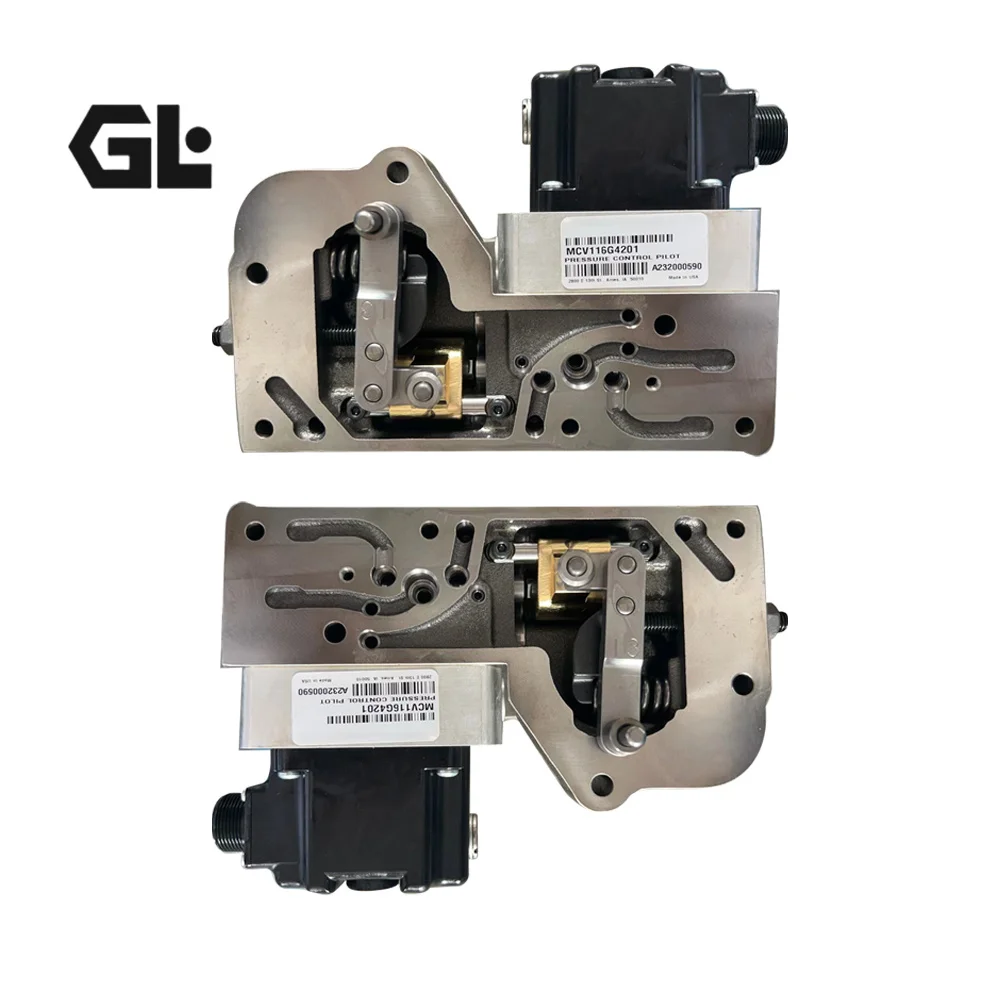

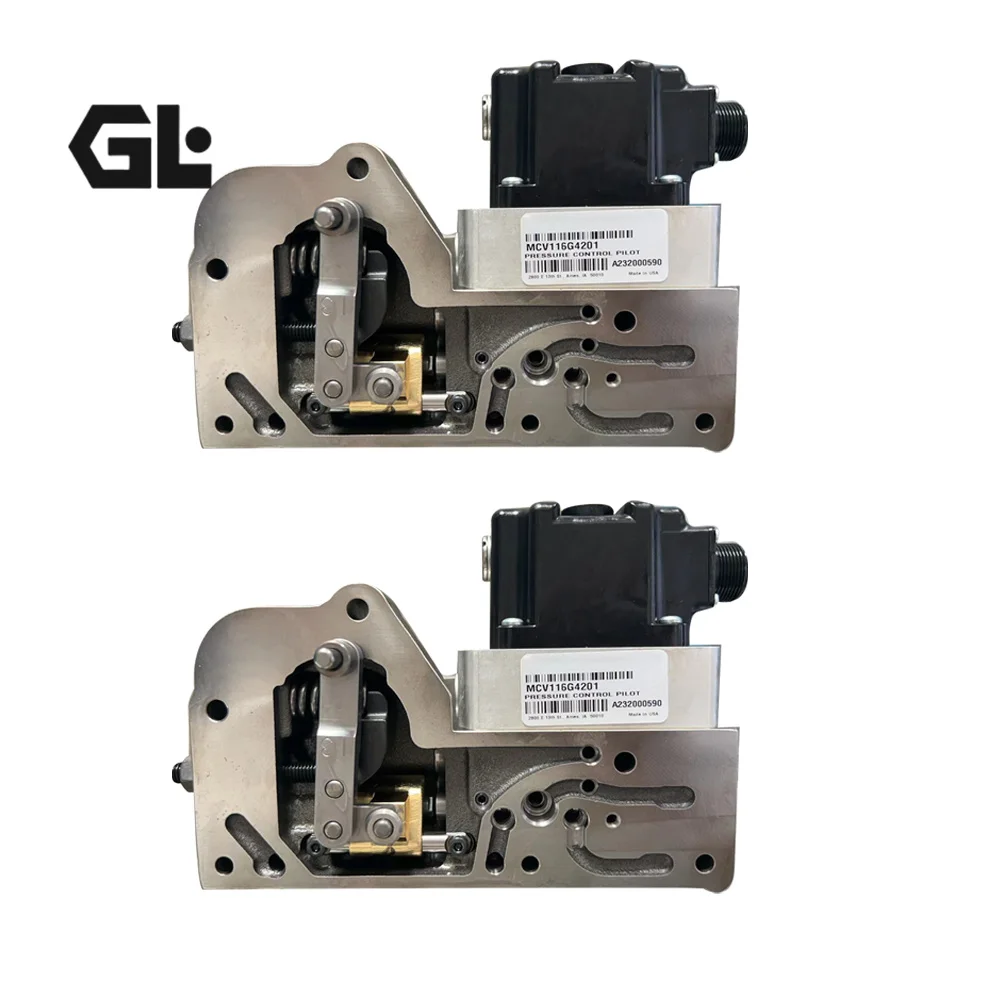

MCV116F4201 → MCV116G4201

and

MCV116F4204 → MCV116G4204

The legacy F versions are listed at 120–160 psi, while the newer G versions are listed at 60–80 psi in the KVEB replacement architecture.

This makes complete control-code verification essential during service replacement.

4. Dual-Coil Torque-Motor Architecture

Danfoss warns that the magnetic flux of its dual-coil PCP design flows through both windings. The resulting behavior is different from many conventional proportional solenoids.

For replacement installations, verify:

• Coil configuration
• Current level
• Electrical phasing
• Controller architecture
• PWM strategy
• Connector wiring

Danfoss specifies that the EDC is primarily designed for DC current or voltage control. When PWM is used, the documented carrier frequency requirement is 200 Hz or higher, with PWM current limited to no more than 120% of the current required for full output.

5. High Sensitivity to Hydraulic Cleanliness

The nozzle/flapper mechanism relies on precise hydraulic metering.

Contamination can cause:

• Null drift
• Slow response
• Unstable differential pressure
• Incorrect pump neutral
• Reduced stroking response
• Increased leakage

Danfoss recommends ISO 4406 22/18/13 or better for normal EDC hydraulic-system cleanliness.

6. Environmental Durability

Danfoss documentation for the KVEB EDC includes environmental testing for mobile-equipment operating conditions, including:

• 50 G shock for 11 ms
• 5–2000 Hz vibration testing
• 95% humidity at 49 °C for 10 days
• Silicone-oil-filled torque motor
• Environmental sealing between control stages

These characteristics support applications in demanding mobile and industrial hydraulic environments.

Engineering Materials and Manufacturing

Danfoss does not provide enough publicly accessible OEM material data to certify the exact alloy grades or heat-treatment specifications for MCV116F4201 and MCV116F4204.

For an aftermarket replacement, engineering quality should instead focus on:

Flapper and Nozzle Precision

The nozzle/flapper relationship determines the hydraulic bridge characteristics and therefore the current-to-pressure response.

Torque-Motor Consistency

Magnetic and mechanical consistency influences the repeatability of PCP response.

Control-Spool and Feedback Accuracy

The final EDC response depends not only on the PCP, but also on the second-stage spool and mechanical feedback system.

Danfoss has documented design improvements in the control spool, feedback mechanism and pilot-valve nozzle/clearance area.

Sealing and Filtration

Series 90 parts documentation identifies control gaskets, O-rings, feedback links and filter assemblies as part of the control service architecture.

Application Areas

Typical applications include:

• Danfoss Series 90 variable displacement pumps
• Hydrostatic transmissions
• Construction equipment
• Agricultural machinery
• Material handling equipment
• Mobile hydraulic systems
• Industrial hydraulic power units
• Variable pump controls
• Variable motor controls
• EDC-controlled hydrostatic drives
• Servo-assisted hydraulic systems
• Vehicle propel systems

The MCV116 PCP is especially relevant where electrical commands must be converted into hydraulic differential pressure for variable-displacement control.

Expert Maintenance Tips

Verify the Complete EDC Configuration

Before ordering a replacement, record:

Pump Model + Displacement + EDC Code + PCP Part Number + Connector + Coil Configuration

The MCV116 number alone is not sufficient for reliable replacement selection.

Do Not Automatically Substitute F4201 With G4201

Although Danfoss documents G4201 as the replacement for F4201, the documented PCP pressure ranges differ:

• F4201: 120–160 psi
• G4201: 60–80 psi

The complete EDC version must therefore be confirmed.

Verify Dual-Coil Driver Compatibility

Do not assume that a generic proportional-solenoid PWM driver is suitable.

Check current control, coil arrangement, phasing and PWM requirements.

Maintain Hydraulic Cleanliness

Target ISO 4406 22/18/13 or better according to the Danfoss KVEB documentation.

Inspect:

• PCP supply passage
• Nozzle area
• Control filter
• Servo passages
• Control spool
• Pilot connections

Transfer the Original Orifices Correctly

Danfoss Series 90 service documentation instructs that existing orifices in the original control must be transferred to the replacement control, and pre-installed replacement orifices should be removed where applicable before transfer.

Verify the Entire EDC Loop

A complete diagnostic sequence should be:

Input Current → PCP Pressure Differential → Second-Stage Spool → Servo Cylinder → Swashplate Movement → Pump Output

A PCP that passes a resistance test may still have a hydraulic or calibration problem.

Recommended Replacement Validation

For professional aftermarket replacement, use:

Visual Inspection → Dimensional Verification → Connector Verification → Coil Test → Current Calibration → Differential Pressure Test → Null Verification → EDC Response Test → Swashplate Test → 100% Simulated Working-Condition Test

This provides a stronger basis for in-place interchangeability than a simple visual or continuity inspection.
