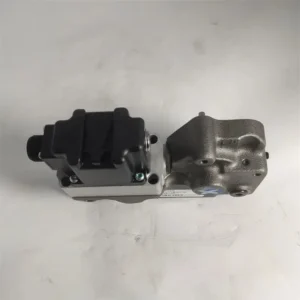

MCV116A3102
Product Overview
The MCV116A3102 is a core model in the Danfoss / Sauer-Danfoss MCV116 series of Pressure Control Pilot (PCP) valves. It features a torque-motor actuated, double-nozzle flapper valve configuration that produces a differential output pressure proportional to the applied electrical input signal.
The MCV116 series PCP valve is a single-stage, stand-alone closed-loop pressure control valve that utilizes internal hydraulic pressure reactions to achieve its closed-loop control characteristics. This valve provides precise control signals for Danfoss Series 90 variable displacement piston pumps (90R/90L) and is widely used in construction machinery, industrial automation, and agricultural equipment.
Model Code Breakdown (MCV116A3102):
MCV: Pressure Control Pilot Valve Series
116: Series code (116 Series PCP Valve)
A: Configuration code
3102: Factory internal configuration code
Technical Specifications (Bulleted List)
Model: MCV116A3102
Brand: DANFOSS / SAUER-DANFOSS
Series: MCV116 Series
Product Type: Pressure Control Pilot Valve (PCP)
Valve Structure: Torque-motor actuated, double-nozzle flapper valve
Control Type: Single-stage stand-alone closed-loop pressure control
Rated Pressure: 13 MPa or higher
Response Time: ≤20 ms
Repeatability: ±1%
Actuation: Pilot-operated, electro-hydraulic proportional control / manual override optional
Body Material: High-strength material, excellent corrosion and wear resistance
Protection Class: IP65/IP67 (optional)
Compatible Pumps: Danfoss Series 90 variable displacement pumps
Weight: Approx. 0.77–0.82 kg

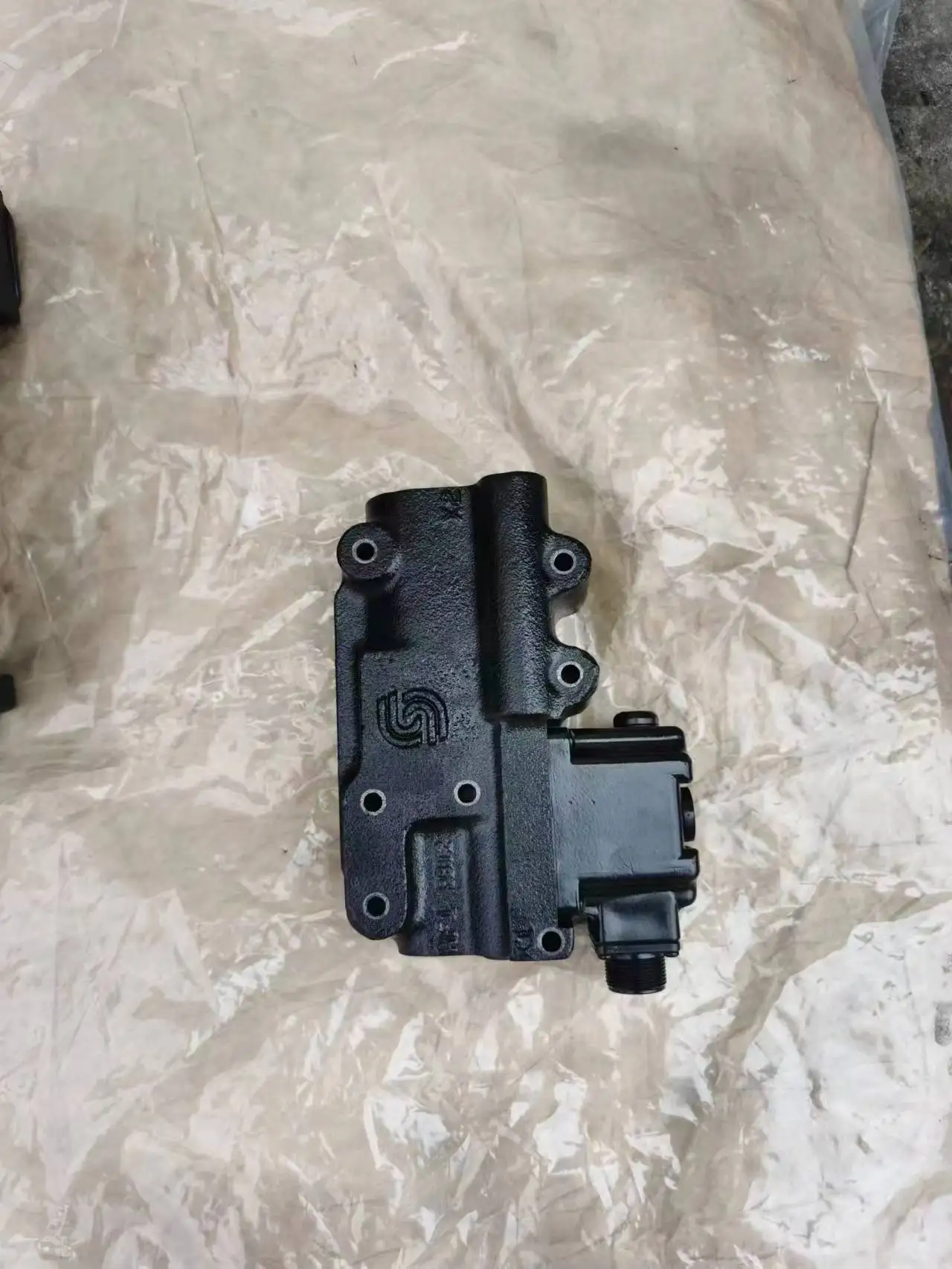

MCV116A3501
Product Overview
The MCV116A3501 is a classic model in the Danfoss / Sauer-Danfoss MCV116 series of Pressure Control Pilot (PCP) valves. It also features a torque-motor actuated, double-nozzle flapper valve configuration, providing precise control signals for Danfoss Series 90 variable displacement piston pumps.
The MCV116A3501 operates with a typical supply pressure of 17.2 bar and supports an air flow capacity of up to 550 L/min. Its ultra-wide ambient operating temperature range (-40°C to +93°C) enables operation in diverse extreme climate conditions. The valve features a Weather-Pack electrical connector for enhanced dust and moisture resistance.
Model Code Breakdown (MCV116A3501):
MCV: Pressure Control Pilot Valve Series
116: Series code (116 Series PCP Valve)
A: Configuration code
3501: Factory internal configuration code
Technical Specifications (Bulleted List)
Model: MCV116A3501
Brand: DANFOSS / SAUER-DANFOSS
Series: MCV116 Series
Product Type: Pressure Control Pilot Valve (PCP)
Valve Structure: Torque-motor actuated, double-nozzle flapper valve
Control Type: Single-stage stand-alone closed-loop pressure control
Typical Supply Pressure: 17.2 bar
Air Flow Capacity: 550 L/min
Maximum Voltage: 30 V
Maximum Current: 46 mA
Load Flow: 0.46 L/min
Ambient Operating Temperature: -40°C to +93°C (-40°F to +200°F)
Electrical Connector: Weather-Pack connector, dust and moisture resistant
Weight: Approx. 0.8–1.0 kg
Compatible Pumps: Danfoss Series 90 variable displacement pumps

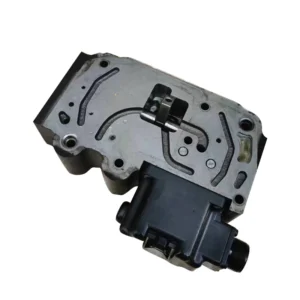

MCV110A1017
Product Overview
The MCV110A1017 is a core model in the Danfoss / Sauer-Danfoss MCV110A series of Electric Displacement Control (EDC) pilot valves. This is a two-stage electrohydraulic pump stroke control device designed for high-pressure hydraulic systems.
The MCV110A1017 features a 6-port design enabling simultaneous control of multiple actuators. It delivers a 21–35 MPa pressure range (model-dependent), ≤20 ms response time, and ±1% repeatability. Optional IP65/IP67 protection is available for outdoor and dusty environments. The valve body is constructed from cast iron with a weight of approximately 0.73–0.82 kg.
Model Code Breakdown (MCV110A1017):
MCV: Pressure Control Pilot Valve Series
110A: Series code (110A Series EDC Pilot Stage)
1017: Factory internal configuration code
Technical Specifications (Bulleted List)
Model: MCV110A1017
Brand: DANFOSS / SAUER-DANFOSS
Series: MCV110A Series
Function: Electric Displacement Control (EDC) Pilot Valve
Valve Structure: Two-stage electrohydraulic pump stroke control, torque-motor actuated double-nozzle flapper valve
Rated Pressure: 21–35 MPa (model-dependent)
Port Configuration: 6-port design
Response Time: ≤20 ms
Repeatability: ±1%
Control Method: Pilot-operated, electric proportional control / manual emergency operation optional
Body Material: Cast Iron
Protection Class: IP65/IP67 (optional)
Actuation Type: Direct-acting
Connection Form: Flange type
Weight: 0.73–0.82 kg

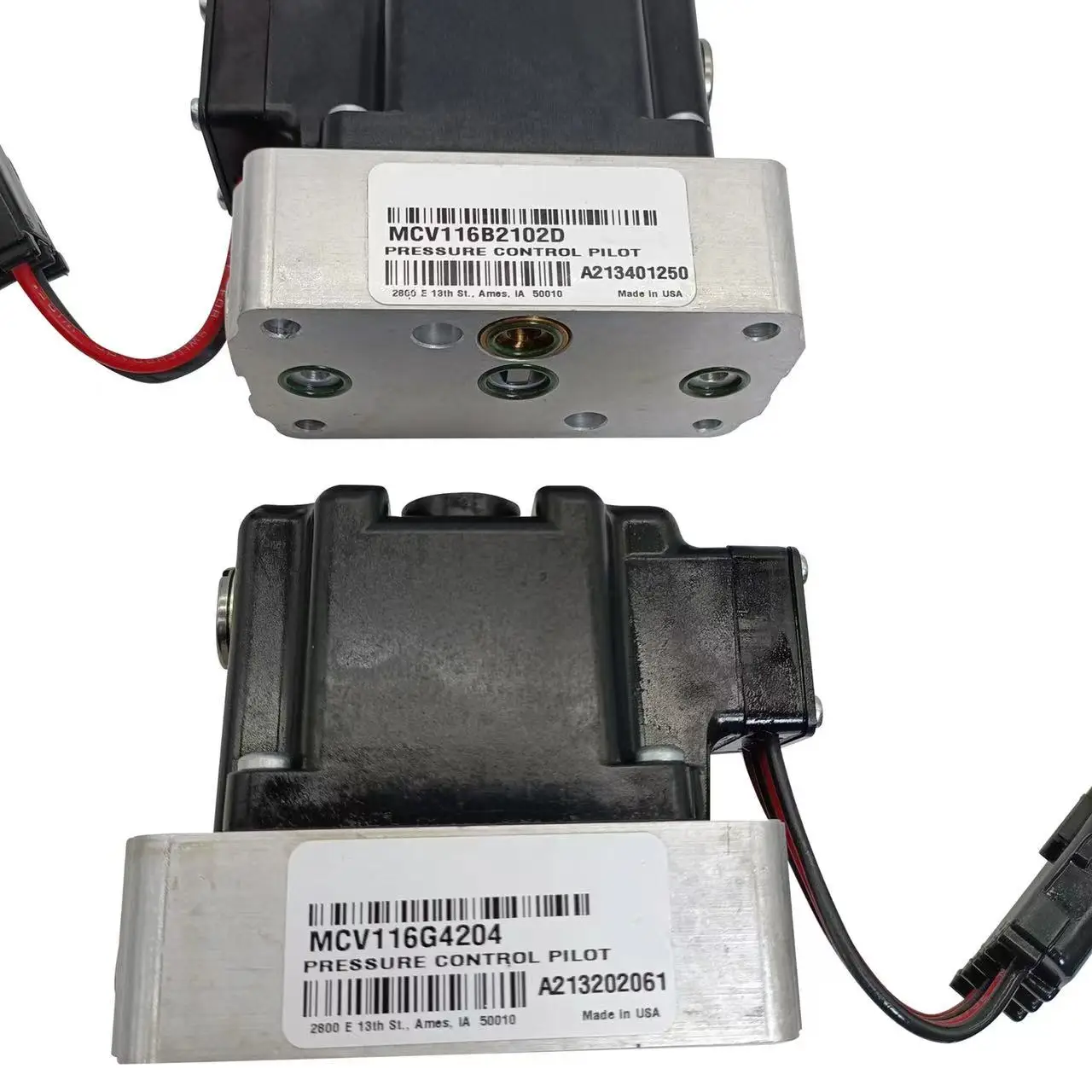

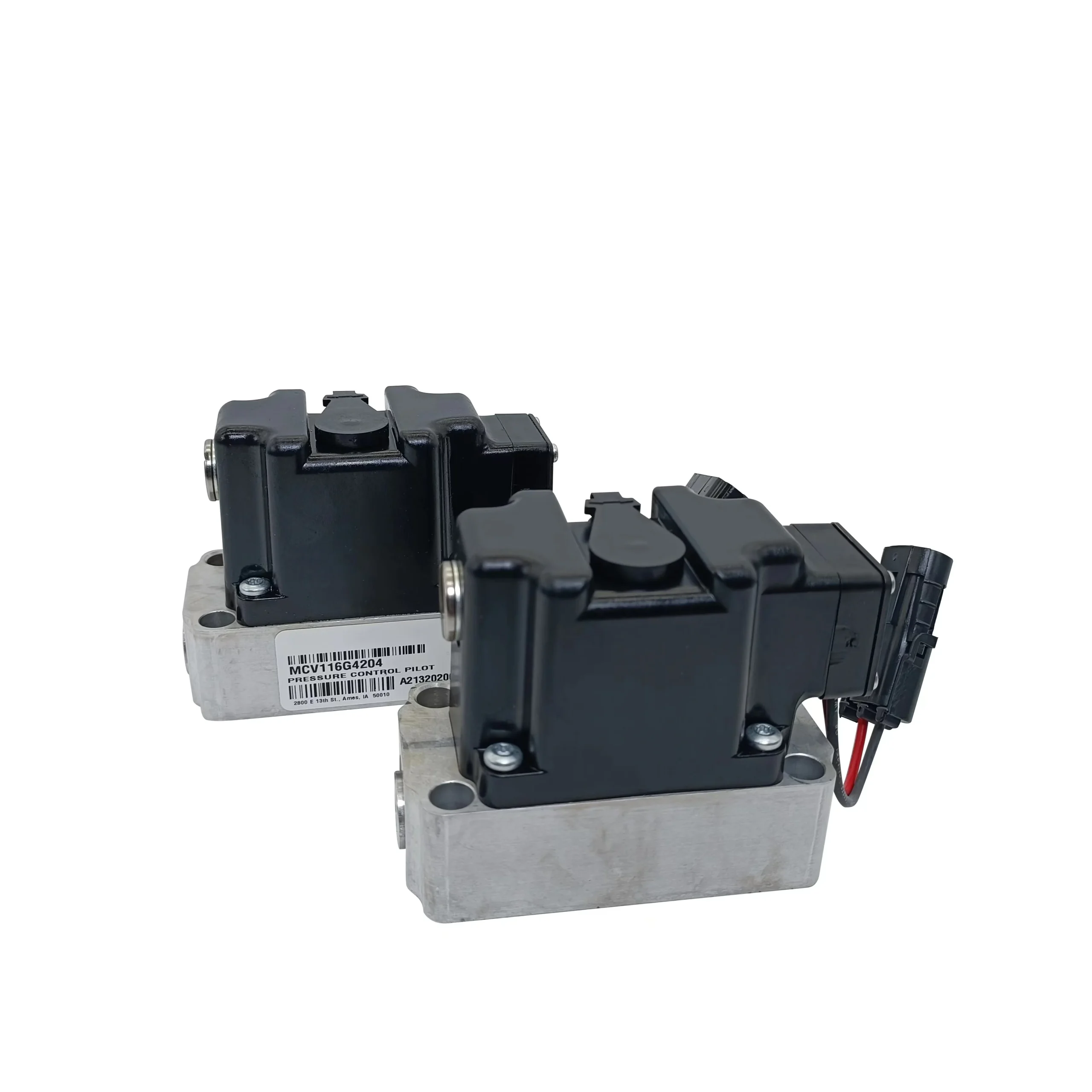

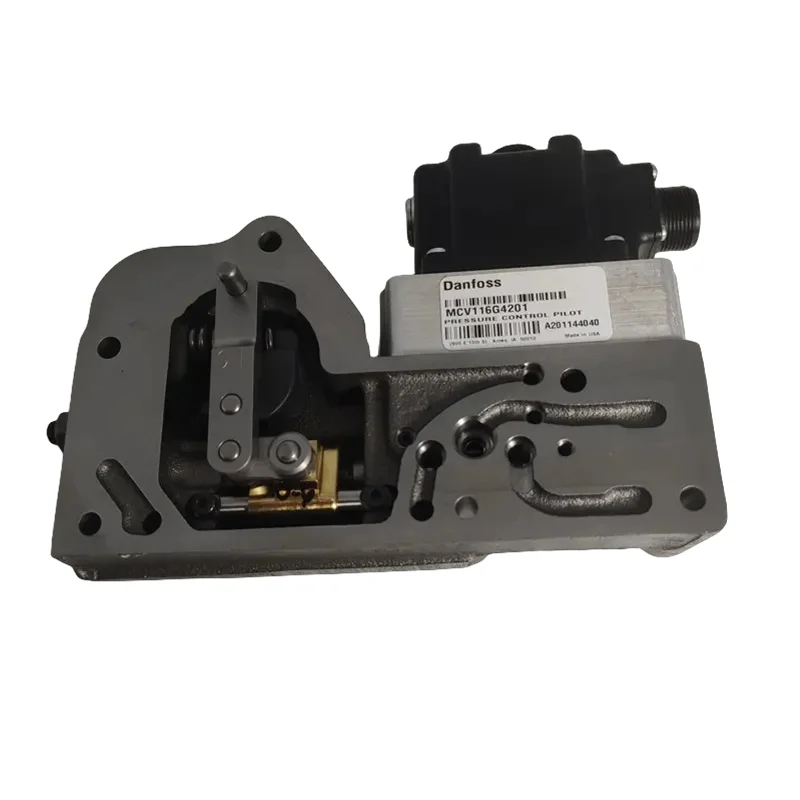

MCV116G4204
Product Overview
The MCV116G4204 is a classic model in the Danfoss / Sauer-Danfoss MCV116 series of Pressure Control Pilot (PCP) valves. It features a 4-wire configuration providing precise control for hydraulic and pneumatic systems.
The MCV116G4204 also features a torque-motor actuated, double-nozzle flapper valve configuration, providing precise control signals for Danfoss Series 90 variable displacement piston pumps. It is widely used in construction machinery and industrial hydraulic systems as a core component for Series 90 pump displacement and pressure control.
Model Code Breakdown (MCV116G4204):
MCV: Pressure Control Pilot Valve Series
116: Series code (116 Series PCP Valve)
G: Configuration code
4204: Factory internal configuration code (4-wire configuration)
Technical Specifications (Bulleted List)
Model: MCV116G4204
Brand: DANFOSS / SAUER-DANFOSS
Series: MCV116 Series
Product Type: Pressure Control Pilot Valve (PCP)
Valve Structure: Torque-motor actuated, double-nozzle flapper valve
Control Type: Single-stage stand-alone closed-loop pressure control
Electrical Configuration: 4-wire
Body Material: High-strength material
Compatible Pumps: Danfoss Series 90 variable displacement piston pumps (90R/90L)
Weight: 0.77 kg
Key Technical Advantages (MCV Series Common)
1. Torque-Motor Actuated Double-Nozzle Flapper Valve Structure for High-Precision Control
MCV series PCP valves feature a torque-motor actuated, double-nozzle flapper valve configuration. The torque motor converts electrical input signals into precise mechanical displacement, producing differential output pressure proportional to the applied signal by varying the nozzle-flapper clearance. Compared to conventional solenoid designs, the torque motor delivers superior dynamic response frequency and lower hysteresis.
2. Single-Stage Stand-Alone Closed-Loop Pressure Control
MCV series PCP valves are single-stage, stand-alone closed-loop pressure control valves that use internal hydraulic pressure reactions to achieve closed-loop control characteristics. Precise closed-loop pressure control is achieved without external feedback elements, significantly simplifying the hydraulic system control architecture.
3. Perfect Integration with Danfoss Series 90 Pumps
MCV series PCP valves mount directly on the pump head of Danfoss Series 90 variable displacement piston pumps (90R/90L). They convert electrical signals into proportional pilot differential pressure to adjust pump swashplate angle and regulate pump displacement and output flow. The compact modular layout reduces external piping and fitting requirements.
4. Fast Response and High Repeatability
Both MCV110A1017 and MCV116A3102 feature ≤20 ms response time and ±1% repeatability. Fast response ensures timely pressure adjustment during sudden load changes, protecting equipment safety.
5. Wide Pressure Range and Flexible Adaptability
MCV110A1017 rated pressure covers 21–35 MPa. MCV116A3501 supports a typical pilot pressure of 17.2 bar with air flow of 550 L/min. The wide pressure and flow coverage flexibly adapts to diverse applications from small-to-medium equipment to large heavy-duty machinery.
6. Rugged Environmental Durability
MCV110A1017 offers optional IP65/IP67 protection. MCV116A3501 ambient operating temperature covers -40°C to +93°C. MCV116A3501 features a Weather-Pack connector for enhanced dust and moisture resistance. These products are suitable for diverse extreme climate conditions and demanding industrial environments.
Application Areas
Construction Machinery — Hydraulic proportional control for excavator booms, arms, and buckets
Road Construction and Mining Equipment — Hydraulic systems for road rollers, pavers, and mobile mining equipment
Agricultural Machinery — Header height adjustment cylinder pressure control for combine harvesters
Industrial Automation — Precise proportional control of clamping force and injection pressure for injection molding machines
Die-Casting Machines — Proportional regulation of injection pressure and speed
Wind Turbine Systems — Synchronized pressure regulation for multi-blade hydraulic pitch systems
Expert Maintenance Tips
1. Installation Guidelines
MCV series pilot valves mount directly on the pump head pilot manifold—pay special attention to alignment with locating pins during installation to prevent spool sticking due to misalignment.
Thoroughly clean the mounting surface and all ports before installation to prevent foreign particles from entering the pilot valve and causing nozzle blockage or flapper sticking.
MCV110A1017 features a 6-port design—verify correct port connections during installation.
2. Hydraulic Fluid Cleanliness
MCV series pilot valves incorporate precision nozzle-flapper mechanisms that are highly sensitive to fluid cleanliness.
Recommended fluid: Anti-wear mineral hydraulic oil.
MCV116A3501 ambient operating temperature range: -40°C to +93°C.
Install a return line filter with minimum 10 μm filtration rating.
3. Electrical Connection Specifications
MCV116G4204 features a 4-wire configuration. MCV116A3501 features a Weather-Pack connector.
Shielded cables are recommended for command signal connections to prevent electromagnetic interference affecting control precision.
4. Periodic Maintenance Inspection
Inspect the valve body for external oil leakage every 2,000 operating hours or at least annually.
Check electrical connectors for looseness, oxidation, or moisture ingress.
If response lag or reduced control precision is observed, first check system fluid cleanliness and pilot screens for blockage—nozzle-flapper mechanism contamination is the most common cause of performance degradation.
The torque motor assembly must not be disassembled by end users; any repairs should be performed by qualified hydraulic service professionals.
