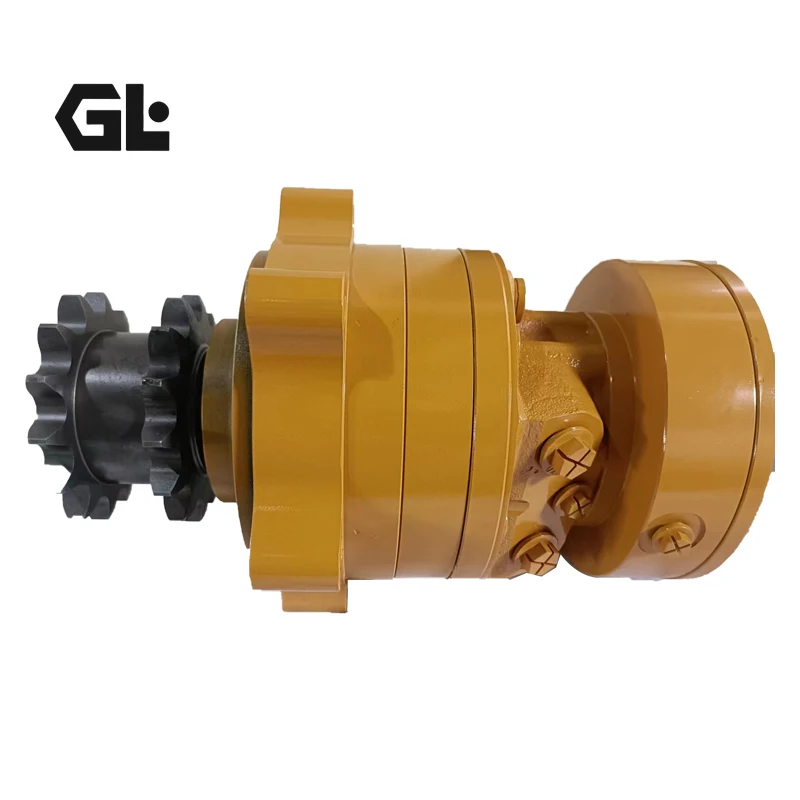

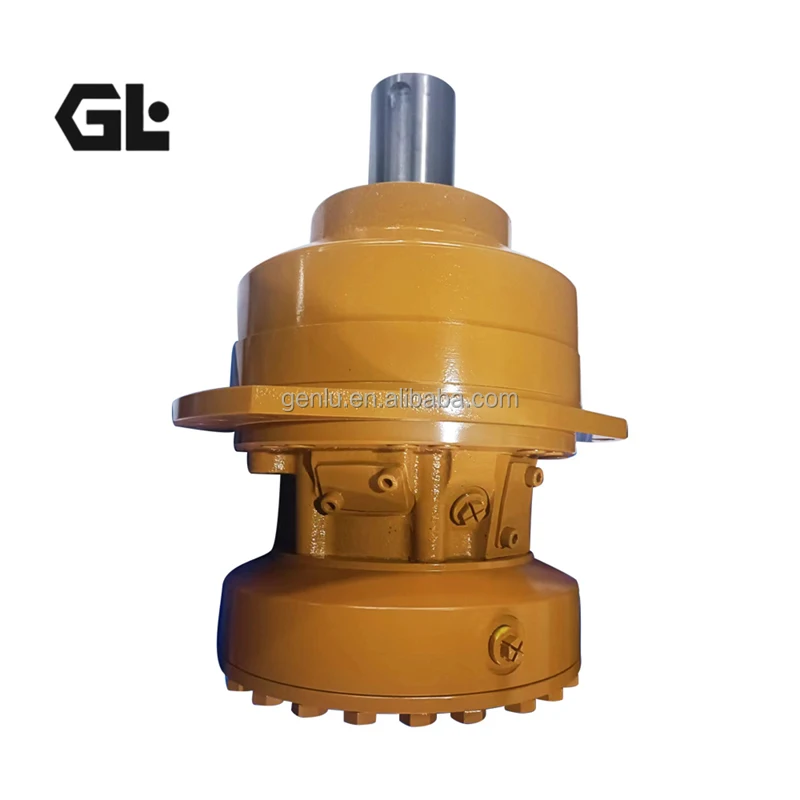

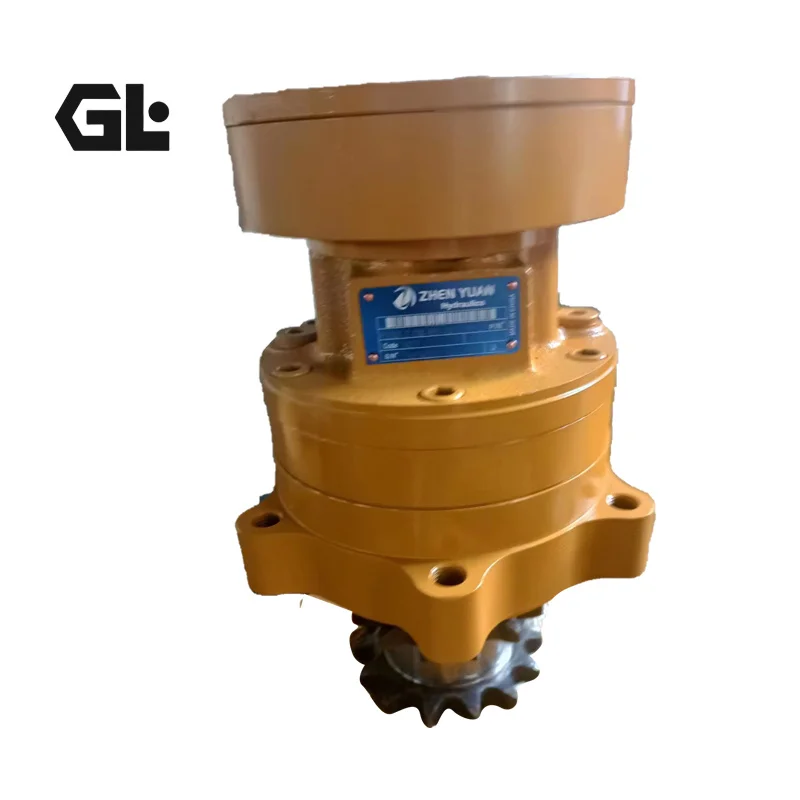

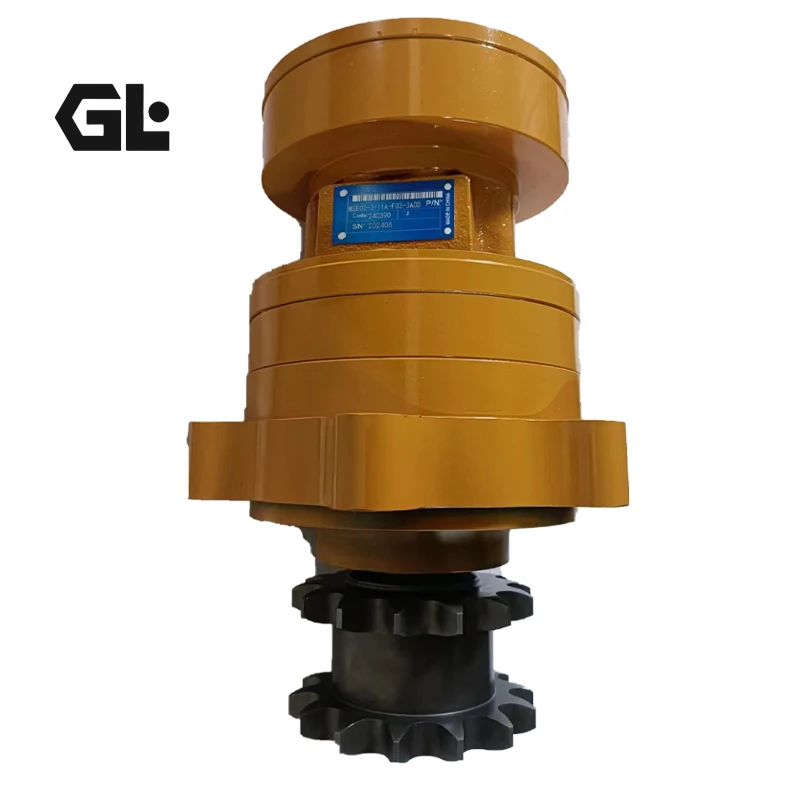

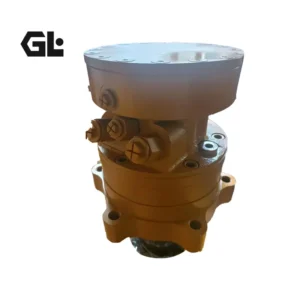

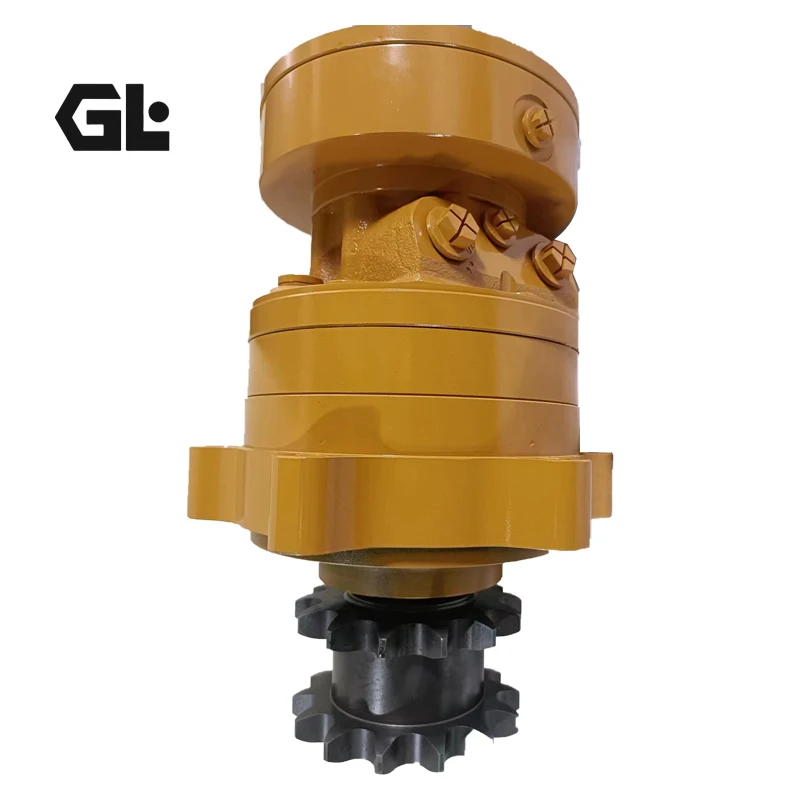

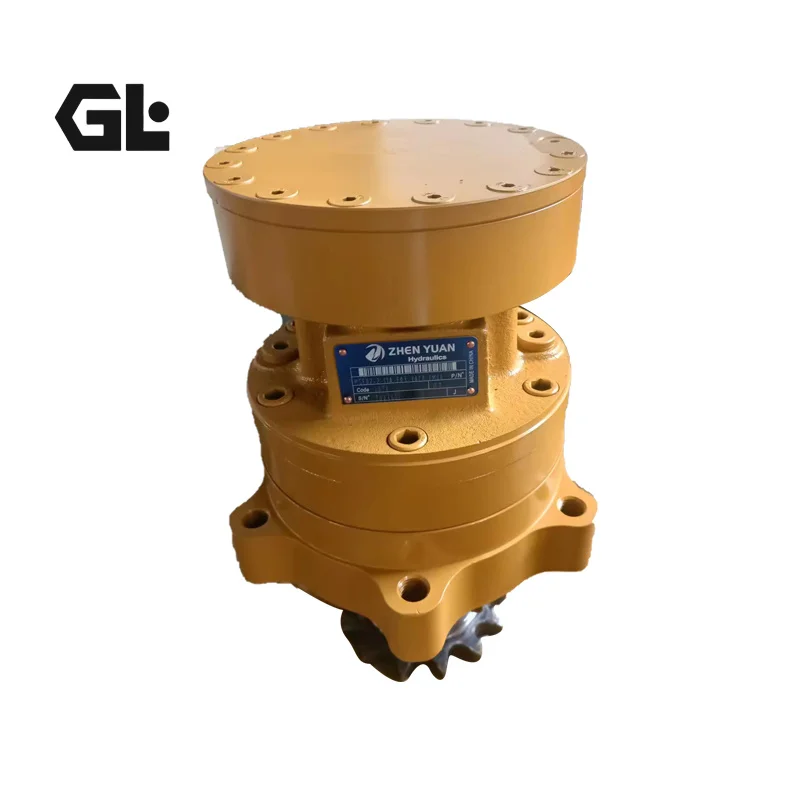

Poclain MSE02 Hydraulic Motor Replacement | High-Torque Radial Piston Motor

Genlu Hydraulic proudly introduces our industrial-grade MSE02 Series radial piston hydraulic motors. This series is fully engineered to match global standards, providing a seamless, high-value drop-in replacement for Poclain Hydraulics MSE02 technology, optimized for compact mobile machinery requiring superior torque density and low-speed smoothness. We specifically highlight our supply capability for precision-tuned units such as the MSE02-2-11A-F03-3ACO-Y3FM and MSE02-2-123-F03-1120-YDJ0.

As a benchmark in the mobile hydraulics industry, the MSE02 series delivers exceptional starting torque and compact integration for skid steers and compact equipment. Genlu guarantees 100% Drop-in Interchangeability across mounting flanges, hub-spline connections, valve-block configurations, and internal geometry compared to original Poclain MSE02 assemblies. Every motor undergoes 100% full-load performance, torque-efficiency, and pressure-integrity verification on our digital test benches.

Technical Specifications

• Product Series: Poclain MSE02 Series Radial Piston Motor

• Representative Models: MSE02-2-11A-F03-3ACO-Y3FM, MSE02-2-123-F03-1120-YDJ0

• Displacement Range: 120 cc/rev to 500 cc/rev (Model-dependent)

• Nominal Operating Pressure: 350 bar (Continuous)

• Peak Transient Pressure: 450 bar

• Starting Torque Efficiency: > 90%

• Maximum Speed: 150 – 300 rpm (Application-dependent)

• Control Logic: Multi-stage variable displacement (Hydraulic)

• Approximate Unit Weight: 35 – 45 kg

Key Technical Advantages:

• Ultra-High Power Density: The radial piston design provides massive torque output within a minimal footprint. The motor is engineered for direct hub integration, eliminating the need for bulky external gearboxes.

• Advanced Multi-Displacement Control: Integrated displacement shifting allows equipment to switch seamlessly between “high-torque work mode” and “high-speed transit mode,” maximizing operational versatility and energy efficiency.

• Precision Hydrostatic Distribution: Balanced distribution architecture minimizes friction between pistons and cam rings, ensuring smooth rotation even at ultra-low speeds and preventing “stick-slip” behavior.

• Rugged Sealing Systems: Premium FKM seals ensure long-term durability against heat and chemical degradation, protecting internal components in harsh, dusty, and high-temperature outdoor environments.

Application Areas:

• Compact Mobile Machinery: Skid steer loaders and compact excavator travel drives.

• Material Handling & Agriculture: Small agricultural transport vehicles and forklift auxiliary drives.

• Municipal Maintenance: Street sweepers, lawn mowers, and landscape maintenance vehicles.

Expert Maintenance Tips:

• Strict Case Drain Management: The MSE02 housing is designed for low pressure. Always route the case drain line directly to the reservoir; never connect it to return lines. Any backpressure will cause immediate shaft seal failure.

• Enforce Fluid Cleanliness: Maintain fluid cleanliness at ISO 4406 18/16/13. High-precision distribution faces are sensitive to particulate ingress; ensure high-efficiency filtration is maintained.

• Perform Initial Priming: Never start the motor dry. Always fill the housing with clean hydraulic fluid through the highest drain port after mounting to ensure internal components are lubricated before the initial startup.
