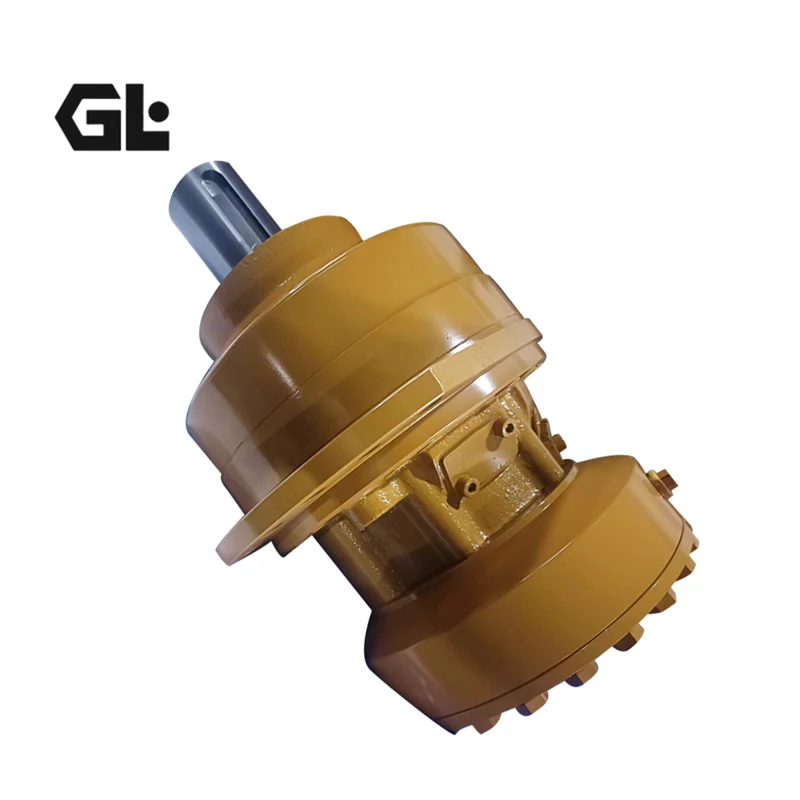

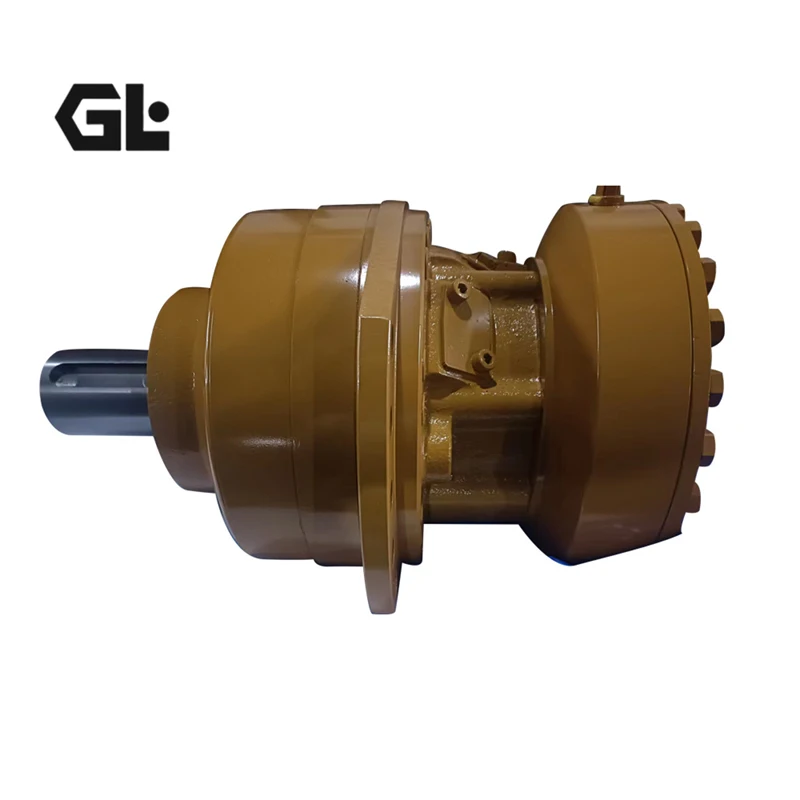

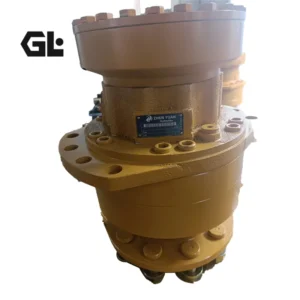

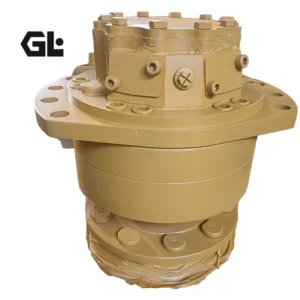

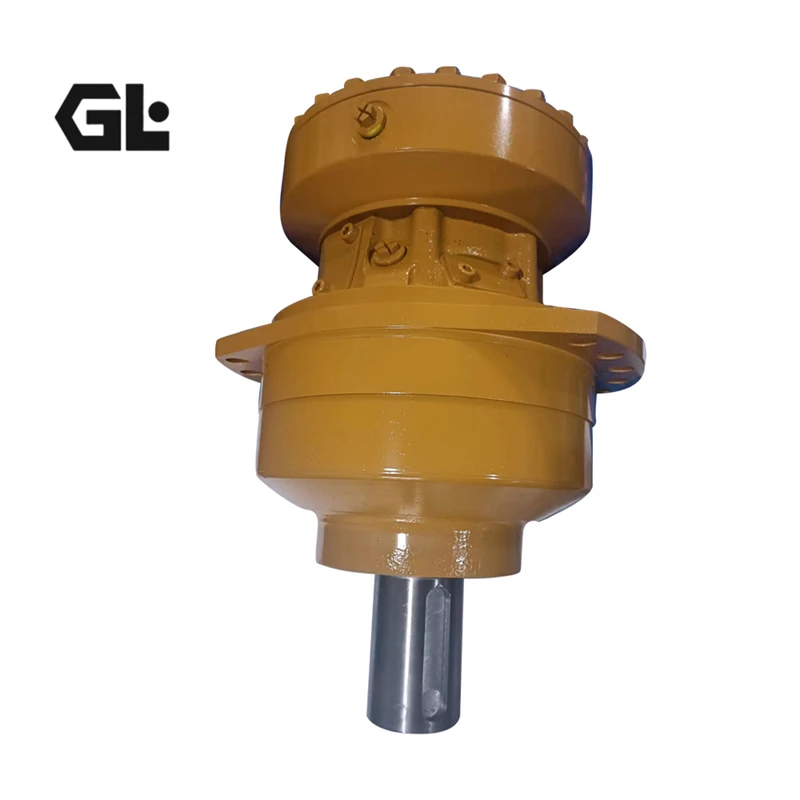

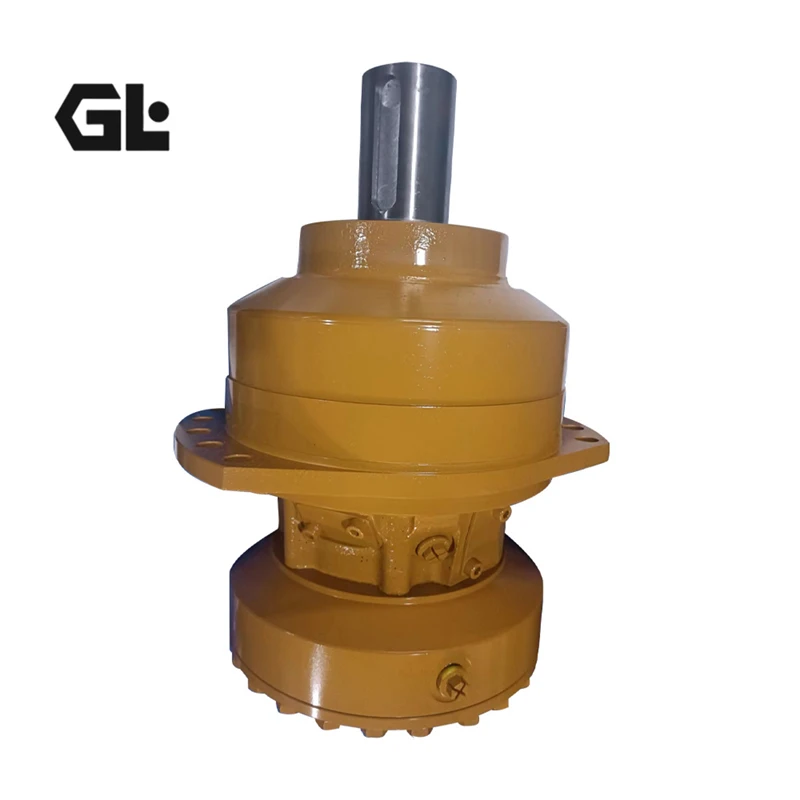

MS11-2-G5E-M11-1920-58EFJM Poclain Radial Piston Motor 1259cc 450bar

Product Overview

The MS11-2-G5E-M11-1920-58EFJM, MS11-A-E4A-F12-2A11-5HM00, and MS11-2-D5E-M11-1920-58EFJM are radial piston hydraulic motors from the Poclain Hydraulics MS11 multipurpose series. Featuring a proven and continuously improved radial piston cam design, these low-speed high-torque (LSHT) direct-drive motors are ideal for wheel motor and tool drive applications.

The MS11-MSE11 series covers displacements from 730 to 1687 cc/rev, with maximum pressure up to 450 bar, maximum torque up to 10,700 N.m, and maximum power up to 50 kW (67 HP). With a multispeed conception, maximum speed reaches 200 rpm. The modular design of the MS11 series enables easy adaptation to the most demanding applications across construction equipment, material handling, agriculture, mining, rail, marine, and industry.

Designed as 100% interchangeable direct replacements for original Poclain MS11 series motors, these products match OEM specifications in mounting dimensions, porting interfaces, and performance characteristics. Every unit undergoes 100% simulated duty cycle testing prior to shipment, validating volumetric efficiency, mechanical efficiency, and sealing integrity under actual operating load conditions.

Technical Specifications

MS11-2-G5E-M11-1920-58EFJM

• Model: MS11-2-G5E-M11-1920-58EFJM

• Part Number: B18535V

• Series: Poclain MS11 Multipurpose Radial Piston Motor

• Displacement Type: 2 Displacements (2C)

• Full Displacement: 1259 cm³/rev

• Semi Displacement: 629.5 cm³/rev

• Displacement Range: 730 – 1687 cm³/rev

• Max Working Pressure: 450 bar

• Max Torque: 10700 N.m

• Max Power: 50 kW

• Max Speed: 200 RPM

• Motor Type: Wheel Motor / Shaft Motor

• Brake Options: Service Brake / Parking Brake

• Anti-Skid: TwinLock™ (optional)

• Weight: Approx. 102 kg

• Typical Application: SEM 922 AWD Grader

MS11-A-E4A-F12-2A11-5HM00

• Model: MS11-A-E4A-F12-2A11-5HM00

• Series: Poclain MS11 Multipurpose Radial Piston Motor

• Displacement Type: 1 Displacement

• Displacement: 1048 cm³/rev

• Displacement Range: 730 – 1687 cm³/rev

• Max Working Pressure: 450 bar

• Max Torque: 10700 N.m

• Max Power: 50 kW

• Max Speed: 200 RPM

• Motor Type: Wheel Motor / Shaft Motor

• Brake Options: Service Brake / Parking Brake

• Anti-Skid: TwinLock™ (optional)

MS11-2-D5E-M11-1920-58EFJM

• Model: MS11-2-D5E-M11-1920-58EFJM

• Series: Poclain MS11 Multipurpose Radial Piston Motor

• Displacement Type: 2 Displacements (2C)

• Full Displacement: 1259 cm³/rev

• Semi Displacement: 629.5 cm³/rev

• Displacement Range: 730 – 1687 cm³/rev

• Max Working Pressure: 450 bar

• Max Torque: 10700 N.m

• Max Power: 50 kW

• Max Speed: 200 RPM

• Motor Type: Wheel Motor / Shaft Motor

• Brake Options: Service Brake / Parking Brake

• Anti-Skid: TwinLock™ (optional)

• Typical Application: SEM 922 Grader

Note: Pressure and speed parameters may vary across different configurations (shaft type, brake options, control type, etc.). Please refer to the corresponding Poclain Hydraulics technical manual for specific model details.

Key Technical Advantages

1. Radial Piston Cam Design for Extreme Torque Output

The MS11 series employs a proven and continuously improved radial piston cam design that delivers high efficiency at any speed or operating pressure. With displacements from 730 to 1687 cc/rev, maximum pressure of 450 bar, and maximum torque of 10,700 N.m, this design makes the motor ideal for wheel motor and tool drive applications in heavy machinery.

2. Dual Displacement Multi-Speed Control for Optimized Efficiency

MS11-2-G5E-M11-1920-58EFJM and MS11-2-D5E-M11-1920-58EFJM support dual displacement (2C) control, enabling seamless switching between full displacement (1259 cc/rev) and semi-displacement (629.5 cc/rev). The multispeed conception allows transition between low-speed high-torque and high-speed modes, with maximum speed reaching 200 rpm, significantly improving overall machine productivity.

3. 100% Interchangeability – Zero-Modification Drop-In Replacement

Manufactured to exact OEM mounting dimensions, porting specifications, and performance standards, these motors achieve 100% interchangeability with original Poclain MS11 series units. No machine modifications are required—simply replace and resume operation, minimizing downtime and reducing maintenance costs.

4. 100% Simulated Duty Cycle Testing for Extreme Environment Reliability

Every motor undergoes 100% simulated duty cycle testing before shipment, validating performance under maximum pressure (450 bar) and extreme speed conditions. The MS11 series is renowned for its exceptional shock load capacity and long working life, ensuring long-term reliability in demanding construction and mobile applications.

5. Modular Design for Versatile Application Adaptation

The MS11 series features a highly modular architecture supporting both wheel motor and shaft motor mounting configurations, with optional service brakes, parking brakes, and TwinLock™ anti-skid systems. MS11 and MSE11 share the same torque module and bearing support system. This flexibility enables rapid adaptation to construction equipment, material handling, agricultural machinery, mining equipment, rail systems, marine, and industrial applications.

6. Precision Machining and Premium Materials for Extended Service Life

Critical friction pairs are manufactured with precision machining processes, complemented by high-capacity bearings and durable sealing elements, ensuring long-term reliability under high-load and high-impact conditions. High-quality materials and precise assembly ensure exceptional durability.

7. Wide Displacement Coverage with Optional Configurations

The MS11-MSE11 series offers multiple displacement options from 730 to 1687 cc/rev, as well as various bearing support types (1110, 1210, 1310, 1610, 1710, 2210, 2250, etc.). Users can select the most suitable configuration based on specific application requirements.

Application Areas

• Construction Equipment: Grader (SEM 922 AWD / SEM 922) travel drives, wheel loaders, roller travel drives

• Material Handling: Port cranes, forklifts, AGV drives

• Agricultural Machinery: Large self-propelled sprayers, harvester travel drives

• Mining Equipment: Underground LHDs, mining truck wheel drives

• Rail Equipment: Railway maintenance machinery hydraulic drives

• Marine Industry: Marine deck machinery hydraulic drives

• Environmental & Industrial: Municipal vehicles, industrial machinery

Expert Maintenance Tips

1. Mounting Orientation: When installing the motor, ensure the motor case drain port is positioned at the highest point to guarantee proper lubrication and air bleeding.

2. Pre-Installation Preparation: Before using the MS11 series motor, read and understand the complete Poclain Hydraulics instruction manual. For first commissioning, fill the motor housing with hydraulic fluid using a filling unit with filtration not less than 10 µm. Never operate the motor without fluid.

3. Bearing Support Selection: The MS11 series offers multiple bearing support types (1110, 1210, 1310, 1610, 1710, 2210, 2250, etc.). Select the appropriate support configuration based on your specific application.

4. Seal Maintenance: For dual-displacement motors, always install new seals during reassembly. Use OEM-specification seal kits to ensure sealing performance and service life.

5. Brake System Maintenance: For motors equipped with brake options, regularly inspect brake pad wear through the inspection port.

6. Case Drain Pressure Monitoring: Regularly monitor case drain pressure to ensure it remains within design limits, preventing excessive housing pressure that could damage shaft seals.

7. Mounting Bolt Torque: Strictly follow the machine manufacturer’s recommended tightening torque. MS11 series mounting bolts should be torqued according to the specific support type and thread specification.
