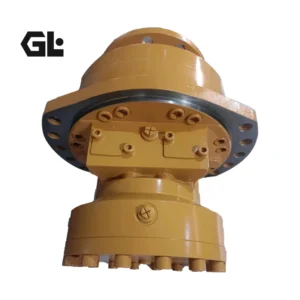

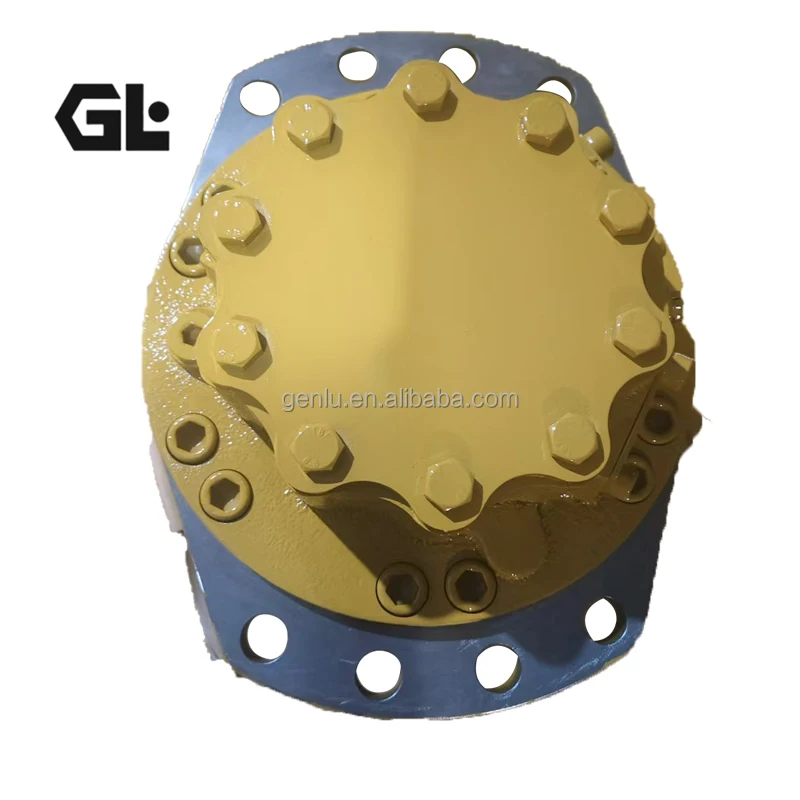

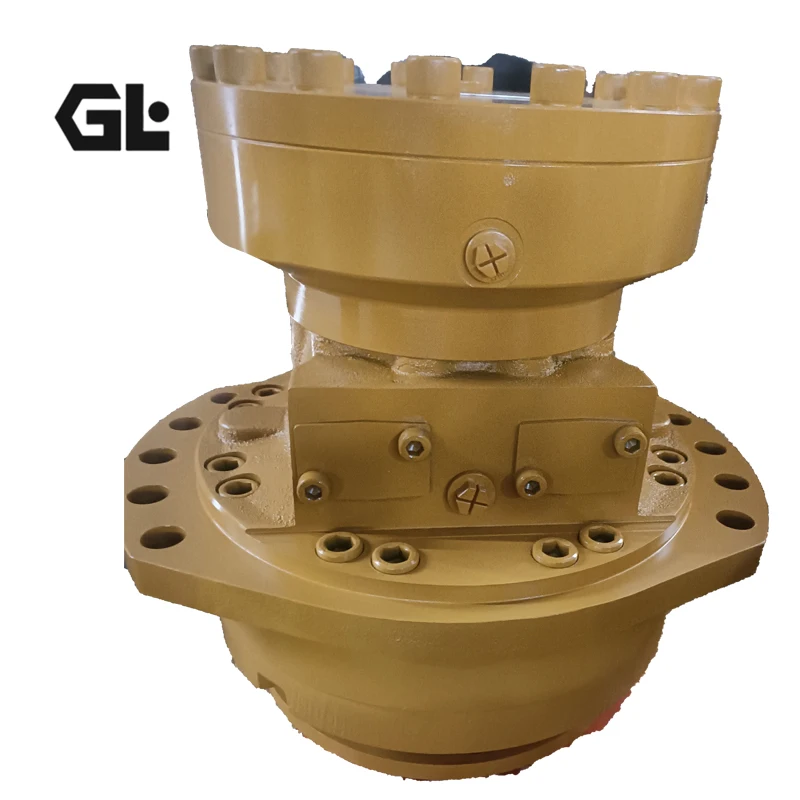

MSE18-1-127-R18-1110-57EH Poclain Hydraulic Motor 1911cc 400bar

Product Overview

The MSE series is the HighFlow™ high-performance version within the Poclain Hydraulics MS multipurpose radial piston hydraulic motor family. The MS series is Poclain Hydraulics’ globally renowned direct-drive hydraulic motor range, featuring a proven radial piston cam-ring design that has established itself as an unrivaled benchmark in the LSHT (Low-Speed High-Torque) hydraulic motor market worldwide.

The MSE series shares the same modular design platform as the MS series but incorporates performance-enhancing upgrades—including an integrated exchange valve and optimized port geometry—delivering higher speed and power output in the same compact package. MSE motors operate at 400 bar working pressure, compared to 450 bar for MS motors. The MSE series offers a complete displacement range from MSE02 to MSE50, covering 172 cc/rev to 15,000 cc/rev.

Our product provides a fully interchangeable direct replacement for the original Poclain Hydraulics MSE series motor, with identical mounting dimensions, port specifications, and shaft configurations. Every unit undergoes 100% simulated duty-cycle testing—performance-validated under rated pressure, peak pressure, and full speed range to ensure volumetric efficiency, mechanical efficiency, torque output, noise levels, and thermal characteristics meet or exceed original OEM specifications.

Model 1: MSE18-1-127-R18-1110-57EH

Technical Specifications

• Full Model: MSE18-1-127-R18-1110-57EH

• Brand: Poclain Hydraulics

• Series: MSE18 (MS Multipurpose Series HighFlow™ Version)

• Type: LSHT Radial Piston Hydraulic Motor

• Displacement Stages: 1C (Single Displacement / Single Speed)

• Displacement Code: 127 → 1,911 cm³/rev

• Max. Displacement: 1,911 cm³/rev (116.6 in³/rev)

• Max. Working Pressure: 400 bar (5,801 psi)

• Peak Pressure: 450 bar (6,527 psi)

• Theoretical Torque @ 100 bar: Approx. 3,043 Nm

• Max. Torque: Approx. 12,170–17,900 Nm

• Max. Power: 70 kW (94 HP)

• Max. Speed: Approx. 90–170 rpm

• Mounting: Wheel Flange / Shaft Output

• Shaft Configuration: R18

• Standard Mounting: 1110 (Standard Classic Mounting Dimensions)

• Brake Options: 57EH Brake Configuration

• Anti-Skid: Twin-Lock™ Integrated Anti-Skid Function (Optional)

• Housing Material: High-Strength Cast Iron

• Weight: Approx. 117 kg

Key Technical Advantages

1. Radial Piston Cam-Ring Design — Industry Benchmark
The MSE series features the proven and continuously improved radial piston cam-ring technology. Working cylinders are radially arranged around a crankshaft, with pistons actuated by the cam ring. This design delivers exceptional efficiency at any speed or operating pressure, combined with outstanding impact resistance and heavy-load capacity.

2. HighFlow™ Performance Optimization
As the HighFlow™ version of the MS series, the MSE incorporates an integrated exchange valve and optimized port geometry, delivering higher speed and power output in the same package. The MSE18 delivers maximum power up to 70 kW—leading among radial piston motors in its class.

3. Ultra-High Starting Torque & Superior Low-Speed Stability
The radial piston cam-ring design endows the MSE series with exceptionally high starting torque — approaching 90% of theoretical torque. The motor operates smoothly at extremely low speeds, enabling direct load drive without additional speed reducers.

4. Modular Design & Versatile Configurations
The MSE series features a modular design philosophy, offering both wheel motor and shaft output configurations. Optional service brake, parking brake, and Twin-Lock™ integrated anti-skid functionality are available. The MSE18 series offers nine displacement code options from 1,091 cc to 2,812 cc.

5. Compact Design & High Power Density
Delivers 70 kW output power and up to 17,900 Nm maximum torque in a compact package. Direct-drive design eliminates intermediate transmission components, simplifying system architecture and improving overall efficiency.

Application Areas

The MSE18-1-127-R18-1110-57EH radial piston motor is widely used in travel drives and working function drives across construction and industrial equipment:

• Construction Equipment: Wheel loader and skid-steer loader travel drives

• Road Construction Equipment: Roller vibratory drum drives (Bomag, Dynapac, Hamm)

• Agricultural Machinery: Large combine harvester travel and header drives

• Mining Equipment: Underground mining vehicle and road header travel drives

• Material Handling: Telescopic handler travel drives

• Railway & Marine: Railway maintenance machinery, marine deck cranes

• Industrial Drives: Winch drives and heavy material handling equipment

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every disassembly.

2. Pre-lubricate all moving parts with clean hydraulic fluid before assembly.

3. Purge all air from the motor housing before initial start-up, and run at moderate load and speed for 10–15 minutes for break-in.

4. Recommended maximum system operating temperature should not exceed 82°C to ensure seal and fluid service life.

5. Monitor case drain flow regularly — an abnormal increase indicates potential piston or cylinder wear.

6. Weight is approx. 117 kg — use proper lifting equipment during installation and removal to prevent personal injury or component damage.

7. Ensure hydraulic system filtration meets β₁₀ ≥ 75 (ISO 4406 cleanliness code不低于 18/16/13) to maximize motor service life.

8. For wheel mount applications, strictly follow specified bolt torque and use thread-locking compound to prevent loosening.

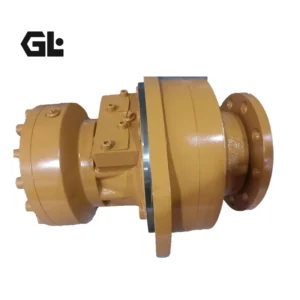

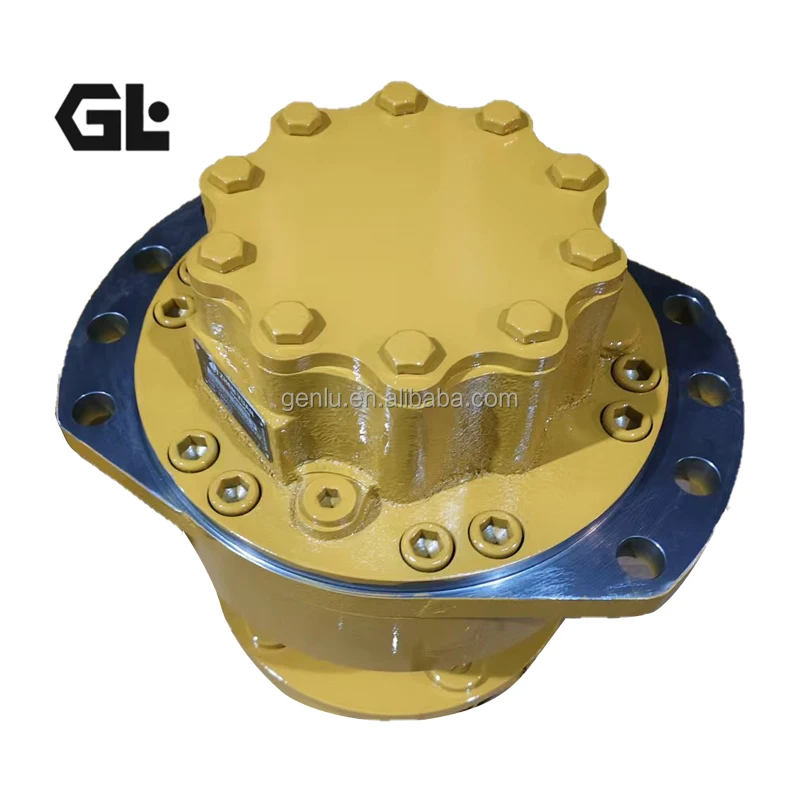

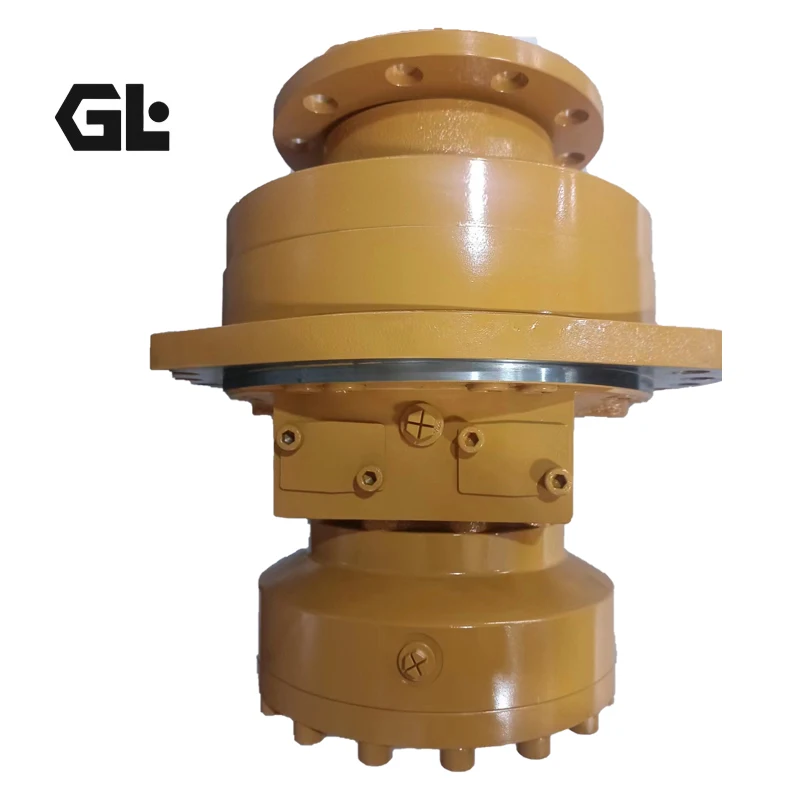

Model 2: MSE11-2-G21-A11-1110-SEGJ

Product Overview

The MSE11-2-G21-A11-1110-SEGJ is a two-speed (dual displacement) model in the Poclain Hydraulics MSE11 series HighFlow™ radial piston hydraulic motor family. The MSE11 series delivers maximum displacement of 1,687 cc/rev and maximum power of 50 kW. The “-2” suffix in MSE11-2 denotes 2C (dual displacement / two-speed) configuration, accommodating both low-speed high-torque and high-speed light-load operating conditions via displacement switching.

Our product provides a fully interchangeable direct replacement for the original Poclain Hydraulics MSE11 series motor, with identical mounting dimensions, port specifications, and shaft configurations. Each unit undergoes 100% simulated duty-cycle testing—performance-verified at rated pressure, peak pressure, and full speed range to ensure all performance indicators meet or exceed OEM specifications.

Technical Specifications

• Full Model: MSE11-2-G21-A11-1110-SEGJ

• Brand: Poclain Hydraulics

• Series: MSE11 (MS Multipurpose Series HighFlow™ Version)

• Type: LSHT Radial Piston Hydraulic Motor

• Displacement Stages: 2C (Dual Displacement / Two-Speed)

• Displacement Code: G21 → 1st Displacement 1,259 cm³/rev, 2nd Displacement 629.5 cm³/rev

• Max. Displacement: 1,259 cm³/rev (76.8 in³/rev)

• Min. Displacement: 629.5 cm³/rev (38.4 in³/rev)

• Displacement Ratio: 2:1

• Max. Working Pressure: 400 bar (5,801 psi)

• Peak Pressure: 450 bar (6,527 psi)

• Theoretical Torque @ 100 bar: Approx. 2,004 Nm (at max. displacement)

• Max. Torque: Approx. 10,700 Nm

• Max. Power: 50 kW (67 HP)

• Max. Speed: Approx. 200 rpm

• Mounting: Wheel Flange / Shaft Output

• Shaft Configuration: A11

• Standard Mounting: 1110 (Standard Classic Mounting Dimensions)

• Brake Options: SEGJ Brake and Seal Configuration

• Anti-Skid: Twin-Lock™ Integrated Anti-Skid Function (Optional)

• Housing Material: High-Strength Cast Iron

• Weight: Approx. 70–90 kg (depending on configuration)

Key Technical Advantages

1. Two-Speed Dual Displacement — Two Motors in One
The MSE11-2 offers 2:1 dual displacement switching (1,259 cc/rev ↔ 629.5 cc/rev). Low-speed mode (large displacement) delivers maximum torque output (approx. 10,700 Nm) for heavy-load starting and climbing; high-speed mode (small displacement) provides higher output speeds (up to 200 rpm) for travel and transport. One motor covers two distinctly different operating conditions.

2. HighFlow™ Performance Optimization
As the HighFlow™ version of the MS series, the MSE incorporates an integrated exchange valve and optimized port geometry, delivering higher speed and power output in the same package. The MSE11 delivers maximum power up to 50 kW.

3. Radial Piston Cam-Ring Design — Ultra-High Starting Torque
The proven radial piston cam-ring technology endows the MSE series with exceptionally high starting torque — approaching 90% of theoretical torque. The motor operates smoothly at extremely low speeds.

4. Modular Design & Versatile Configurations
The MSE series features a modular design philosophy, offering both wheel motor and shaft output configurations. Optional service brake, parking brake, and Twin-Lock™ integrated anti-skid functionality are available. The MSE11 series offers ten displacement code options from 730 cc to 1,687 cc.

5. Compact Design & High Power Density
Delivers 50 kW output power and 10,700 Nm maximum torque in a compact package. Direct-drive design eliminates intermediate transmission components.

Application Areas

The MSE11-2-G21-A11-1110-SEGJ radial piston motor is widely used in travel drives and working function drives across construction and industrial equipment:

• Construction Equipment: Skid-steer loader and mini-excavator travel drives

• Road Construction Equipment: Roller vibratory drum drives

• Agricultural Machinery: Large sprayer travel drives, combine harvester header drives

• Mining Equipment: Underground mining vehicle travel drives, road header star wheel drives

• Material Handling: Telescopic handler travel drives

• Forestry Machinery: Feller buncher travel drives

• Industrial Drives: Winch drives and heavy material handling equipment

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every disassembly.

2. Pre-lubricate all moving parts with clean hydraulic fluid before assembly.

3. Purge all air from the motor housing before initial start-up, and run at moderate load and speed for 10–15 minutes for break-in.

4. Recommended maximum system operating temperature should not exceed 82°C to ensure seal and fluid service life.

5. Monitor case drain flow regularly — an abnormal increase indicates potential piston or cylinder wear.

6. Two-speed shifting should be performed under low-load or zero-load conditions to prevent impact damage to the displacement switching mechanism.

7. Ensure hydraulic system filtration meets β₁₀ ≥ 75 (ISO 4406 cleanliness code不低于 18/16/13) to maximize motor service life.

8. For wheel mount applications, strictly follow specified bolt torque and use thread-locking compound to prevent loosening.
