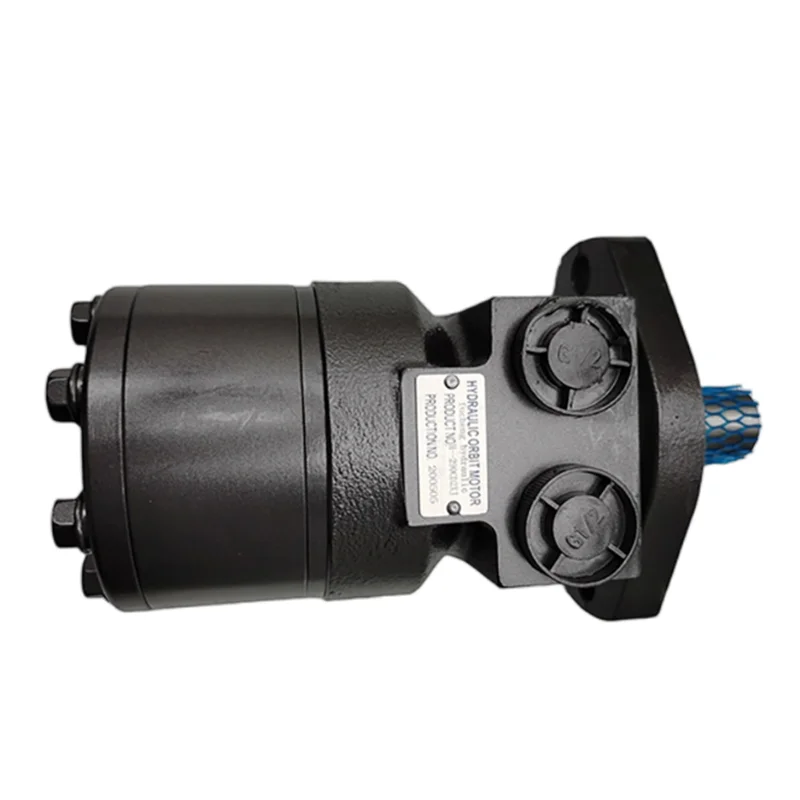

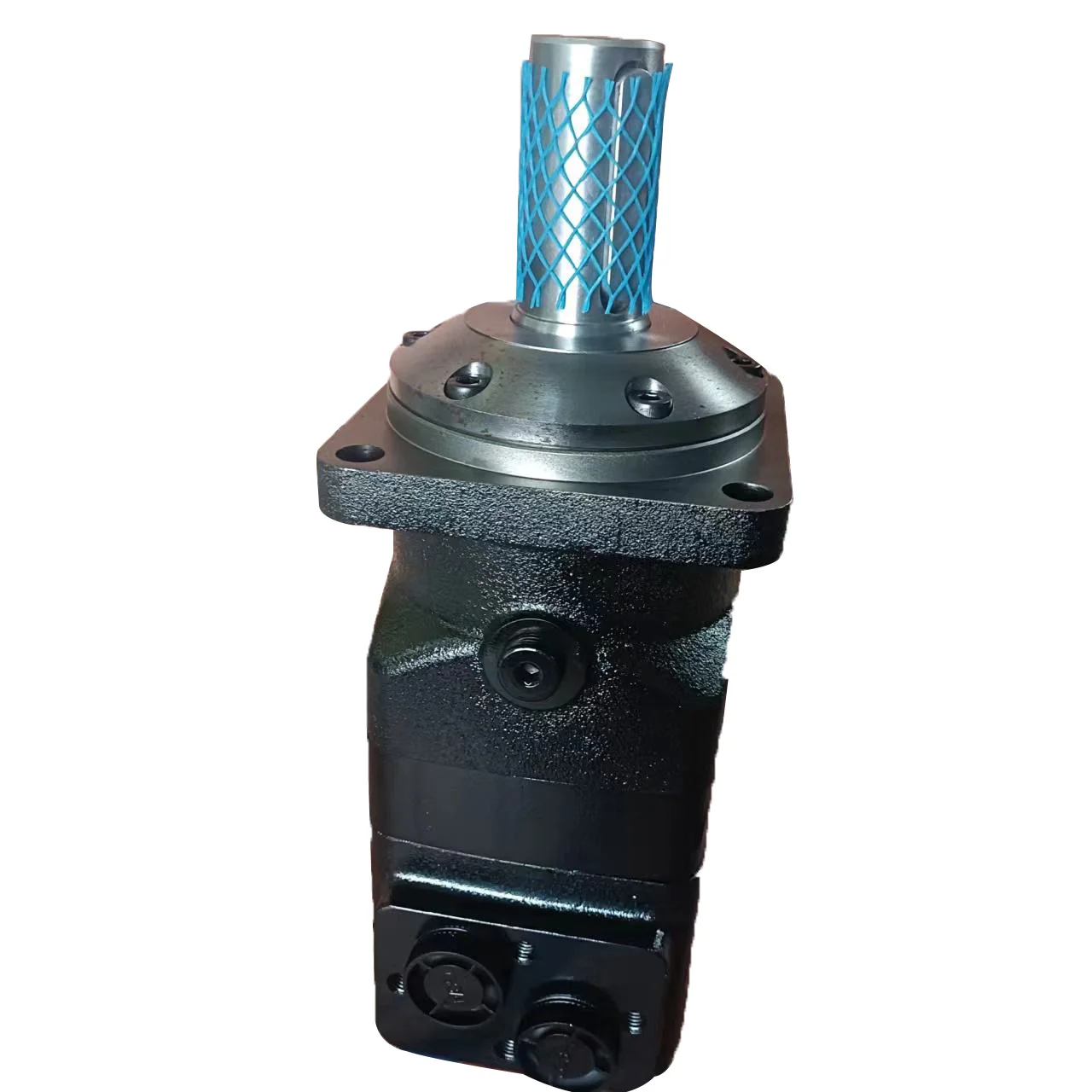

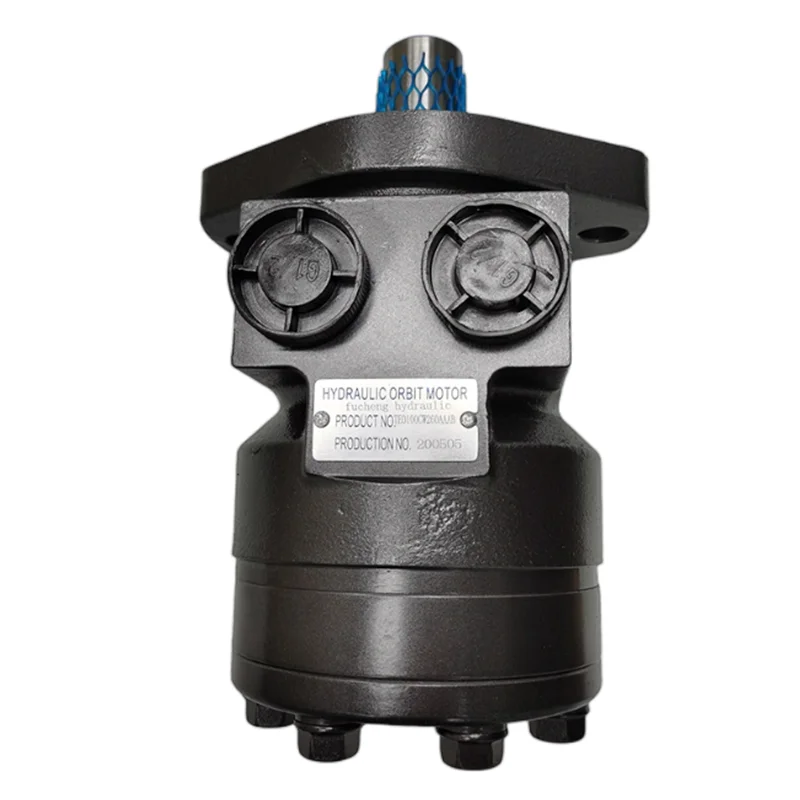

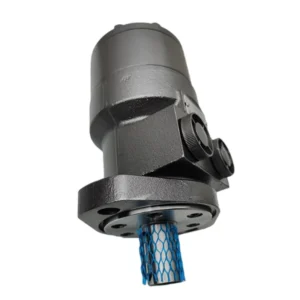

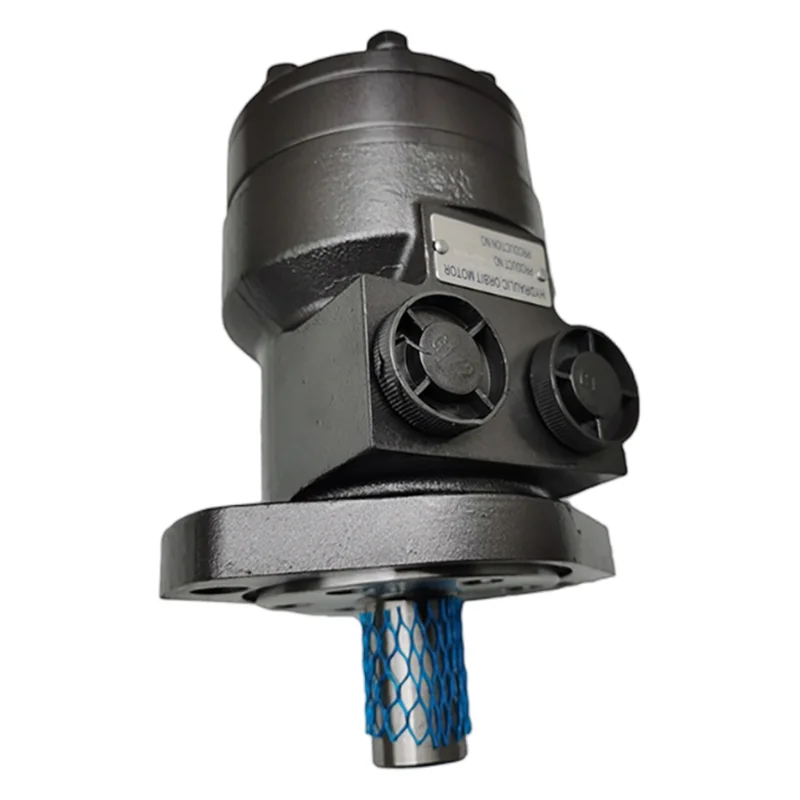

Danfoss OMM12.5 151G5041 Hydraulic Orbit Motor Replacement

Genlu Hydraulic excels as an elite-tier global developer and precision manufacturer of high-performance hydraulic orbit motors, high-pressure piston pumps, and premium fluid control valve manifolds for global B2B industrial networks. The OMM12.5 (Part Number: 151G5041) Mini High-Speed Hydraulic Orbit Motor—engineered to deliver a premium 100% drop-in interchangeable alternative to Germany and Denmark’s leading hydraulic standards, specifically encompassing the Danfoss / former Sauer-Danfoss legacy OMM, OMP, OMR, OMS, OMT, and OMV orbit motor family—represents an ultra-compact fluid-power solution optimized for space-restricted industrial applications and mobile implements. Utilizing an advanced shaft distribution architecture paired with a heavy-duty gerotor gear set, this micro-motor delivers exceptional rotational velocities and stable torque out of a remarkably compact frame, making it the definitive primary drive for automated conveyor systems, agricultural attachments, and precision machine tool auxiliaries.

In practical operational fields, micro hydraulic motors are constantly subjected to high rotational speeds (exceeding 1500 RPM), instantaneous forward/reverse duty cycles, and severe thermal shocks due to localized heat buildup within tight spatial configurations. Substandard aftermarket alternatives lacking rigid gerotor manufacturing metrics or heavy-duty bearing ratings suffer from sharp volumetric efficiency declines over time, manifesting as severe shaft speed drops or extreme rotational shudder when hot. Genlu’s premium OMM12.5 151G5041 replacement motors are reverse-engineered to perfectly match the internal fluid dynamics, tight tolerance seals, and fatigue-resistant metallurgies mandated by standard official Danfoss engineering documentation. Whether referencing the standard 3-bolt frontal flange (PCD 31.5 mm with a 31.5 mm pilot), the 16 mm cylindrical keyed drive shaft, or the standard G 3/8 main fluid ports, our assemblies ensure 100% mechanical and functional drop-in interchangeability. Prior to delivery, each unit undergoes 100% Full-Simulation Condition Testing under continuous working pressures and peak velocities to evaluate volumetric tracking, initial breakaway torque, and case seal integrity, guaranteeing reliable execution directly out of the crate.

Technical Specifications

• Product Motor Classification: OMM Series Micro High-Speed Shaft-Distribution Hydraulic Orbit Motor

• Complete Cross-Reference Model: OMM 12.5 / Part Number 151G5041

• Platform Compatibility Horizon: Broad crossover for OMM12, OMM20, OMM32, OMM50, and larger OMP/OMR/OMS/OMT configurations

• Nominal Geometric Displacement: 12.5 $cc/rev$

• Maximum Continuous Operating Pressure: 10.0 MPa (100 bar / 1450 PSI)

• Maximum Intermittent Operating Pressure Boundary: Up to 14.0 MPa (140 bar / 2030 PSI) during transient peaks

• Maximum Continuous Rotational Velocity: 1600 RPM

• Maximum Intermittent Rotational Velocity Threshold: Up to 2000 RPM

• Maximum Continuous Output Torque: 16 N·m (11.8 lbf·ft)

• Maximum Continuous Power Output Rating: 2.4 kW

• Maximum Continuous Input Flow Rate: 20 $L/min$

• Mounting Flange Configuration Arrangement: Frontal 3-bolt flange, Pitch Circle Diameter (PCD) 31.5 mm, Pilot Diameter 31.5 mm

• Drive Shaft Output Profile Geometry: Standard 16 mm cylindrical straight shaft with a 5 mm square keyway

• Main Fluid Porting Specification standard: G 3/8 thread for inlet/outlet working ports, with an independent G 1/8 case drain port

• Total Motor Assembly Net Dry Weight: Approximately 2.0 kg (Ultra-compact, high-power-density aluminum/cast iron structural body)

Key Technical Advantages:

• Advanced Shaft Distribution with Hydrostatic Force Balancing: The output drive shaft serves dual duties as the primary fluid distribution manifold, shrinking axial length. Precision-milled static pressure balancing channels along the shaft body keep the distribution clearance within a micrometer scale under 10.0 MPa loads. This reduces internal slippage and keeps shaft rotation stable at 1600 RPM, preventing rotational speed drift.

• Precision CNC-Ground Gerotor Profiles for Acoustic Dampening: The inner star and outer ring gear are machined via CNC wire cutting and composite lapping. By keeping geometric profile deviations under $\pm 2 \mu m$, the volumetric transitions remain fluid. This configuration deadens fluid-borne vibration, keeping operating noise under 60 dB(A) to align with indoor factory static-noise regulations.

• Heavy-Duty Internal Bearing Bushings and Dual-Lip Viton Shaft Seals: Built for high-velocity cycles and rapid reversals, the internal shaft is supported by high-load radial and axial sliding bushings, backed by a premium dual-lip Viton shaft seal. The assembly sustains an internal case backpressure of up to 10.0 MPa without an external drain line, avoiding shaft-seal blowout failures in series-connected configurations.

• High-Density Cast Iron Housing with Micro-Clearance Contamination Resistance: The structural outer casing is cast from premium dense gray iron, eliminating microscopic porosity or grain separation. Under high-frequency shock loads, housing flex is minimized to avoid internal asymmetry or eccentric wear on the gerotor set, increasing the motor’s overall resistance to particulate fluid contamination up to two fold.

Application Areas:

• Modern Agricultural, Forestry, and Municipal Cleaning Implements: Secondary cutter drives on harvesters, lawnmower blade spindles, and high-frequency rotary brush drives on street sweepers.

• Industrial Automation Systems and Material Handling Conveyors: Automated sorting line belt rollers, lightweight packaging systems, and textile machinery tension controls.

• High-Precision Machine Tool Auxiliaries: Machine tool automatic tool-changer turret indexes, compact hydraulic winches, and small-scale robotic arm rotational joints.

Expert Maintenance Tips:

• Mandatory External Case Drain Routing Under High Backpressure Configurations: Despite internal check valves, if the motor operates in series or inside loops with return-line pressure exceeding 10.0 MPa, the G 1/8 case drain port on the rear cover must be plumbed directly back to the oil reservoir via a dedicated low-pressure line. Never plug this port under high backpressure, as trapped internal leakage will quickly rupture the shaft seal, leading to external oil loss and component score damage.

• Deceleration and Cushion Valving Rules for High-Frequency Reversing Cycles: The OMM12.5 is frequently deployed in fast-reversing applications. To mitigate heavy hydraulic shock waves when swapping directions, it is highly recommended to program a minimum 50 ms dwell time at neutral within the directional control valve logic or integrate dual-line cross-over relief valves. This absorbs pressure spikes, preventing impact damage to the gerotor teeth.

• Strict Pre-Lubrication and Low-Flow Air Bleeding Requirements: Shaft-distribution orbit motors rely on an established fluid film within internal mating surfaces at initial rotation. Before initial startup, fill the motor assembly with clean oil via the working ports and rotate the shaft 3 to 5 times by hand to pre-lubricate internal components. Run the system at a low flow rate (under 5 $L/min$) for 5 minutes to sweep out trapped air before applying full load and velocity.
