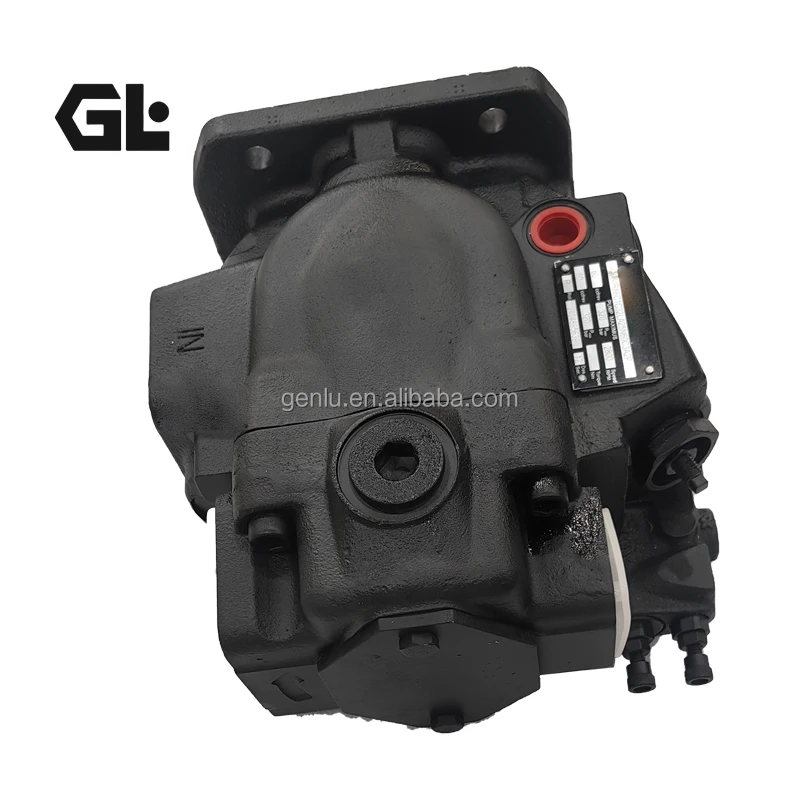

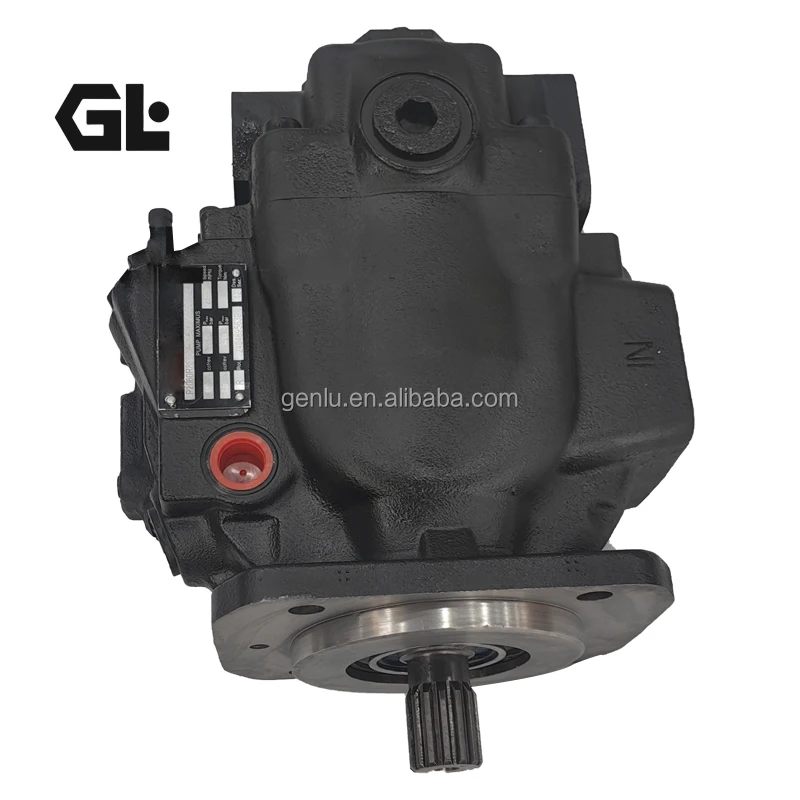

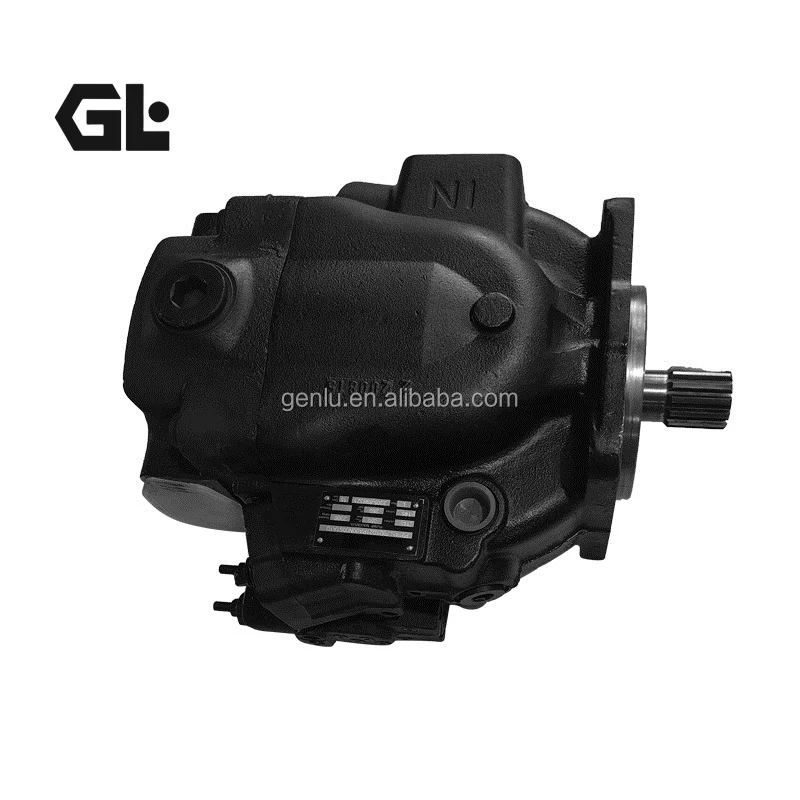

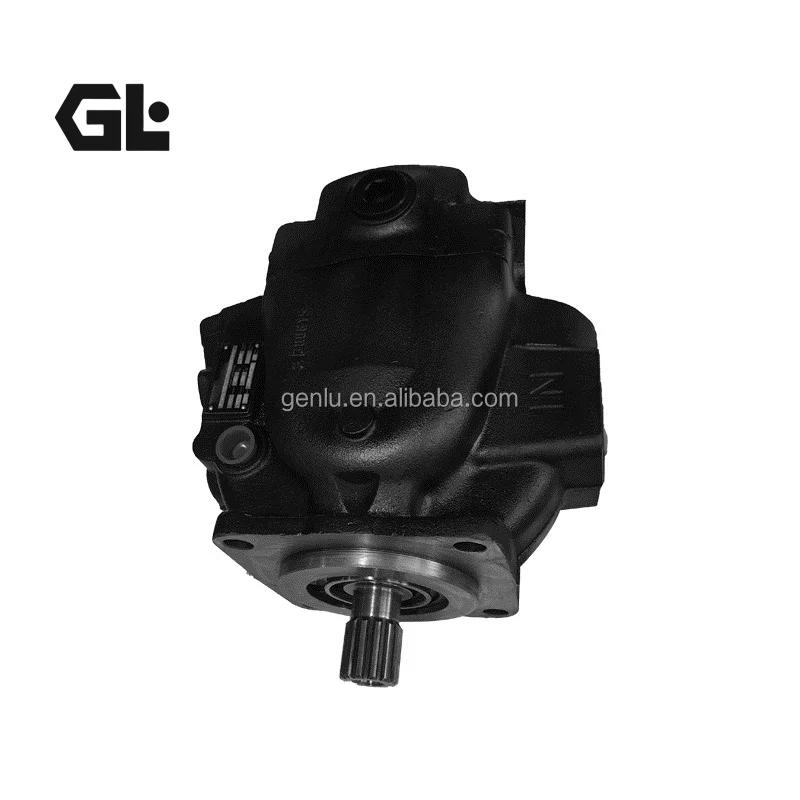

P1100PS01SLM5AL00T00N0000 Parker P1 Series Axial Piston Pump 100cc 280bar

Model Number	P1100PS01SRM5AAE0E000PB00, P1100PS01SLM5AL00T00N0000

Product Description

Product Overview

The P1100PS01SLM5AL00T00N0000 (and related models P1060, P1075, P1140) is a high-performance configuration of the Parker Hannifin P1 Series medium-pressure open-circuit axial piston variable pump, designed for mobile machinery. Featuring a swashplate axial piston rotary group, flow is proportional to drive speed and displacement and can be adjusted steplessly via swashplate angle. It supports pressure compensator, load-sensing and other control options, offering compact size, low noise and high efficiency. Manufactured to exact original specifications, this pump provides complete dimensional, shaft, port and control interchangeability with genuine Parker P1 units. Every unit undergoes 100% simulated operating-condition testing to verify volumetric efficiency, pressure response and dynamic performance, making it a reliable OEM-equivalent solution for construction, agricultural and material-handling equipment.

Technical Specifications

Model: P1100PS01SLM5AL00T00N0000 (Parker P1 Series, typical configuration)
Displacement: 100 cm³/rev (6.01 in³/rev)
Continuous operating pressure: 280 bar (4000 psi)
Intermittent pressure: 320 bar (4500 psi)
Peak pressure: 350 bar (5000 psi)
Maximum speed (boosted inlet): 2500 rpm
Maximum speed (1.0 bar abs inlet): 2100 rpm
Minimum speed: 600 rpm
Control type: Pressure compensator / load-sensing (configuration-dependent)
Mounting flange: SAE C (127-4) or equivalent ISO
Port options: End or side ports
Weight (end port, approx.): 51 kg (112 lb)
Theoretical flow (2100 rpm, full displacement): approx. 210 l/min
Fluid temperature range: -40 °C to +95 °C

Key Technical Advantages

Swashplate axial piston design with precision valving and slippers delivers high volumetric efficiency and low flow ripple, effectively reducing noise and vibration for operator comfort in mobile equipment.
High power density in a compact package with full-power through-drive capability supports multi-pump combinations and flexible system integration.
Long-life tapered roller shaft bearings and hydrostatically balanced swashplate saddle bearings, combined with premium materials and manufacturing, significantly extend service life under medium-pressure high-cycle duty.
Elastomer seals eliminate gasket leakage risks; fast, stable compensator response and easy serviceability reduce overall operating costs.
Full form-fit-function interchangeability plus 100% functional testing guarantees plug-and-play performance equivalent to genuine Parker pumps, minimizing downtime.

Application Areas

Ideal for open-circuit medium-pressure hydraulic systems in excavators, loaders, dozers, cranes, agricultural machinery, forestry equipment, material-handling machines and various mobile construction equipment as main or auxiliary pumps.

Expert Maintenance Tips

Verify shaft rotation and ensure inlet absolute pressure is not below 0.8 bar before installation to prevent cavitation. Bring the system up to pressure gradually on first start-up and monitor case drain pressure (rated approx. 2 bar absolute). Periodically check control spool and pressure settings; avoid sustained operation at peak pressure. When servicing seals or rotating groups, use original-specification components and maintain hydraulic fluid cleanliness at ISO 20/18/14 or better to maximize bearing and valve-plate life. Observe through-drive torque limits when additional pumps are mounted.
