P120 Series 1P120-4P120 Monoblock Directional Valve 120L/min 250bar

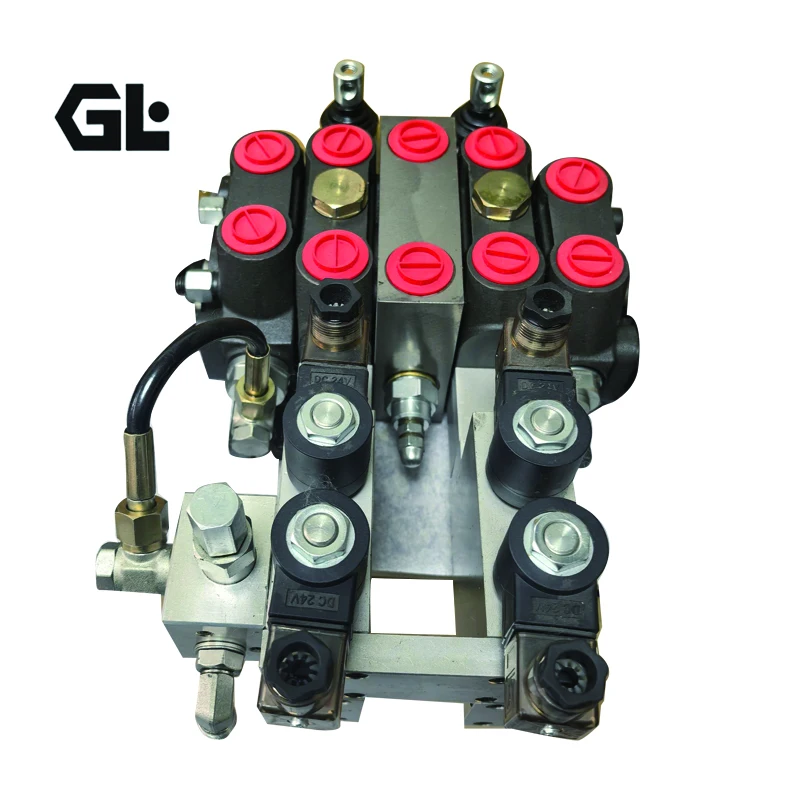

Product Overview

The P120 Series monoblock directional control valves (models 1P120 through 4P120) are high-flow hydraulic valves engineered for medium-to-large mobile machinery. Featuring a robust cast-iron monoblock body that integrates 1 to 4 spool sections, these valves provide precise directional control of flow between the pump and actuators. Available with manual, electrical (solenoid), pneumatic, hydraulic, electro-hydraulic, and other actuation options, the series offers excellent interchangeability with OEM equivalents for direct drop-in replacement. Every unit undergoes 100% simulated operating condition testing to ensure reliable performance at a nominal flow of 120 L/min and working pressures up to 250 bar, making it ideal for loaders, excavators, agricultural equipment, and construction vehicles.

Technical Specifications

• Model: P120 Series (1P120 / 2P120 / 3P120 / 4P120)
• Construction: Monoblock multi-way directional control valve

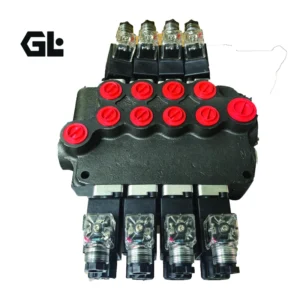

• Number of spools/sections: 1 to 4 selectable
• Nominal flow rate: 120 L/min
• Maximum working pressure: P port approx. 250 bar; A/B ports up to 300 bar; T port max. 50 bar

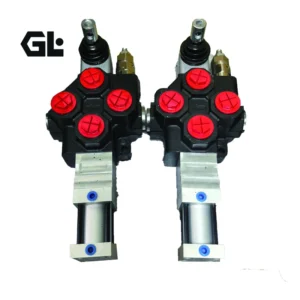

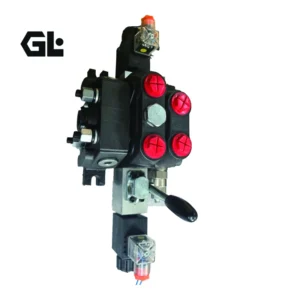

• Control options: Manual lever, electrical (solenoid), pneumatic, hydraulic, electro-hydraulic, cable, joystick, and combinations
• Spool types: Standard open-center A spool and others (O, Y, P, A functions available)
• Port sizes: P, A, B typically G3/4 or G1 BSPP; T typically G1 BSPP (other threads available)
• Internal leakage: approx. 8–30 cm³/min (A/B to T at test pressure)
• Working fluid: Mineral-based hydraulic oil
• Viscosity range: Recommended 20–100 mm²/s; permissible 12–400/800 mm²/s
• Temperature range: Ambient approx. -40°C to +80°C; fluid -15°C to +80°C
• Filtration: NAS 1638 class 10
• Body material: High-strength cast iron (e.g., EN-GJL300)
• Spool material: Carburized steel with hard chrome plating

Key Technical Advantages

1. Precision monoblock casting: High-strength cast-iron body with optimized internal passages minimizes external piping, leakage points, and installation space while maximizing structural rigidity.
2. High volumetric efficiency and controlled leakage: Precision-ground and hard-chrome-plated spools with tight clearances deliver efficient switching and manageable internal leakage, reducing energy loss.
3. True interchangeability: Form-fit-function compatible with major OEM equivalents for seamless drop-in replacement, minimizing downtime and modification costs.
4. Flexible control options and integrated safety features: Supports full range from manual to fully electrical actuation; optional built-in relief valve for system pressure adjustment, check valve to prevent reverse flow, and Power Beyond port for circuit flexibility.
5. Wide environmental and high-flow adaptability: Broad viscosity and temperature tolerance combined with quality seals ensures reliable operation in demanding high-flow mobile applications across extreme climates.

Application Areas

• Construction machinery: Loaders, excavators, dozers, skid steers
• Agricultural and municipal vehicles: Large tractors, harvesters, sweepers, utility vehicles
• Lifting and material handling: Medium cranes, aerial work platforms, forklifts
• Other mobile hydraulics: Systems requiring 1–4 independent high-flow sections for cylinders or motors

Expert Maintenance Tips

1. Thoroughly clean lines and reservoir before installation; use hydraulic oil meeting NAS 1638 class 10 cleanliness to prevent spool sticking.
2. Set the relief valve correctly (factory settings often around 180 bar); always install a pressure gauge at the inlet and turn clockwise to increase / counterclockwise to decrease pressure.
3. For electrical versions, match solenoid voltage (commonly 12V/24V DC), ensure secure waterproof connections; avoid forcing manual levers beyond stroke limits.
4. Periodically inspect return springs and seals; replace seals promptly if internal leakage increases or response slows; verify correct downstream connection when using Power Beyond.
5. Conduct a low-load test run after installation to confirm smooth shifting, absence of abnormal noise, and no external leakage before full-load operation.
