Product Overview

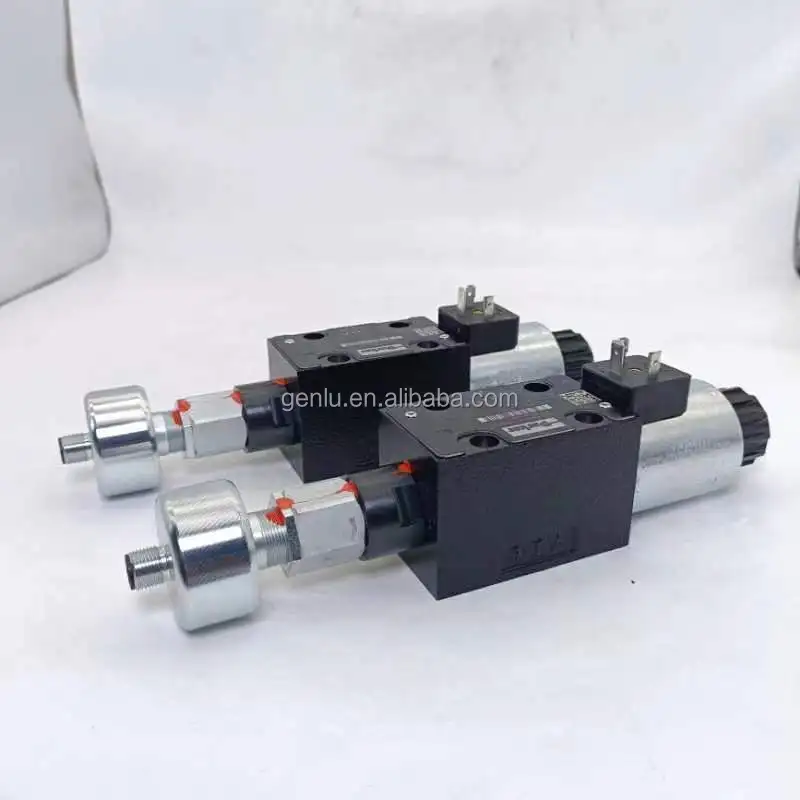

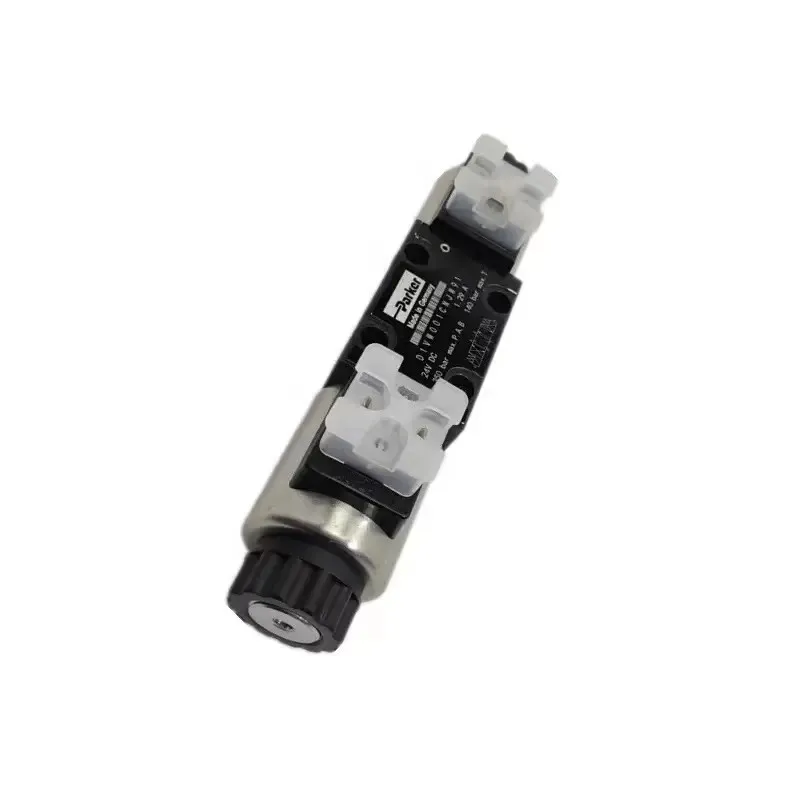

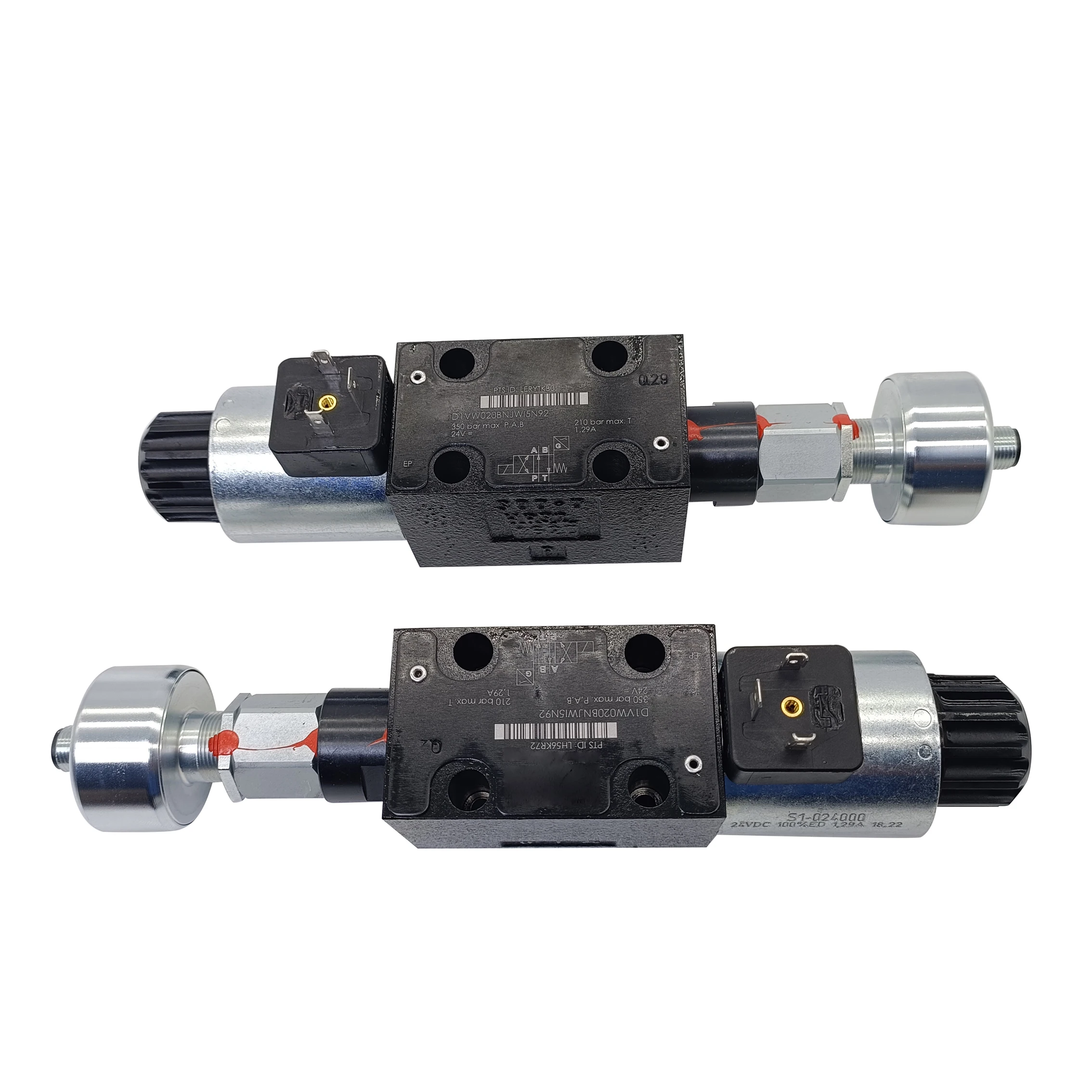

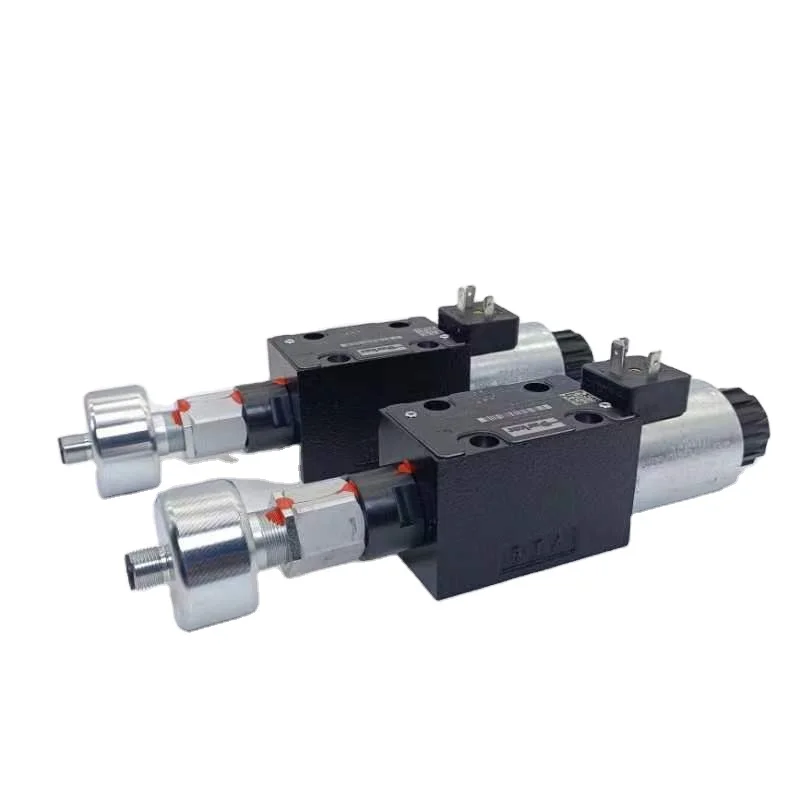

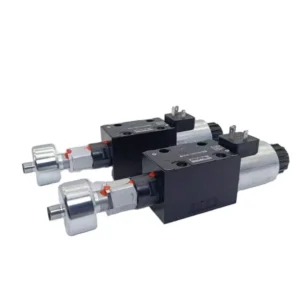

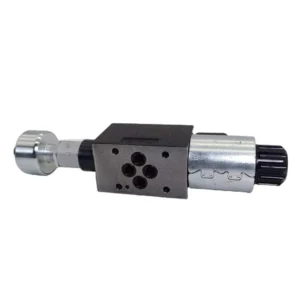

The D3W/D41VW series solenoid directional control valves (including models D3W14CNJC, D3W9CNJC, D3W4CNJCF30, D3W4CNJP30, D3W20BNJCF30, and D41VW1C4VJP) are manufactured to original Parker technical standards, covering two product families: the D3W series (size 10 / NG10 / CETOP 5 / NFPA D05) direct-operated solenoid directional valves and the D41VW series (size 16 / NG16 / CETOP 7 / NFPA D07) pilot-operated solenoid directional valves. The D3W series uses wet armature solenoids to directly shift the spool, while the D41VW series employs a pilot-operated design with a D1VW valve as the pilot stage to drive the main spool.
The D3W series offers high functional limits up to 150 L/min and maximum operating pressure of 350 bar in size 10, with a tank port pressure rating of 210 bar (DC solenoid), suitable for industrial hydraulic systems with high return line back pressure. The D41VW series delivers maximum flow up to 300 L/min in size 16 at 350 bar maximum operating pressure, featuring wet armature solenoid construction for reliable performance in high-cycle industrial applications at NG16 size.
This product is dimensionally and functionally identical to the original Parker D3W/D41VW series valves, with a mounting surface conforming to ISO 4401 standards (ISO 4401-05 for D3W, ISO 4401-07 for D41VW), offering true drop-in interchangeability for direct replacement of same-specification OEM valves. Every unit undergoes 100% bench testing under simulated working conditions, including rated pressure holding, directional response verification, internal leakage measurement, and solenoid response characterization.
Technical Specifications
General Specifications
Model: D3W14CNJC / D3W9CNJC / D3W4CNJCF30 / D3W4CNJP30 / D3W20BNJCF30 / D41VW1C4VJP
Product Series: D3W (Size 10 / NG10 / CETOP 5 / NFPA D05); D41VW (Size 16 / NG16 / CETOP 7 / NFPA D07)
Spool Type: C type (Closed center, all ports blocked) / B type (P→A, B→T)
Design: D3W direct-acting subplate mounting solenoid valve; D41VW pilot-operated solenoid valve
Mounting Pattern: D3W per ISO 4401-05 / CETOP 5 / NFPA D05; D41VW per ISO 4401-07 / CETOP 7 / NFPA D07
Installation Position: Any
Hydraulic Parameters (D3W Series)
Maximum Flow Rate: 150 L/min (DC solenoid) / 115 L/min (AC solenoid)
Maximum Operating Pressure (Ports P/A/B): 350 bar (5075 psi)
Maximum Tank Port Pressure (Port T): 210 bar (3045 psi, DC) / 105 bar (AC)
Hydraulic Fluid: Mineral-based hydraulic oil (per DIN 51524), water glycol
Seal Material: NBR (standard) / FPM (optional)
Fluid Temperature Range: -25°C to +50°C (NBR seals)
Filtration: ISO 4406 20/18/15 or better
Duty Cycle: Continuous (ED = 100%)
Weight: 4.8 kg (single solenoid) / 6.3 kg (double solenoid)
Hydraulic Parameters (D41VW Series)
Maximum Flow Rate: 300 L/min
Maximum Operating Pressure (Ports P/A/B): 350 bar (5075 psi)
Hydraulic Fluid: Mineral-based hydraulic oil (per DIN 51524)
Seal Material: NBR (standard)
Fluid Temperature Range: -20°C to +60°C
Pilot Stage: D1VW pilot valve driven
Weight: approx. 10.3 kg
Electrical Parameters
Supply Voltage: 24 VDC (standard) / 110/120 VAC / 220/240 VAC
Solenoid Type: Wet armature solenoid with interchangeable coil
Electrical Connector: Connector per EN 175301-803
Protection Class: IP65 (with standard connector)
Solenoid Identification: Per ISO 9461 (code W)
Materials & Construction
Valve Body: Gray iron
Control Spool: Carburized steel, precision ground
Seals: NBR (standard) / FPM (optional)
Surface Treatment: Phosphating / anti-corrosion coating
Key Technical Advantages
1. Wet Armature Solenoid Design for High Reliability
The D3W/D41VW series employs a wet armature solenoid design where the armature operates in hydraulic fluid, effectively reducing shifting impact noise and wear. Solenoid coils can be changed quickly without leakage from the hydraulic system, significantly reducing downtime and maintenance costs. The increased solenoid holding force and matching stiffer return springs significantly improve switching reliability and service life.
2. Optimized Flow Passages with Low Pressure Drop
The D3W series features optimized flow passages in NG10, effectively reducing pressure drop for economical operation. The D3W valve delivers up to 150 L/min flow capacity with low pressure drop and low energy usage, thanks to low-watt coils and other design features. The D41VW series features a five-chamber design for high pressure and flow rating capability.
3. Precision Spool Machining with Multiple Spool Options
The control spool is precision-ground from carburized steel with micron-level clearance control. The D3W/D41VW series offers over 16 spool types including C type (closed center, all ports blocked) and B type (P→A, B→T), meeting diverse hydraulic circuit design requirements. A 5-chamber valve (D3DW) is also available for high tank pressure and extreme flow conditions.
4. Soft Shift Function for Smooth Operation
The D3W series is available with optional soft shift anchor tubes for smooth operation. The soft shift function uses optimized damping orifices to provide smoother actuator acceleration and deceleration than conventional solenoid valves, effectively reducing hydraulic shock and extending system component life.
5. 100% Simulated Working Condition Testing and Drop-in Interchangeability
Every D3W/D41VW series valve undergoes 100% bench testing prior to shipment, covering 350 bar rated pressure holding, directional response time measurement, internal leakage verification, and solenoid response characterization. Mounting dimensions, port positions, electrical interfaces, and performance curves are strictly matched to the original Parker valve, with a mounting surface conforming to ISO 4401, enabling direct drop-in replacement without modifying piping or control programs. Parker D-series valves are dimensionally interchangeable with Bosch Rexroth 4WE, Eaton Vickers DG4V, and Yuken DSG valves at the same CETOP frame size.
Application Areas
Industrial Hydraulic Systems: General hydraulic applications including press and clamping systems
Injection Molding Machines: Mold opening/closing direction control, ejector system control
Machine Tools: CNC hydraulic clamping systems, tool changer control
Metallurgical Equipment: Continuous casting machines, rolling mill auxiliary directional control
Construction Machinery: Excavators, loaders and other mobile equipment hydraulic directional control
Marine Hydraulics: Steering gear control, deck machinery hydraulic systems
Testing Equipment: Material testing machine hydraulic loading direction control
Wind Power Generation: Pitch control system hydraulic directional control
Expert Maintenance Tips
Installation Guidelines
The D3W/D41VW series can be mounted in any position. D3W mounting surface flatness must be ≤ 0.05 mm. For D41VW, use 4×M10×60 bolts (ISO 4762, grade 12.9) and tighten diagonally in stages to 63 Nm ± 15%.
Thoroughly flush all piping circuits before installation. Ensure no welding slag, metal chips, or particulate contaminants remain. Prior to first operation, circulate the system through a 10 μm filter element for a minimum of 30 minutes.
Electrical connections must use connectors conforming to EN 175301-803 to maintain IP65 protection. Control signal cables should be shielded, with the shield grounded at one end.
Routine Maintenance Procedures
Fluid Cleanliness Management: Maintain system fluid cleanliness at ISO 4406 20/18/15 or better. Check fluid particulate contamination every 500 operating hours and replace filter elements and hydraulic fluid when contamination exceeds limits.
Solenoid Electrical Inspection: Periodically inspect connectors for seal integrity and terminal tightness. Measure coil resistance and replace the coil if deviation exceeds ± 10%.
Shifting Performance Verification: Periodically check each position for smooth shifting and absence of binding. If shifting response becomes sluggish or internal leakage increases, inspect spool wear and fluid contamination levels.
Seal Replacement: Standard NBR seals, FPM seals available for high-temperature applications. Under normal operating conditions, replace valve seals every 3,000-5,000 operating hours.
Tank Port Back Pressure Management: D3W series tank port back pressure must not exceed 210 bar with DC solenoids or 105 bar with AC solenoids. If system return back pressure is high, inspect the return line for blockage or undersized piping.
