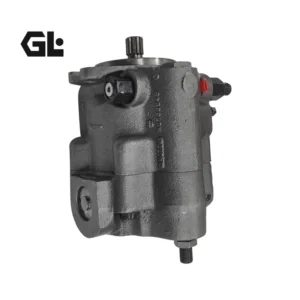

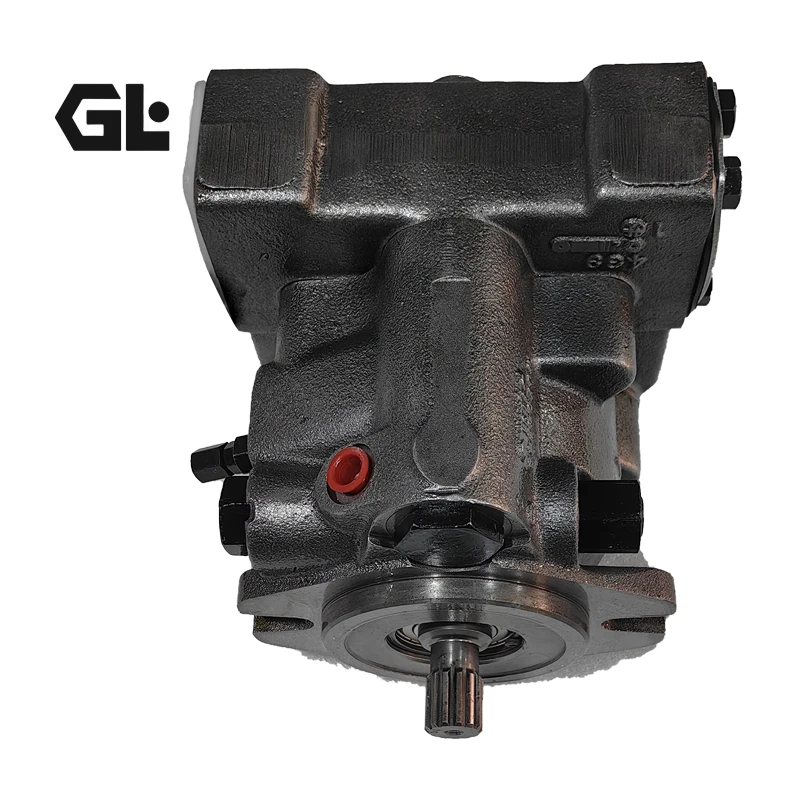

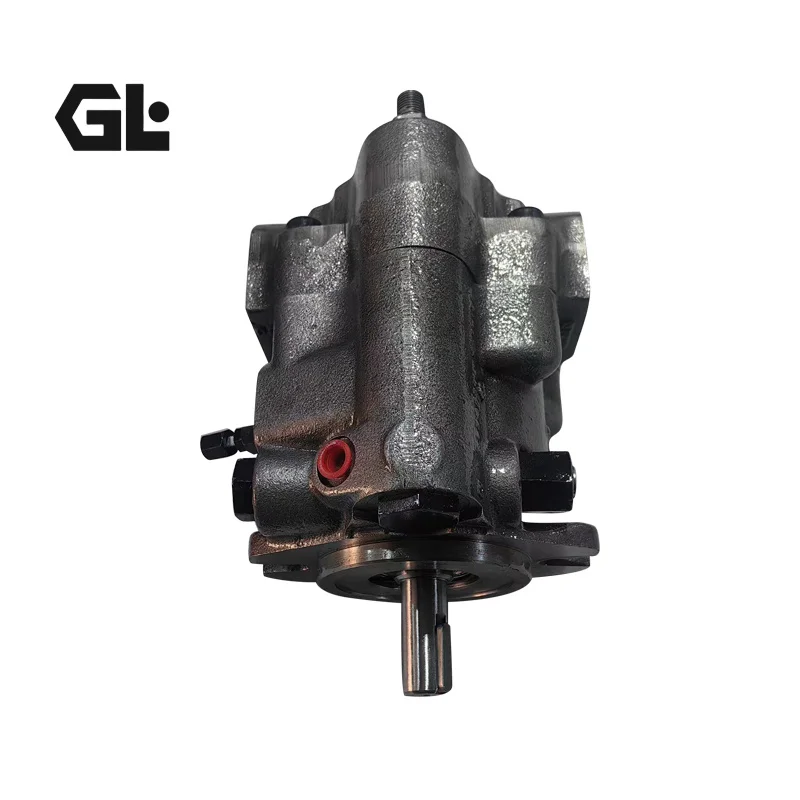

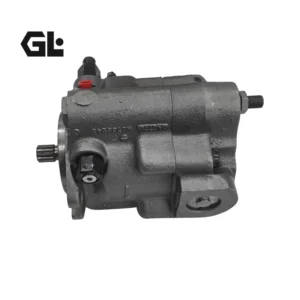

PAVC65R213 Parker PAVC Variable Piston Pump 65cc 207bar

Product Overview

The PAVC65R213, PAVC33BR42MP26, PAVC38R213 and related configurations belong to the Parker PAVC series of medium-pressure, super-charged variable-displacement axial piston pumps designed for open-circuit applications. Available in displacements from 33 to 100 cm³/rev, these pumps deliver continuous pressure of 207 bar (peak 248 bar) and speeds up to 3000 rpm (2600 rpm for PAVC100). Featuring a high-strength cast-iron housing and integrated supercharger, they offer excellent high-speed suction capability and volumetric efficiency. Manufactured to original OEM specifications with full interchangeability and 100% simulated operating-condition testing, these units provide a reliable drop-in replacement for genuine Parker PAVC pumps in both industrial and mobile hydraulic systems.

Technical Specifications

• Series / Model examples: Parker PAVC (PAVC65R213, PAVC33BR42MP26, PAVC38R213)
• Displacement: PAVC33 = 33 cm³/rev; PAVC38 = 38 cm³/rev; PAVC65 = 65 cm³/rev
• Continuous (rated) pressure: 207 bar (3000 psi)
• Peak pressure: 248 bar (3600 psi)
• Maximum speed: 3000 rpm (PAVC33/38/65); 2600 rpm (PAVC100)
• Minimum speed: 600 rpm
• Approximate flow (at 21 bar): PAVC65 ≈ 78.7 L/min @1200 rpm; ≈ 118.1 L/min @1800 rpm
• Input power (1800 rpm, max displacement, 207 bar): PAVC65 ≈ 43.1 kW (57.8 hp)
• Control options: Pressure compensation, remote pressure compensation, load sensing, power (torque) limiting, combined power + load sensing, adjustable maximum volume stop, low-pressure standby, electro-hydraulic controls (field-replaceable cartridge type)
• Housing material: High-strength cast iron
• Approximate weight: PAVC33/38 ≈ 18 kg; PAVC65 ≈ 28 kg
• Operating temperature range: –40°C to +71°C
• Maximum drain-line pressure: 7 bar
• Filtration requirement: ISO 16/13 recommended

Key Technical Advantages

1. High-strength cast-iron housing with two-piece design delivers superior rigidity and vibration resistance while enabling easy service access and reduced downtime.
2. Integrated built-in supercharger ensures reliable high-speed operation up to 3000 rpm with excellent inlet characteristics and cavitation resistance.
3. Replaceable bronze-clad port plate combined with hydrodynamic cylinder-barrel bearing provides high volumetric efficiency, low wear, and extended service life; sealed shaft bearing is subjected only to inlet pressure.
4. Field-changeable cartridge-type controls support multiple control modes with rapid response; standard air-bleed feature allows quick priming, while noise levels remain controlled (approximately 75–81 dB(A) at 207 bar).

Application Areas

Ideal for medium-pressure open-circuit systems in injection molding machines, die-casting machines, hydraulic presses, machine tools, port equipment, agricultural machinery, material-handling systems, food-processing equipment, and various mobile or stationary industrial hydraulic applications as main or auxiliary pumps.

Expert Maintenance Tips

Verify shaft rotation direction against the pump marking before installation. Ensure adequate inlet-line diameter and shortest possible length; dual-inlet configuration is recommended for speeds above 2700 rpm. Drain line must return independently to the reservoir and never exceed 7 bar. Fully bleed the system on first start-up and use premium anti-wear hydraulic oil meeting ISO 16/13 cleanliness (preferred viscosity 30–50 cSt at 38°C). Periodically inspect the port plate and bearings for wear; use OEM-spec seals when replacing. After long-term storage, ramp speed and pressure gradually to avoid dry running. Adjust control cartridges and maximum-volume stops strictly according to original torque and sensitivity specifications to prevent system shock.
