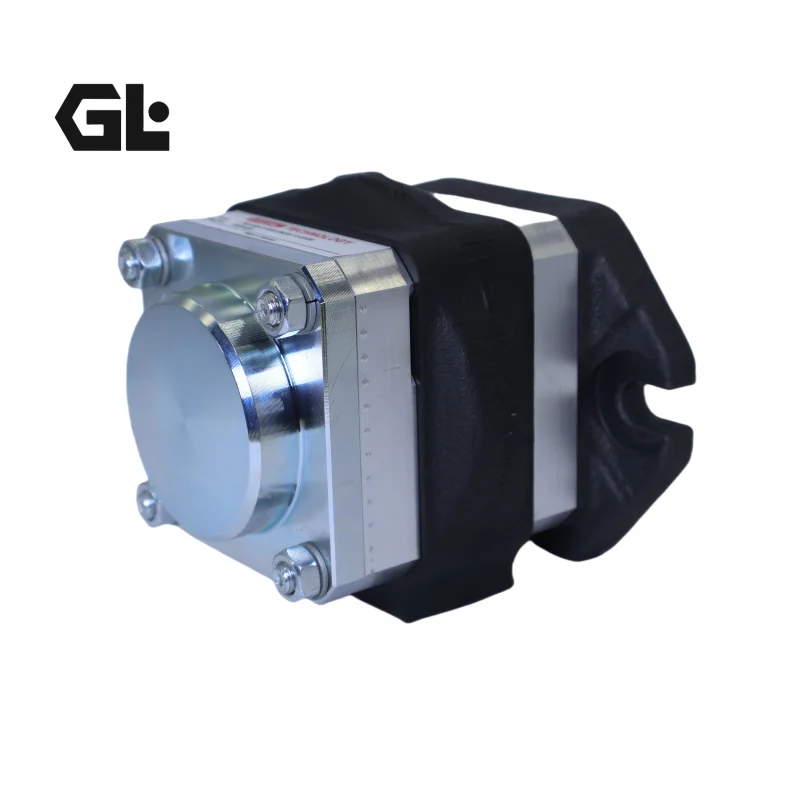

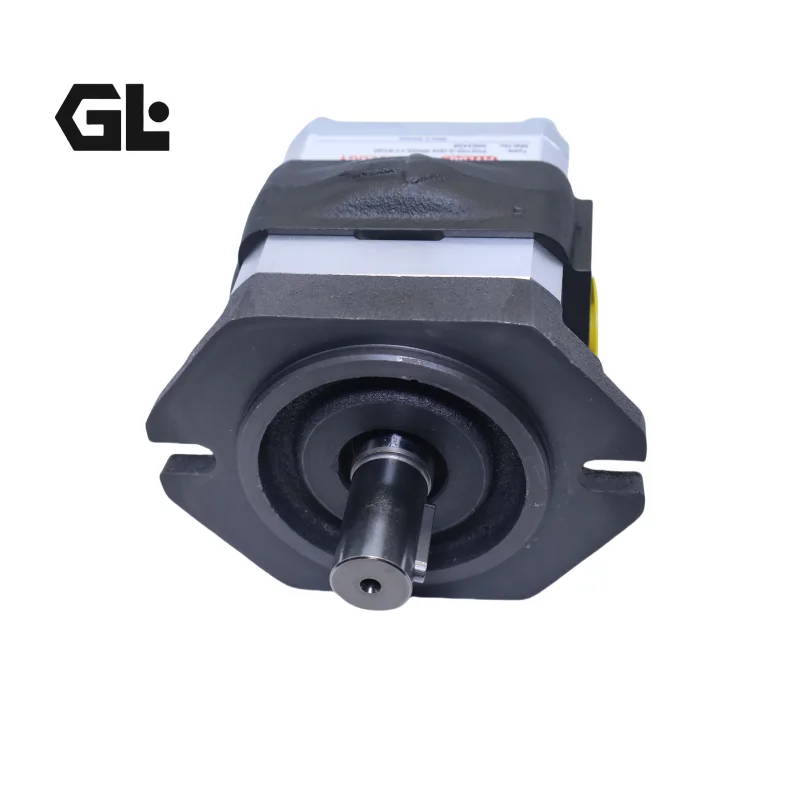

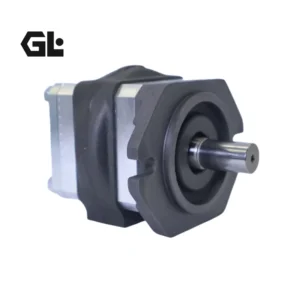

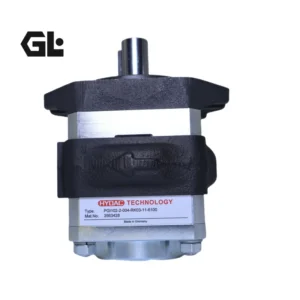

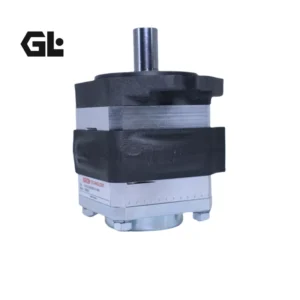

PGI102 Servo Gear Pump Replacement PGI102-2-025RK03-11

Genlu Hydraulic stands as an elite-tier global developer and high-precision manufacturer of industrial heavy-duty servo hydraulic pumps, internal conjugate gear assemblies, and premium fluid-power control manifolds for advanced B2B industrial engineering networks. The PGI102 Series High-Pressure Servo Internal Gear Pump Line—engineered as a premium 100% drop-in interchangeable alternative to the definitive international servo-hydraulic energy-saving standard, specifically referencing legacy series codes like PGI102-2-025RK03-11-6100 and spanning the full volumetric displacement portfolio across PGI101, PGI102, and PGI103 frameworks—represents a highly specialized fluid power solution. Tailored for high-frequency dynamic servo-driven injection molding machinery, die-casting presses, CNC hydraulic press brakes, and automated metalworking centers, this series is recognized worldwide for its exceptional endurance against high-speed acceleration/deceleration cycles, ultra-low hydraulic pulsation, and rock-solid pressure hold stability under full continuous load boundaries.

In contemporary eco-friendly servo-regulated hydraulic architecture, the main pump no longer operates at a fixed induction speed. Instead, it is coupled to a dynamic servo motor, regularly encountering extreme conditions such as zero-speed high-pressure load holding, rapid rotational reversing, and intense acceleration spikes (e.g., accelerating from 0 to 3000 RPM within tens of milliseconds) while continuously tracking pressure profiles up to 25.0–31.5 MPa. Standard aftermarket internal gear pumps lacking active multi-axis radial and axial hydrostatic clearance compensation fall victim to instantaneous friction-film rupture, localized thermal seizure, and rapid volumetric efficiency drop. Genlu’s premium PGI102 series replacement pumps are reverse-engineered to duplicate the exact dynamic clearance sealing matrices, high-tensile nodular iron housings, and vacuum-hardened gear profiles detailed in official servo manual technical specifications. Whether validating precision euro-standard mounting flanges, high-torque RK03 keyed drive configurations, or standard SAE split flange port orientations, our pumps guarantee 100% mechanical and functional drop-in interchangeability. Prior to delivery, every single unit passes rigorous validation on our Dynamic Servo Test Rigs under Full-Simulation Conditions to verify transient response rates, zero-speed case leakage parameters, and high-pressure volumetric stability, ensuring peak energy-saving performance immediately upon field deployment.

Technical Specifications

• Product Pump Classification: PGI102 Series High-Pressure Ultra-Low-Noise Servo Internal Gear Pump

• Core Cross-Reference Model Code: PGI102-2-025RK03-11-6100

• Series Configuration Coverage Horizon: Direct replacement for PGI101, PGI102, and PGI103 single and multi-stage piggyback pump groups

• Geometric Displacement Volume: 25.3 $cc/rev$ (“025” specification; frame sizes scaling globally from 5 $cc/rev$ to 125 $cc/rev$)

• Nominal Operating Pressure Rating: 25.0 MPa (250 bar)

• Maximum Permissible Intermittent Peak Pressure: 31.5 MPa (315 bar / 4568 PSI)

• Permissible Servo Dynamic Speed Horizon: 0 RPM (transient hold phases) — 3000 RPM (high-speed processing spikes)

• Drive Shaft & Mounting Interface Specification: RK03 package (precision heavy-duty cylindrical shaft paired with standard metric keyway for high-torque servo coupling integration)

• Drive Input Shaft Rotational Orientation: R — Right-Hand (Standard Clockwise, CW from shaft end; fully compatible with bi-directional electric servo reversal profiles)

• Main Fluid Porting Configurations Geometry: Standard SAE 4-bolt high-pressure split flange pattern for exact drop-in port alignment

• Total Pump Assembly Net Dry Weight: Approximately 16.5 kg (High-rigidity casing optimized for heavy inertia reversing shocks)

Key Technical Advantages:

• Dual-Axis Micron-Level Hydrostatic Clearance Compensation: Equipped with a advanced two-stage pressure-loaded axial side plate and radial crescent assembly. By routing discharge fluid to load the sealing zones, a resilient 1–2 $\mu m$ dynamic oil film is maintained during rapid 0–3000 RPM speed transitions. This keeps volumetric efficiency above 95% across its entire service life and eliminates pressure loss during thermal buildup.

• Straight-Line 共轭 Conjugate Tooth Profile for Low Pulsation: Features an optimized internal gear mesh designed via multi-axis CNC profile grinders. This geometry eliminates the trapped-oil dead zones common in standard involute gear designs, delivering exceptionally uniform fluid discharge. This lowers pressure ripples to $\le 1.0\%$, suppressing pipe resonance and keeping full-load noise under 60 dB(A).

• Heavy-Duty Journal Bearings Built for High-Frequency Reversing: Replaces standard composite bushings with specialized, micro-finished heavy-duty hydrodynamic sliding bearings. This assembly easily withstands the massive radial shear stresses generated during rapid 0–3000 RPM directional reversals within milliseconds, preventing micro-pitting or thermal binding to double fatigue life.

• Anti-Scuffing Carbon-Hardened Core for Zero-Speed High-Pressure Holding: The internal gear shaft and ring gear are machined from premium alloy tool steel, vacuum-carburized to exceed HRC62 and micro-lapped. During long molding cooling cycles where the pump holds pressure at near-zero RPM, this material selection prevents dry-friction scoring and thermal degradation, keeping system pressure stable.

Application Areas:

• High-Precision Electro-Hydraulic Hybrid Servo Injection Molding Machinery: Supplying fast, energy-saving power during continuous clamping, material injection, and high-pressure holding phases.

• High-Dynamic CNC Hydraulic Press Brakes and Fast Action Servo Presses: Powering synchronized dual-cylinder ram leveling, precise bending strokes, and high-velocity return cycles.

• Premium Industrial Automation and Offline Specialized Servo Power Units: Perfect for manufacturing cells demanding strict noise boundaries and rapid fluid response tracking.

Expert Maintenance Tips:

• Absolute Restriction Against Dry Runs and Initial Priming Guidelines: Because the PGI102 series features tight internal clearances and rapid startup speeds, even brief oil starvation can cause localized component galling. Always pre-fill the pump body with clean oil before initial startup. Manually rotate the servo shaft 3+ turns, set the servo drive acceleration ramping to a conservative limit, and run unladen at 300–500 RPM for 3 minutes to clear air before introducing system pressure.

• Strict Protection Against Micro-Leaks in the Intake Line to Prevent Cavitation: During rapid acceleration up to 3000 RPM, the intake zone develops a high localized vacuum. Any micro-leak in the suction seals or a partially restricted inlet strainer will trigger severe cavitation. Air bubbles collapsing under high discharge pressure cause sharp metallic knocking noises and heavy vibration, which can destroy the crescent plate within hours. Ensure all intake lines utilize heavy-duty high-vacuum seals.

• Professional Recommendation for Minimum Speed Control During Long Holding Cycles: Although the PGI102 series excels at low-RPM holding, it is recommended to set a minimum maintaining speed of 50–100 RPM during long cooling hold cycles rather than dwelling at a absolute 0 RPM. This minimal rotation circulates fluid to dissipate localized friction heat. Combined with an oil cooler to keep system temperatures under 50°C, this practice extends pump service life.
