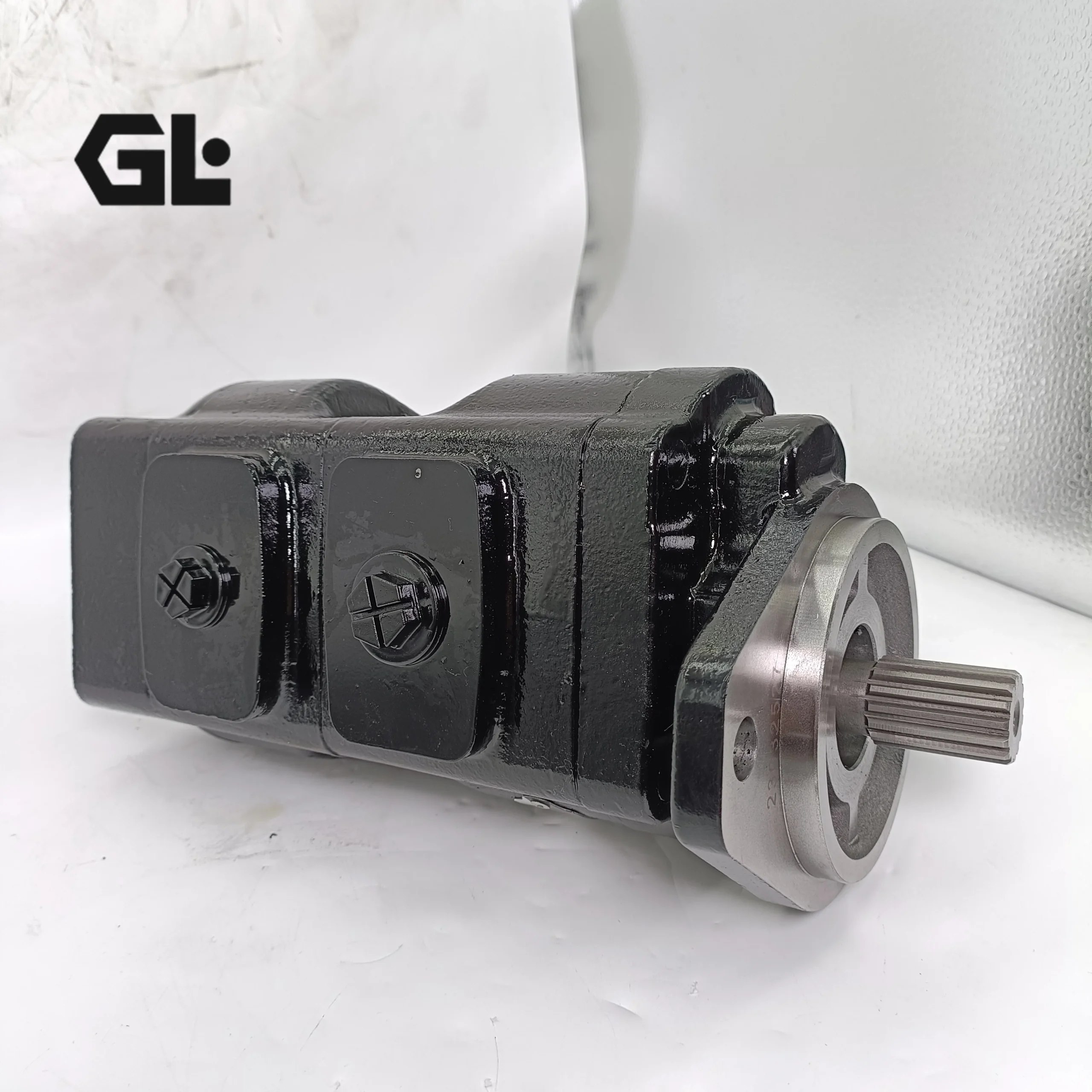

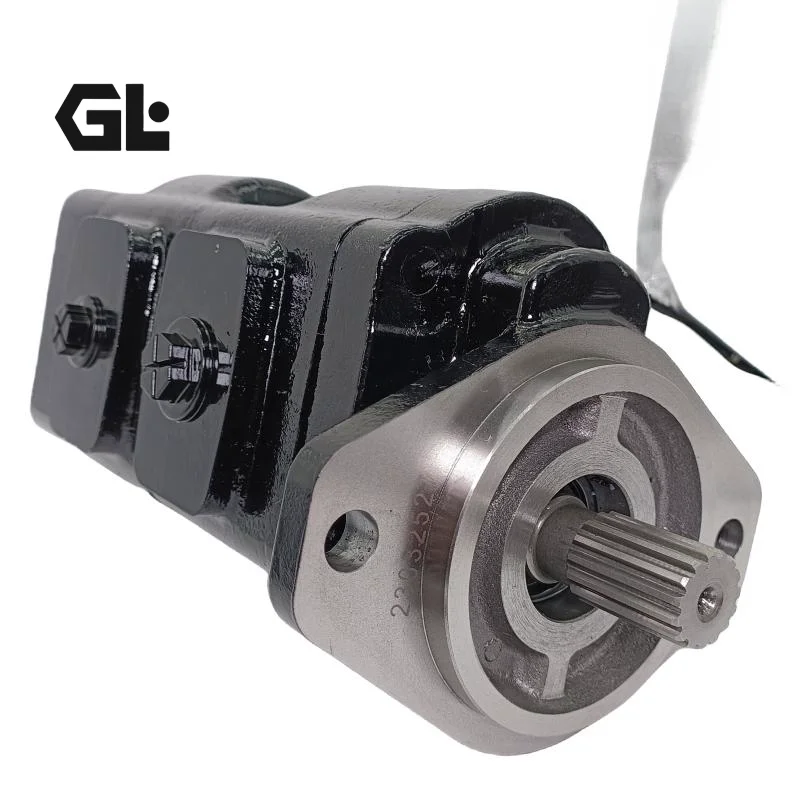

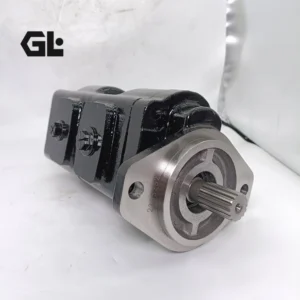

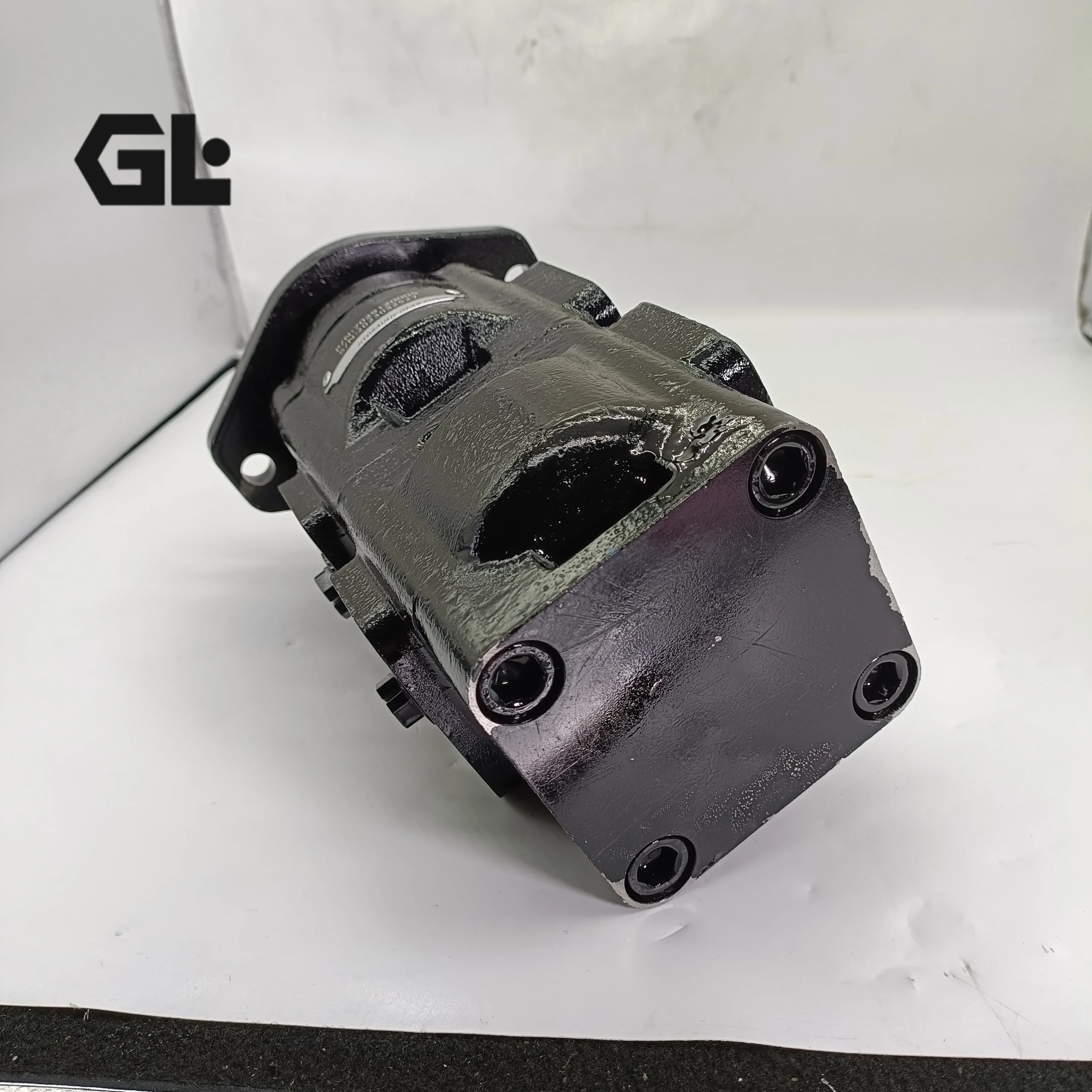

Parker PGP640 Gear Pump | PGP640B1000 Hydraulic Gear Pump

Genlu Hydraulic proudly introduces our precision-engineered replacements for the PGP640 Series (including the PGP640B variant) high-pressure gear pumps. These units are heavy-duty, high-power-density power units specifically tailored for construction machinery and rigorous industrial hydraulic systems. We provide perfect matches for original Parker PGP640 specifications, including the high-performance PGP640B1000 and complex multi-section variants like the PGP640B1000CE4K3NT6T4S-620A0410XT4T2B1B1. Functioning as the heartbeat of your hydraulic system, Genlu guarantees 100% Drop-in Interchangeability in mounting flanges, drive shafts (splined/keyed), suction/discharge ports, and displacement profiles. Supported by our uncompromising 100% Simulation Load Testing, each unit is validated for volumetric efficiency, load pulsation, and inter-stage seal integrity before dispatch, ensuring relentless, stable, and silent power delivery for your hydraulic circuits.

Technical Specifications

• Product Series: PGP640 High-Pressure External Gear Pump (Includes PGP640B frame)

• Representative Model: PGP640B1000 (Single-stage configuration)

• Displacement Range: 50 cc/rev to 100 cc/rev (Subject to specific configuration code)

• Rated Continuous Pressure: Up to 250 bar (3625 psi)

• Max Peak Pressure: 275 bar (4000 psi)

• Max Operating Speed: 2500 rpm

• Min Operating Speed: 500 rpm

• Control Mode: Fixed fluid displacement, driven mechanically via shaft

• Housing Material: Heavy-duty cast iron body for superior stress-fatigue and vibration resistance

• Configuration: SAE splined shaft drive, multi-port flange connections

Key Technical Advantages:

• Heavy-Duty Cast Iron Housing: Unlike aluminum alternatives, our housings are crafted from high-density cast iron. This material provides exceptional vibration dampening and pressure pulsation resistance, ensuring the pump body remains free from stress-fatigue deformation during long-term, high-impact operations.

• Precision Pressure Balancing System: Internal floating side plates automatically adjust gear end-face clearances based on system pressure. This dynamic compensation maintains high volumetric efficiency even under extreme loads, significantly reducing internal fluid heat generation.

• Advanced Anti-Galling Surface Treatment: Drive shafts and gears undergo specialized anti-galling heat treatment. This design enables operation in demanding environments, drastically reducing the risk of internal scoring from particulate contaminants.

• High-Overlap Low-Pulsation Gear Profile: Utilizing optimized gear tooth profile modification technology, we significantly reduce flow rate fluctuations during mesh transitions. This leads to lower system pressure pulsations, minimizing noise and vibrations across the hydraulic plumbing.

Application Areas:

• Mining Equipment: Primary hydraulic power stations for drilling rigs, large loaders, and haulers.

• Construction Machinery: Power circuits and auxiliary systems for large excavators and bulldozers.

• Material Handling & Lifting: Lifting circuits and steering loops for reach stackers and Aerial Work Platforms (AWP).

• Industrial Presses: Power units for scrap shears and heavy-duty industrial machine tools.

Expert Maintenance Tips:

• Suction Vacuum Optimization: Cast iron pumps are highly sensitive to inlet vacuum levels. Ensure suction lines are of sufficient diameter and keep inlet vacuum below 0.8 bar to prevent “cavitation,” which rapidly erodes gear end-faces.

• Coupling Coaxiality: Given the robust nature of the PGP640, it is highly sensitive to mounting alignment. Ensure coupling coaxiality is maintained within 0.05 mm to prevent excessive side loads that could damage shaft seals or the pump drive shaft.

• Initial Startup Protocol: Always pre-fill the pump casing with clean hydraulic fluid. Jog the motor at low speed to bleed air from the system before applying a load. Forcing a startup in a dry system can cause instantaneous scouring of gear faces due to lack of lubrication.
