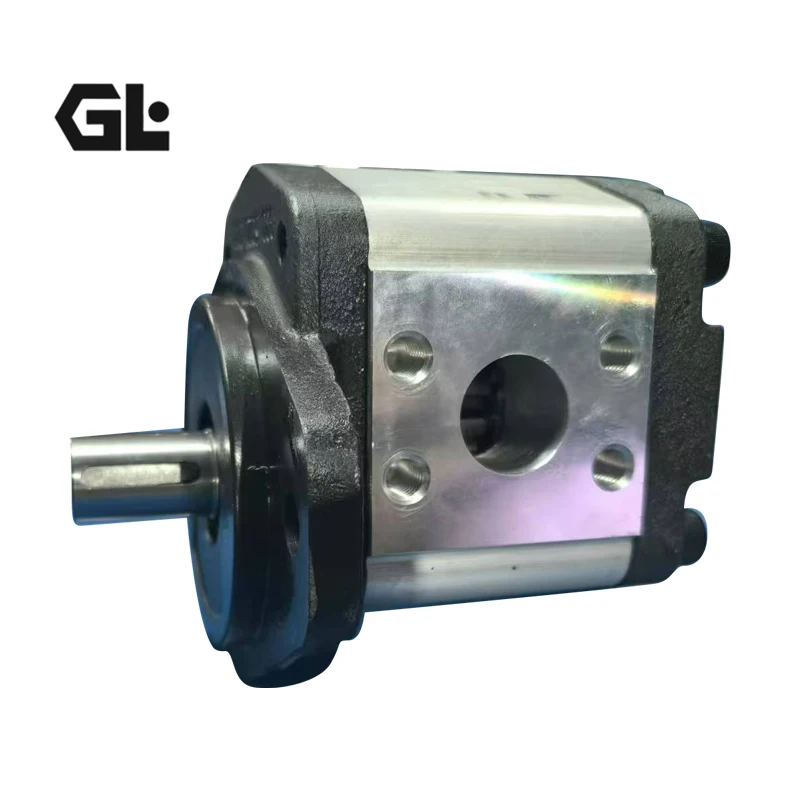

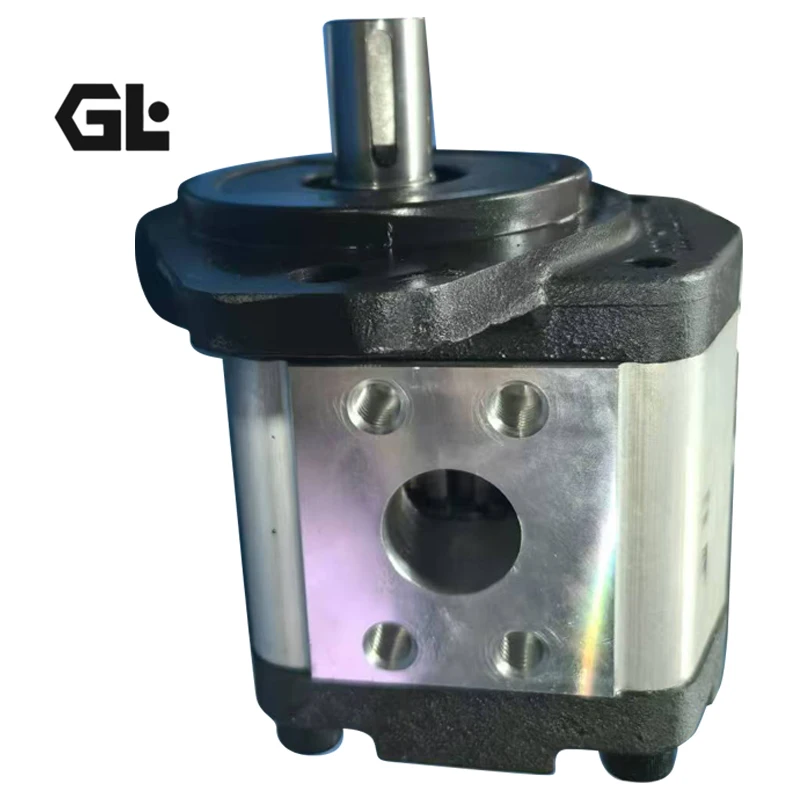

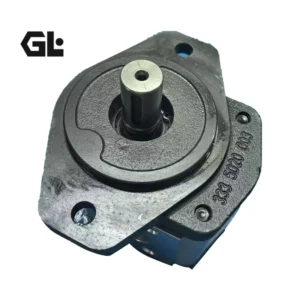

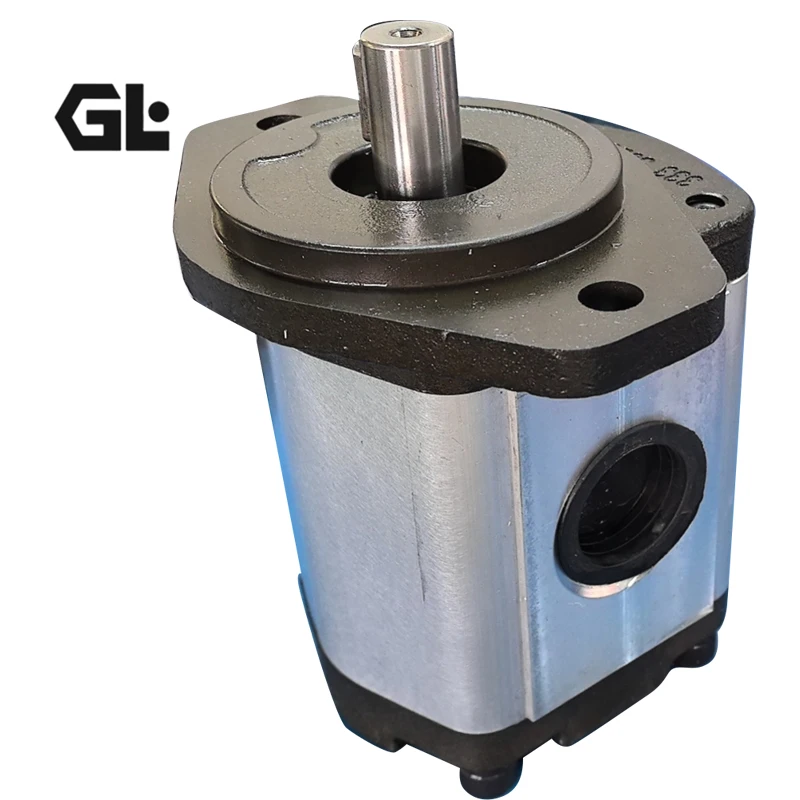

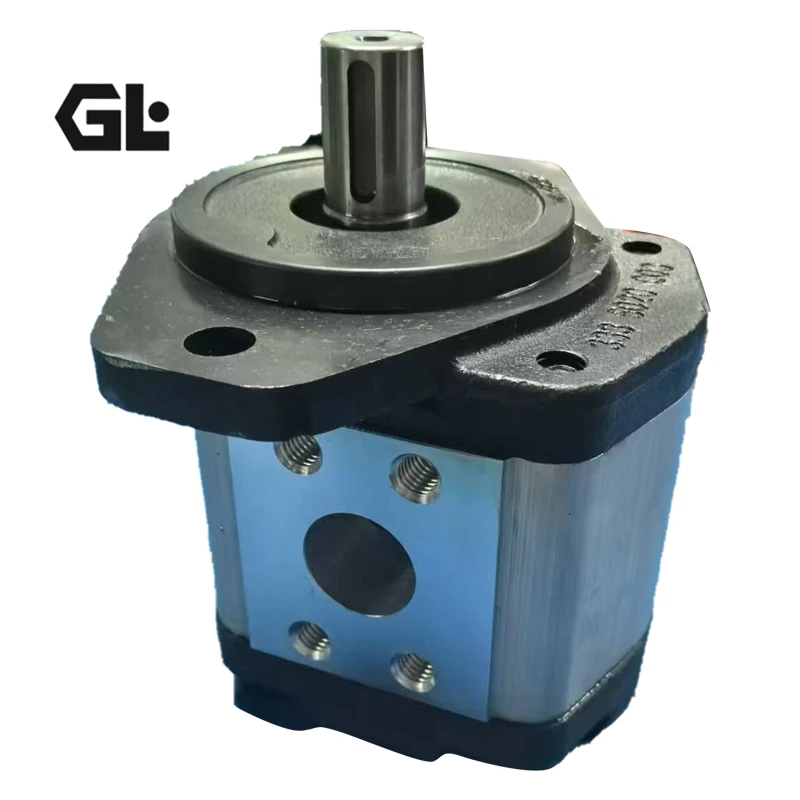

PGP315A193PQAB07-66 | Parker Gear Pump 41cc 241bar

Product Overview

The PGP Series Hydraulic Gear Pumps are high-performance fixed displacement gear pumps from Parker Hannifin, a global leader in motion and control technologies. The PGP series is renowned for high efficiency, high reliability, and low noise, widely used in construction machinery, agricultural equipment, material handling, and industrial hydraulic systems.

The PGP series consists of two main product lines: PGP315 Cast Iron Gear Pumps and PGP511 Aluminum Gear Pumps.

The PGP315 series features three-piece cast iron construction with low-friction journal bearings, displacement range from 7.6 to 40.6 cm³/rev, rated pressure of 241 bar (3500 psi), and maximum speed of 3000 rpm—specifically designed for heavy-duty, high-cycle mobile equipment applications.

The PGP511 series features high-strength aluminum alloy housing with a 12-tooth gear profile design, displacement range from 6 to 33 cm³/rev, rated pressure of 250 bar (3625 psi), and maximum speed of 4000 rpm—renowned for lightweight construction, high power density, and low-noise operation.

PGP315A193PQAB07-66 model code breakdown:

• PGP315: Parker PGP315 cast iron gear pump series

• A193: Displacement specification – maximum displacement of 40.6 cm³/rev

• PQAB07: Configuration code – shaft type, port specification, mounting

• 66: Additional configuration code

PGP511M0160CS2D3NE5E3B1B1 model code breakdown:

• PGP511: Parker PGP511 aluminum gear pump series

• M0160: Displacement specification – M indicates specific configuration, 0160 indicates 16 cm³/rev

• CS2D3NE5E3B1B1: Configuration code – shaft type, port specification, seal material, rotation direction

We specialize in the R&D and manufacturing of high-pressure pumps, motors, and valve groups. All PGP series models offer 100% direct interchangeability with original Parker PGP series pumps of the same model—no modification required. Every unit undergoes 100% simulated load testing before shipment, ensuring performance validation under real-world operating conditions.

Technical Specifications

PGP315 Series General Specifications:

• Brand Series: Parker Hannifin PGP315 Series

• Pump Type: External gear pump

• Body Material: Three-piece cast iron construction

• Displacement Range: 7.6 – 40.6 cm³/rev (0.465 – 2.48 in³/rev)

• Rated Operating Pressure: 241 bar (3500 psi)

• Peak Pressure: 275 bar (4000 psi)

• Maximum Speed: 3000 rpm

• Volumetric Efficiency: Up to 98%

• Fluid Temperature Range: -20°C to +80°C

• Maximum Weight: 10 kg

• Rotation Direction: Clockwise, Counter-clockwise, Bi-Rotational

• Configurations: Single, Tandem, Multiple

• Control Methods: Relief, Load Sense, Priority, Unloader

• Fluid Media: Standard hydraulic fluids, Phosphate-ester, Water-Glycol

PGP315A193PQAB07-66 Specifications:

• Model: PGP315A193PQAB07-66

• Displacement: Approx. 40.6 cm³/rev (maximum displacement)

• Rated Operating Pressure: 241 bar (3500 psi)

• Peak Pressure: 275 bar (4000 psi)

• Maximum Speed: 3000 rpm

• Maximum Flow: 32 GPM (121 L/min)

• Body Material: Three-piece cast iron

• Bearings: Low-friction journal bearings

• Pressure Compensation: Balanced thrust plates

PGP511 Series General Specifications:

• Brand Series: Parker Hannifin PGP511 Series

• Pump Type: External gear pump

• Body Material: High-strength aluminum alloy

• Gear Teeth: 12-tooth gear profile with optimized flow metering

• Displacement Range: 6 – 33 cm³/rev (0.37 – 2.01 in³/rev)

• Rated Operating Pressure: 250 bar (3625 psi)

• Intermittent Pressure: 260 bar (3771 psi)

• Maximum Speed: 4000 rpm

• Fluid Temperature Range: -15°C to +80°C

• Maximum Weight: 4.6 kg

• Rotation Direction: Clockwise, Counter-clockwise, Bi-Rotational

• Configurations: Single, Tandem, Multiple

• Control Methods: Relief, Load Sense, Priority, Unloader

• Fluid Media: Standard hydraulic fluids, Phosphate-ester, Water-Glycol

• Mounting Options: SAE, ISO, DIN standards

PGP511M0160CS2D3NE5E3B1B1 Specifications:

• Model: PGP511M0160CS2D3NE5E3B1B1

• Displacement: 16 cm³/rev (M0160 designation)

• Rated Operating Pressure: 250 bar (3625 psi)

• Intermittent Pressure: 260 bar (3771 psi)

• Maximum Speed: 4000 rpm

• Body Material: High-strength aluminum alloy

• Gear Design: 12-tooth gear profile

• Shaft Type: As per configuration code

• Port Configuration: As per configuration code

Note: Specifications above are based on Parker PGP series official technical data. Different configuration codes correspond to different shaft types, flange specifications, port configurations, and seal materials. Refer to the pump nameplate for exact specifications.

Key Technical Advantages

1. PGP315: Three-Piece Cast Iron Construction – Withstands Heavy-Duty Applications

The PGP315 series features three-piece cast iron construction with excellent structural strength and impact resistance. Compared to aluminum bodies, cast iron provides superior structural stability under extreme conditions of high temperature, high pressure, and high impact—particularly suited for construction, forestry, and oil & gas mobile equipment markets. Balanced thrust plates effectively reduce friction and internal leakage.

2. PGP511: 12-Tooth Gear Profile with Optimized Flow Metering – Ultra-Low Noise Operation

The PGP511 features a 12-tooth gear profile with optimized flow metering design. Compared to conventional gear pumps, this design effectively reduces pressure pulsation, delivering exceptionally smooth and quiet operation. The PGP511 series delivers superior performance, high efficiency, and low noise at high operating pressures.

3. High Volumetric Efficiency – Up to 98%

The PGP315 series achieves volumetric efficiency up to 98% through low-friction journal bearings and balanced thrust plate design. The PGP511 series also maintains high volumetric efficiency across all operating conditions through precision gear machining and optimized flow metering. High volumetric efficiency means lower power loss and reduced system heating.

4. Flexible Modular Design – Supports Single, Tandem, and Multiple Pumps

In addition to single pumps, the PGP series supports tandem and multiple pump configurations. The PGP315 series supports cross-frame multi-pump combinations, while the PGP511 series offers extensive combination options across four frame sizes (PGP502, PGP505, PGP511, PGP517).

5. Comprehensive Valve Integration Options

The PGP series supports integration of multiple hydraulic valve functions including relief valves, load-sense flow controls, priority valves, solenoid unloader valves, and accumulator charge valves. This high level of integration reduces external piping and fitting requirements, minimizes leak points, and simplifies system layout.

6. Broad Media Compatibility with Installation Flexibility

The PGP series supports standard hydraulic fluids, phosphate-ester, water-glycol, and other media. Mounting options comply with SAE, ISO, and DIN international standards, supporting SAE, ISO, NPT, and BSPP port connections for easy adaptation to various industrial equipment.

Application Areas

PGP315 Cast Iron Series (Heavy-Duty Applications):

• Construction Machinery—excavators, loaders, bulldozers hydraulic systems

• Forestry Equipment—forwarders, harvesters hydraulic systems

• Oil & Gas Equipment—oilfield equipment hydraulic systems

• Aerial Equipment—boom lift hydraulic systems

• Material Handling Equipment—reach stackers, heavy forklifts hydraulic systems

• Mining Machinery—mining equipment hydraulic systems

• Vocational & Municipal Vehicles—snow removal vehicles, salt spreaders

PGP511 Aluminum Series (Lightweight Applications):

• Forklifts—hydraulic lift and steering systems

• Agricultural Machinery—tractors, harvesters hydraulic systems

• Material Handling Equipment—warehousing and handling equipment hydraulic systems

• Industrial Hydraulic Systems—hydraulic power units, manufacturing machinery

• Turf Equipment—turf maintenance equipment hydraulic systems

Expert Maintenance Tips

Model Code Verification (verify each element):

PGP series model codes contain critical information. Before selection and installation, confirm the following:

• PGP315 / PGP511: Product series and frame size.

• Displacement code (e.g., A193, M0160, etc.) : Corresponds to different displacement specifications.

• Configuration code (e.g., PQAB07, CS2D3NE5E3B1B1, etc.) : Shaft type, port specification, seal material, rotation direction.

• Suffix code: Additional configuration information.

Verify Rotation Direction:

Confirm that the drive shaft rotation matches the direction code in the model. PGP series offers clockwise, counter-clockwise, and bi-rotational options. Incorrect rotation will prevent pressure build-up and may damage internal gears and bearings.

Mounting Flange and Drive Shaft Matching:

PGP series offers a wide range of SAE, ISO, and DIN standard mounting flanges and shaft options. Verify that the equipment-side flange type and shaft specification match the pump configuration before installation.

Suction Line and Inlet Pressure Requirements:

PGP series requires an inlet absolute pressure range of 0.8 – 3 bar. Ensure the suction line is properly sealed with no air leaks and the suction filter is not clogged. Recommended suction vacuum does not exceed 0.3 bar (absolute pressure).

First-Start Priming Procedure:

After new pump installation or system overhaul, ensure the pump cavity is filled with oil before first start. Jog the pump at low speed and low pressure until the pump body is fully filled with oil and air is purged, then gradually increase to rated speed and working pressure. Running the pump dry will cause irreversible damage to gears and bearings.

Oil Cleanliness and Regular Maintenance:

Replace hydraulic oil and return filters every 1,000 operating hours or per equipment manufacturer recommendations. The PGP315 series recommends a minimum kinematic viscosity of 50 SUS, and the PGP511 series recommends hydraulic oil with proper cleanliness. Using hydraulic oil with proper cleanliness will significantly extend pump service life. Regularly monitor pump body temperature—if it consistently exceeds +80°C, inspect the system cooling.
