PGP511 Parker High Pressure Gear Pump Aluminum

Product Overview

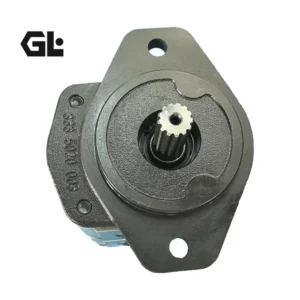

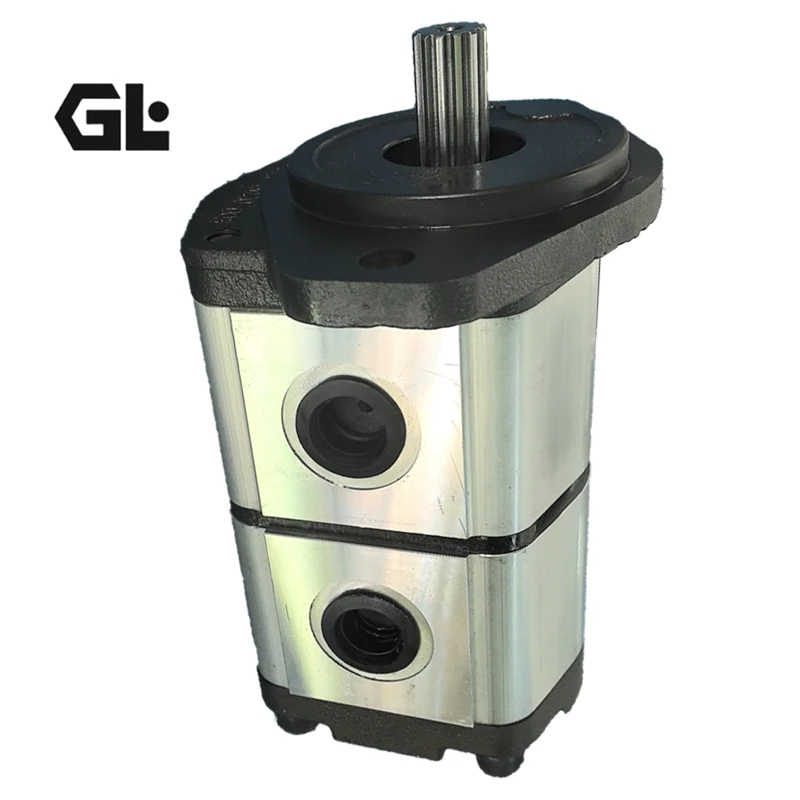

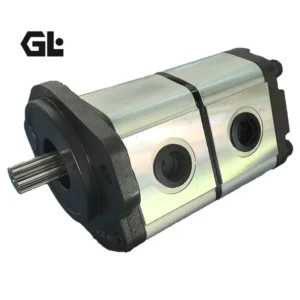

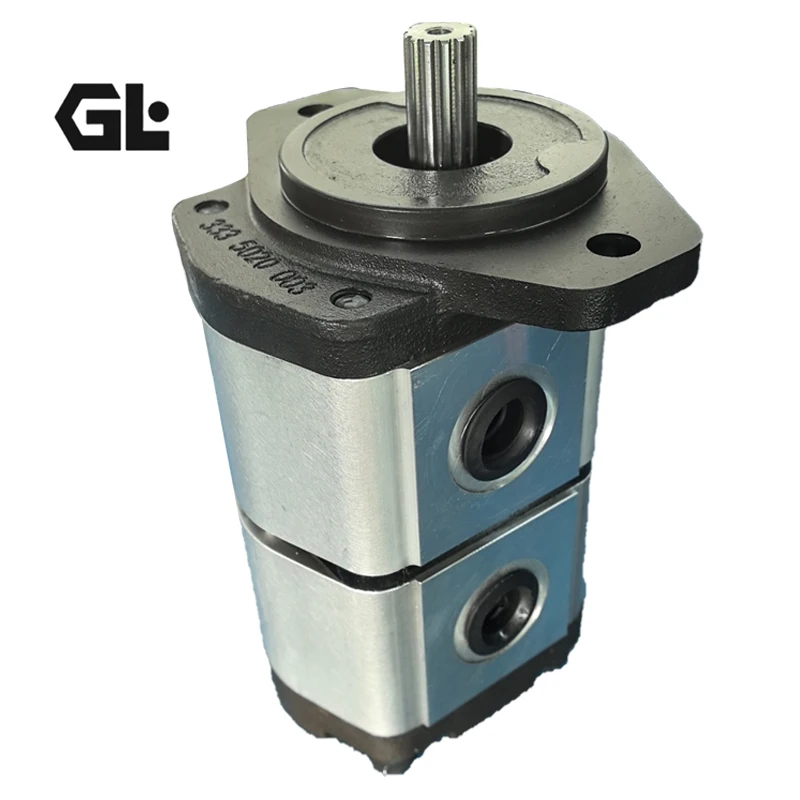

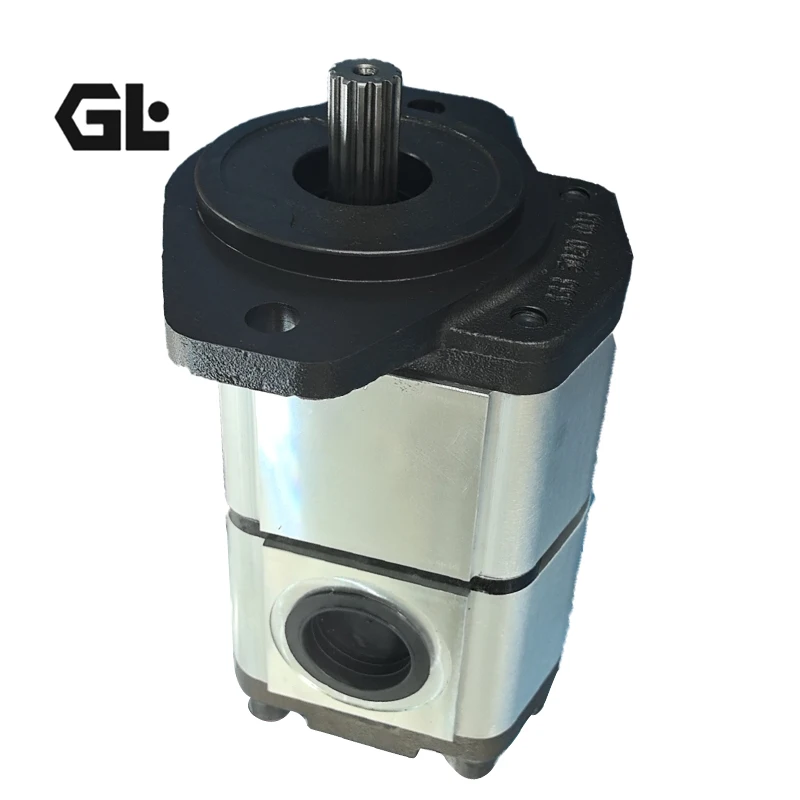

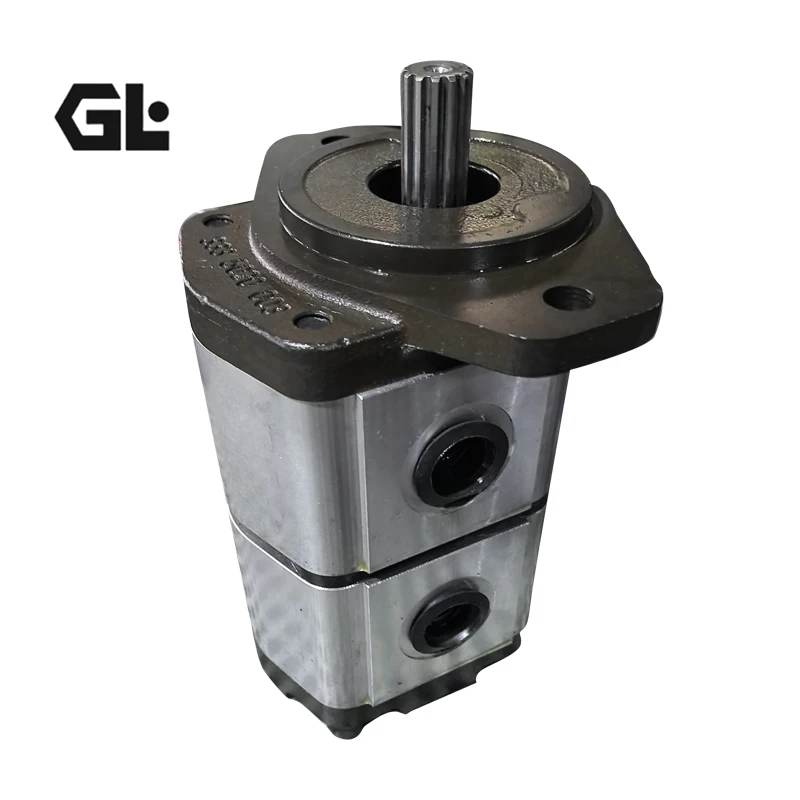

The PGP511A0270AL6H2NE6E5B1B1 (and PGP511B0160, PGP500, PGP505, PGP517 series) is a high-pressure aluminum external gear pump from the Parker PGP500 series. Featuring a high-strength aluminum housing and precision gear design, it delivers high power density, high efficiency and low noise. With a wide displacement range (approx. 4–33 cm³/rev) and continuous pressure up to 250 bar, the pump offers direct bolt-on interchangeability with OEM units and undergoes 100% simulated duty testing for reliable performance in material handling, agriculture, turf and industrial hydraulic systems.

Technical Specifications

• Models: PGP511A0270AL6H2NE6E5B1B1 / PGP511B0160CA1H2NJ7J5S-511A0160XJ7J5 (PGP500 / PGP505 / PGP511 / PGP517 series)
• Pump type: High-pressure aluminum external gear pump
• Displacement examples:
  • 0160: 16 cm³/rev
  • 0270: 27 cm³/rev
  • Others: 4–33 cm³/rev (depending on specific code)
• Continuous pressure: Up to 250 bar (smaller sizes); reduces for larger displacements
• Intermittent pressure: Up to 275 bar
• Minimum speed: 500 rpm
• Maximum speed: Up to 3500–4000 rpm (depending on displacement)
• Other: SAE flanges/shafts available; single or multiple sections; various integral valve options

Key Technical Advantages

1. True drop-in interchangeability: Manufactured to OEM dimensional and porting standards for bolt-on replacement without modifications.
2. High power density: Lightweight aluminum housing with high pressure capability for compact installations.
3. High efficiency and low noise: Optimized gear tooth profile and flow metering ensure smooth, quiet operation.
4. Flexible configurations: Supports single/multiple sections, various shafts and integral valve options.
5. 100% simulated duty testing: Full pressure, flow, noise and endurance verification before shipment ensures ready-to-install reliability.

Application Areas

• Material handling equipment
• Agricultural and turf machinery
• Industrial hydraulic systems
• Mobile equipment auxiliary circuits
• Applications requiring compact high-pressure aluminum gear pumps

Expert Maintenance Tips

• Confirm rotation direction and flange/shaft compatibility before installation; use recommended hydraulic oil and maintain proper cleanliness.
• Start at low speed unloaded; check for leaks and noise. Avoid simultaneous maximum pressure and maximum speed.
• Regularly inspect seals and bearings; ensure unrestricted suction lines to prevent cavitation.
• Keep oil temperature and viscosity within recommended ranges; avoid over-pressure operation.
• For special codes, verify the complete order code and consult technical support.
