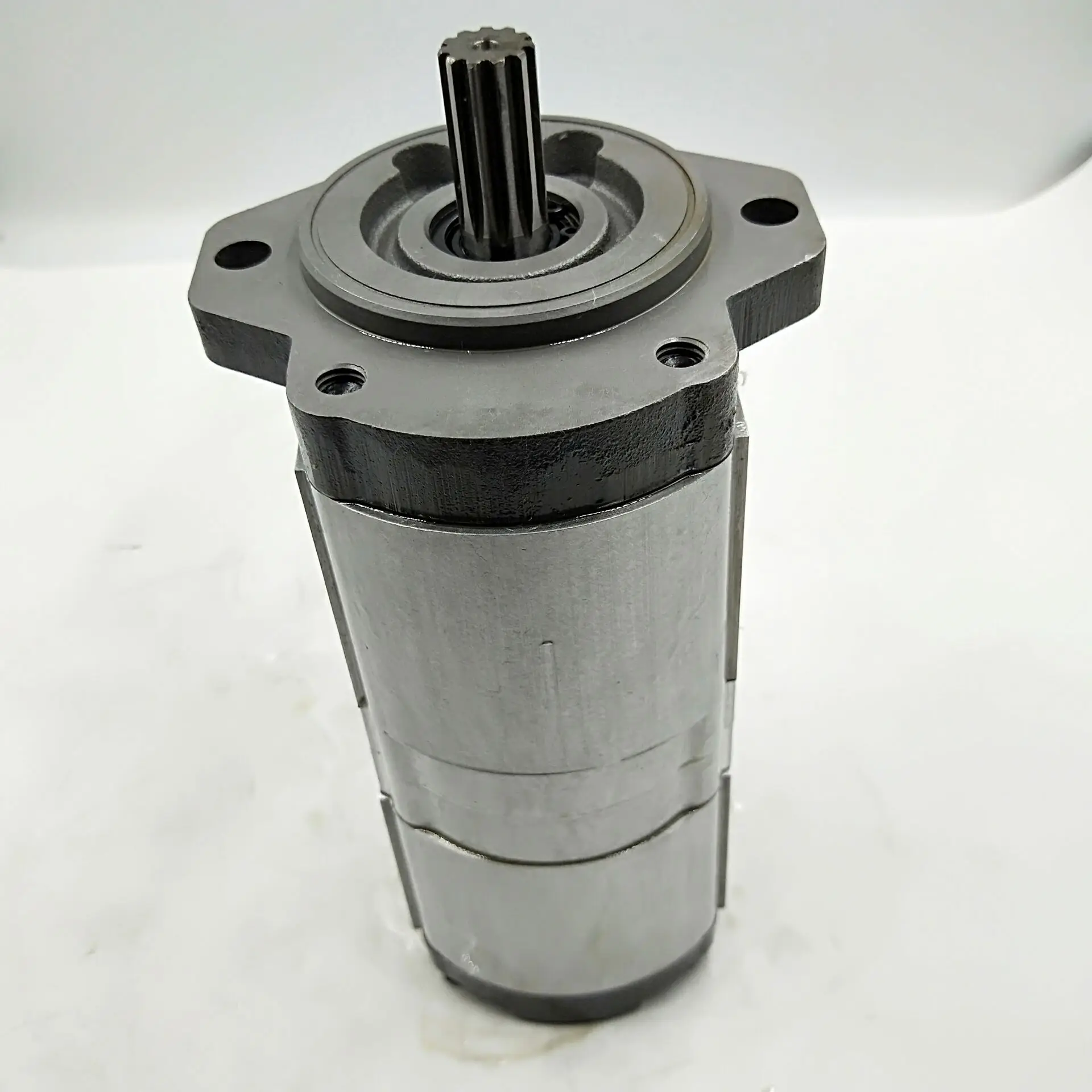

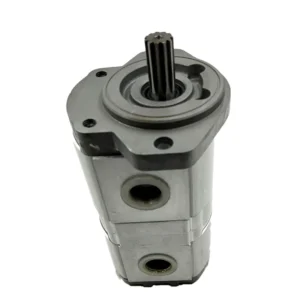

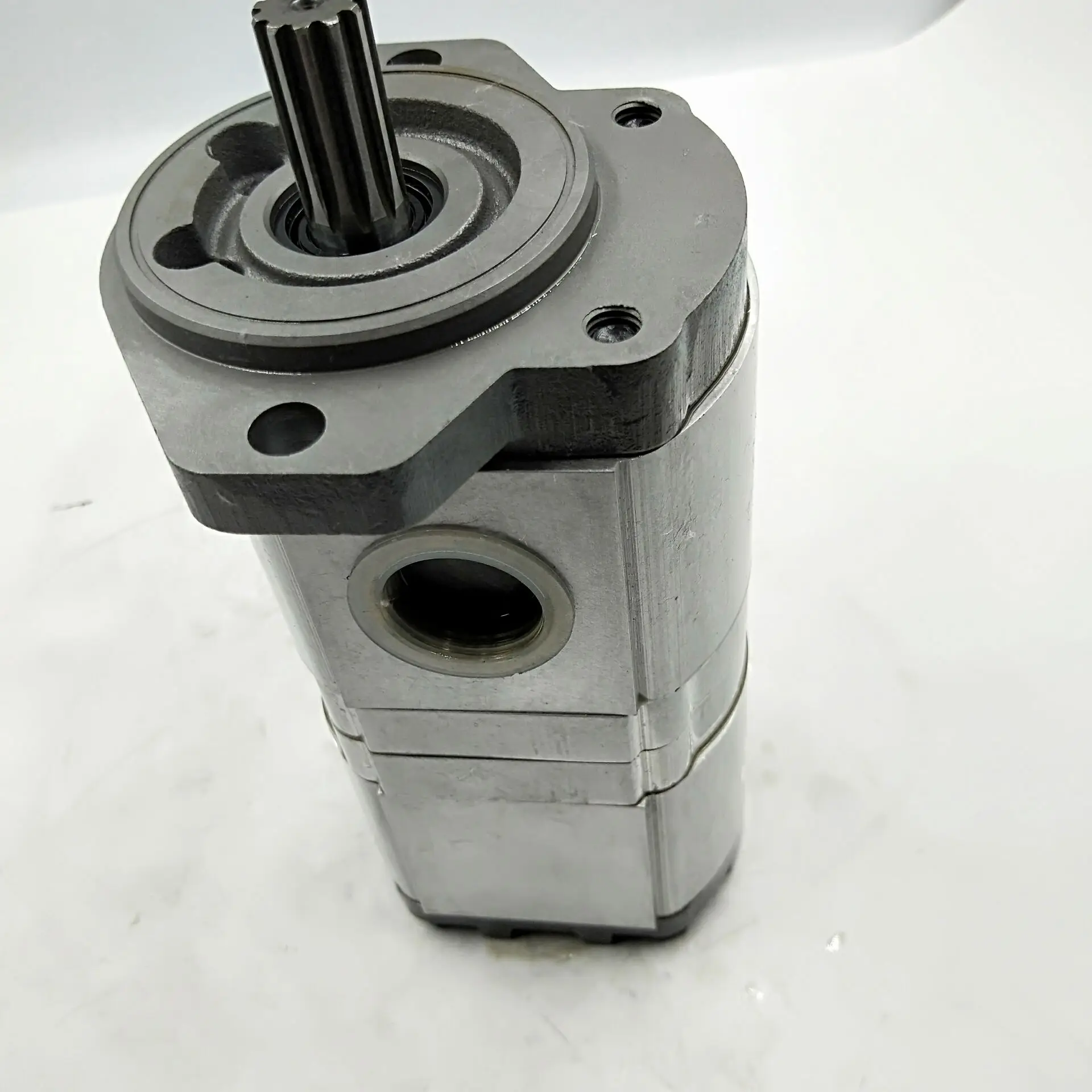

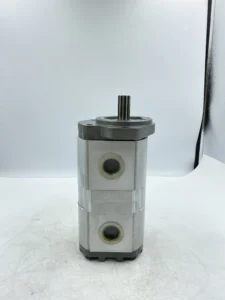

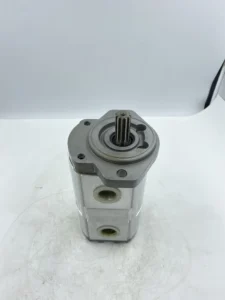

PLP20-14/PLP20-7.2 Casappa Compatible Double Gear Pump 250bar

Product Overview

The PLP20-14/PLP20-7.2 is a high-pressure double external gear pump fully interchangeable with the Casappa Polaris PLP20 series (Group 2). Featuring a high-strength aluminum alloy body, precision-machined gears supported by sleeve bearings, and pressure-compensated thrust plates, it delivers reliable dual-flow output with common inlet and separate outlets. Every unit undergoes 100% simulated duty-cycle testing to guarantee dimensional, shaft, flange, port and performance interchangeability with genuine Casappa units. Ideal for mobile and industrial systems requiring stable high-pressure dual circuits, it offers high volumetric efficiency, low noise and extended service life while reducing downtime and inventory costs.

Technical Specifications

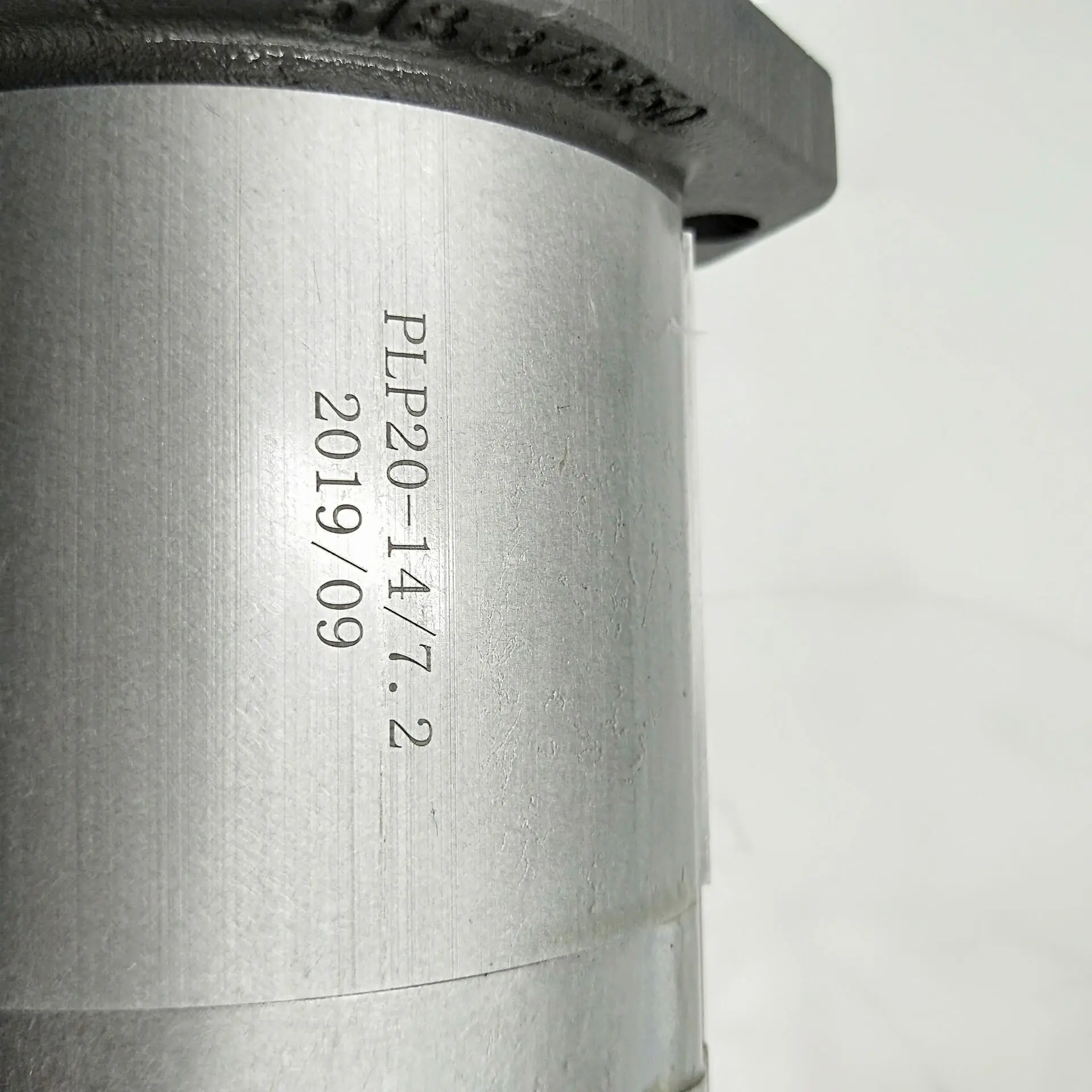

• Model: PLP20-14/PLP20-7.2 (Casappa Polaris PLP20 series double pump)
• Front section displacement: 14.53 cm³/rev (0.89 in³/rev)
• Rear section displacement: 7.29 cm³/rev (0.44 in³/rev)
• Continuous pressure: 250 bar (3625 psi)
• Intermittent pressure: 280 bar (4060 psi)
• Peak pressure: 300 bar (4350 psi)
• Max speed front: 3500 rpm
• Max speed rear: 4000 rpm
• Min speed: 500 rpm (front) / 600 rpm (rear)
• Control type: Fixed displacement external gear (uni-directional or reversible options)
• Body material: High-strength aluminum alloy
• Cover material: Aluminum or cast iron
• Bearings: Sleeve bearings (optional outboard bearing for heavy radial loads)
• Typical weight: approx. 3–5 kg (configuration dependent)
• Mounting: European standard (E2 etc.), SAE-A and other international flanges
• Shaft options: 1:8 taper, splined and others
• Ports: Side or rear threaded/flanged (BSP, SAE etc.)
• Volumetric efficiency: ≈97% (typical)
• Overall efficiency: ≈85%

Key Technical Advantages

1. Precision-machined gears combined with pressure-compensated thrust plates deliver consistently high volumetric efficiency and minimal internal leakage across a wide pressure and speed range.
2. High-strength aluminum body with oversized sleeve bearings provides excellent radial load capacity and extended service life under heavy-duty mobile conditions.
3. Optimized gear and flow-path design ensures low noise emission throughout the operating life, improving operator comfort and system reliability.
4. Full dimensional, shaft, flange and port interchangeability with original Casappa PLP20 series, verified by rigorous testing, enables direct drop-in replacement without circuit or bracket modifications.
5. 100% simulated duty-cycle testing (pressure, speed and flow curve verification) guarantees factory performance matching genuine units, minimizing field failures.

Application Areas

Construction machinery (auxiliary circuits on excavators and loaders), agricultural equipment (tractor hydraulics), material handling (forklifts, aerial platforms), municipal vehicles (sweepers, refuse trucks), forestry machinery, fan-drive systems and industrial power units requiring independent dual-flow high-pressure circuits.

Expert Maintenance Tips

• Ensure precise shaft alignment with a flexible coupling; never apply radial or axial loads directly to the pump shaft.
• Keep suction line diameter at least equal to the inlet port, minimize length and fittings, and maintain inlet pressure between 0.7–3 bar absolute to prevent cavitation.
• On initial start-up, set the relief valve to the lowest setting, run at low speed under no load for 5–10 minutes to purge air, then gradually increase pressure.
• Use mineral-based hydraulic oil with viscosity 12–100 cSt at operating temperature; maintain fluid cleanliness at ISO 4406 19/17/14 or better and replace filters regularly.
• Keep the shaft-seal area clean to avoid abrasive wear; during cold starts limit speed and pressure until oil temperature rises above –20 °C.
