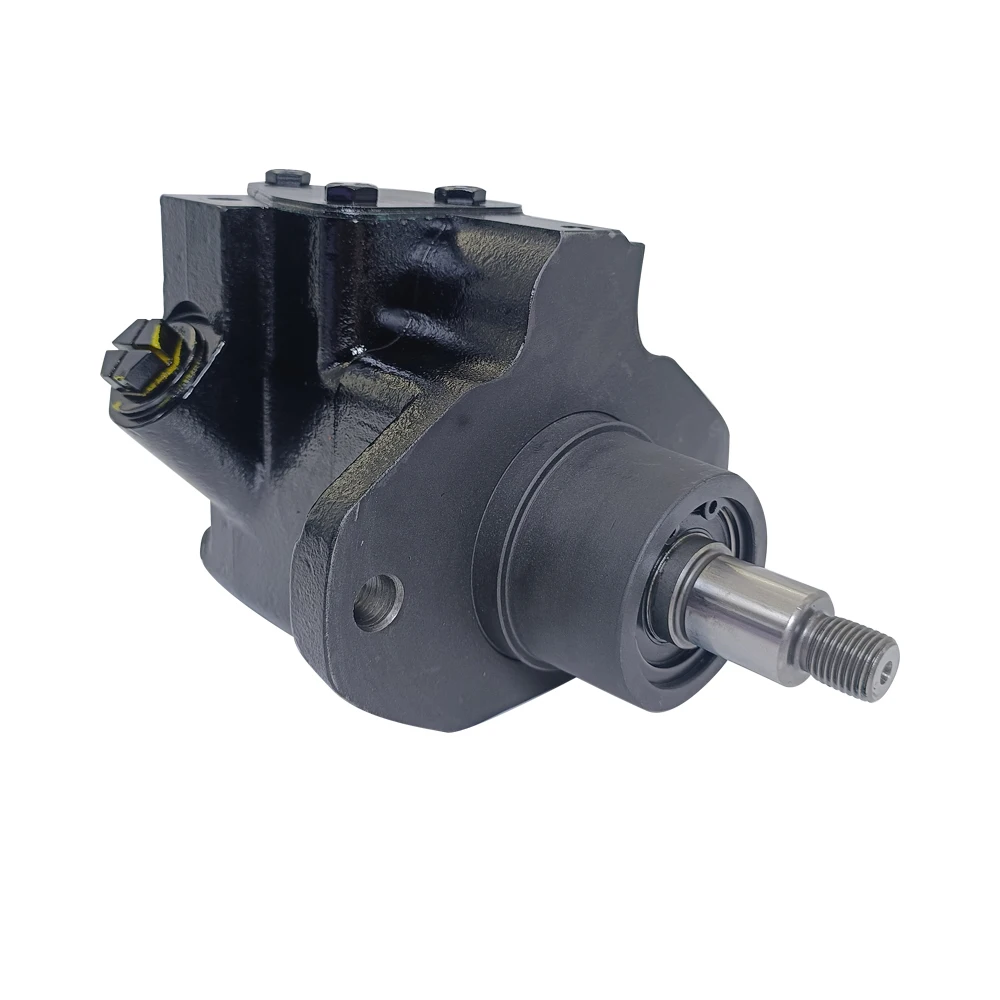

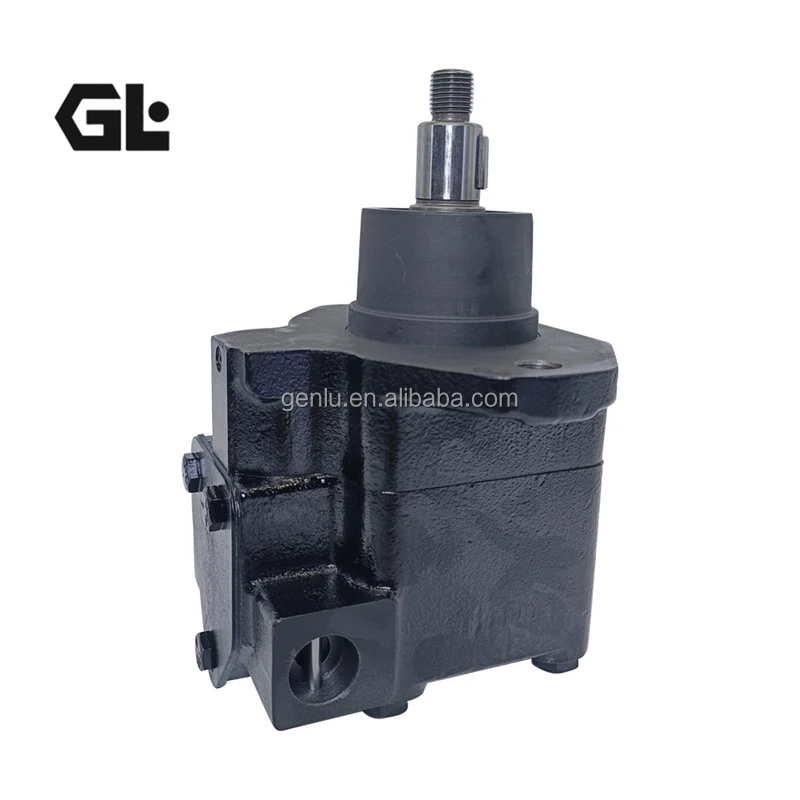

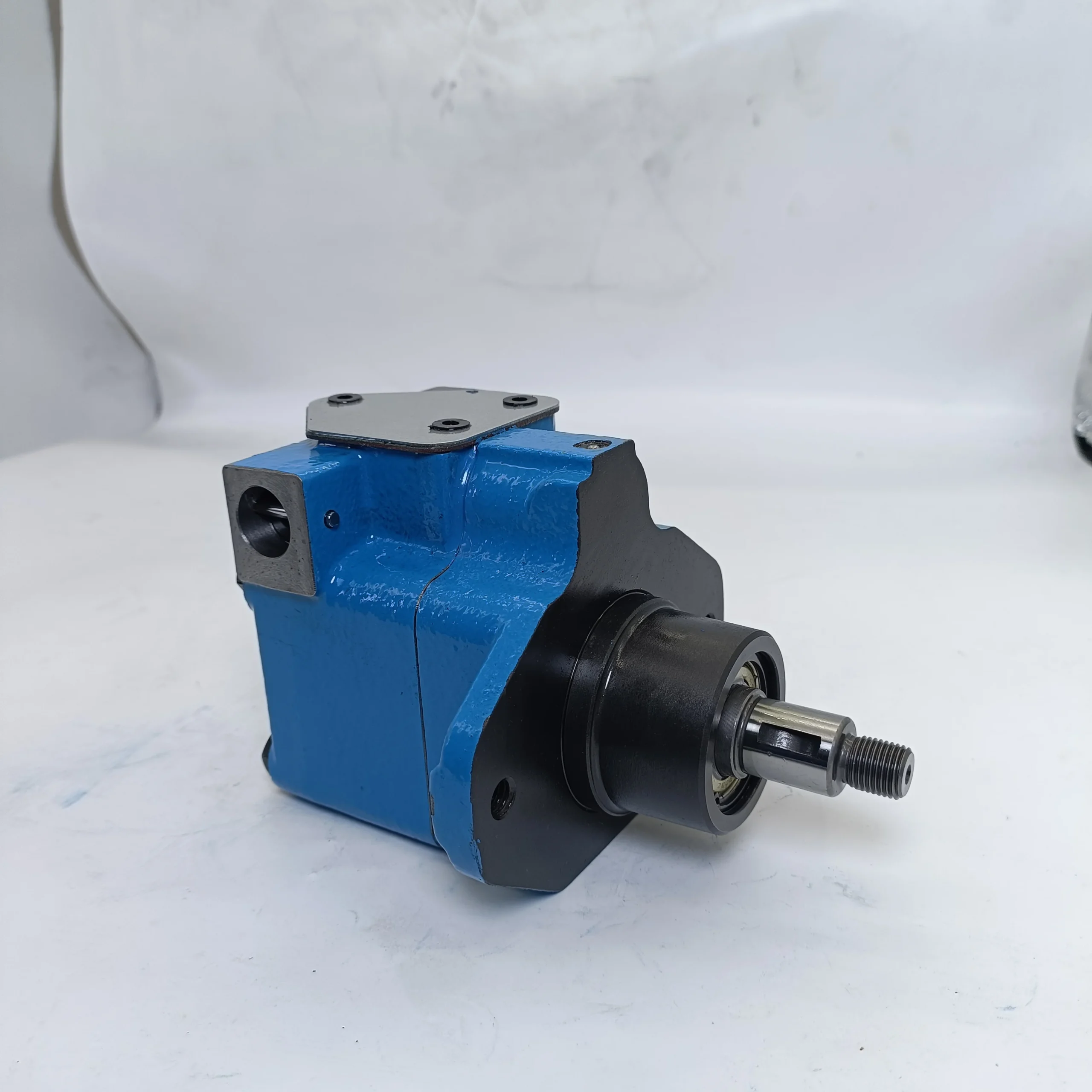

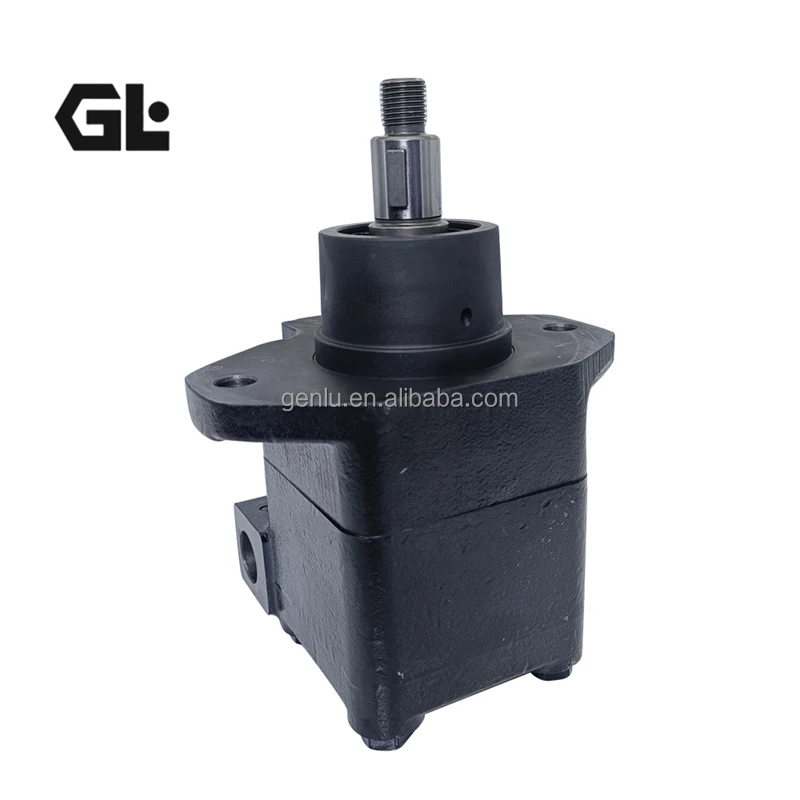

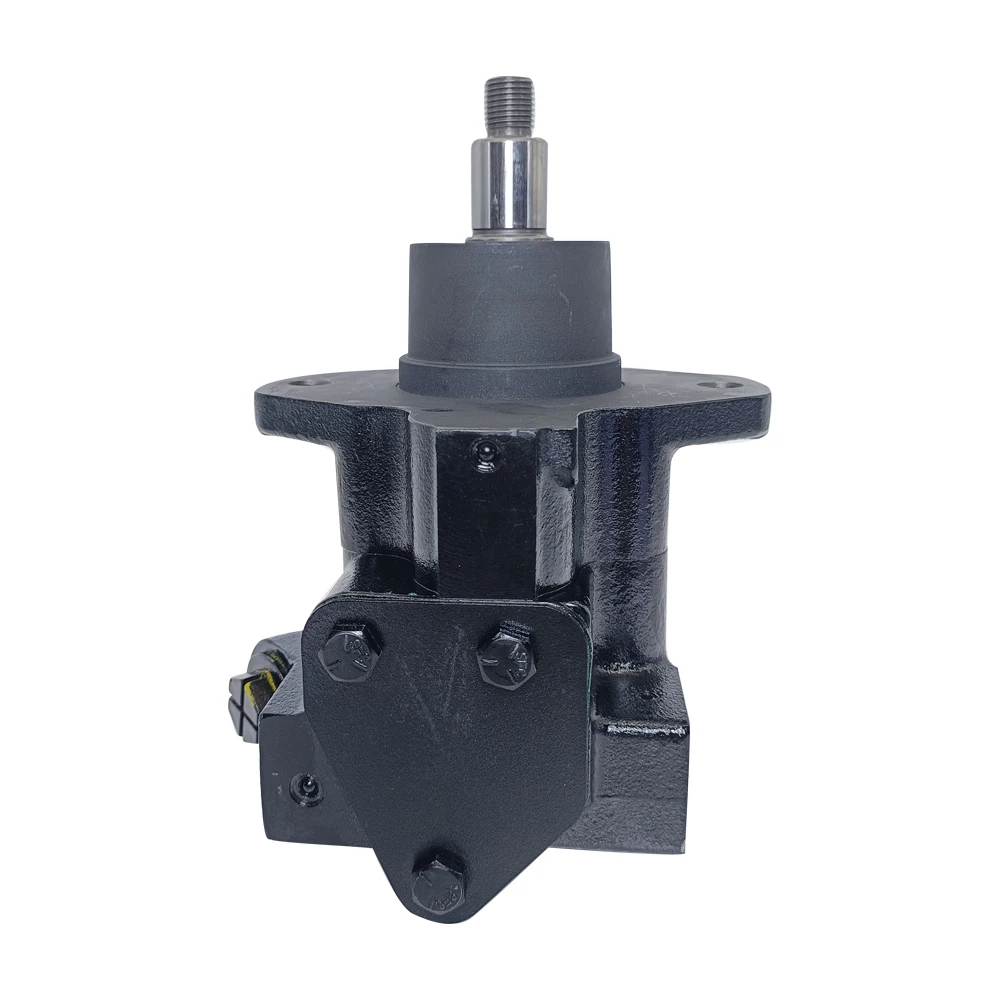

VTM42 Power Steering Hydraulic Vane Pump | Vickers VTM42-10 VTM42-15 Replacement

Genlu Hydraulic proudly introduces our VTM42 Series industrial and heavy-duty automotive-grade power steering hydraulic vane pumps. Specifically engineered for heavy-duty freight trucks, transit buses, specialized utility vehicles, and marine steering geometries, this series delivers a precision-manufactured, drop-in replacement for the classic Vickers (Eaton) VTM42 power steering pump lineage. We specialize in cross-referencing and supplying heavy-duty displacement and control configurations, including VTM42-10, VTM42-15, VTM42-20, VTM42-40, VTM42-50, and VTM42-60, featuring the functional F11 (integrated oil reservoir tank) and R1 (Right-Hand / Clockwise) drive layouts.

Serving as the primary hydraulic source for critical steering loops, the VTM42 features an inline valve-in-pump design containing a highly sensitive flow control and safety relief valve manifold. Regardless of erratic engine/shaft speed surges, this system bypasses excess fluid directly back to the inlet while throttling output delivery to a constant rate (e.g., matching the specific configuration code). This keeps steering response perfectly linear and predictable across all highway and idling phases. Genlu’s VTM42 series conforms strictly to legacy OEM dimensional templates. We guarantee 100% Drop-in Interchangeability across standard mounting pilots, keyed shaft splines, discharge port threads, and reservoir flange configurations. Every unit undergoes 100% high-RPM flow cutoff and dynamic pressure dumping simulation on our diagnostic test lines, ensuring zero fade and zero mechanical flat-spots under peak steering loads.

Technical Specifications

• Product Series: VTM42 Series Power Steering Hydraulic Vane Pump (Integrated Valve Block)

• Core Delivery Configurations:

  • 10 Variant: 1.0 US gpm (Approx. 3.8 L/min @ 1200 rpm)

  • 15 Variant: 1.5 US gpm (Approx. 5.7 L/min @ 1200 rpm)

  • 20 Variant: 2.0 US gpm (Approx. 7.6 L/min @ 1200 rpm)

  • 40 Variant: 4.0 US gpm (Approx. 15.1 L/min @ 1200 rpm)

  • 50 Variant: 5.0 US gpm (Approx. 18.9 L/min @ 1200 rpm)

  • 60 Variant: 6.0 US gpm (Approx. 22.7 L/min @ 1200 rpm)

• Max Operating Pressure Limit: 140 bar (2000 psi)

• Maximum Permissible Shaft Speed: 4250 rpm (Optimized for direct engine belt/gear drive spectrums)

• Safety Relief Setting (Code 14 standard): 1400 psi (Approx. 96 bar, custom calibrated to application specs)

• Reservoir Configuration Code (F11): F11 Steel Integrated Suction Reservoir/Oil Cup attached

• Rotational Orientation Code (R1): R1 Designation (Right-Hand / Clockwise rotation viewing the shaft end; non-reversible)

• Internal Architecture: 12-Vane hydraulically balanced fixed-displacement cartridge structure

Key Technical Advantages:

• Hydraulically Balanced Cam Design with Zero Radial Loading: Engineered with a dual-chamber balanced ring configuration where opposing fluid chambers cancel out raw radial forces. This unloads the heavy-duty journal bearings from constant operational stress, exponentially multiplying pump longevity during severe chassis jolts.

• Two-in-One Smart Valve Combo for Constant Delivery: The rear cover encloses a integrated flow-regulating spool. As engine speeds scale up on transit pathways, the delivery rate is metered smoothly, completely eliminating hydraulic cavitation hiss within the steering gear and preventing parasitic horsepower draw.

• Induction-Hardened Drive Shaft & Precision Vane Packs: The input shaft is machined from premium high-carbon alloy steel, induction hardened, and centerless ground to withstand sudden torsional reversals. Precision-profiled vane tips trace the internal cam profile smoothly, granting exceptional low-RPM volumetric efficiency to prevent “heavy wheel” steering resistance during tight docking maneuvers.

• Dampening-Optimized Cast Iron Casing: The pump block is molded from high-density modified gray iron. This rugged matrix provides superior mechanical shear boundaries alongside noise-absorption traits, effectively sealing hydraulic vibration away from the vehicle operator cab.

Application Areas:

• Heavy Duty Logistics & Public Transit: Fluid power units for heavy freight haulers, commercial distribution semi-trucks, city transit buses, and airport terminal shuttles.

• Construction & Utility Machinery: Material handling forklifts, compact wheel loaders, multi-terrain aggregate trucks, and agricultural tractor steering boosters.

• Marine Steering Controls: Power steering boost pumps for small commercial vessels, tugboats, and yacht steering rudder linkages.

Expert Maintenance Tips:

• Pre-Commissioning Priming & Air Bleeding: Upon locking down the mounting bolts and belt pulley assemblies, pre-fill the F11 integrated reservoir with clean, dedicated automatic transmission fluid (ATF) or power steering oil. Never crank the pump dry. Cycle the vehicle steering wheel fully from lock-to-lock several times at engine idle to vent trapped air pockets from the steering lines.

• Rotation Matching Mandate: This pump is designated strictly as R1 (Clockwise) with directional vane slot geometry. Sustained counter-clockwise rotation will jam the vane tips against the cam track, inducing immediate internal failure. Always check engine or electric motor spin directions before engagement.

• Fluid Cleanliness & Filter Lifecycles: Power steering loops frequently ingest ambient atmospheric dust through breathers. System oil must be scheduled for routine replacement, and the internal cup mesh or inline return filters must be flushed regularly. Maintain oil parameters at ISO 4406 20/18/15 or better. Discolored or scorched fluid must be dumped immediately to protect the sensitive internal flow control spool from sticking.
