I. Product Overview

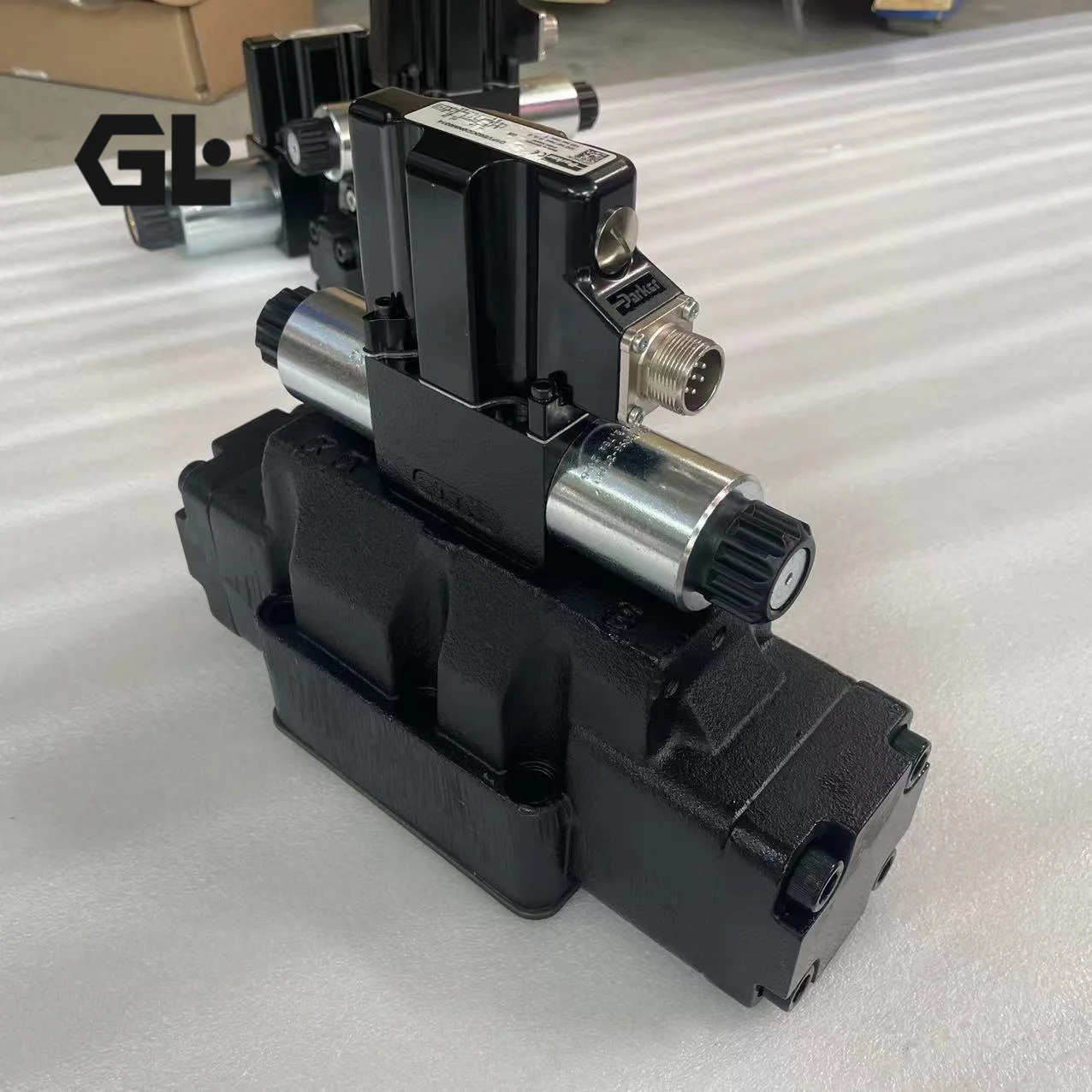

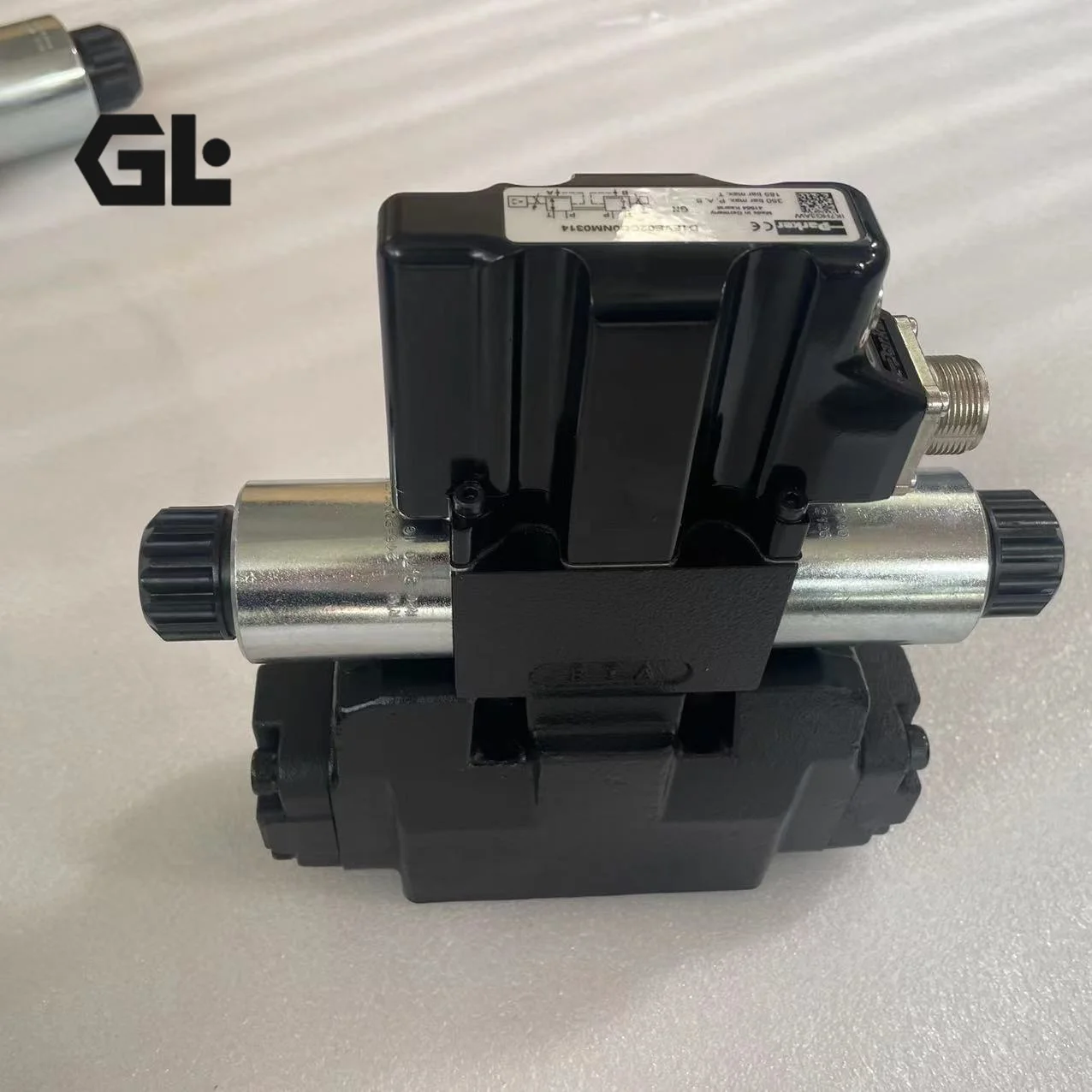

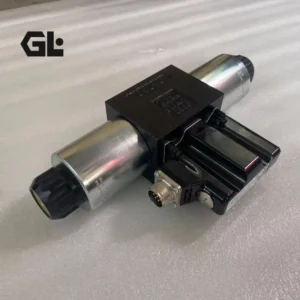

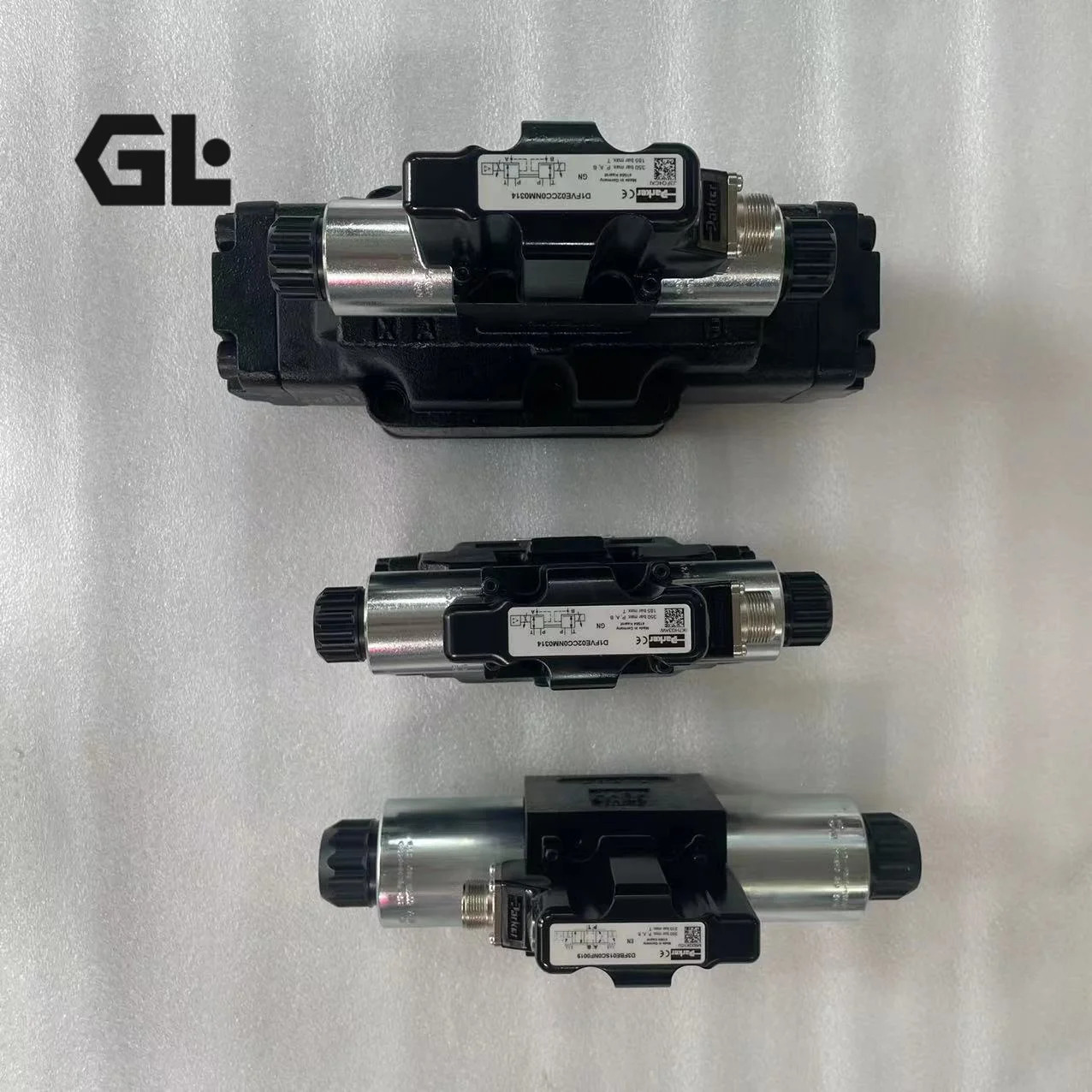

The D3FBB32SC0NS00 is a Parker Hannifin D3FB OBE Series direct operated proportional directional control valve with NG10 / CETOP 05 mounting size—a key member of the D1F/D3F Series proportional valve portfolio.
The D3FB Series represents Parker’s proven direct operated proportional DC valve platform, delivering high repeatability and low hysteresis for a wide range of open-loop and basic closed-loop industrial hydraulic applications. D3FBB32SC0NS00 belongs to the D*FB*0 spool/sleeve design sub-series, optimized for applications demanding maximum precision.
This model features digital onboard electronics (OBE) supporting 4-20 mA standard industrial control signals, with factory-preset parameters for immediate operation without additional adjustment. The 3-way function enables combined directional and pressure control capability.
Manufactured to strict Parker OEM specifications, this product offers 100% direct interchangeability with original parts—no modifications required for installation. Every unit undergoes 100% application-condition simulation testing—comprehensive verification of pressure, flow, response characteristics, and leakage on dedicated test benches against published specifications. Perfect OEM replacement for Parker original parts, ideal for hydraulic system repairs and preventive maintenance.
II. Technical Specifications
D3FBB32SC0NS00 – D3FB OBE Direct Operated Proportional Directional Control Valve
Model: D3FBB32SC0NS00
Brand: Parker Hannifin
Product Series: D3FB OBE (D1FB OBE / D3FB OBE)
Mounting Size: NG10 / CETOP 05 / NFPA D05
Valve Type: Direct operated proportional directional control valve
Spool/Sleeve Design: D*FB*0 (maximum precision)
Spool Code: B32S
Spool Type: Overlap
Function: 3-way
Signal Input: 4 – 20 mA (OBE)
Flow Rate (@ 5 bar Δp): 60 / 30 L/min
Maximum Operating Pressure: 350 bar
Pressure Differential: 5 bar
Seal Material: NBR
Body Material: Cast iron
Mounting Type: Subplate mounting
Actuation Type: Proportional solenoid
Connector Type: 6+PE (DIN connector)
Operating Temperature Range: -25°C to +60°C
Mounting Position: Unrestricted
Weight: 7.2 kg
III. Key Technical Advantages
1. Spool/Sleeve Design for Maximum Control Precision
The D3FBB32SC0NS00 features D*FB*0 spool/sleeve design with precision-ground clearances between spool and sleeve, delivering extremely high repeatability and minimal leakage (< 100 ml/min). This makes it the ideal choice for applications with stringent precision requirements, such as machine tool feed control and precision pressure control.
2. Digital Onboard Electronics (OBE) for Simplified System Integration
The valve features digital onboard electronics housed in a robust metal enclosure, allowing operation under harsh environmental conditions. Supporting 4-20 mA standard industrial control signals, parameters are factory preset for immediate operation without adjustment. The ProPxD software enables configuration of maximum flow setting, dead-band compensation, and four independent ramps, delivering exceptional application flexibility.
3. Low Hysteresis & High Repeatability
The D3FB OBE Series delivers low hysteresis (< 4 %) and high repeatability, ensuring consistent execution of control commands and significantly improving process accuracy and product quality. This performance makes the valve suitable not only for open-loop control but also for basic closed-loop configurations.
4. 3-Way Function for Combined Directional & Pressure Control
The 3-way function enables simultaneous flow direction control and pressure control capability. This versatility allows adaptation to a broader range of applications while reducing the number of valves required in the system, simplifying hydraulic system architecture.
5. Manual Override for Enhanced Safety & Serviceability
Equipped with a manual override mechanism that allows spool actuation without electrical current, this feature is invaluable during electrical system failures, commissioning, or emergency shutdowns—ensuring basic functionality can be maintained in critical situations and significantly enhancing system safety and maintainability.
6. Proven Robust Design & Wide Operating Range
Built on Parker’s decades of experience in proportional valve technology, the D3FB Series features a cast iron body with excellent impact resistance and pressure strength. Supporting a -25°C to +60°C wide operating temperature range with unrestricted mounting position, it ensures long-term reliable operation across diverse industrial environments.
IV. Application Areas
This Parker D3FB Series direct operated proportional directional control valve is specifically designed for the following industrial sectors and equipment types:
Machine Tools: CNC machines, machining centers, grinding machines—precise speed and direction control of hydraulic axes
Rubber & Tire Processing: Tire presses, rubber calenders—precise proportional flow and pressure control
Industrial Hydraulics: Presses, injection molding machines, die-casting equipment—open-loop and basic closed-loop hydraulic control
Test Equipment: Hydraulic test benches—precise flow and pressure regulation
Metallurgical Equipment: Rolling mills, continuous casting machines—precise hydraulic system control
General Industry: Various hydraulic applications requiring proportional flow and directional control
Typical circuit applications include: proportional directional control, proportional flow control, precise actuator speed and direction control, flow regulation in open-loop and basic closed-loop hydraulic systems.
V. Expert Maintenance Tips
1. Verify Model Code Interpretation (★★★★★)
D3FBB32SC0NS00 model code field meanings:
D3FB = D3FB Series (NG10 / CETOP 05)
B = Spool/sleeve design
32 = Spool code (B32S)
S = Signal type (4-20 mA)
C = Seal material (NBR)
0 = Design code
NS00 = Specific configuration code
Confirm the model code exactly matches your system requirements before installation.
2. Oil Cleanliness Management (★★★★★)
The D3FB Series features precision spool/sleeve design with extremely tight clearances, making it highly sensitive to oil contamination. Maintain system oil cleanliness at ISO 4406 18/16/13 or better (per Parker recommendations for comparable proportional valves). Use 10μm or higher-precision return filters and inspect filter elements regularly.
3. Electrical Connection & Signal Configuration
The valve features a 6+PE DIN connector
Control signal is 4-20 mA current signal
Control signals are sensitive to electromagnetic interference—use shielded twisted-pair cables for control wiring with shield grounded at one end
For parameter adjustment, use ProPxD software via RS-232 interface
4. Installation Torque Specifications
When mounting the valve to the subplate, tighten mounting bolts to Parker recommended torque (NG10 / CETOP 05 valve mounting bolts are typically M6, recommended torque 10-12 Nm). Excessive torque may deform the valve body and affect internal spool movement; insufficient torque may cause seal failure and external leakage.
5. Subplate & Port Matching
The valve features an NG10 / CETOP 05 mounting interface. The subplate must conform to ISO 4401-05. Verify port configuration (P, A, B, T) matches system plumbing connections before installation.
6. Initial Power-Up & Commissioning
The valve is factory preset for immediate operation without adjustment. Before initial power-up:
Verify supply voltage and polarity are correct
Confirm 4-20 mA signal source output is normal
Perform preliminary function tests under no-load pressure conditions to confirm proper spool actuation
7. Storage Environment
Recommended storage temperature: -25°C to +60°C. Avoid impact loads on the valve body during installation. Handle with care to prevent drop damage to valve components.
