Parker Fox PSP PST Pressure Switch | PSP4 PST4 PST6 Heavy Duty Pressure Switch Replacement

Genlu Hydraulic proudly introduces our highly reliable, industrial-grade PSP and PST Series (comprehensively covering PSP4, PST4, PSP6, PST6, and PST8 regulatory platforms) compact adjustable hydraulic pressure switches. This series is fully engineered as a seamless, high-value, drop-in replacement for classic Parker / Fox high-pressure micro-switch control benchmarks, adapting flawlessly to replace original electronic nodes like PST4/21N-K1/K, PSP4/21N-K1/K, and PST8/21N-K1/K working across massive factory hydraulic power units, accumulator safety-release grids, and mobile agricultural circuits. Depending on target application pressures, these devices implement either high-elasticity sensor diaphragms (PSP series for responsive low-to-medium sensing) or micro-ground steel pistons (PST series for high-pressure shock resilience), encapsulating a Single-Pole Double-Throw (SPDT) precious metal contact micro-switch. Genlu guarantees 100% Drop-in Interchangeability across standard industrial fluid threads (such as $G1/4″$ or $M14$ specified via code 21N), DIN 43650 Hirschmann wire connectors, contact current carrying limitations, and adjustable spring damping parameters compared to OEM Parker / Fox components. Every single pressure switch undergoes explicit 100% automated pressure cycling calibration testing to certify exact setting limits and tight hysteresis performance under aggressive dynamic hydraulic line pulsations.

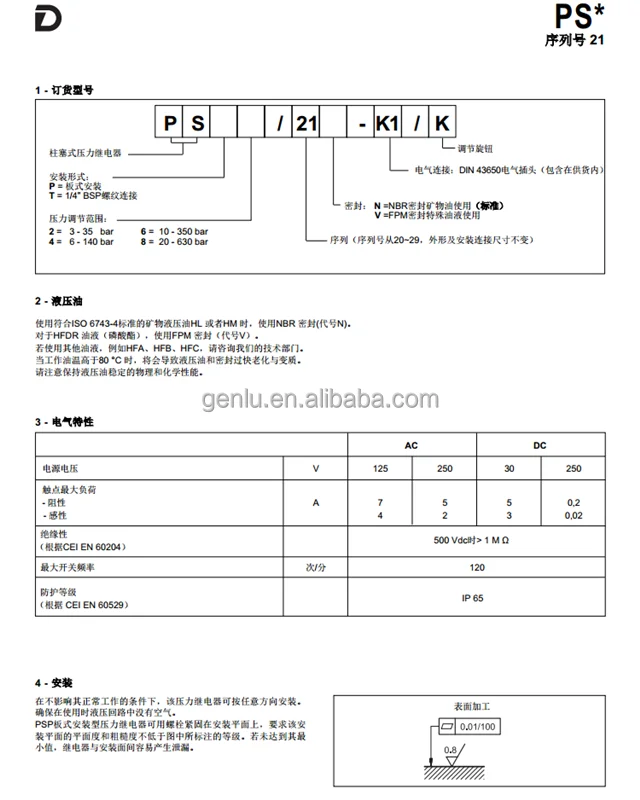

Technical Specifications

• Product Series: Parker Fox PSP / PST Series Adjustable Fluid Pressure Switches

• Key Model Target Identifiers: PST4/21N-K1/K, PSP4/21N-K1/K, PST8/21N-K1/K (Spanning full PSP6 & PST6 matrices)

• Sensor Core Architecture:

  • PST Platform: Precision Spring-Loaded Piston (engineered for severe high-pressure spiking environments)

  • PSP Platform: High-Elasticity Diaphragm (fitted with premium nitrile or stainless sensing membranes for low-pressure precision)

• Process Thread Coupling: Code 21N (Standardized $G1/4″$ male/female fluid connection profile; high-integrity seating)

• Operational Setting Scales: Ranging from 1 MPa up to 40 MPa (400 bar) boundaries (e.g., Code 4 maps 10-100 bar; Code 8 maps 50-400 bar)

• Maximum Permissible Proof Pressure: Up to 60 MPa (600 bar) absolute transient overpressure restriction

• Electrical Interfacing Socket: Code K1/K (Equipped with standard DIN 43650 Pg09/Pg11 Hirschmann connectors including LED status display illumination)

• Contact Configuration & Load Capacity: SPDT (Single-Pole Double-Throw) configuration rated for industrial boundaries up to AC 250V / 3A or DC 24V / 2A

• Mechanical Fatigue Lifecyle Threshold: $\ge 1,000,000$ switching switching cycles under rated load parameters

Key Technical Advantages:

• Linear Calibration Springs with Infinitesimal Hysteresis adjustment: The internal core of the PSP4/PST4 housing integrates a premium heat-treated calibration spring. Plant mechanics can smoothly alter the target electrical response limit (normally open or closed configurations) via a top adjustment bolt. The design provides low setting deviation and holds functional hysteresis tightly within 10% of operating baselines, blocking signal tripping.

• Hard-Anodized Sensing Pistons with Viton High-Temperature Packing: The internal piston on the PST series is hard-chrome treated, micro-ground, and packed with high-grade Fluorocarbon (Viton) radial seals. This delivers ultra-low sliding resistance, guaranteeing zero fluid migration and consistent trip thresholds even when managing rapid 35 MPa pressure spikes or experiencing aggressive hydraulic fluid temperatures.

• Gold-Silver Alloy Anti-Arcing Micro-Contact Points: The primary internal micro-switch incorporates unique precious metal overlay cladding on its switching nodes. This composition eliminates arc-corrosion and sustains exceptionally low electrical resistance, ensuring clear PLC input registration over long operational lifecycles under milli-ampere signaling logic.

• Monoblock Ruggedized Weather-Proof Hexagonal Chassis: The outer structural shell is machined from a solid hexagonal bar of stainless steel or aircraft-grade high-tensile aluminum alloy, delivering an IP65 ingress rating. It seals out rain, fine aggregate dust, and severe vehicle vibration, easily adapting to outdoor operations on construction machinery fields.

Application Areas:

• Industrial Hydraulic Manifolds & System Diagnostics: Automated upper pressure limits cut-off, charge pump start/stop tracking, fluid filter clogging indicators, and safety interlocking for high-capacity clamping jigs.

• Accumulator Management & Primary Pump Circuitry: Critical low-pressure decay sensing for accumulator emergency backup grids, and dynamic boost charge pressure tracking for heavy closed HST tracking loops.

• Mobile Fleet Machines & Special Utility Fleets: Pilot system logic safety switches for hydraulic excavators, outrigger overpressure warning indicators for crane trucks, and lift cylinder feedback monitors for heavy-yield agricultural harvesters.

Expert Maintenance Tips:

• Never Over-Torque the Top Adjustment Screw past Mechanical Resistance: When calibrating the target pressure setting (such as on the PST4/21N-K1/K), reaching the spring’s maximum compression threshold causes a sudden increase in wrench resistance. Forcing the hex wrench beyond this point will buckle the internal micro-switch carrier or snap the central plunger rod. Stop adjusting immediately once the screw bottoms out.

• Verify Hirschmann Connector Gaskets and Cable Gland Compression: The K1/K Hirschmann electrical connector requires its flat rubber seal to rest flush against the metal body during assembly. Always confirm this gasket is correctly seated and tighten the rear plastic Pg09/Pg11 cable nut securely during field re-wiring. This blocks moisture migration into the wiring chamber during equipment spray downs or humid plant conditions.

• Deploy Inline Snubbers / Orifices in High-Pulsation Nodes: Installing the pressure switch directly onto high-frequency pulsation lines (such as right at a piston pump output) can cause the internal contacts to chatter rapidly, shortening their electrical service life. Always mount a fine fluid snubber or a small restriction plug ($\phi 0.5-\phi 0.8 \text{ mm}$ orifice) into the 21N process thread to smooth out harsh pressure peaks before they strike the internal sensor.
