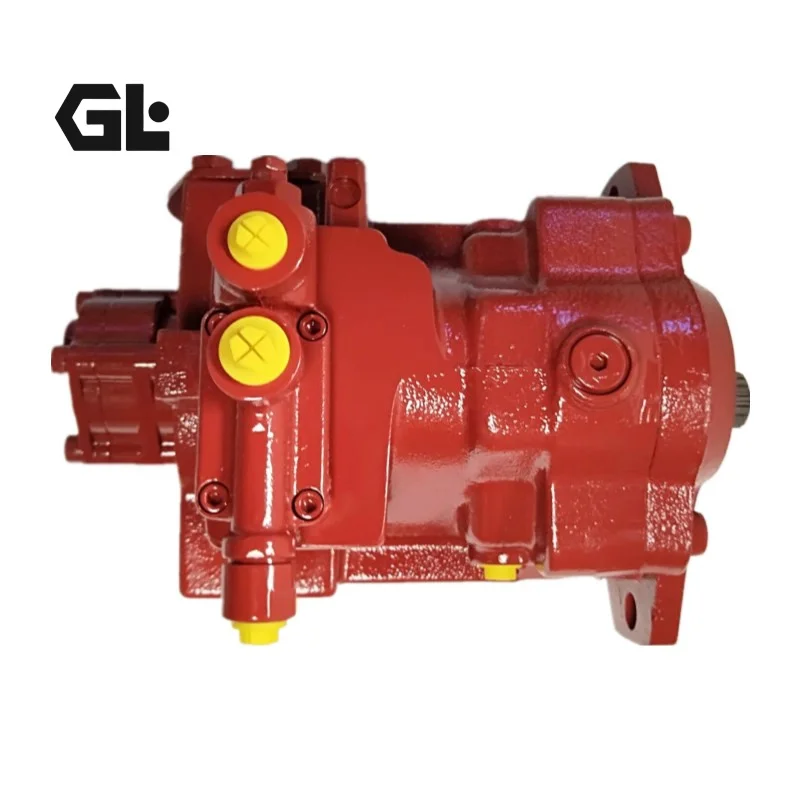

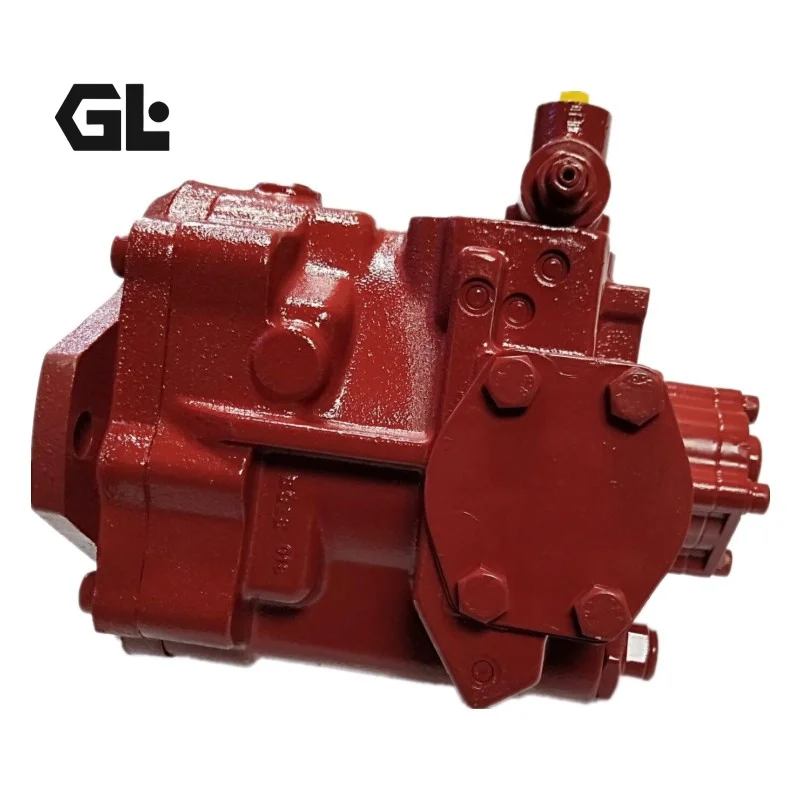

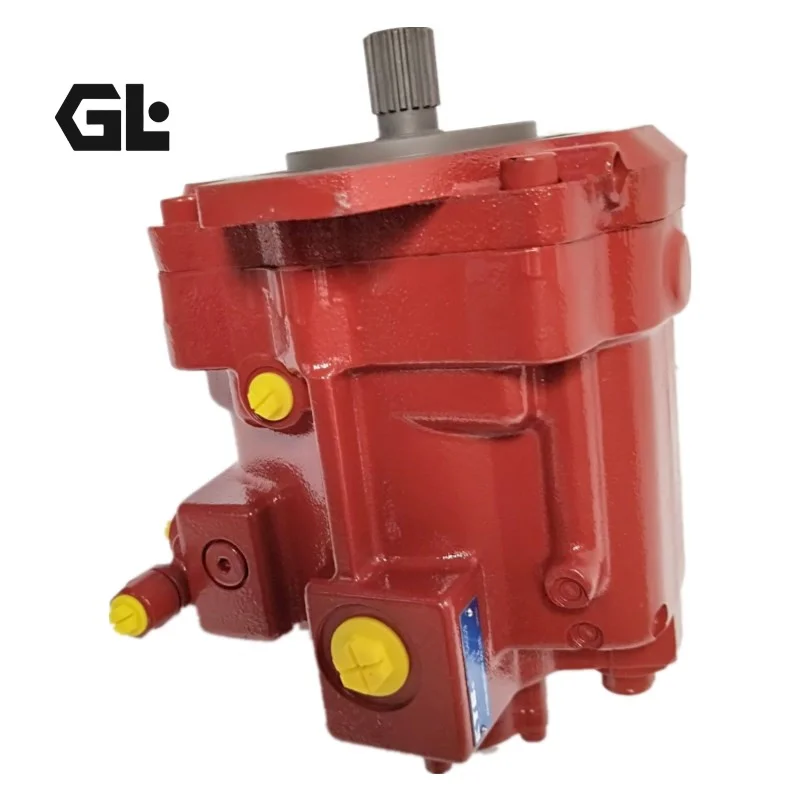

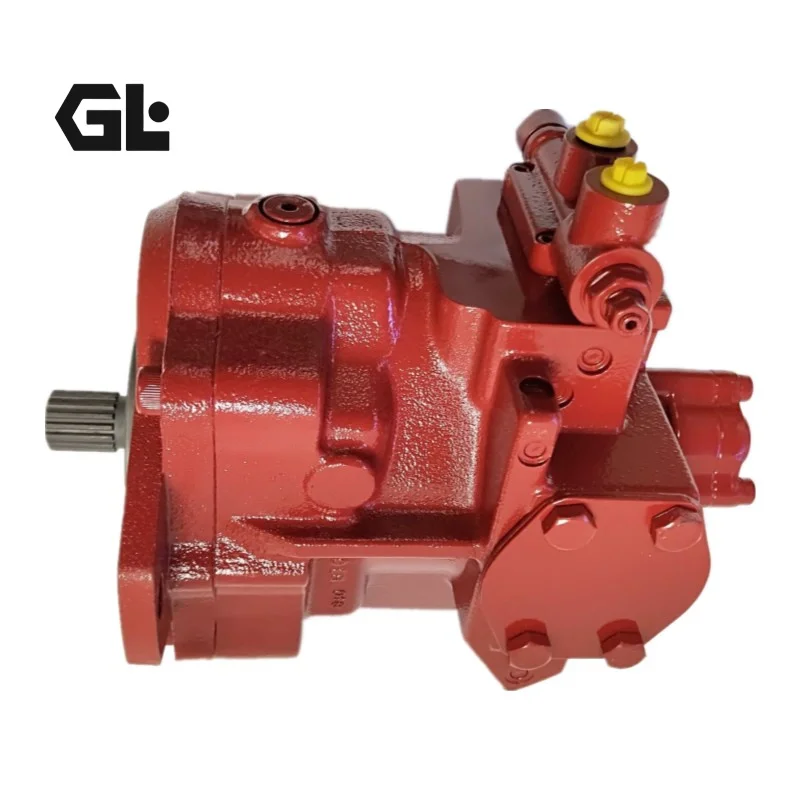

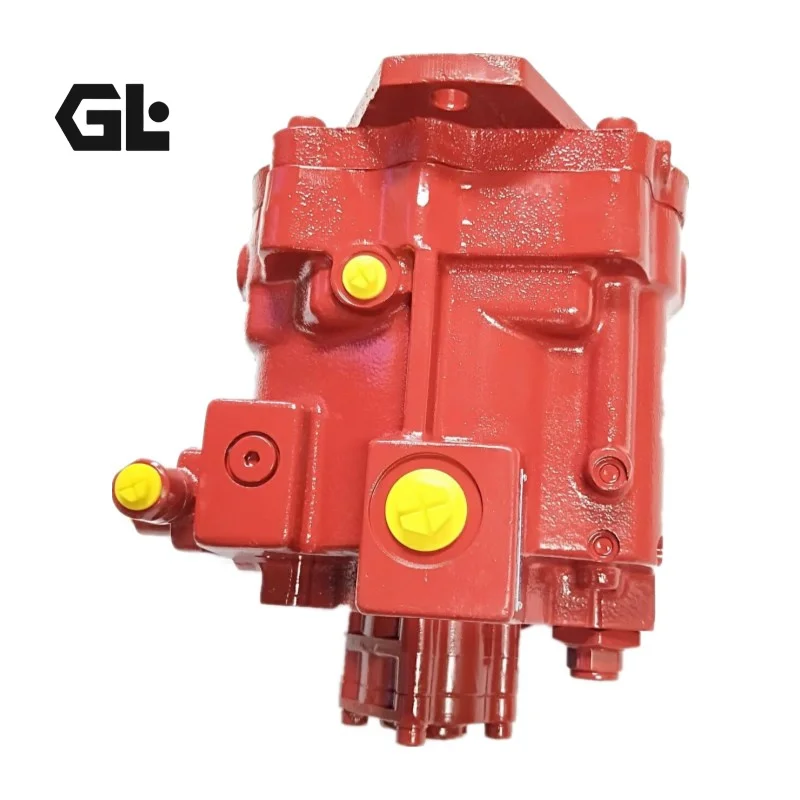

KYB PSVL Series Hydraulic Main Pump | PSVL-42CG PSVL-54CG Excavator Pump Replacement

Genlu Hydraulic proudly introduces our PSVL Series (encompassing 36CG, 42CG, 54CG, and more) high-performance variable displacement axial piston pumps. This series is engineered to be a seamless, high-value replacement for the classic KYB (Kayaba) excavator main pump standards. Specifically optimized for compact excavators and heavy-duty construction machinery, the PSVL series is renowned for its ultra-high power density, precise flow control, and unwavering reliability. Genlu guarantees 100% Drop-in Interchangeability in mounting flanges, spline shaft specifications, port geometries, and control characteristics compared to the original KYB units. Each PSVL series pump undergoes rigorous 100% simulation testing to ensure optimal performance under rated loads, providing the precision and power required for demanding field operations.

Technical Specifications

• Product Series: KYB PSVL / PSVL2 Series Axial Piston Pump

• Target Configuration Models: PSVL-42CG, PSVL-54CG, PSVL2-36CG, PSVL2-27CG

• Displacement Range: 27cc/rev to 54cc/rev (depending on model)

• Rated Operating Pressure: 35 MPa (350 bar)

• Peak Pressure: 38 MPa (380 bar)

• Control Mode: Variable displacement (swash plate)

• Drive Shaft Specification: High-strength standard splined shaft

• Compatible Equipment: Mini and midi hydraulic excavators (e.g., Kubota KX series, Cat 303 series)

Key Technical Advantages:

• Precision Swash Plate Mechanism: Utilizing high-precision ground swash plates and variable displacement pistons ensures rapid, seamless flow adjustment, meeting the fast-cycle demands of excavator control systems.

• Hardened Alloy Piston & Valve Plate: Pistons and cylinder bores are machined from nitride-hardened alloy steel, providing exceptional resistance to cavitation and abrasive wear for long-term endurance under high pressure.

• Optimized Flow Channel Design: Internal flow paths are aerodynamically optimized to minimize pressure drop and vortex formation, enhancing overall system efficiency and reducing operational thermal load.

• Reinforced Casing & Sealing: The pump housing is cast for maximum structural rigidity to withstand high-pressure shock loading, complemented by premium Viton seals for long-lasting environmental protection in harsh job sites.

Application Areas:

• Mini & Compact Excavators: Seamlessly fits Kubota KX series, Caterpillar small excavator models, and similar compact construction machinery.

• Municipal Construction: Power source for skid steer loaders and small hydraulic lifting/grabbing attachments.

• Specialized Mobile Power Units: High-density power output for compact hydraulic systems requiring precise flow regulation.

Expert Maintenance Tips:

• Initial Priming & Air Bleeding: Before initial commissioning, fill the pump housing completely with clean hydraulic fluid through the top drain port. Run a low-pressure no-load cycle to ensure all air is purged, preventing dry-run damage.

• Strict Oil Cleanliness: The PSVL series relies on micron-level internal tolerances. Use filtration systems at ≤10µm and regularly perform oil analysis (ISO 4406) to safeguard the piston/valve plate interface.

• Case Pressure Monitoring: Ensure the case drain line is routed directly to the reservoir with zero obstruction. High backpressure is the primary cause of shaft seal failure and can induce premature wear on internal rotating components.
