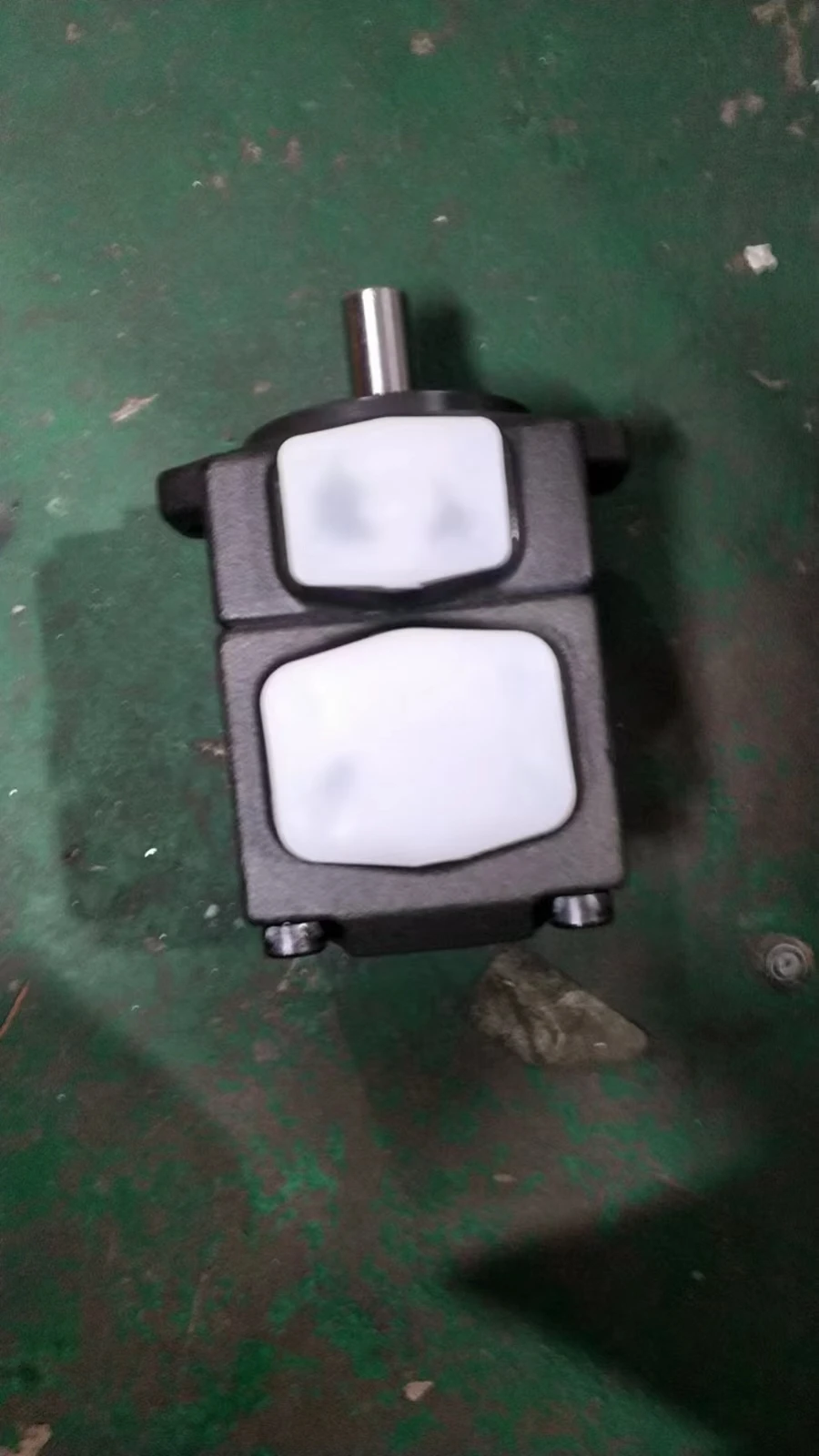

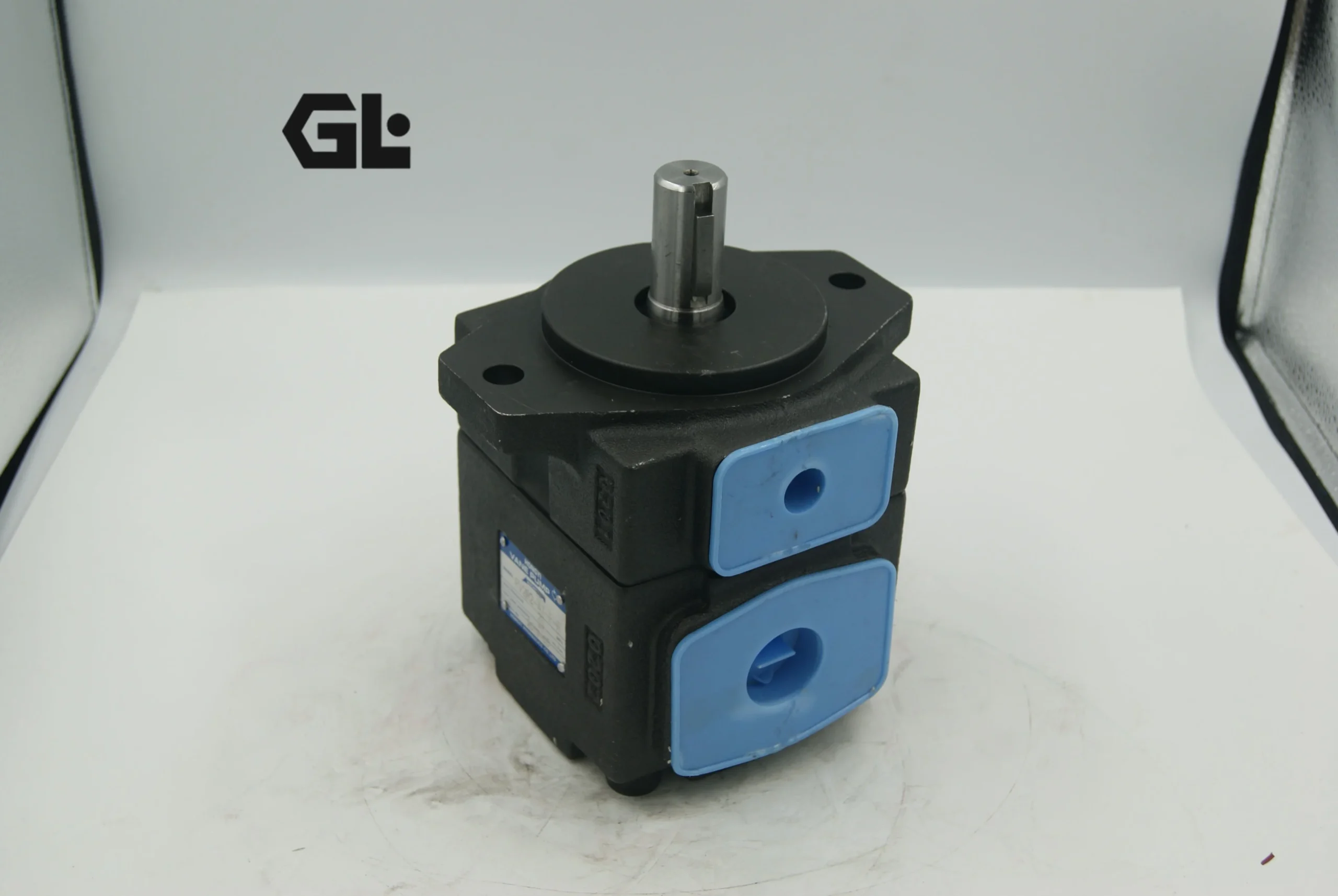

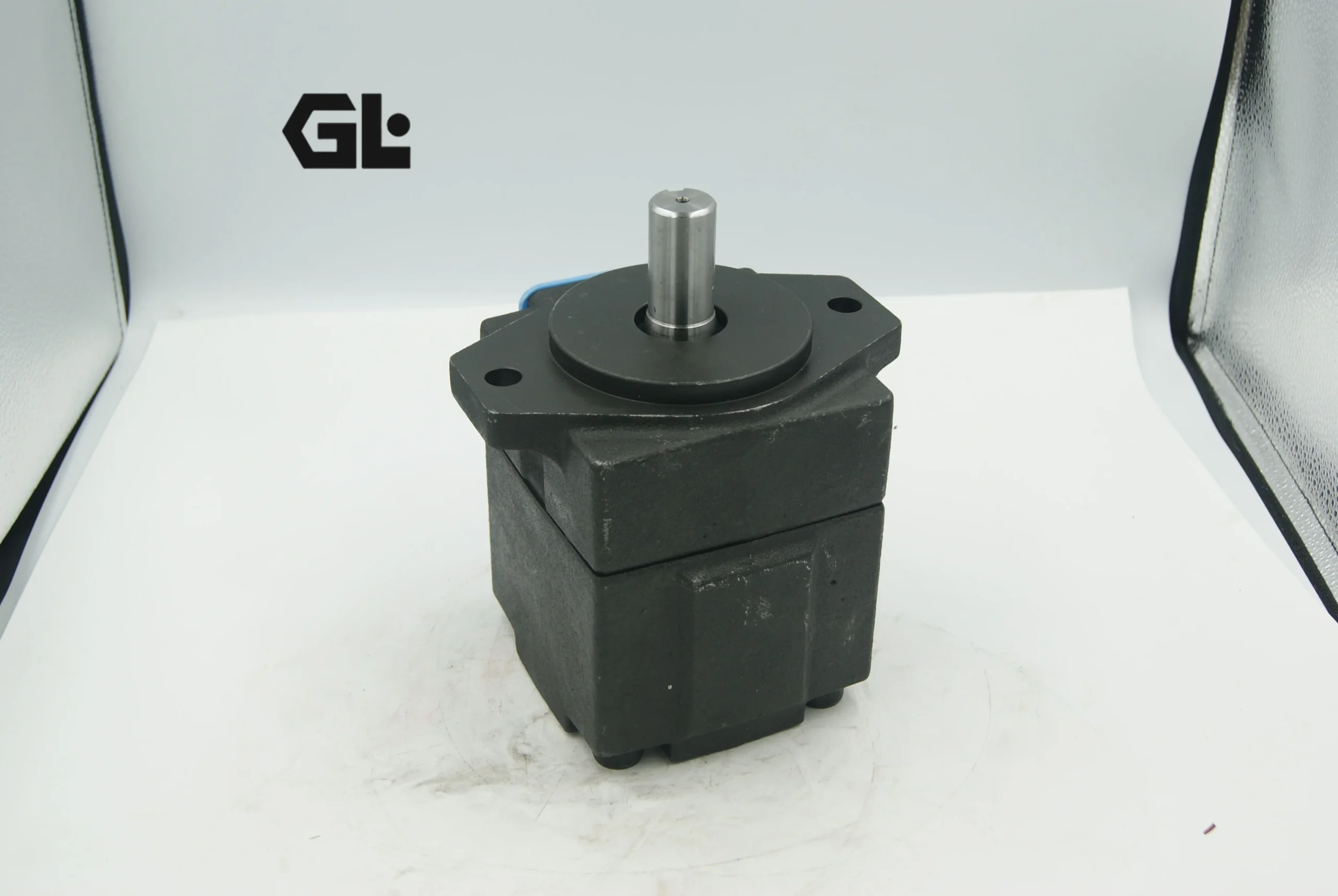

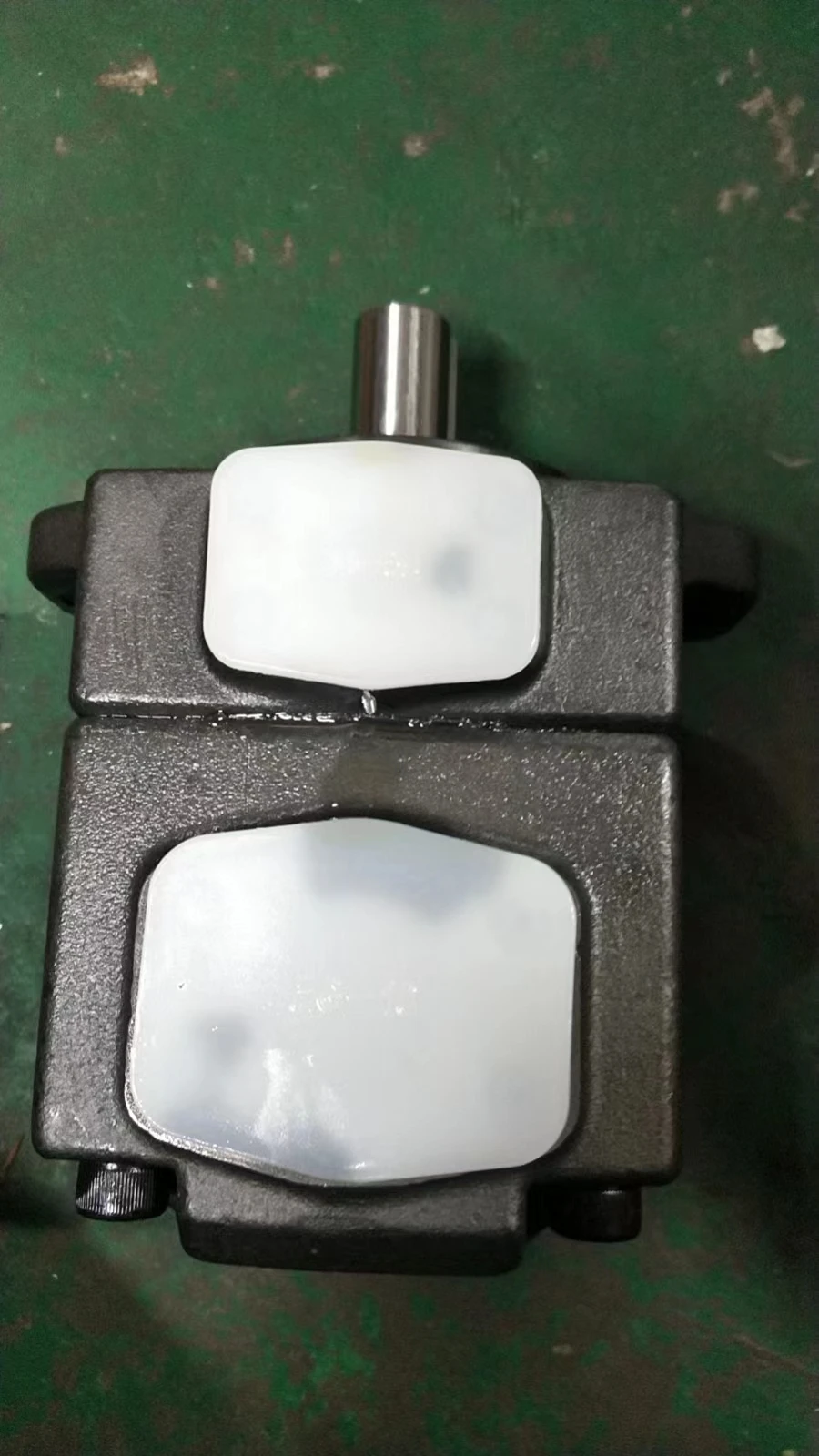

Yuken PV2R1 Vane Pump Replacement PV2R1-25-F-RAA-43

Genlu Hydraulic excels as an elite-tier global developer and precision manufacturer of industrial-grade high-pressure hydraulic pumps, motors, and precision fluid-control manifolds for international B2B industrial supply chains. The PV2R1 Series High-Pressure Fixed Displacement Vane Pump—engineered as a premium 100% drop-in interchangeable alternative to Japan’s definitive industrial standard, specifically targeting Yuken model codes such as PV2R1-25-F-RAA-43, PV2R1-19-F-RLA-41, and PV2R1-19-L-LAA-41 (and expanding into composite multi-stage PV2R2, PV2R3, and PV2R4 double pump platforms)—represents an advanced fluid-power solution for modern manufacturing networks. This series is custom-tailored for machine tools, injection molding machinery, die-casting equipment, hydraulic shears, and automated production environments, standing as a primary energy source recognized for its Ultra-Low Noise signature and sustained volumetric tracking.

During non-stop factory production cycles, main system hydraulic pumps undergo continuous operation up to 21.0 MPa paired with sharp, rapid pressure loading variations. Substandard aftermarket alternative vane pumps lacking exact metallurgical hardness profiles along the stator inner track or suffering from poorly balanced vane tip pressure matrices experience severe scuffing or accelerated vane tip disintegration. This quickly leads to erratic system pressure delivery, elevated cross-slippage, and catastrophic acoustic spikes. Genlu’s premium PV2R1 replacement pumps are reverse-engineered to flawlessly duplicate the exact fluid hydrodynamic stator curves, internal hydrostatic force balancing configurations, and low-friction wear-resistant alloy parameters mandated by official Yuken engineering manuals. Whether evaluating standard SAE mounting flange dimensions, straight-keyed drive shaft configurations, or 4-bolt flange port bolt patterns, our pumps ensure 100% mechanical and functional drop-in interchangeability. Prior to delivery, each assembly passes through 100% Full-Simulation Condition Testing on automated diagnostic systems to verify full-load volumetric integrity, mechanical efficiency, and decibel limits, ensuring absolute drop-in reliability immediately upon deployment.

Technical Specifications

• Product Pump Classification: PV2R1 Series High-Pressure Fixed Displacement Low-Noise Hydraulic Vane Pump

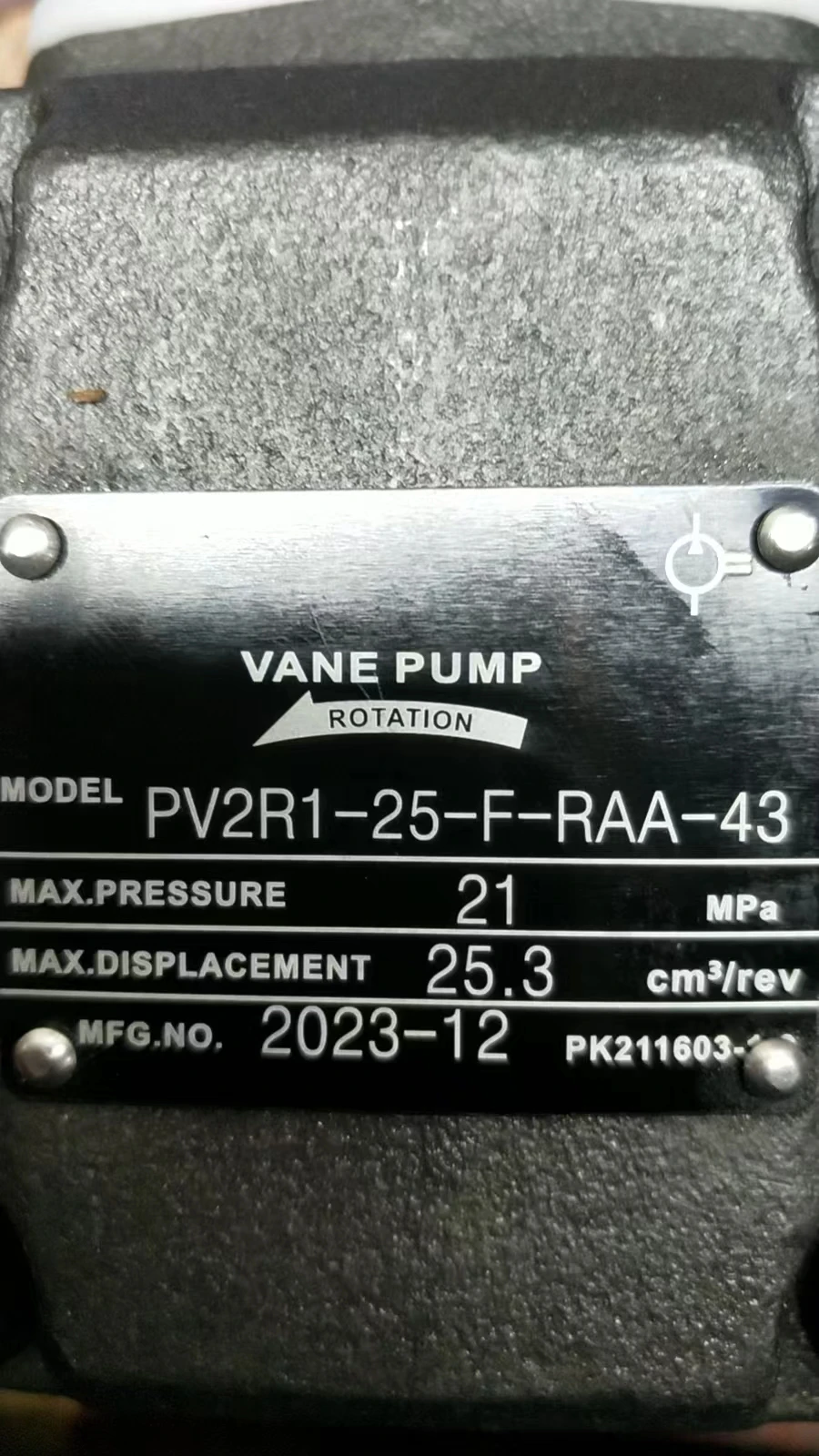

• Core Cross-Reference Model Designations: PV2R1-25-F-RAA-43 / PV2R1-19-F-RLA-41 / PV2R1-19-L-LAA-41

• Series Configuration Coverage Horizon: Direct crossover for PV2R1, PV2R2, PV2R3, and PV2R4 single and double pump assemblies

• Nominal Geometric Displacement: 19.3 $cc/rev$ (for Size 19) / 25.3 $cc/rev$ (for Size 25)

• Maximum Continuous Operating Pressure: 21.0 MPa (210 bar / 3045 PSI)

• Maximum Permissible Peak Pressure Boundary: Sustained 21.0 MPa rating under standard operating criteria

• Permissible Operational Speed Range: 750 RPM — 1800 RPM (under standard self-priming flooded suction)

• Drive Shaft Mechanical Rotation Orientation: R — Right-Hand (Clockwise, CW from shaft end view) / L — Left-Hand (Counter-Clockwise, CCW)

• Discharge Port Orientation Profile: A — Standard upward positioning (aligned vertically above the suction port when viewed from the cover end)

• Engineering Generation Design Suffix: 41 / 43 Series design platforms (fully backward compatible and performance upgraded)

• Main Fluid Porting Geometries: Standard 4-bolt split flange configuration (SAE standard patterns)

• Total Pump Assembly Net Dry Weight: Approximately 9.0 kg (Compact, high-rigidity nodular cast iron construction)

Key Technical Advantages:

• Precision Stator Dual-Vane Hydrostatic Force Balancing: Features an optimized 12-vane layout combined with a mathematical cam profile. This configuration balances vane tip contact forces as they glide over the cam profile transitions, eliminating extreme friction wear. Consequently, radial bearing loads remain low even at a continuous 21.0 MPa, extending overall service life by more than 50%.

• CFD-Optimized Cavity and Noise-Damping Discharge Mechanics: The structural casing features spacious intake cavities and smooth discharge channels. By lowering fluid velocity spikes at the port plate relief grooves, pressure ripples are minimized. This reduces operational noise to an ultra-quiet 62–65 dB(A) at full 21.0 MPa load, making it suitable for quiet plant floor requirements.

• Flexible Side Plate Micro-Clearance Hydrostatic Compensation: Incorporates floating side wear plates backed by an internal high-pressure pressure-loading chamber. This mechanism dynamically seals inner clearances at a micrometer scale. Even if continuous runs push oil temperatures to 60°C and lower fluid viscosity, volumetric efficiency remains above 93%, eliminating the hot-stalling typical of standard alternative hardware.

• Vacuum-Carburized Tool Steel Stator with Micro-Lapped Finish: The cam ring is machined from high-alloy tool steel, hardened via deep vacuum carburization and finished through precision micro-lapping to achieve a surface hardness over HRC60. This creates a highly wear-resistant boundary layer that resists micro-spalling under high shear stress, increasing the pump’s tolerance to particulate fluid contamination.

Application Areas:

• High-Precision Metal Cutting Machine Tools and CNC Centers: Providing stable oil flow for workpiece clamping cylinders, tool-turret indexing, and spindle actuation.

• Plastic Injection Molding Machines and Rubber Vulcanization Presses: Supplying reliable, high-volume flow for rapid mold clamping and high-pressure material injection phases.

• Die-Casting Equipment, Hydraulic Industrial Baling Presses, and Scrap Shears: Engineered to endure continuous, rapid pressure-loading and decompression cycles without thermal breakdown.

Expert Maintenance Tips:

• Strict Adherence to the Minimum 750 RPM Self-Priming Speed Boundary: As a vane-type architecture, the initial extension and wall-sealing action of the blades rely entirely on centrifugal force. The prime mover shaft velocity must never drop below 750 RPM during startup or running cycles. Operating below this threshold prevents the vanes from properly extending, causing severe cross-slippage and destruction of the cam ring profile within seconds.

• Mandatory Pre-Lubrication and Bleed Procedures for Initial Commissioning: Vane pumps must never be subjected to dry running conditions. Prior to starting a newly installed pump, pre-fill the casing with clean hydraulic oil through the outlet port. During initial startup, back off the discharge flange slightly or open the system bypass valve, then jog the motor to vent trapped air from the intake line before locking down the connections and increasing pressure.

• Absolute Protection Against Suction Line Aeration and Cavitation: Vane pumps are highly sensitive to air ingestion. Verify that all suction joints and flange O-rings are sealed airtight, and clean or replace the inlet suction strainer regularly (100-mesh suction screen recommended). Air leaks or restricted intake lines will trigger cavitation—characterized by a loud rattling sound and severe vibration—leading to rapid component pitting and mechanical failure.
