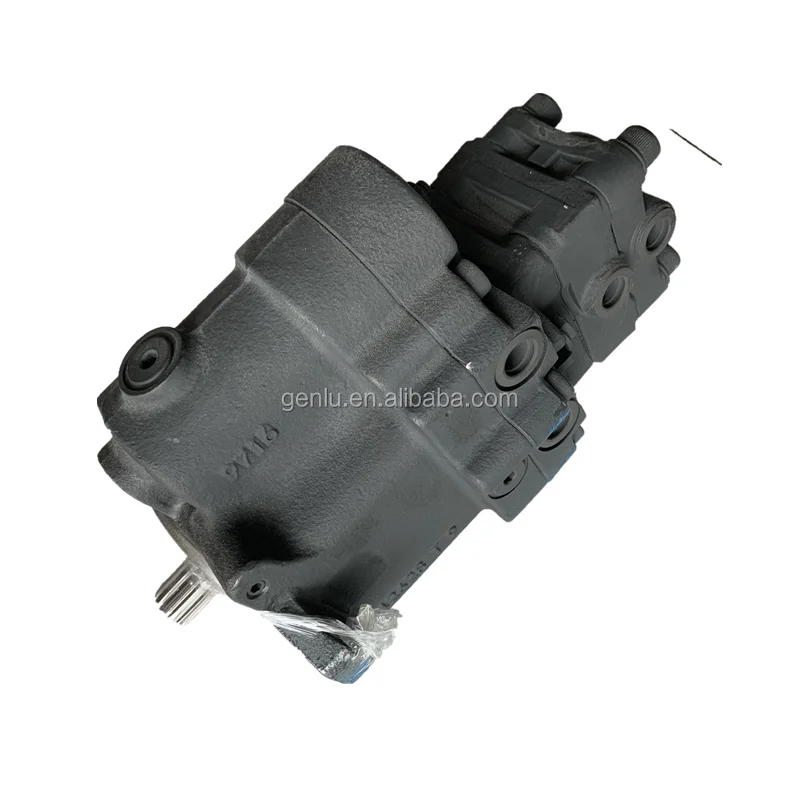

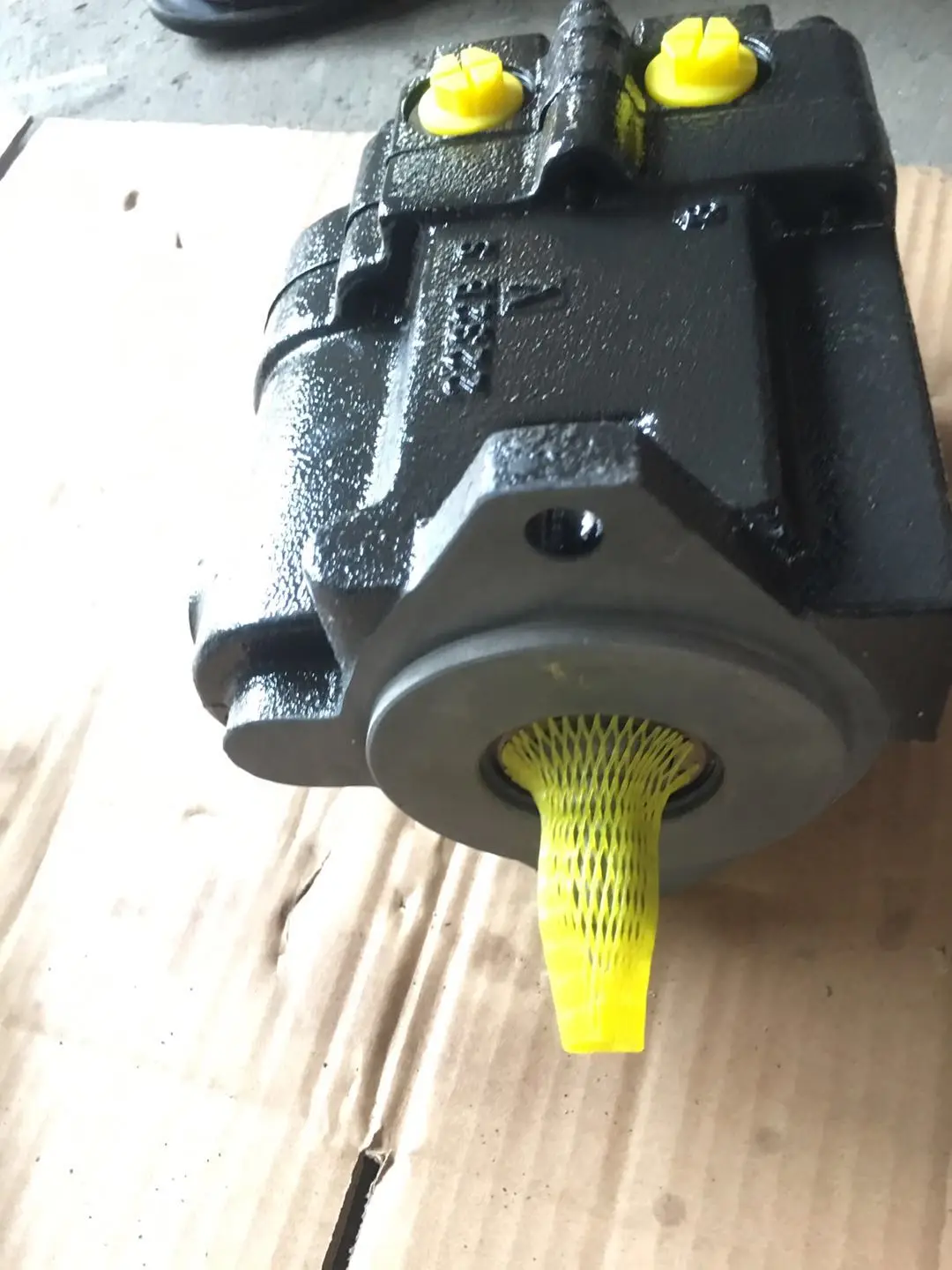

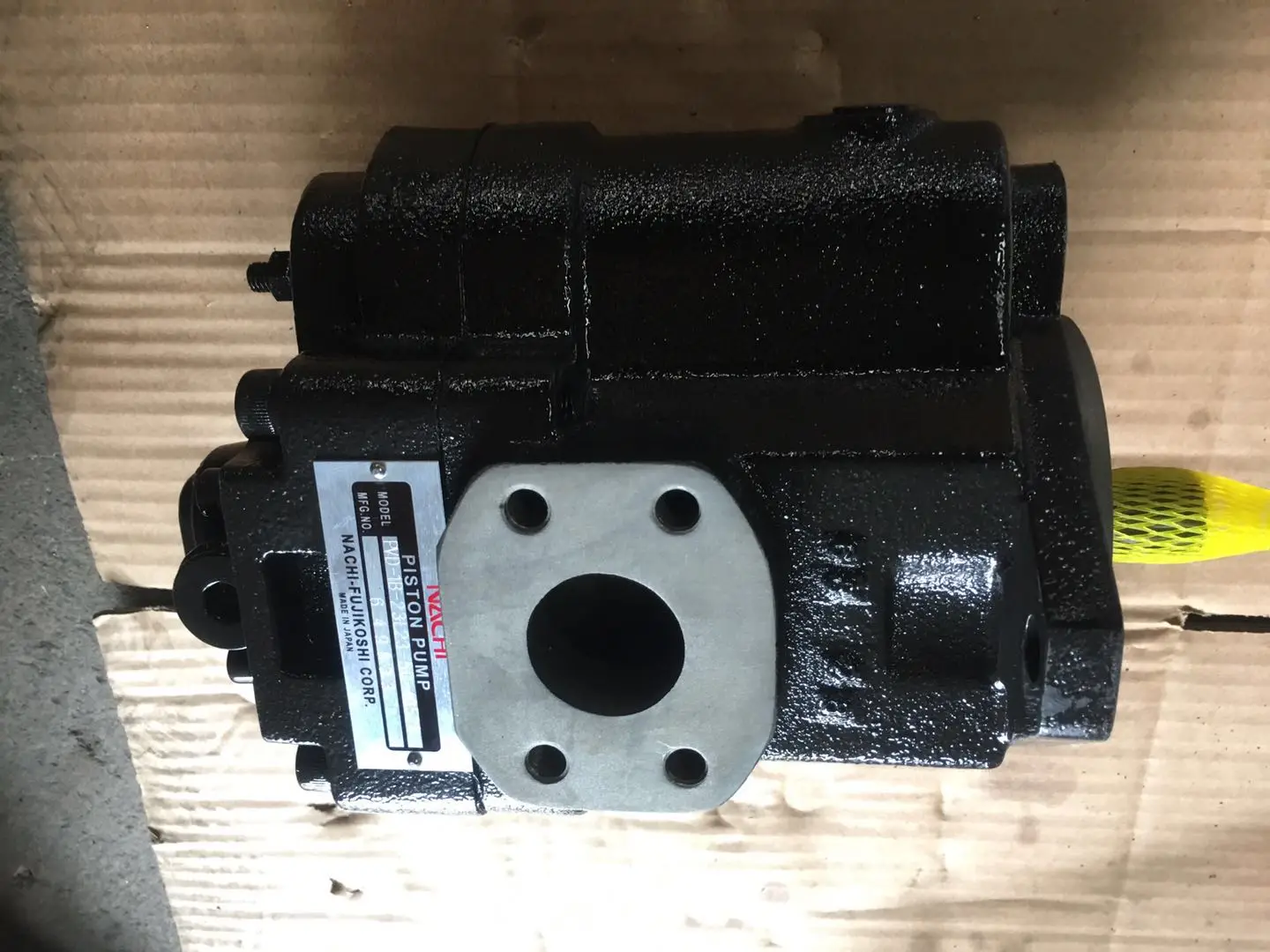

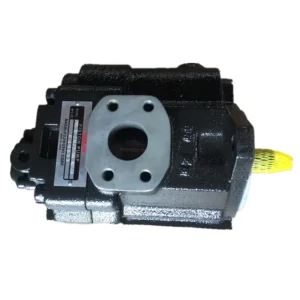

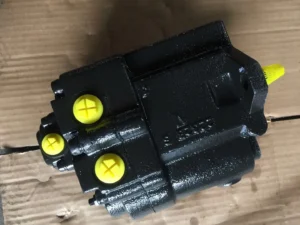

Nachi PVD Series Hydraulic Piston Pump | PVD-1B PVD-3B Excavator Pump Replacement

Genlu Hydraulic proudly introduces our PVD Series variable displacement piston pumps, specifically engineered for the demanding world of excavators. This series is built to excel in harsh field environments, characterized by high volumetric efficiency, immense pressure tolerance, and rapid dynamic response. The PVD series serves as a precise match for Nachi technical specifications, comprehensively covering the PVD-00B through PVD-15B range, and ensuring perfect compatibility for specific configurations like the PVD-1B-23L3-7G-2232B. Genlu unequivocally guarantees 100% Drop-in Interchangeability in mounting flanges, splined drive shafts, load-sensing control logic, and port configurations. Backed by our uncompromising 100% Simulation Load Testing, each unit is validated for efficiency under high-pressure shock, swashplate response stability, and dynamic seal durability before dispatch, ensuring relentless, powerful, and long-lasting hydraulic power for your excavation tasks.

Technical Specifications

• Product Series: Nachi PVD Series Excavator Piston Pump

• Available Models: PVD-00B, PVD-0B, PVD-1B, PVD-2B, PVD-3B, PVD-15B

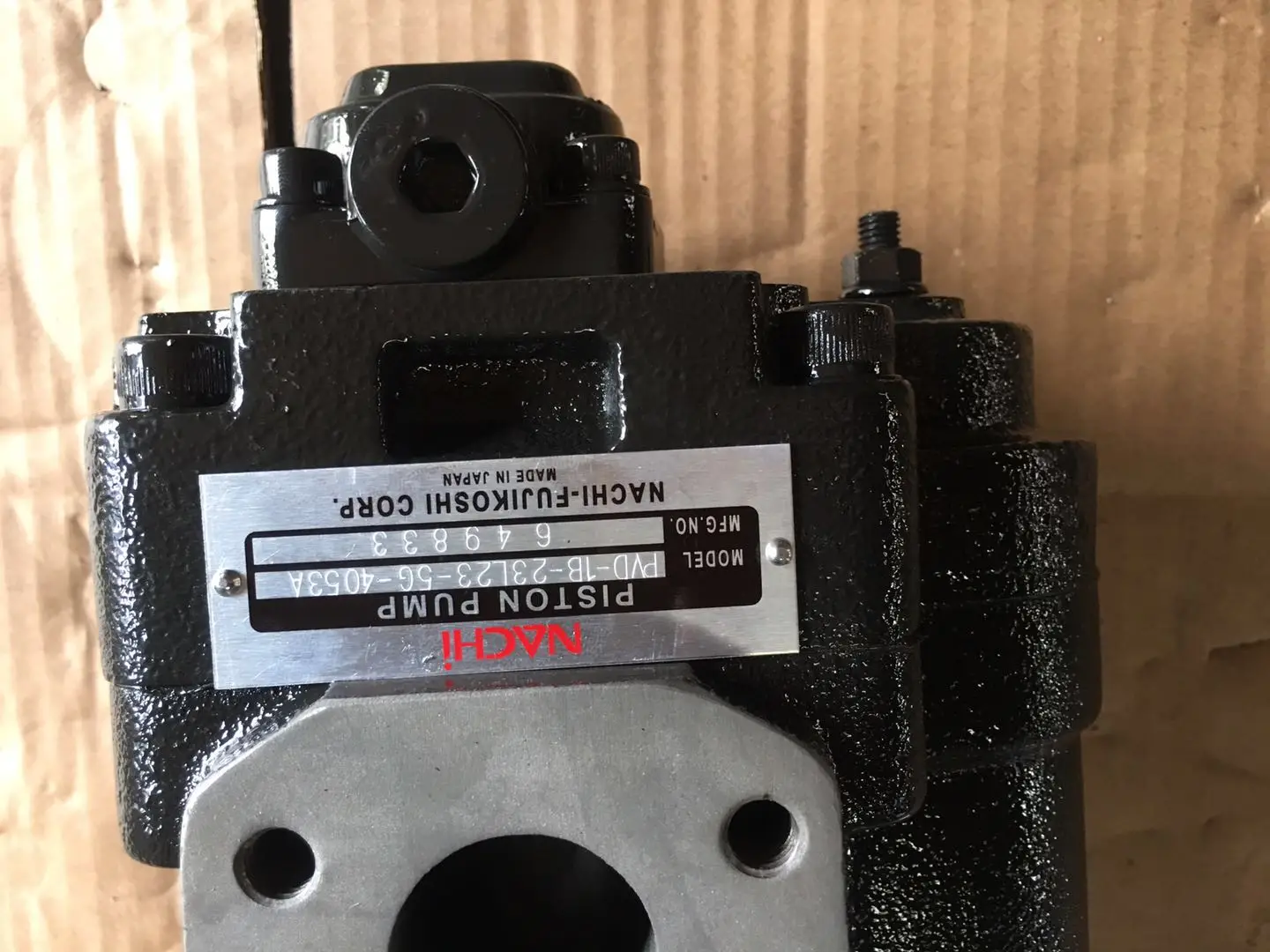

• Representative Model: PVD-1B-23L3-7G-2232B

• Rated Operating Pressure: 280 – 350 bar (Model-dependent)

• Max Peak Pressure: 400 bar

• Control Mode: Load Sensing (LS) or Pressure Cut-off

• Applications: Compact excavators, mini crawler cranes, travel drive systems

• Seal Material: High-grade high-pressure Viton

Key Technical Advantages:

• High-Dynamic Response: Built for the rapid cycle times of excavation work. Integrated high-response swashplate control valves enable millisecond-level flow adjustment, ensuring fluid and continuous movement of buckets and booms without “lag.”

• Superior Anti-Cavitation: Internal flow channels are optimized via CFD (Computational Fluid Dynamics) to minimize suction resistance. This effectively suppresses cavitation during cold starts or rapid swing maneuvers, protecting the valve plate from erosion.

• Reinforced Drive Shaft: Forged from specialty alloy steel, the drive shaft is engineered to withstand the severe impulse loads typical of excavator travel. With arc-transitions and surface hardening in stress-concentrated areas, it achieves maximum torsional fatigue resistance and safety.

• 100% Drop-in Interchangeability: Precisely replicating the geometric dimensions and port logic of the Nachi PVD series, our pumps allow for true “plug-and-play” replacement without requiring any modifications to hydraulic lines or couplings, drastically reducing downtime.

Application Areas:

• Mini Excavators: Primary hydraulic power for travel, swing, and work equipment.

• Specialty Crawler Vehicles: Power supply for forestry and landscaping equipment.

• Compact Engineering Machinery: Core pump unit for load-sensing hydraulic control systems.

Expert Maintenance Tips:

• Fluid & Filtration Standards: Excavator environments are brutal; strictly follow the 1000-hour hydraulic oil change interval. Use 10μm filtration to maintain ISO 4406 18/16/13 cleanliness, preventing metallic dust from scratching the pistons or valve plates.

• No-Dry-Start Rule: After installing a new pump, fill the casing with clean hydraulic oil through the top case-drain port. A dry start leads to instant high-temperature friction between the piston pair and valve plate, causing permanent damage.

• Case-Drain Installation: The case-drain line must lead directly back to the reservoir, with a diameter no smaller than the pump’s drain port. Never plumb the case-drain in series with other return lines, as excessive back-pressure can blow the front shaft seal.
