Product Overview

The PVEB/PVEH series electro-hydraulic proportional actuators are the core electronic control drive components for Danfoss PVG proportional valve groups, widely deployed across mobile cranes, aerial work platforms, agricultural machinery, and industrial hydraulic systems. Employing closed-loop control technology, these actuators precisely convert electronic control signals into spool displacement, enabling accurate proportional control of flow and direction to hydraulic actuators.

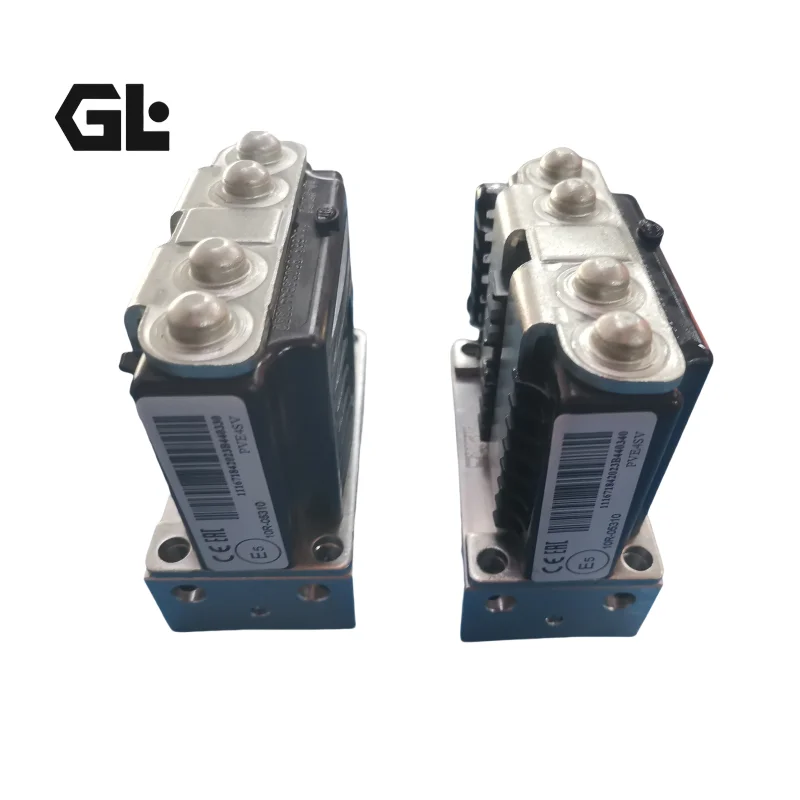

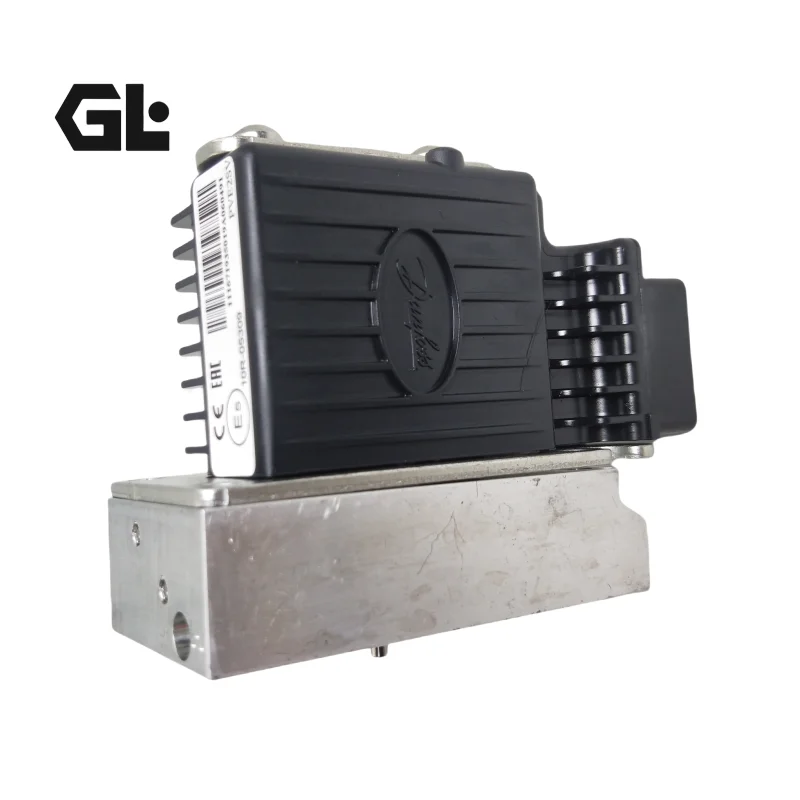

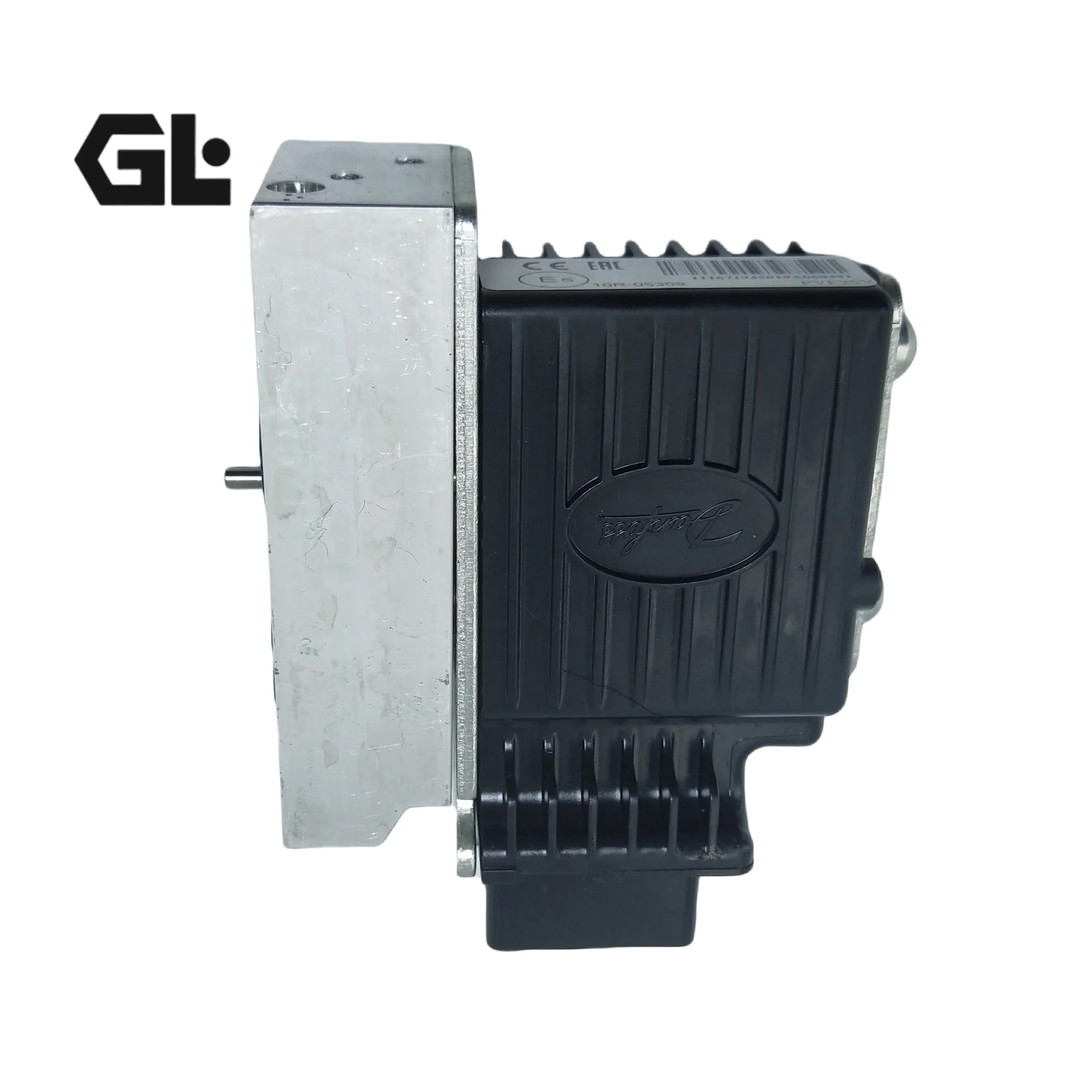

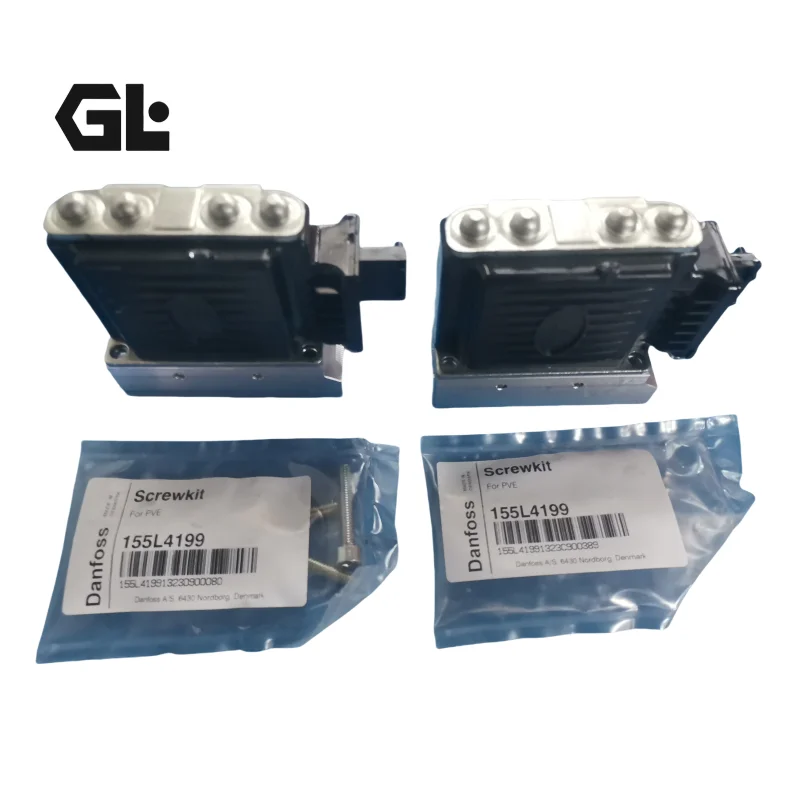

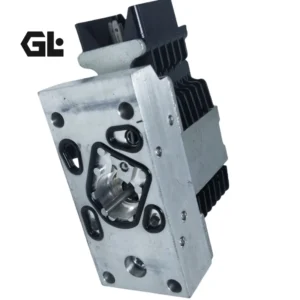

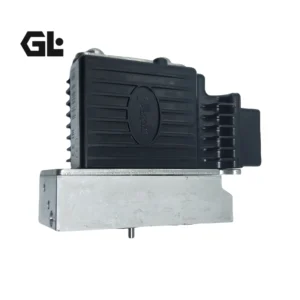

This product offers a complete range of 157B series electro-hydraulic proportional actuators—including models 157B4927 (PVEB-DI 12V) , 157B4036 (PVEH-DI 11-32V) , 157B4928 (PVEB-DI 24V) , and 157B4942 (PVED-CC 12V) —as direct drop-in replacement alternatives for original Danfoss PVE actuators. All actuators are manufactured to strict OEM specifications and undergo 100% real-world condition simulated testing, ensuring seamless integration with existing systems without any modification required.

Core Value Proposition:

• Direct Interchangeability: Full dimensional, interface, and electrical compatibility with original Danfoss PVE actuators

• 100% Simulated Condition Testing: Complete validation of response characteristics and fault monitoring under actual operating parameters prior to shipment

• Wide Voltage Range: 11-32V DC wide voltage design, compatible with multiple vehicle power systems

• Active Fault Monitoring: Built-in active fault monitoring for real-time diagnostic capability

Technical Specifications

Valve Family Compatibility

• PVG16 / PVG32 / PVG48 / PVG100 / PVG120 / PVG128 / PVG256

Supply Voltage

• 11-32 V DC (wide voltage range)

• 157B4927 (PVEB-DI): 12V rated

• 157B4928 (PVEB-DI): 24V rated

• 157B4942 (PVED-CC): 12V rated

Power Consumption

• 7 W

Control Current

• Signal current: 0.25 mA to 0.70 mA

• Typical consumption: 540 mA

Input Impedance

• 12 kΩ

Electrical Connection

• 2×4 AMP multi-pin connector

Protection Class

• IP 66

Control Pilot Pressure

• 13.5 bar

Operating Temperature Range

• -40°C to +90°C

Control Signal Logic (PVEH-DI)

• A-port signal voltage: 0.25 × U_DC

• B-port signal voltage: 0.75 × U_DC

• Max. voltage ripple: 5%

157B Series Model List

• 157B4927: PVEB-DI 12V electro-hydraulic proportional actuator, 12V rated voltage, for PVG series proportional valves with direction indication

• 157B4036: PVEH-DI 11-32V electro-hydraulic proportional actuator, wide voltage 11-32V DC, 2×4 AMP connector, built-in active fault monitoring and spool movement direction indication

  • New code: 11166819

• 157B4928: PVEB-DI 24V electro-hydraulic proportional actuator, 24V rated voltage

• 157B4942: PVED-CC 12V electro-hydraulic proportional actuator, 12V rated voltage

Key Technical Advantages

1. Closed-Loop Proportional Control with High-Precision Response
PVEH actuators employ a closed-loop control architecture with built-in position sensors providing real-time spool position feedback, ensuring precise linear correspondence between electronic control signals and spool displacement. Compared to open-loop designs, the closed-loop configuration delivers significantly improved spool positioning accuracy and repeatability, particularly critical for high-performance applications requiring fine flow regulation.

2. Active Fault Monitoring and System Reliability
PVEH-DI models feature built-in active fault monitoring that continuously tracks actuator electrical status and operating parameters. Upon detection of coil open circuits, short circuits, or signal anomalies, the system immediately transmits fault signals to the controller, effectively preventing equipment失控 risks caused by actuator failure and substantially enhancing overall machine safety.

3. Wide Voltage Design and Power Supply Adaptability
The 11-32V DC wide input voltage range allows a single actuator to accommodate both 12V and 24V mainstream vehicle power systems. This design greatly simplifies spare parts management—eliminating the need to distinguish voltage versions when servicing different equipment, significantly reducing inventory costs and selection complexity.

4. Rugged IP66 Protection and Extreme Environment Tolerance
Actuator housings are manufactured from high-strength engineering plastics with robust sealing, achieving IP66 protection against dust ingress, high-pressure water jets, and humid environments. The operating temperature range spans -40°C to +90°C, ensuring reliable electrical performance and mechanical actuation under extreme cold or high-temperature conditions.

5. Modular Interface and Quick Replacement Capability
The standardized 2×4 AMP electrical interface and unified PVG valve group mechanical mounting dimensions enable actuator replacement within minutes. No special tools are required for disassembly and installation, dramatically reducing equipment downtime and lowering maintenance costs.

Application Areas

• Mobile Cranes and Knuckle Boom Cranes: Electro-hydraulic proportional control for boom, telescopic, and slewing functions

• Aerial Work Platforms: Smooth proportional regulation and precise positioning of boom movements

• Agricultural Machinery: Electronic proportional drive for tractor hydraulic hitch systems and combine harvester working mechanisms

• Material Handling Equipment: Precise hydraulic system flow distribution for forklifts and reach stackers

• Construction Equipment: Electro-hydraulic proportional control for attachment hydraulic tools on excavators and loaders

• Industrial Hydraulic Systems: Electronic control drive for proportional valves on stationary equipment

Expert Maintenance Tips

1. Electrical Connection Inspection
Prior to installation, verify that the 2×4 AMP connector terminals are intact, free from oxidation or deformation. Ensure the locking mechanism is fully engaged during connection to prevent loosening due to vibration. It is recommended to use protective boots or cable ties around the connector area to secure wiring and prevent terminal damage from cable strain.

2. Supply Voltage Verification
Although the actuator supports 11-32V wide voltage input, it is still recommended to measure the actual supply voltage with a multimeter before installation. Ensure voltage remains stable within the rated range with ripple not exceeding 5%—excessively high or low voltage may compromise control accuracy or reduce actuator service life.

3. Pilot Pressure Supply
Electro-hydraulic proportional actuators require a stable pilot oil supply pressure for proper operation. Maintain pilot supply pressure at approximately 13.5 bar and ensure the pilot circuit is clean and free of contamination. Insufficient pressure will result in sluggish spool response, while excessive pressure may damage internal actuator seals.

4. Fault Monitoring Signal Interpretation
PVEH-DI actuators feature built-in active fault monitoring. If abnormal actuator behavior occurs or the controller reports actuator fault codes, the following should be checked first:

• 2×4 AMP connector contact integrity

• Supply voltage within 11-32V range

• Control signal current within 0.25-0.70 mA range

5. Spare Parts Strategy
It is recommended to keep 1-2 commonly used actuator models (such as 157B4036 or 157B4927) as on-hand spares. Thanks to the modular actuator design, faulty units can be replaced quickly with minimal or zero downtime, maximizing equipment availability. Note that 157B4036 has been superseded by Danfoss new code 11166819—be aware of the cross-reference when sourcing replacements.
