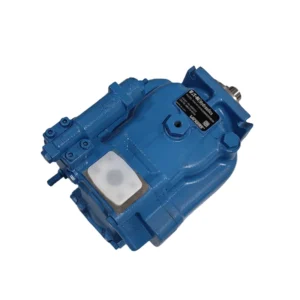

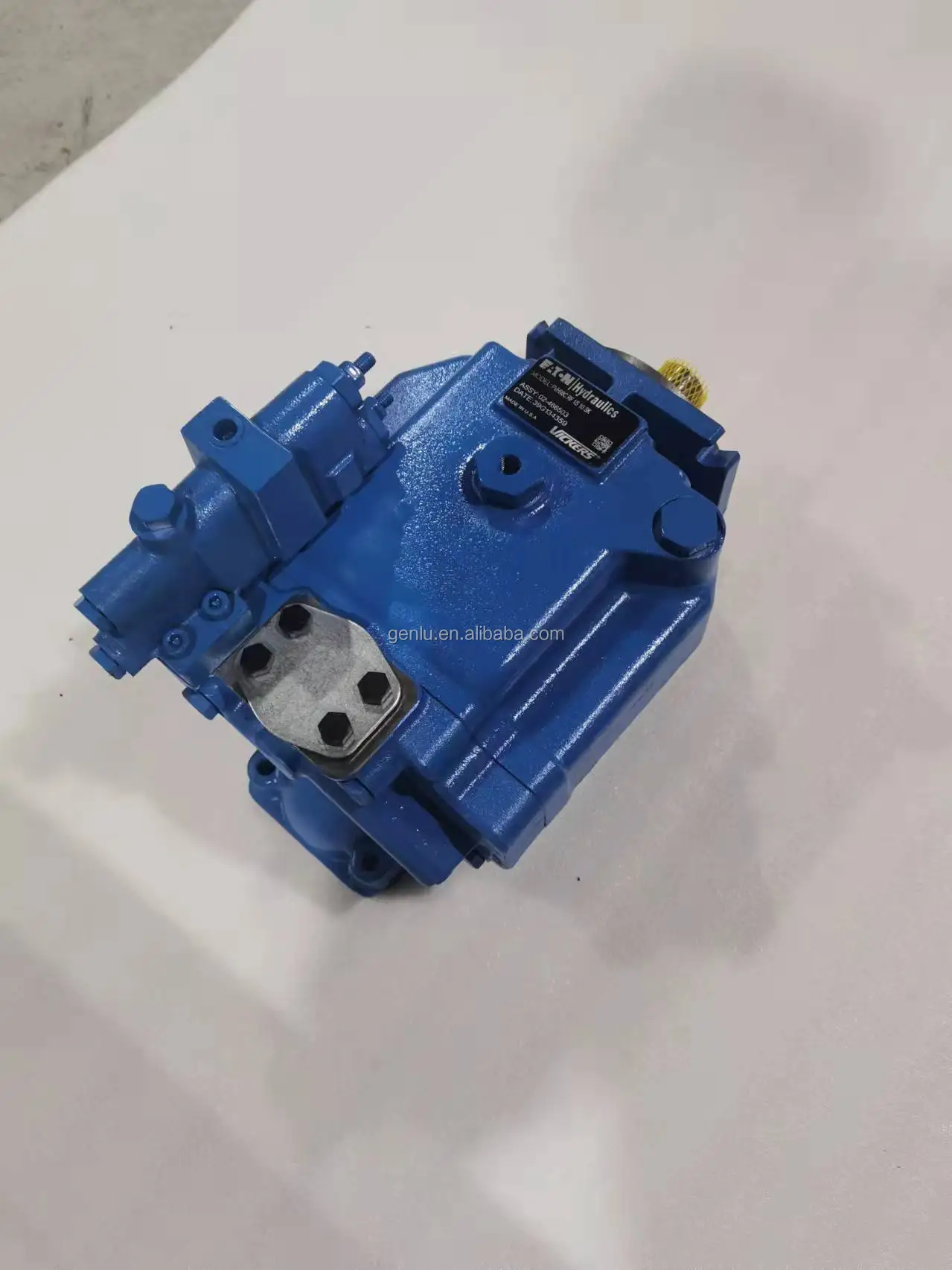

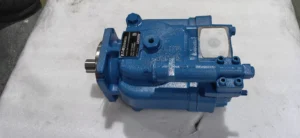

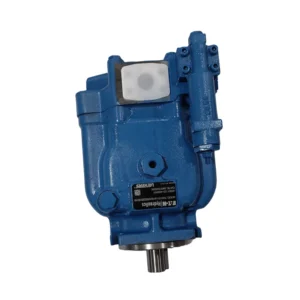

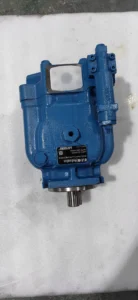

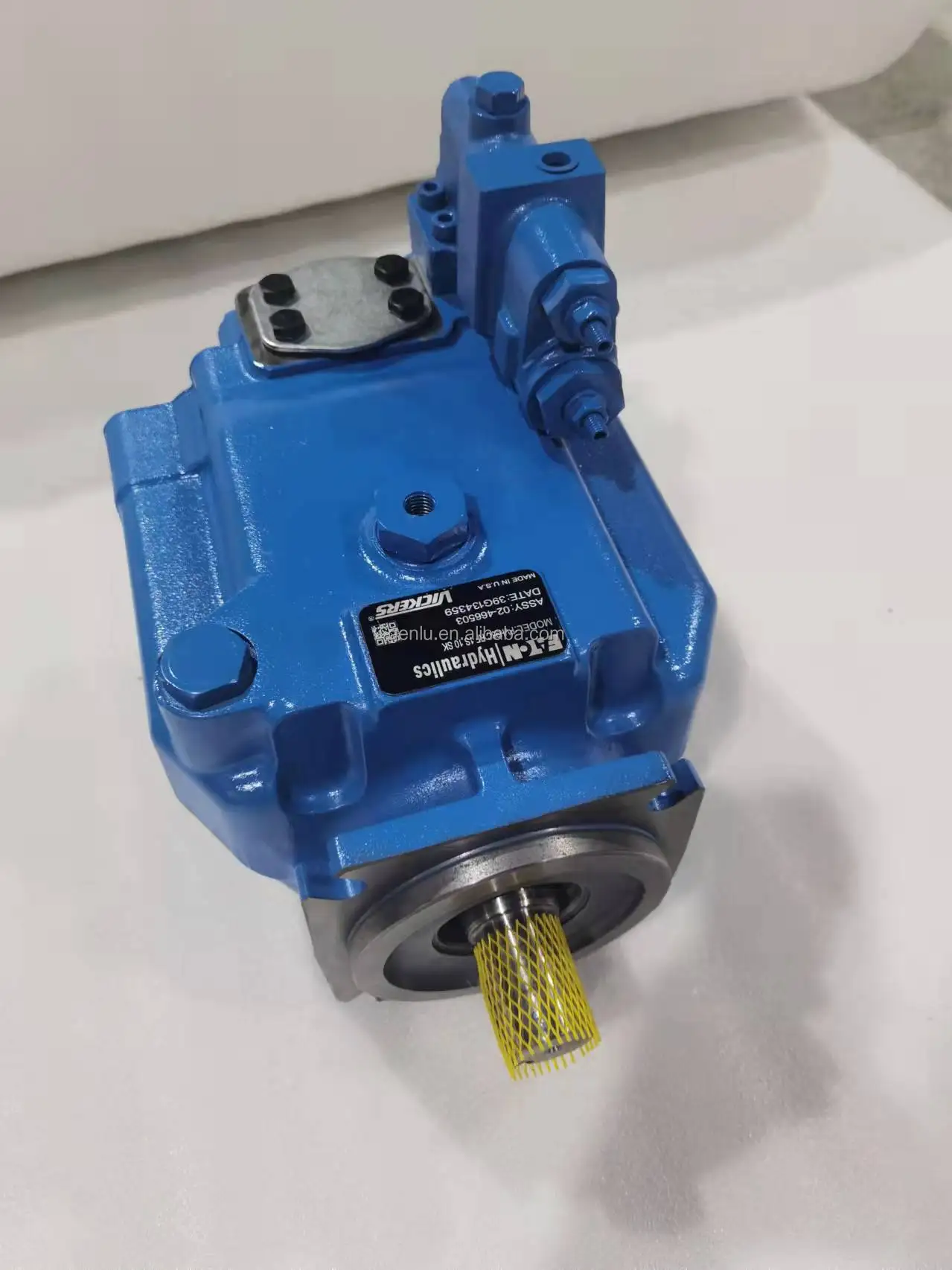

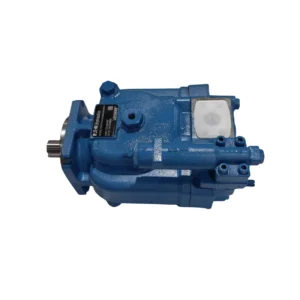

Eaton Vickers PVH074 Replacement | PVH074R01AB10A High Pressure Piston Pump

Genlu Hydraulic proudly introduces our comprehensive range of PVH Series (encompassing 057, 074, 098, 131, 141 frame sizes) high-performance high-pressure axial variable piston pumps. This elite pump line is meticulously engineered to fully match the rigorous technical standards of Eaton Vickers PVH series heavy-duty hydrostatic technology. It is specifically optimized for high-pressure industrial fluid loops, long-duration operational reliability, and demanding off-highway vehicle duty cycles. Our advanced production line flawlessly covers the original manufacturer’s complex long-code digital alphanumeric naming matrix, notably PVH074R01AB10A250000002001AE010A. Serving as the precise “fluid power core” for heavy-duty earthmovers, metallurgical auxiliary equipment, and automated die-casting systems, Genlu unequivocally guarantees 100% Drop-in Interchangeability in standard SAE mounting flanges, drive shaft profiles, side/rear fluid port geometries, and pressure-compensation regulator dynamics relative to original Eaton Vickers components. Backed by our uncompromising 100% Simulation Load Testing, each unit is validated across continuous high-pressure cycling to certify volumetric constancy and precise flow regulation, ensuring steady performance even in harsh, high-vibration environments.

Technical Specifications

• Product Series: Eaton Vickers PVH High Pressure Axial Variable Displacement Piston Pump

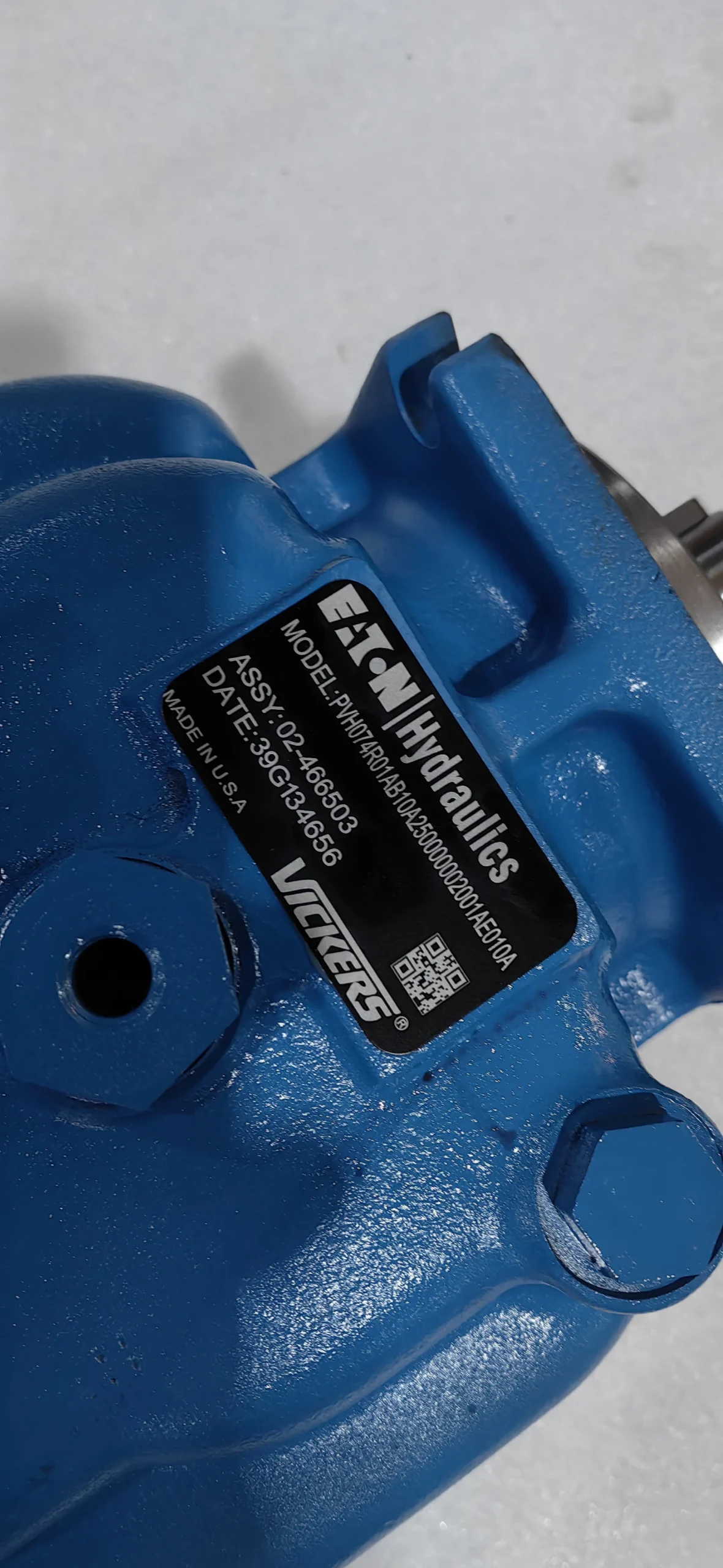

• Target Configuration Codes: PVH074R01AB10A250000002001AE010A

• Nominal Displacement Platform: 74 cm³/rev (PVH074 Series)

• Rated Continuous Operating Pressure: 25 MPa (250 bar)

• Maximum Dynamic Peak Pressure: 28 MPa (280 bar)

• Allowed Maximum Drive Speed: 2400 rpm – 2800 rpm

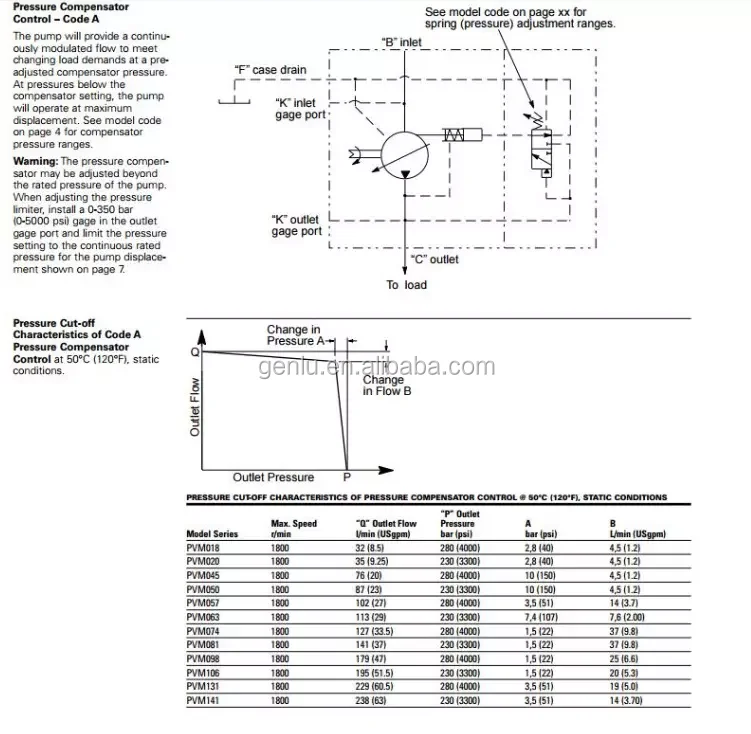

• Variable Control Mechanism: Pressure Compensated (PC) and Load Sensing (LS) pilot variable regulation

• Direction of Rotation (R): Right-Hand / Clockwise viewed from shaft end

• Drive Shaft Specification (01): SAE standard straight key or spline shaft extension

Key Technical Advantages:

• Heavy-Duty Ductile Iron Casing Architecture: The pump housing is forged from high-stiffness ductile iron, optimized for wall thickness and internal ribbing to attenuate acoustic resonance and structural vibration under high 25 MPa loads. This design maintains exceptional structural integrity during intense, rapid pressure transitions.

• Advanced Bimetallic Vacuum-Sintered Valve Interface: The critical valve-to-cylinder interface utilizes specialized bimetallic vacuum fusion technology, providing superior wear resistance and self-lubricating properties. This ensures the valve face remains resistant to scoring and thermal erosion, keeping volumetric efficiency above 95% over time.

• High-Capacity Tapered Roller Bearing Assemblies: The input drive shaft is supported by premium, wide-spaced tapered roller bearings that absorb massive radial and axial shock loads. This robustness mitigates misalignment stress from PTO or coupler assemblies, securing shaft and seal longevity under severe duty.

• Specialized Multi-Lip Fluorocarbon Shaft Seals: The front shaft extension is bound by high-grade Fluorocarbon (Viton) multi-lip pressure-resistant seals. This compound effectively blocks external debris and moisture ingress while maintaining resilience and elasticity against structural aging and high fluid temperatures.

Application Areas:

• Heavy Earthmoving & Construction Machinery: Primary hydraulic propulsion for excavators, loaders, and bulldozers, plus secondary high-pressure power packs for knuckle-boom mobile cranes.

• Metallurgy & Industrial Metal Forming: Main hydraulic power supply for high-tonnage die-casting machines, proportional pressing loops for extrusion presses, and rolling mill auxiliary mechanism hydraulics.

• Specialized Mobile Carriers & Utility Equipment: Central power units for underground mining platforms, municipal recovery vehicle fluid loops, and automated heavy industrial handling stations.

Expert Maintenance Tips:

• Enforce Rigid Case Priming and Air Purging Prior to Ignition: Due to the asymmetric internal layout, operators must fully flood the motor cavity with clean hydraulic oil via the top drain port and manually jog the shaft to clear trapped air before initial commissioning. Never start the pump dry (Dry Run); doing so causes instantaneous galling of the bimetallic spherical interfaces.

• Restrict Case Backpressure and Direct Drain Lines to Reservoir: Case drain lines must run directly back to the reservoir, completely bypassing any filters or shared return headers. Maintain case backpressure below 0.5 MPa; any excess pressure will blow out the shaft lip seal and dampen the variable control regulator response.

• Maintain Rigid Fluid Cleanliness to ISO 18/13 Parameters: The internal piston group works to precise micron-level tolerances. Microscopic abrasives suspended in the hydraulic fluid can induce “scoring-style” wear on the valve face, leading to catastrophic internal fluid bypass. Integrate high-efficiency return filtration with a high beta ratio to secure the fluid matrix.
