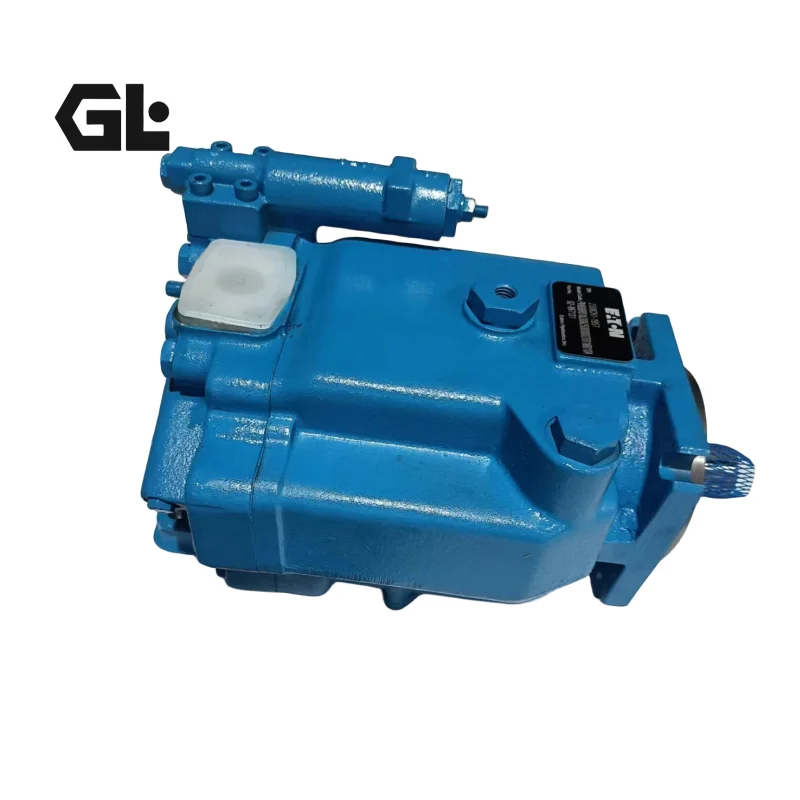

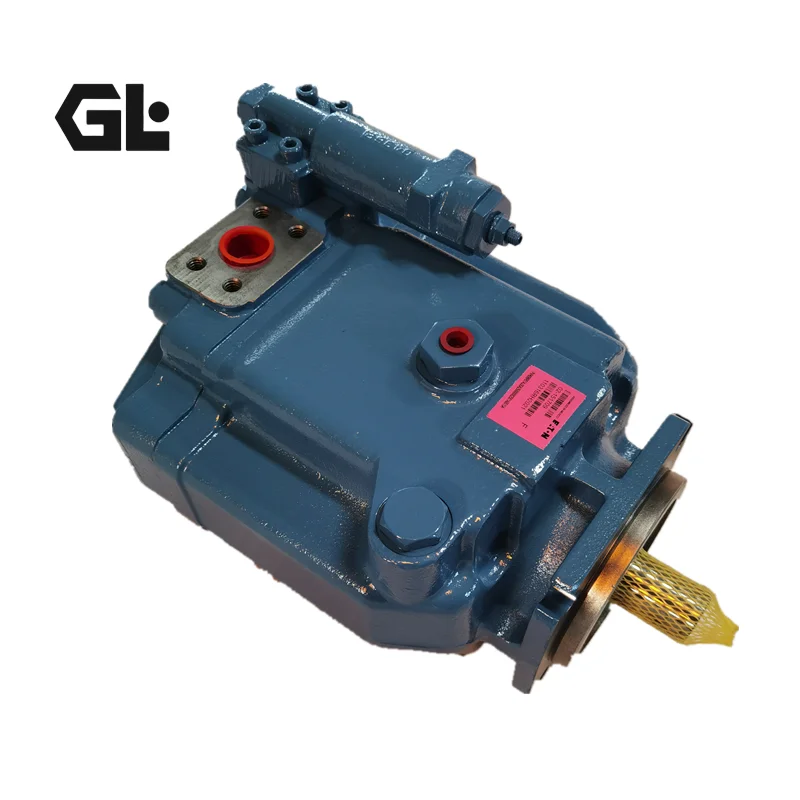

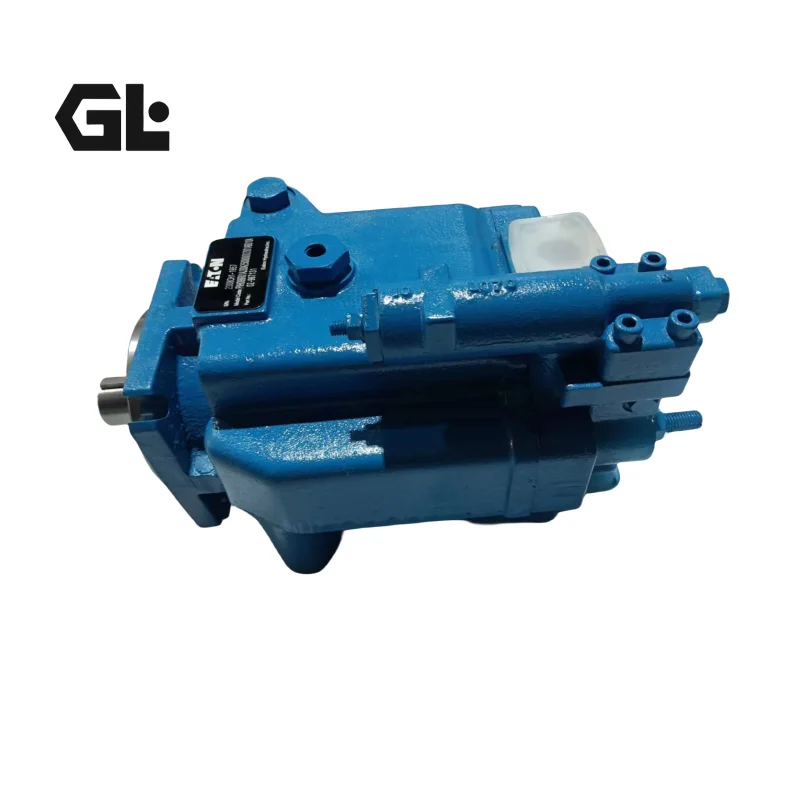

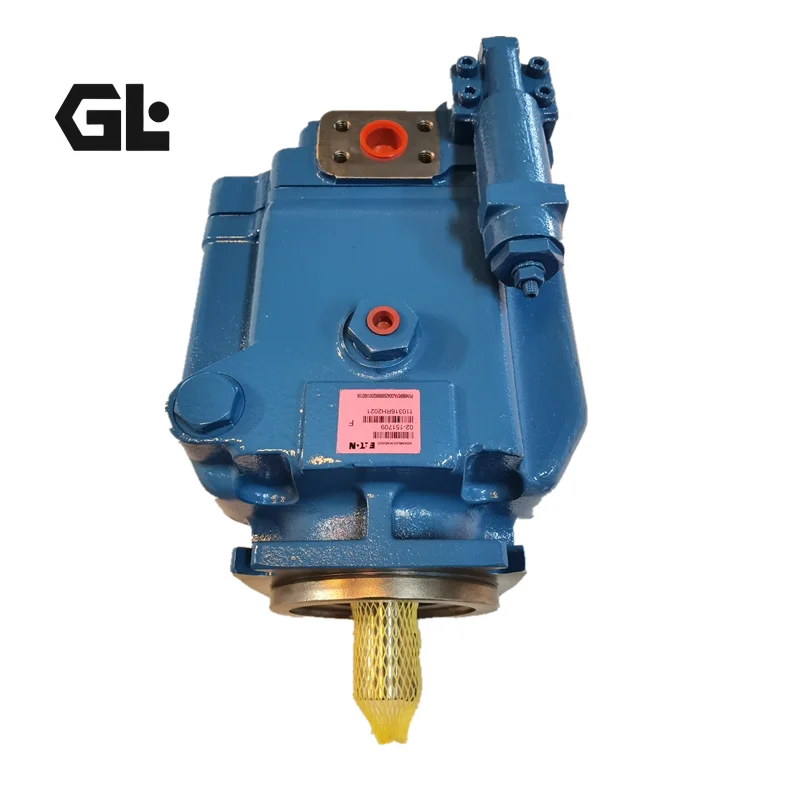

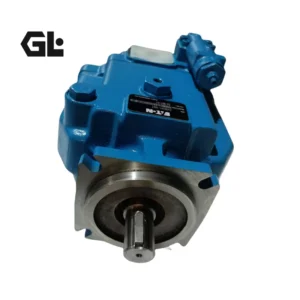

Vickers PVH Series Piston Pump | PVH057 PVH074 PVH098 PVH131 Variable Displacement Pump Replacement

Genlu Hydraulic wishes to formally clarify a common naming misconception found within procurement titles: The Vickers PVH series (encompassing PVH057, PVH074, PVH098, and PVH131) is engineered specifically as a high-pressure swash-plate design axial variable displacement piston pump, rather than a fixed displacement pump.

This series is fully configured as a premium, high-value, drop-in replacement for mainstream Eaton Vickers industrial and mobile application standards, adapting flawlessly to replace complex long-code configurations like PVH098R01AJ30A250000001001AB010A. This pump incorporates an advanced A2 Pressure Compensator Control system that automatically regulates pump output flow to match circuit demand, destoking seamlessly to zero-flow coordinates upon reaching the target pressure limit to ensure optimal system energy conservation. Genlu guarantees 100% Drop-in Interchangeability across standard SAE 2-bolt/4-bolt mounting configurations, SAE splined or keyed output shafts, 4-bolt split-flange process fluid ports (AJ port code), and compensatory control drain interfaces compared to original Vickers units. Every single PVH pump assembly undergoes rigorous 100% full-load dynamic performance testing on our digital multi-megawatt benches to certify elite volumetric efficiency ratings and low-decibel operation under sustained heavy duty conditions.

Technical Specifications

• Product Series: Eaton Vickers PVH Series Swash-Plate Axial Variable Piston Pump

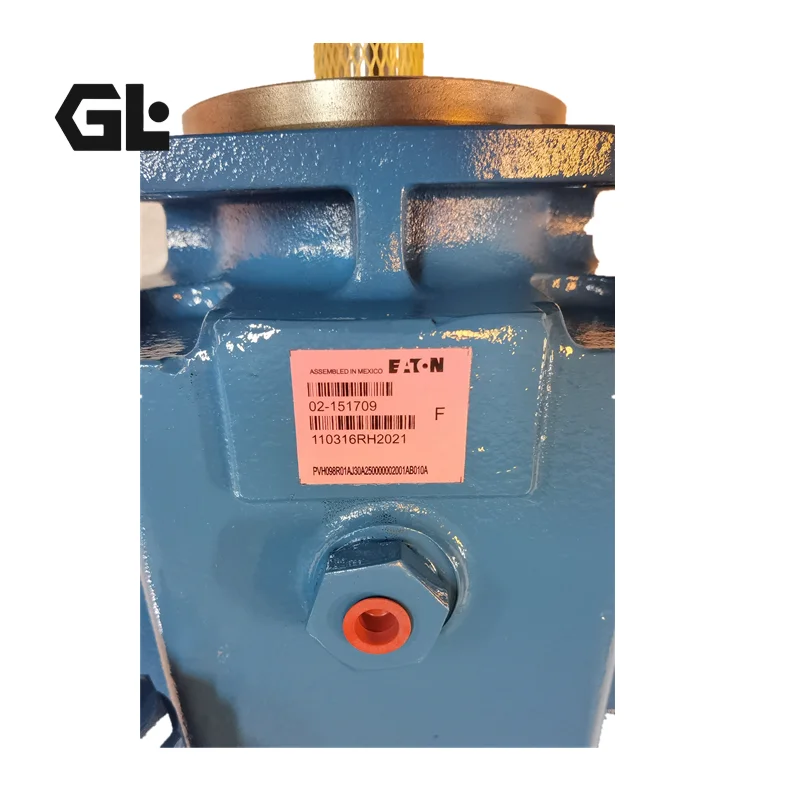

• Exact Model Designation: PVH098R01AJ30A250000001001AB010A (Spanning PVH057, PVH074, PVH131 frame sizes)

• Maximum Geometric Displacement: $98 \text{ cc/rev}$ (Infinitesimally variable from zero to maximum scale via control valving)

• Continuous Operating Pressure Rating: 25.0 MPa (250 bar)

• Maximum Intermittent Pressure Rating: 28.0 MPa (280 bar) (Sustained heavy duty boundary limit)

• Peak Transient Proof Pressure: Up to 32.0 MPa (320 bar) (Engineered to withstand sudden severe fluid spikes)

• Maximum Permissible Rated Speed: $2100 \text{ rpm}$ (Achieved under standard flooded self-priming conditions)

• Primary Regulation Modality: Code A2 (Standard Pressure Compensator Control; field adjustable from 70-250 bar, factory pre-set)

• Drive Shaft Rotation Designation: Code R (Right-hand / Clockwise rotation looking from the output shaft end)

• Approximate Dry Shipping Weight: $43 \text{ kg}$

Key Technical Advantages:

• Bi-Metal Floating Valve Plate & Heavy Return Springs: The internal valve plate features a specialized bronze-alloy surface cladded onto a structural steel backing, providing outstanding resistance against adhesive wear. Combined with a heavy-duty centering spring and a robust 9-piston shoe-retention matrix, it sustains a reliable hydrodynamic oil film between the slipper pads and swashplate even under continuous high-frequency pressure pulsations, holding gross efficiency above 91%.

• Cradle-Type Swashplate Bearings for Enhanced Self-Priming: The swashplate assembly is suspended by heavy-capacity saddle/cradle bearings that minimize friction resistance during displacement shifts. This layout delivers excellent self-priming capability, preventing oil-starvation and micro-cavitation when operating at maximum rated speeds of $2100\text{ rpm}$, which directly lowers operational decibels.

• Monoblock Rigid Ductile Iron Protective Housing: The outer chassis is cast from high-tensile, shock-absorbing monoblock nodular ductile iron. This construction minimizes structural flexing under 25.0 MPa continuous working pressures, ensuring precise concentric alignment across the internal shaft bearings and rotation axes to maximize mechanical fatigue lifecycles.

• Microsecond-Responsive Pressure Compensator Valve Block (A2 Module): The internal valve spool is micro-ground and dynamically balanced. The moment system backpressure encounters the A2 setting limit, the spool redirects a pilot signal to the internal positioning piston within microseconds, smoothly lowering the swashplate tilt angle to prevent excessive destructive peak pressure spikes in the hydraulic circuit.

Application Areas:

• Heavy Mobility Fleet & Construction Machinery: Primary auxiliary pilot supply lines for large excavators, rotary head drives for engineering drill rigs, and steering/work loops for heavy wheel loaders.

• Industrial Automation & Metal Forming Equipment: Main fluid power units for high-tonnage die-casting machines, hydraulic scrap baling compactors, and metal sheet bending/stamping presses.

• Marine Engineering & Maritime Off-Shore Winches: Primary deck crane control grids, explosion-proof mooring winches, and heavy-duty cargo grab hydraulic systems.

Expert Maintenance Tips:

• Technical Correction: Never Block the Case Drain or Control Valve Ports: Variable displacement piston pumps require internal pilot oil to cycle through the control valve (such as the A2 block) during displacement modulation. It is critical to route an unrestricted independent case drain line from the top housing port straight back to the reservoir. Mistaking this variable pump for a fixed定量 pump and plugging the drain ports will immediately blow out the main shaft lip seal and lock up the internal control piston.

• Pre-Fill the Pump Chassis Enclosure with Fluid Prior to Initial Start-Up: Before turning the prime mover over for the first time, remove the highest plug on the pump case housing and flood the interior with clean, filtered hydraulic oil until it spills over. Piston components are highly vulnerable to localized heat scuffing during dry start-ups; this step guarantees immediate lubrication for the slippers, swashplate face, and valve plate at the first revolution.

• Monitor Intake Manifold Vacuum Closely to Prevent Cavitation: The high displacement of the PVH098 demands an optimized suction environment. Inspect all intake hoses and clamps regularly to ensure no air ingress or hose collapsing occurs. The inlet vacuum must never drop below $-0.16\text{ bar}$ ($-12\text{ cmHg}$). Micro-cavitation bubbles collapsing in the high-pressure zone act like micro-explosions, pitting the valve plate faces and leading to catastrophic pump failure.
