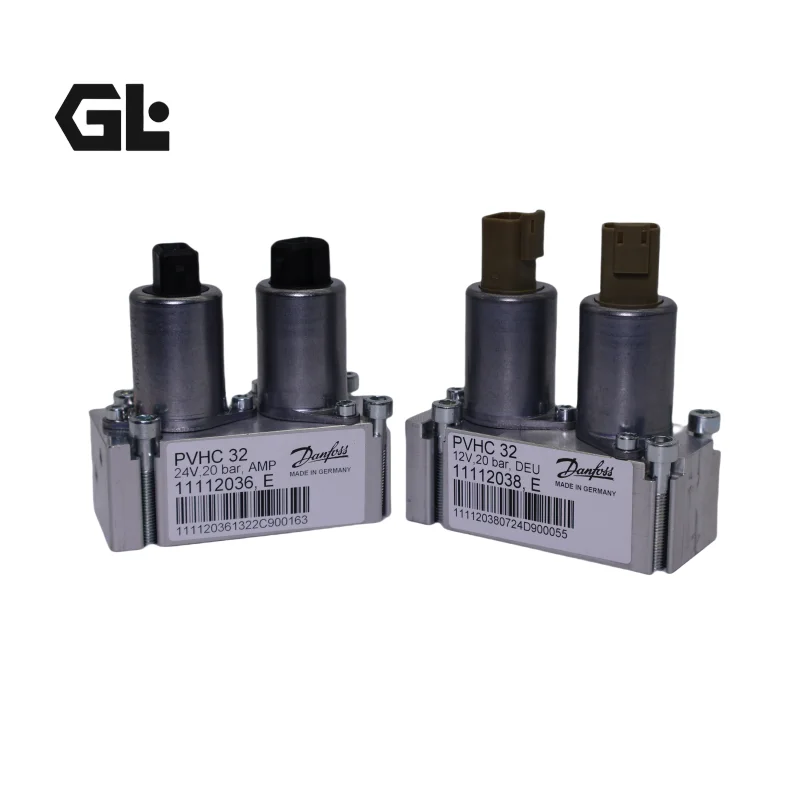

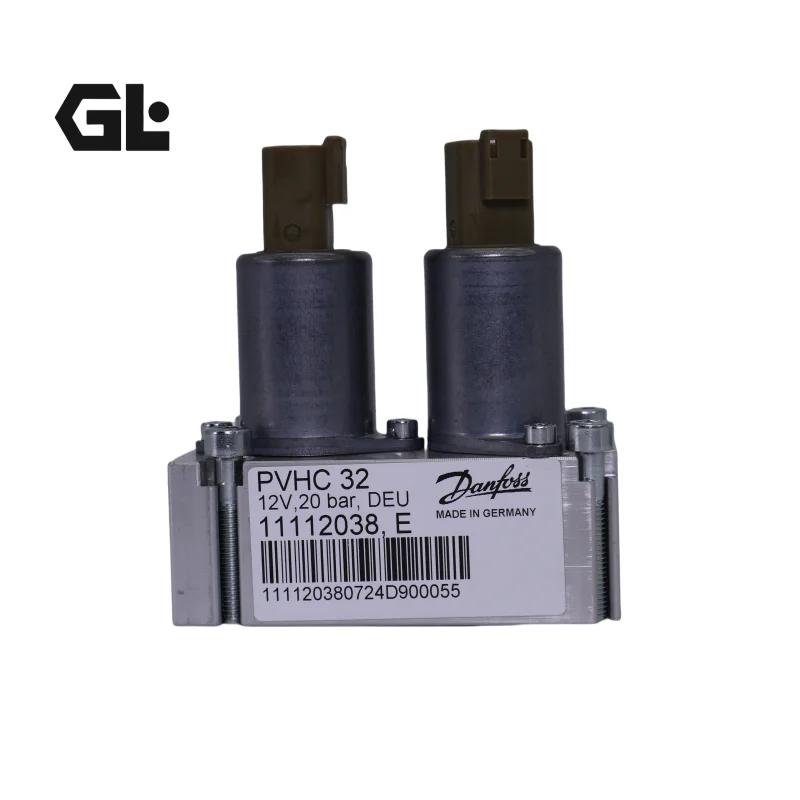

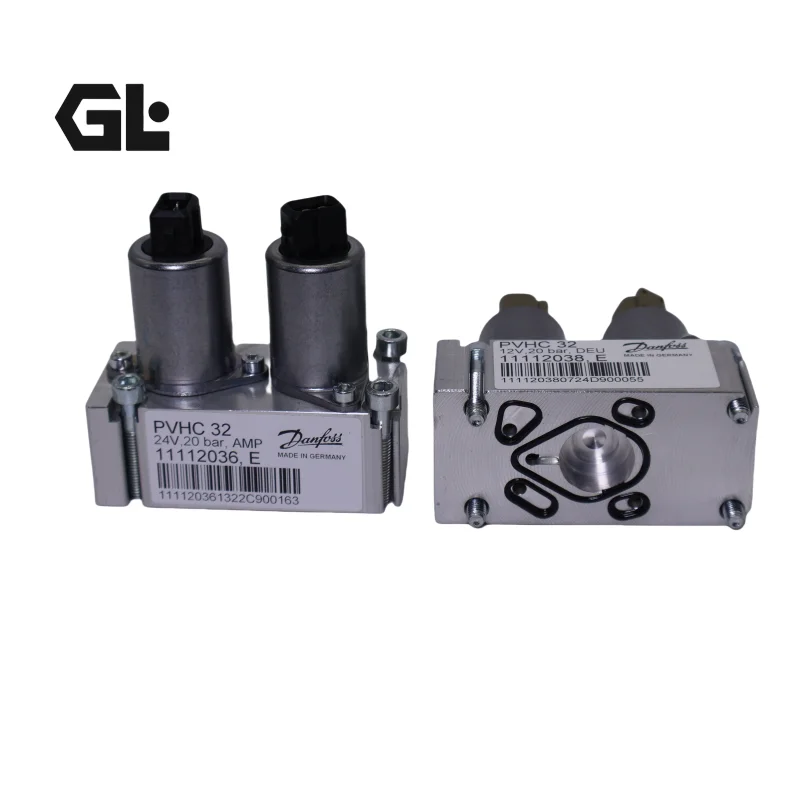

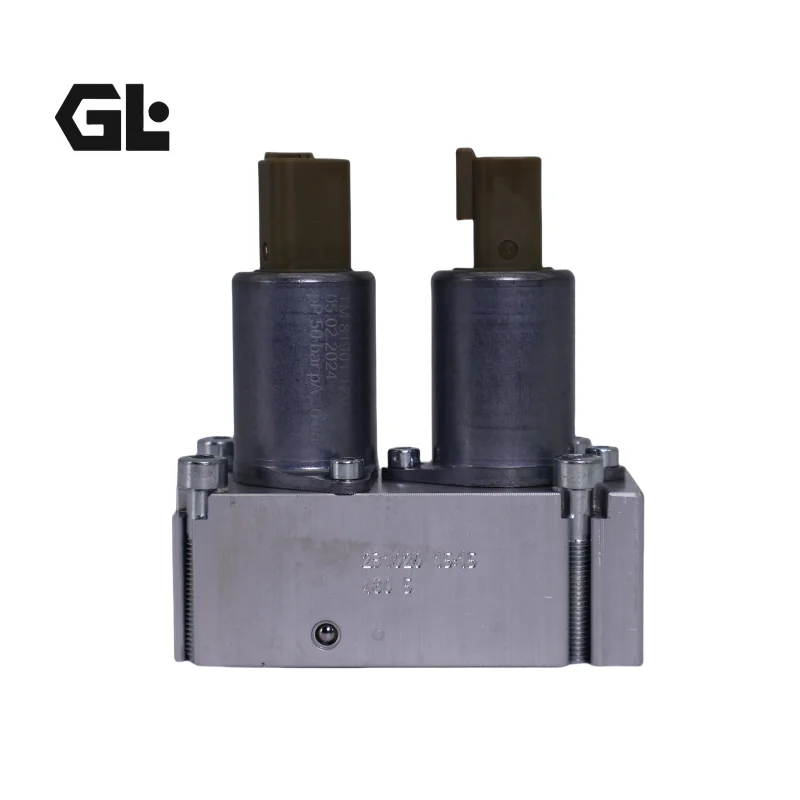

Danfoss PVHC Electrical Actuator for PVG 32 | 11127535 24V Valve Actuator

Genlu Hydraulic proudly introduces our industrial-grade PVHC Electrical Actuator, specifically engineered to drive Danfoss (PVG 32 and PVG 16) modular load-sensing proportional valve platforms. This actuator serves as the critical interface between electrical control signals and precise spool displacement, tailored for demanding duty cycles in material handling, forestry equipment, and high-precision agricultural machinery. We supply the core model 11127535 (PVHC 24V Electrical Driving Element), engineered to maintain rigid flow-control integrity within integrated valve manifolds.

Acting as the “intelligent nerve center” for the hydraulic system, the PVHC actuator translates PWM (Pulse Width Modulation) current signals into highly accurate spool positioning. Genlu guarantees 100% Drop-in Interchangeability across standard valve mounting interfaces, drive-pin displacement parameters, electrical plug configurations (Deutsch DT series), and operational voltage curves compared to original Danfoss PVHC assemblies. Every actuator undergoes strict 100% automated PWM response curve and leakage testing on our digital benches, certifying responsive, smooth, and lag-free flow regulation even under harsh thermal and vibratory conditions.

Technical Specifications

• Product Series: PVHC Electrical Actuator (for PVG 32 / PVG 16 proportional control valves)

• Core Model Identifier: 11127535 (PVHC 24V Configuration)

• Compatibility Matrix: Danfoss PVG 32 & PVG 16 Modular Load-Sensing Proportional Valve Platforms

• Nominal Operating Voltage: 24V DC

• Control Signal Profile: PWM (Pulse Width Modulation) signal for closed-loop flow control

• Maximum Drive Pin Stroke: Compatible with standard PVG spool stroke ($+/- 7 \text{ mm}$)

• Electrical Interface: Industry-standard Deutsch DT connector (Heavy-duty IP67 waterproof)

• Ingress Protection Rating: IP67 (Dust-tight and protected against high-pressure water jets)

• Operating Fluid Temperature Boundary: $-30^\circ\text{C}$ to $+90^\circ\text{C}$

• Mechanical Cycle Lifespan: $\ge 10$ million duty cycles

Key Technical Advantages:

• High-Dynamic PWM Electromagnetic Logic: The internal design features a low-hysteresis coil architecture optimized for rapid PWM signal tracking. This high-dynamic response eliminates “dead-zone” jitter during fine flow regulation. Operators gain elite tactile control over mast hoisting or robotic arm movements, ensuring fluid, jitter-free performance during delicate material handling tasks.

• IP67-Rated Heavy-Duty Industrial Encapsulation: Designed for mobile fleets operating in mud, dust, and high-pressure wash environments, the actuator housing is constructed from reinforced composite polymer and precision-molded seals. The internal electromagnetic chamber is vacuum-encapsulated, effectively preventing oil ingress or moisture short-circuits—essential for prolonged outdoor service life.

• High-Precision Drive Pin Centering & Compensation: The actuator pin is machined from specialized wear-resistant steel, paired with an integrated precision centering spring mechanism. Even under high system backpressure, the actuator ensures accurate pin return, preventing valve drift and ensuring that no unintended fluid movement occurs when the electrical control is de-energized.

• Thermally Stable High-Duty Coil Architecture: Utilizing Class H heat-resistant insulation, the coil maintains consistent current-to-magnetic-force conversion efficiency regardless of rising hydraulic temperatures or solar heating. This consistency ensures that the proportional flow control of the PVG valve block remains stable and predictable throughout hot summer shifts.

Application Areas:

• Heavy-Duty Material Handling Equipment: Precision flow control for proportional valve blocks in reach trucks, container stackers, and heavy-duty cranes.

• Modern Agricultural Fleet Machinery: Automated guidance systems for combine harvesters and hydraulic drive actuators for precision crop sprayers.

• Forestry & Municipal Vocational Equipment: High-precision robotic arm gripping for forestry harvesters and flow-variable control for road sweeper brush actuators.

Expert Maintenance Tips:

• Avoid Physical Impacts; Verify Pin Alignment during Sub-Valve Integration: When mounting the actuator, never strike the housing with metal tools. Gently rotate and advance the actuator until the drive pin feels securely seated into the PVG spool slot before tightening the fasteners. Forcing the actuator into place when misaligned will cause immediate internal mechanical failure of the pin displacement sensor or return springs.

• Perform Regular Integrity Audits on Electrical Plugs and Wiring Harness Tension: PVG 32 valve platforms are often subject to high-frequency machine vibration. Inspect the Deutsch connector seals for dryness or cracking, and ensure the wiring harness has sufficient slack. Inadequate harness length can lead to excessive tension during mechanical articulation, resulting in connection fatigue or signal loss.

• Prohibit System Contamination; Protect the Drive Pin interface: While the actuator is a modular unit, heavy particulate contamination in the hydraulic oil can migrate into the installation interface, potentially binding the axial movement of the drive pin. We recommend inspecting hydraulic fluid quality every 1,000 hours and ensuring that the pilot filters on the valve manifold are operating within specifications.
