PVV1-1X PVV5-1X Rexroth Fixed Displacement Vane Pump 210 Bar

Product Overview

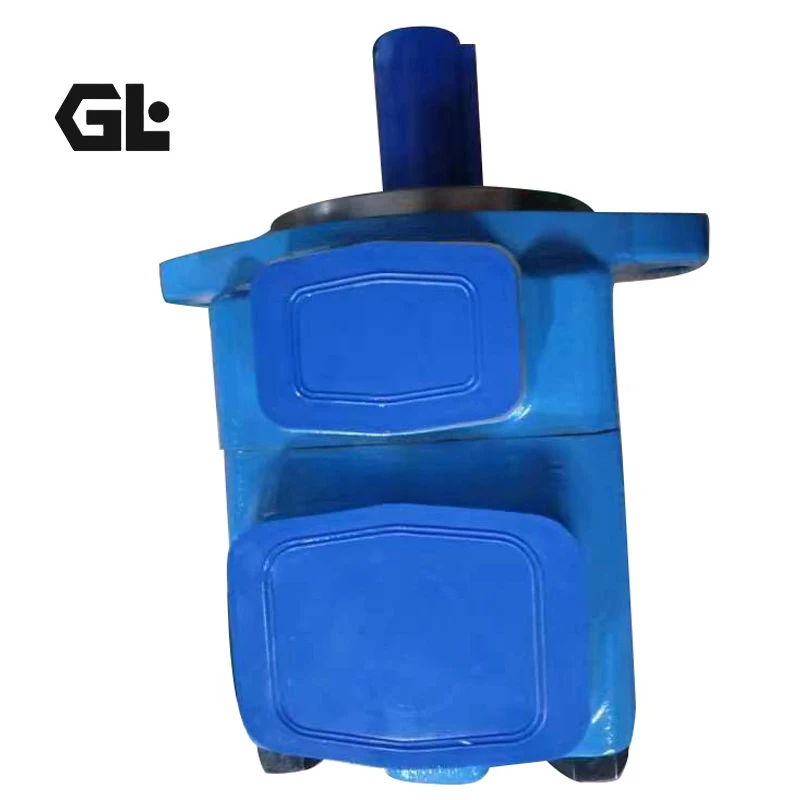

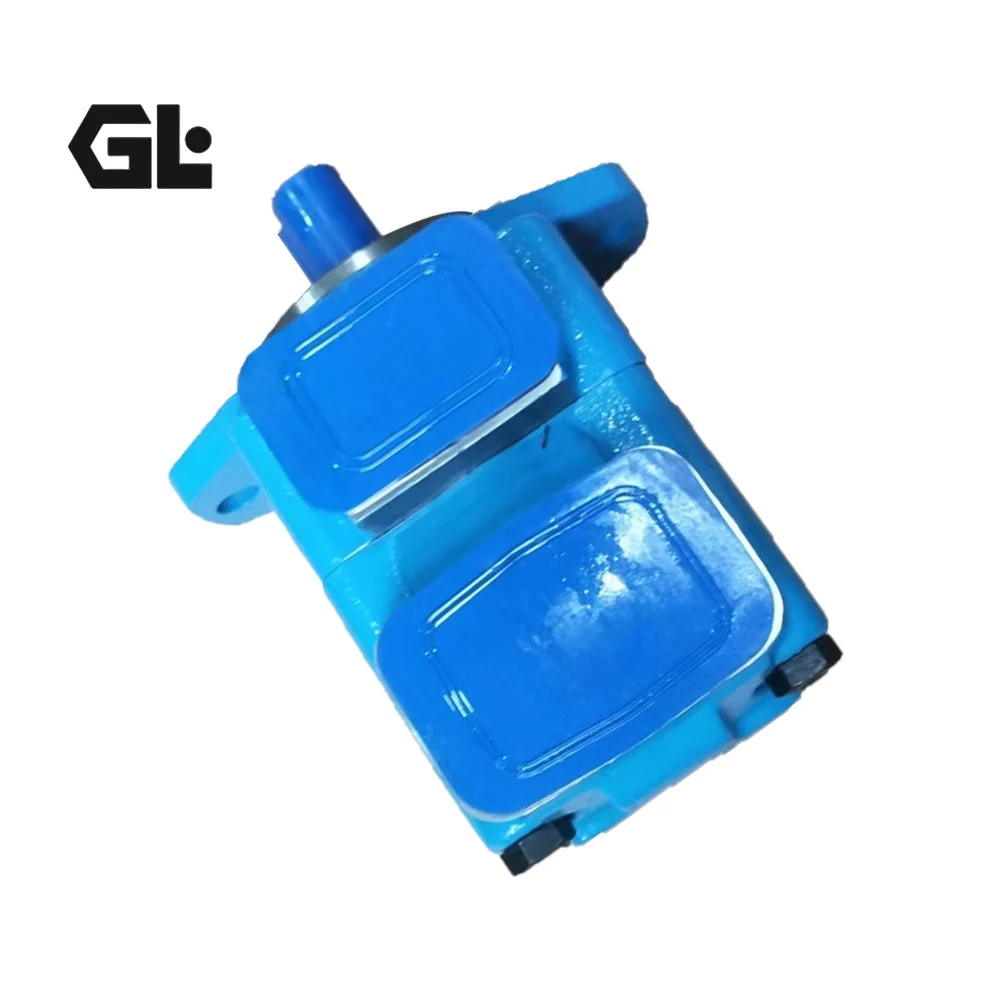

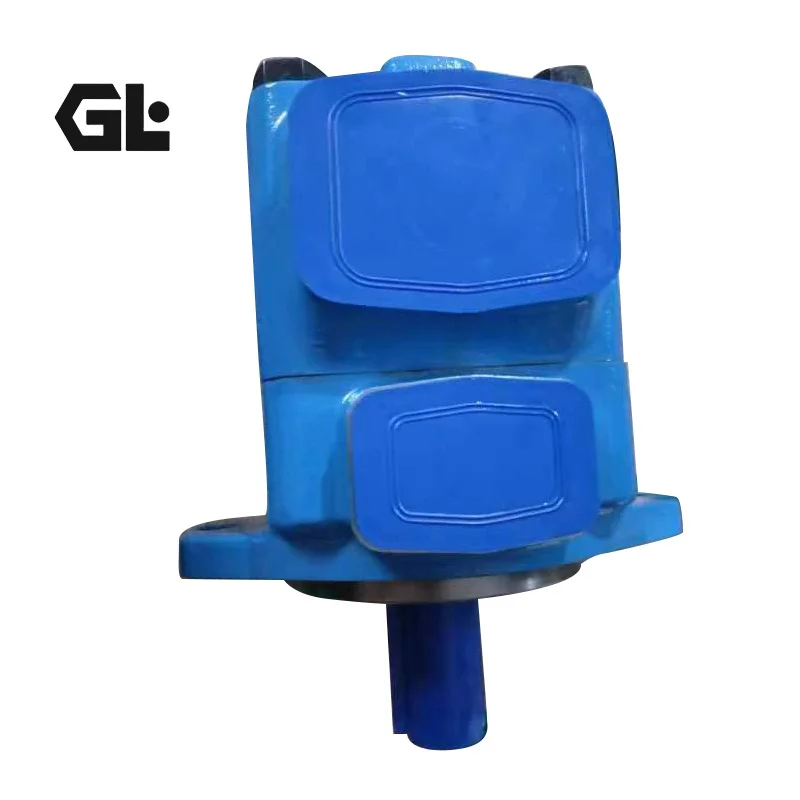

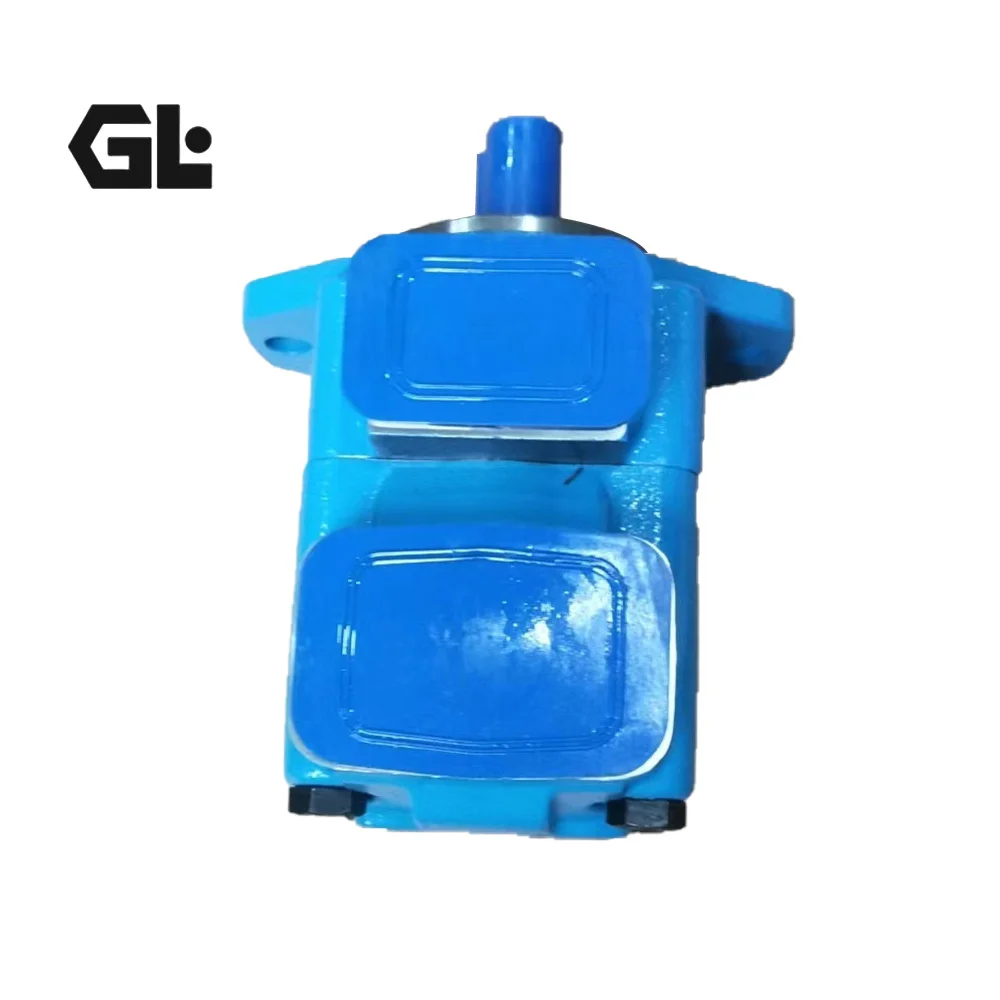

The PVV Series 1X fixed displacement vane pumps are industrial-grade hydraulic units manufactured to original Bosch Rexroth specifications, designed for open-circuit hydraulic systems with full on-site interchangeability with genuine Rexroth pumps. Featuring a double-acting vane structure, this series delivers high volumetric efficiency, low flow pulsation and quiet operation. The high-strength cast iron housing ensures durability in harsh industrial environments. Every unit undergoes 100% full working condition simulation testing before delivery, with performance fully compliant with original factory standards, making it a cost-effective alternative to original Rexroth vane pumps.

Technical Specifications

• Product family: Bosch Rexroth PVV Series 1X, industrial fixed displacement vane pump
• Available models: PVV1-1X, PVV5-1X, PVV21-1X, PVV41-1X, PVV42-1X, PVV5-1X/183RA15UMC, PVV5-1X/193RA15DMB
• Displacement range:
  • Single pump PVV1-1X: 18 to 45.9 cm³/rev
  • Single pump PVV5-1X: 138.6 to 193.4 cm³/rev
  • PVV5-1X/183RA15UMC: 183.4 cm³/rev
  • PVV5-1X/193RA15DMB: 193.4 cm³/rev
  • Double pump PVV21-1X: front pump 27–68 cm³/rev + rear pump 18–45.9 cm³/rev
  • Double pump PVV41-1X: front pump 81.6–121.6 cm³/rev + rear pump 18–45.9 cm³/rev
  • Double pump PVV42-1X: front pump 81.6–121.6 cm³/rev + rear pump 27–68 cm³/rev
• Rated continuous operating pressure: 175 – 210 bar (higher for smaller frame sizes)
• Peak pressure: max. 110% of continuous pressure, ≤ 0.5 second per cycle
• Maximum operating speed: 1800 rpm
• Minimum operating speed: 600 rpm
• Housing material: high-strength grey cast iron
• Seal material: NBR (compatible with HLP anti-wear hydraulic fluids)
• Mounting: SAE standard flange (SAE-B / SAE-C)
• Drive shaft: cylindrical keyed shaft / splined shaft optional
• Rotation direction: clockwise (R) / counter-clockwise (L) optional
• Weight range: 12 – 54 kg (varies by frame size)

Key Technical Advantages

1. Hydraulically balanced vane design: The vanes feature a hydraulic force-balanced structure, which significantly reduces contact stress between vanes and stator ring during operation, cutting friction wear by over 40% and maintaining stable volumetric efficiency above 92% for a long service life.
2. Double-eccentric double-acting stator: The stator ring adopts a double-eccentric profile, completing two suction and discharge cycles per revolution. The output flow pulsation is controlled within ±2%, effectively reducing system vibration and operating noise — 8–10 dB(A) lower than equivalent gear pumps.
3. High-precision cartridge pump core: The rotor, vanes, stator ring and control plates form an integrated cartridge unit, machined to IT5–IT6 tolerance with micron-level fit clearance. The cartridge can be replaced quickly without removing the pump housing from the system, enabling perfect on-site interchangeability with genuine Rexroth pumps.
4. Robust cast iron housing and sealing: One-piece grey iron casting provides excellent impact and deformation resistance, eliminating housing expansion risk under high pressure. Precision-lapped sealing surfaces combined with NBR seals ensure zero external leakage and reliable operation across a wide temperature range from -20°C to 80°C.
5. 100% full-condition factory testing: Every pump is tested under rated pressure, peak pressure and rated speed to verify volumetric efficiency, internal leakage, noise level and temperature rise. All test data is traceable and performance fully matches original Rexroth specifications.

Application Areas

• Injection molding machines and die casting machines
• CNC lathes, machining centers and grinding machine hydraulic stations
• Rolling mills and continuous casting machines in metallurgical industry
• Press machines, bending machines and shearing machines
• Port cranes, forklifts and other construction machinery
• Automated production lines and hydraulic fixture power units

Expert Maintenance Tips

1. Installation alignment requirement: Connect the pump shaft to the prime mover with a flexible coupling, and ensure coaxiality tolerance ≤ 0.1mm. Direct belt or gear drive is prohibited to avoid bearing and shaft damage from radial loads.
2. Air venting and oil filling before first startup: Before initial startup, fill the pump housing with clean hydraulic oil through the drain port, and bleed air from the suction line to prevent dry running damage to vanes and valve plate surfaces.
3. Fluid and cleanliness requirements: ISO VG46 HLP anti-wear hydraulic oil is recommended. Maintain operating temperature between 20°C and 60°C, with a short-term maximum of 80°C. Oil cleanliness shall meet NAS 8 grade or higher; a 100μm suction filter is recommended on the inlet side.
4. Scheduled maintenance interval: Perform routine maintenance every 2000 operating hours. Inspect seal aging, pump core wear and mounting bolt torque. Clean the oil tank and lines when changing hydraulic oil to prevent contaminants from entering the pump.
5. Long-term storage protection: For extended downtime, drain all oil from the pump, inject anti-rust oil, seal all ports and store in a dry, ventilated indoor environment to avoid moisture corrosion and contamination.
