4WREE10W75-2X/G24K31/F1V Rexroth Proportional Valve 75L/min

Model Number	R901496719 4WREE10W75-2X=G24K31/F1V

Product Description

Product Overview

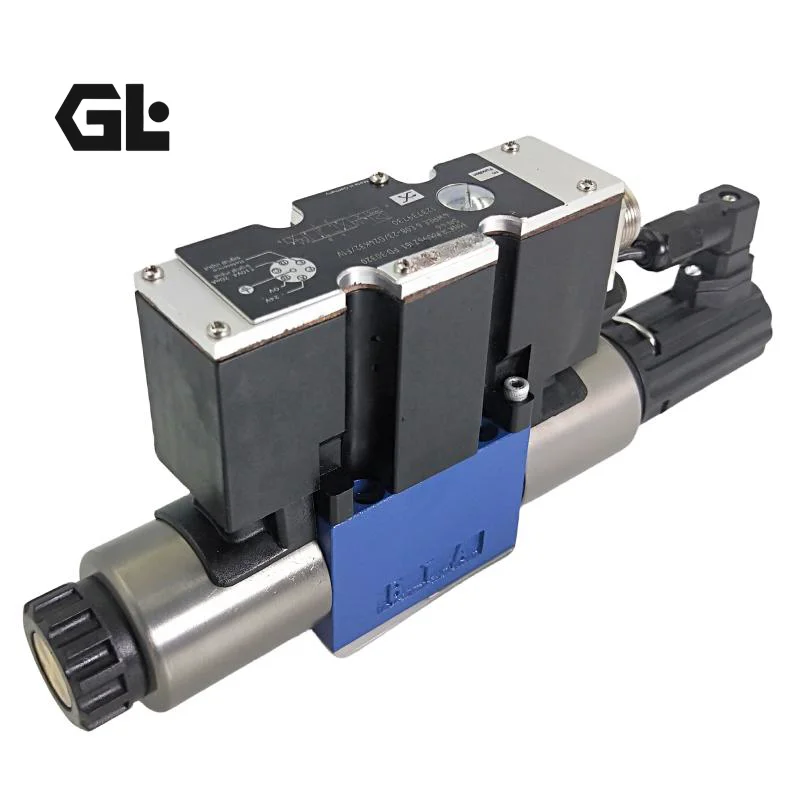

The 4WREE10W75-2X/G24K31/F1V (related material number R901496719 and similar) is a Bosch Rexroth 4WREE series direct-operated proportional directional valve. Equipped with electrical position feedback and integrated on-board electronics (OBE), it precisely controls the direction and magnitude of flow. The spring-centered spool (symbol W, with A and B connected to T in neutral) delivers a rated flow of 75 L/min at Δp = 10 bar. Fully compliant with ISO 4401-05 mounting standards, the valve offers true interchangeability as a drop-in replacement for original Rexroth units without manifold or piping modifications. Every unit undergoes precision machining and 100% simulated duty-cycle testing to ensure high response sensitivity, low hysteresis, and stable proportional performance.

Technical Specification

Model: 4WREE10W75-2X/G24K31/F1V (Bosch Rexroth 4WREE Series)
Nominal Size: NG10 (ISO 4401-05-04-0-05)
Spool Symbol: W (A and B connected to T in neutral)
Rated Flow (Δp = 10 bar): 75 L/min
Maximum Flow: 180 L/min
Maximum Operating Pressure: Ports P, A, B 315 bar; Port T 210 bar
Actuation: Proportional solenoids with electrical position feedback and integrated electronics (OBE)
Supply Voltage: 24 V DC (G24)
Command Signal Interface: F1 (4…20 mA)
Electrical Connection: K31 (DIN EN 175201-804, 7-pole connector)
Seal Material: FKM (V code)
Weight: Approx. 6.24 kg
Installation Position: Any (preferably horizontal)
Ambient Temperature: –20°C to +50°C
Filtration: ISO 4406 20/18/15 (recommended)

Key Technical Advantages

Integrated OBE with closed-loop position feedback – Built-in electronics and electrical position sensing deliver low hysteresis and high response sensitivity for precise proportional flow control.
Efficient direct-operated design – No pilot oil required; compact construction provides high flow capability at low pressure drop, ideal for medium-to-high flow high-precision applications.
True interchangeability and standard interfaces – Fully compliant with ISO 4401 NG10 mounting pattern, enabling direct drop-in replacement of original Rexroth valves and minimizing system modification costs.
Reliable spring centering and long service life – Spring-centered spool combined with precision manufacturing and 100% duty-cycle testing ensures stable long-term operation and high MTTF.

Application Areas

Ideal for injection molding machines, die-casting equipment, hydraulic presses, machine-tool feed systems, test stands, steel and metallurgical plants, and any medium-to-high flow industrial closed-loop hydraulic system requiring precise position, velocity, or force control.

Expert Maintenance Tips

Ensure manifold surface quality meets specifications and tighten mounting bolts to the correct torque; lock the electrical connector properly and verify protective earth; maintain fluid cleanliness at ISO 4406 20/18/15 or better; periodically check position feedback signals and amplifier parameters; confirm command-signal zero point before first power-up; during extended downtime, energize the valve periodically to keep the spool lubricated.

Related Models：

R900703908 4WREE10E1-50-2X/G24K31/F1V
R900710343 4WREE10EB50-2X/G24K31/A1V
R900724343 4WREE10EB75-2X/G24K31/F1V
R900767561 4WREE10EA25-2X/G24K31/F1V
R900927230 4WREE10E75-2X/G24K31/A1V
R900927231 4WREE10E50-2X/G24K31/A1V
R900927232 4WREE10E1-75-2X/G24K31/A1V
R900927356 4WREE10E75-2X/G24K31/F1V
R900933073 4WREE10E25-2X/G24K31/A1V
R900933076 4WREE10E1-50-2X/G24K31/A1V
R900939866 4WREE10EA50-2X/G24K31/A1V
R900940191 4WREE10EA75-2X/G24K31/A1V
R900943094 4WREE10E50-2X/G24K31/F1V
R900949382 4WREE10E3-50-2X/G24K31/A1V
R900950497 4WREE10EB75-2X/G24K31/A1V
R900956574 4WREE10E25-2X/G24K31/F1V
R900958157 4WREE10E1-25-2X/G24K31/A1V
R900967790 4WREE10EA25-2X/G24K31/A1V
R900970089 4WREE10E1-75-2X/G24K31/F1V
R900971420 4WREE10EA50-2X/G24K31/F1V
R900972424 4WREE10E3-75-2X/G24K31/A1V
R900976330 4WREE10EA75-2X/G24K31/F1V
R901048034 4WREE10E3-75-2X/G24K31/F1V
R901066667 4WREE10E1-25-2X/G24K31/F1V
R901179145 4WREE10E50-2X/G24K31/A1V-660
R901188937 4WREE10E1-50-2X/G24K31/A1V-660
R901188938 4WREE10E1-75-2X/G24K31/A1V-660
R901219466 4WREE10E50-2X/G24K31/A1V=XV
R901219782 4WREE10E75-2X/G24K31/A1V=XV
R901289129 4WREE10E75-2X/G24K31/A1V-967
R901354776 4WREE10E1-50-2X/G24K31/F1M
R901354778 4WREE10E1-75-2X/G24K31/F1M
R901354780 4WREE10E50-2X/G24K31/F1M
R901354781 4WREE10E75-2X/G24K31/F1M
R901356207 4WREE10E75-2X/G24K31/A1M
R901363566 4WREE10E3-50-2X/G24K31/F1V
R901381875 4WREE10E1-75-2X/G24K31/A1M
R901395952 4WREE10E75-2X=G24K31/A1V
R901429615 4WREE10E75-2X/G24K31/A1V.-151
R901444764 4WREE10E75-2X/G24K31/A1V.-A15
R901469711 4WREE10E25-2X/G24K31/A1M
R901503148 4WREE10E1-50-2X/G24K31/A1M
R900617269 4WREE10V75-2X/G24K31/F1V
R900779950 4WREE10V25-2X/G24K31/F1V
R900924607 4WREE10V75-2X/G24K31/A1V
R900924975 4WREE10V50-2X/G24K31/F1V
R900927235 4WREE10V50-2X/G24K31/A1V
R900933075 4WREE10V25-2X/G24K31/A1V
R900943804 4WREE10V1-50-2X/G24K31/A1V
R900950365 4WREE10V1-25-2X/G24K31/A1V
R900950902 4WREE10V1-75-2X/G24K31/A1V
R900972643 4WREE10V1-50-2X/G24K31/F1V
R900976334 4WREE10V1-25-2X/G24K31/F1V
R901024870 4WREE10V1-75-2X/G24K31/F1V
R901060222 4WREE10V75-2X/G24K31/A1V-826
R901071199 4WREE10V50-2X/G24K31/A1V-826
R901071988 4WREE10V50-2X=G24K31/A1V-826
R901071989 4WREE10V75-2X=G24K31/A1V-826
R901179032 4WREE10V75-2X/G24K31/A1V-660
R901179034 4WREE10V50-2X/G24K31/A1V-660
R901179107 4WREE10V25-2X/G24K31/A1V-660
R901233907 4WREE10V1-50-2X/G24K31/F1V-876
R901268329 4WREE10V50-2X/G24K31/F1V-876
R901268334 4WREE10V75-2X/G24K31/F1V-876
R901272730 4WREE10V50-2X/G24K31/A1V-956
R901272835 4WREE10V75-2X/G24K31/A1V-956
R901276917 4WREE10V50-2X=G24K31/A1V-956
R901276978 4WREE10V75-2X=G24K31/A1V-956
R901354782 4WREE10V50-2X/G24K31/F1M
R901354783 4WREE10V75-2X/G24K31/F1M
R901400160 4WREE10V1-75-2X/G24K31/F1M
R901412403 4WREE10V1-75-2X/G24K31/A1M
R901516720 4WREE10V1-50-2X/G24K31/F1M
R900244748 4WREE10W3-75-2X/G24K31/F1V
R900247296 4WREE10WA50-2X/G24K31/A1V
R900741017 4WREE10W75-2X/G24K31/A1V=LB
R900927233 4WREE10W75-2X/G24K31/A1V
R900927234 4WREE10W1-75-2X/G24K31/A1V
R900931319 4WREE10W3-50-2X/G24K31/A1V
R900931371 4WREE10W50-2X/G24K31/A1V
R900933074 4WREE10W25-2X/G24K31/A1V
R900933077 4WREE10W1-50-2X/G24K31/A1V
R900935771 4WREE10W3-25-2X/G24K31/A1V
R900948360 4WREE10W75-2X/G24K31/F1V
R900949806 4WREE10W50-2X/G24K31/F1V
R900953102 4WREE10W25-2X/G24K31/F1V
R900956458 4WREE10W1-25-2X/G24K31/A1V
R900960910 4WREE10WB50-2X/G24K31/F1V
R900962405 4WREE10W1-25-2X/G24K31/F1V
R900963483 4WREE10WA75-2X/G24K31/F1V
R900965185 4WREE10W1-50-2X/G24K31/F1V
R900969321 4WREE10W3-75-2X/G24K31/A1V
R900969501 4WREE10W75-2X/G24K31/A1V=DE
R900976119 4WREE10W1-75-2X/G24K31/F1V
R901002587 4WREE10WA75-2X/G24K31/A1V
R901060996 4WREE10WA25-2X/G24K31/F1V
R901063131 4WREE10WA50-2X/G24K31/F1V
R901097145 4WREE10WB50-2X/G24K31/A1V
R901135118 4WREE10W75-2X/G24K31/A1V-280
R901185591 4WREE10W2-75-2X/G24K31/A1V
R901268120 4WREE10WB75-2X/G24K31/A1V
R901284098 4WREE10W75-2X/G24K31/A1V-967
R901285747 4WREE10W1-50-2X/G24K31/A1V-967
R901289124 4WREE10W1-75-2X/G24K31/A1V-967
R901293243 4WREE10W75-2X/G24K31/A1V-660
R901354784 4WREE10W1-50-2X/G24K31/F1M
R901354786 4WREE10W1-75-2X/G24K31/F1M
R901354788 4WREE10W50-2X/G24K31/F1M
R901354791 4WREE10W75-2X/G24K31/F1M
R901371014 4WREE10W1-75-2X/G24K31/A1M
R901377557 4WREE10W25-2X/G24K31/A1M
R901430295 4WREE10WA25-2X/G24K31/A1V
R901446211 4WREE10W75-2X/G24K31/A1M
R901447107 4WREE10W50-2X/G24K31/A1M
R901488300 4WREE10W1-50-2X=G24K31/F1M
R901488301 4WREE10W1-25-2X=G24K31/F1M
R901488439 4WREE10W1-75-2X=G24K31/F1M
R901491307 4WREE10W25-2X/G24K31/F1M
R901496719 4WREE10W75-2X=G24K31/F1V
R901499657 4WREE10W1-50-2X/G24K31/A1M
R901505588 4WREE10W1-25-2X/G24K31/F1M
