RPE3-062Z51/02400E1-A/M ARGO-HYTOS Directional Control Valve NG6 350 bar

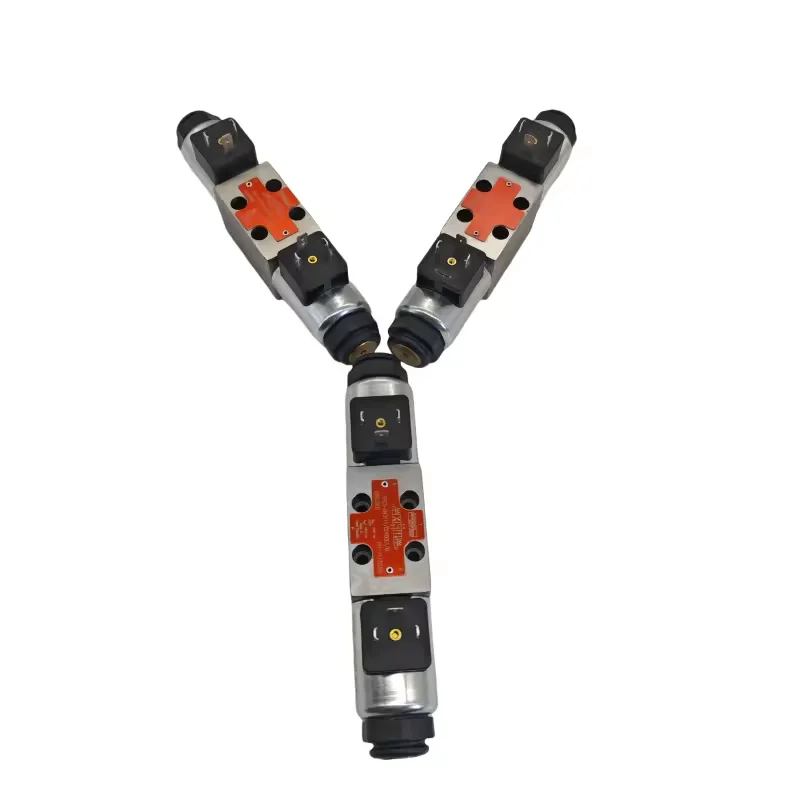

Product Overview

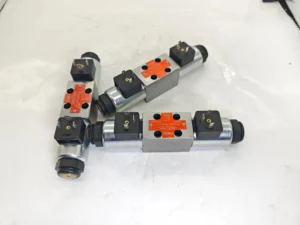

The RPE3-062Z51/02400E1-A/M (Material No. 15766500) is a direct-acting solenoid-operated directional control valve from ARGO-HYTOS’ RPE3 series. Featuring subplate mounting with interface conforming to ISO 4401 and DIN 24340 (CETOP 03) standards, this NG6 (D03) size valve is configured as a 4/2-way (two-position, four-way) directional control valve.

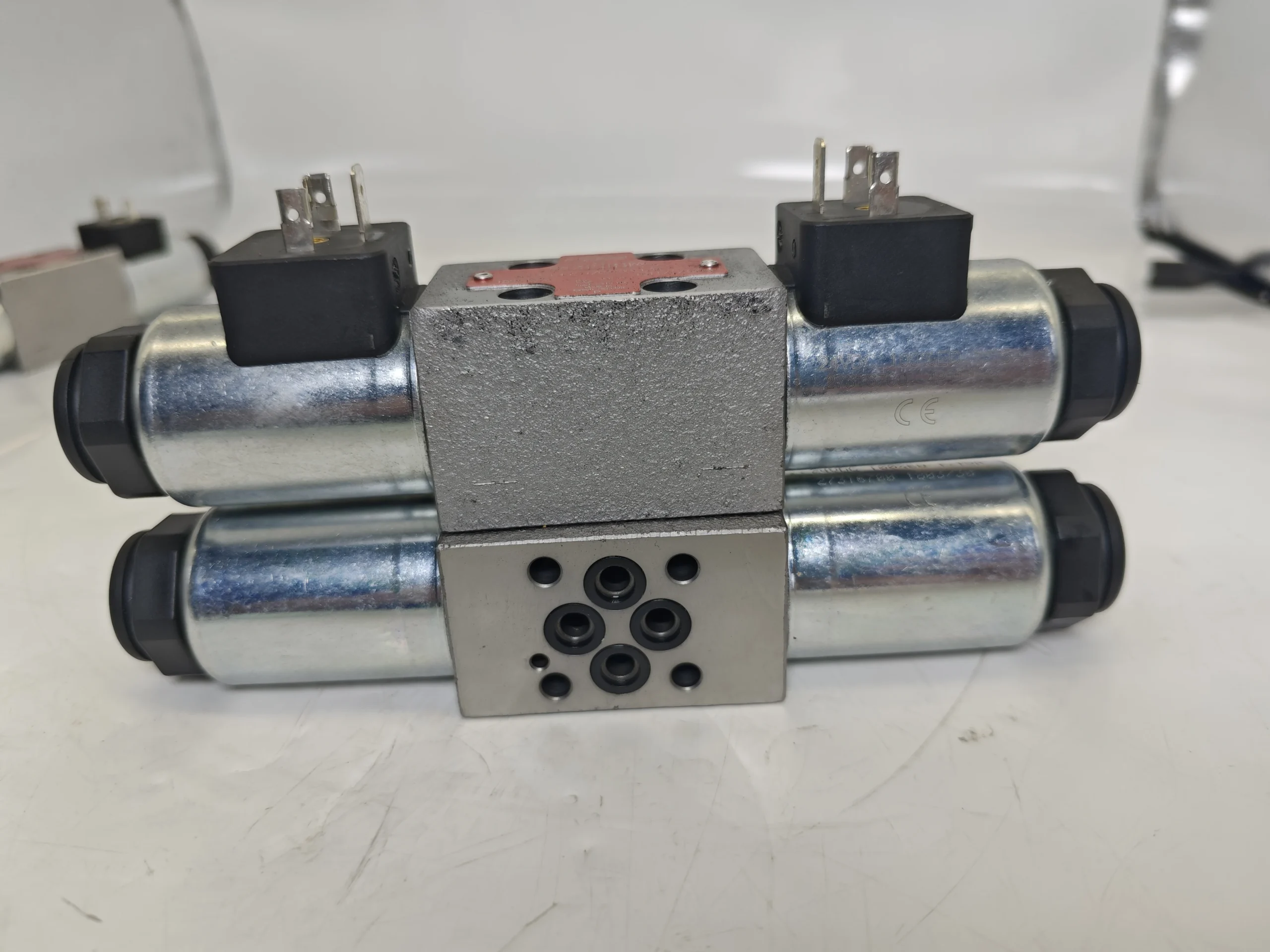

The RPE3 series directional control valves consist of a high-strength ductile cast iron housing (1), a precision-ground control spool (5) with two centering springs (4), and detachable cylindrical operating solenoids (2, 3). The core function is to control the axial displacement of the spool within the housing via solenoid energization and de-energization, thereby redirecting hydraulic fluid flow among ports P, A, B, and T—enabling directional control or stopping of hydraulic actuators (cylinders and motors).

As a direct replacement solution for the ARGO-HYTOS RPE3 series, this product strictly complies with HA 4010 technical data sheet standards and offers complete interchangeability—direct drop-in replacement without any modification to mounting dimensions or piping connections. Every unit undergoes 100% simulated duty cycle testing prior to shipment, ensuring performance reliability and long-term operational stability under actual working conditions.

Technical Specifications (Bulleted List)

• Model: RPE3-062Z51/02400E1-A/M

• Material Number: 15766500

• Product Series: RPE3

• Brand: ARGO-HYTOS

• Valve Size: 06 (D03 / NG6)

• Spool Symbol: Z51

• Number of Valve Positions: 2 positions (4/2-way)

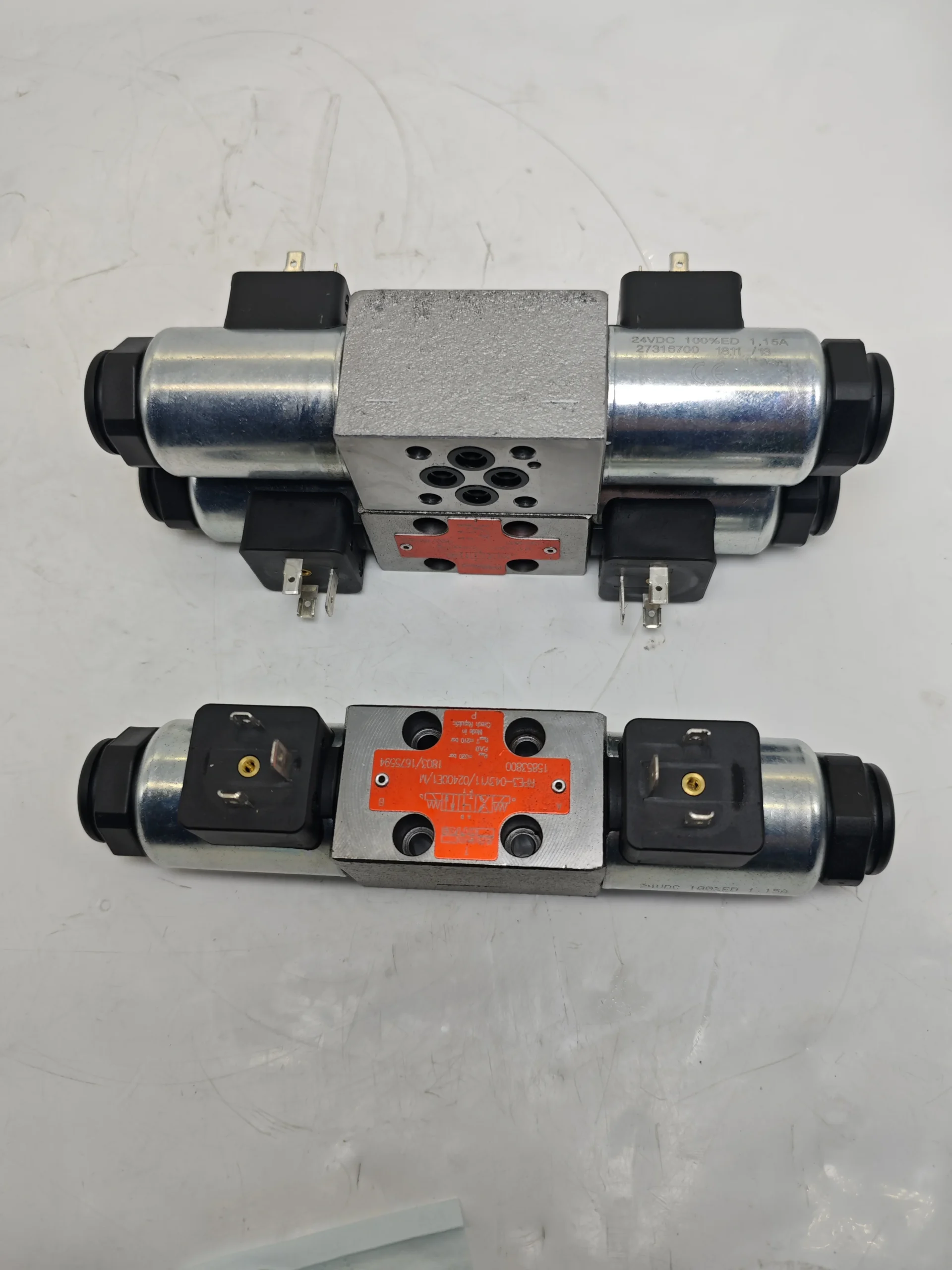

• Mounting Type: Subplate mounting

• Mounting Interface Standard: ISO 4401 / DIN 24340 (CETOP 03)

• Max. Operating Pressure (Ports P, A, B) : 350 bar (standard)

• Max. Operating Pressure (Ports P, A, B, CSA) : 320 bar

• Max. Operating Pressure (Port T) : 210 bar

• Max. Flow Rate: 80 L/min (21.1 GPM)

• Supply Voltage: 24 V DC

• Rated Current: 1.29 A (at 24 V DC)

• Solenoid Coil Type: E1 (with terminal for connector per EN 175301-803)

• Seal Material: NBR (standard)

• Manual Override: Push-button with rubber protective boot

• Max. Switching Frequency: 15,000 cycles/hour

• Switching Time (24 V DC, ν=32 mm²/s) : ON 30–50 ms / OFF 10–50 ms

• Ambient Temperature Range: -30 °C to +50 °C

• Fluid Temperature Range (NBR seals) : -30 °C to +80 °C

• Fluid Temperature Range (FPM seals) : -20 °C to +80 °C

• Weight (1 solenoid configuration) : Approx. 1.6 kg

• Weight (2 solenoids configuration) : Approx. 2.2 kg

• Housing Surface Treatment: Phosphated (preparation for painting)

• Steel Parts Surface Treatment: Zinc-coated, 240 h salt spray protection (ISO 9227)

• Enhanced Surface Protection (optional) : 520 h salt spray protection (ISO 9227)

Key Technical Advantages

1. Direct-Acting Design – Fast Response & Precise Control
The RPE3 series employs a direct-acting solenoid-to-spool design, eliminating the need for a pilot stage and enabling exceptionally short response times—30–50 ms ON and 10–50 ms OFF at 24 V DC. This makes the valve particularly suitable for closed-loop control systems and high-frequency cycling applications where rapid response is critical.

2. Five-Chamber Housing Design – Superior Viscosity Tolerance
The unique five-chamber housing design effectively reduces the dependence of hydraulic power on fluid viscosity. This ensures stable and reliable shifting performance even under extreme conditions—cold starts with high-viscosity oil or prolonged operation with elevated temperatures and low-viscosity oil—making it ideal for mobile machinery operating in wide temperature ranges.

3. Premium Materials & Precision Machining – Extended Service Life
The valve body is manufactured from high-strength ductile cast iron, with all bore machining completed in a single clamping on precision machining centers—achieving micron-level fit tolerances between the spool and housing. The spool is precision-lapped for optimal sealing and wear resistance. The duplex corrosion protection system—phosphating for the housing and zinc coating for solenoids and steel parts—significantly extends service life in harsh, humid, or dusty environments.

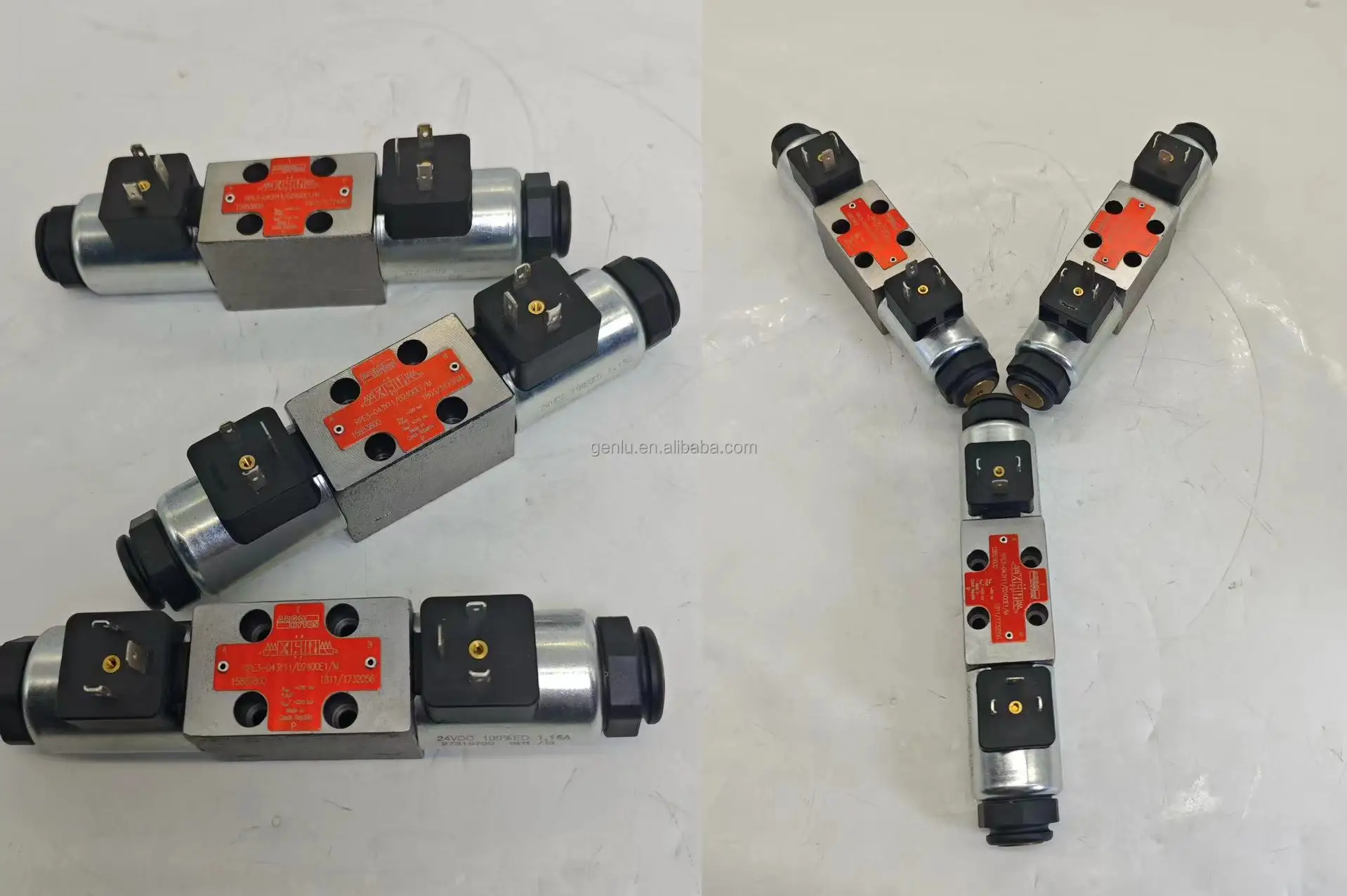

4. 360° Rotatable Solenoid – Exceptional Installation Flexibility
The solenoid is fastened to the core tube with a retaining nut and can be rotated 360° around its axis to accommodate various installation space constraints and wiring orientations. The detachable solenoid design allows coil replacement without disturbing any valve seals, substantially reducing on-site maintenance difficulty and downtime.

5. Fail-Safe Protection & Manual Override
In the event of solenoid failure or power loss, the valve spool can be actuated via the push-button manual override—provided the T-port pressure does not exceed 25 bar—ensuring essential equipment operations can still be performed during emergencies. Additionally, the Z51 spool features spring-centered return, automatically returning the spool to the neutral position (P-port blocked) upon de-energization for safe fail-safe protection.

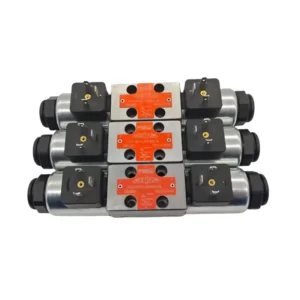

6. Extensive Interchangeability & Expansion Capabilities

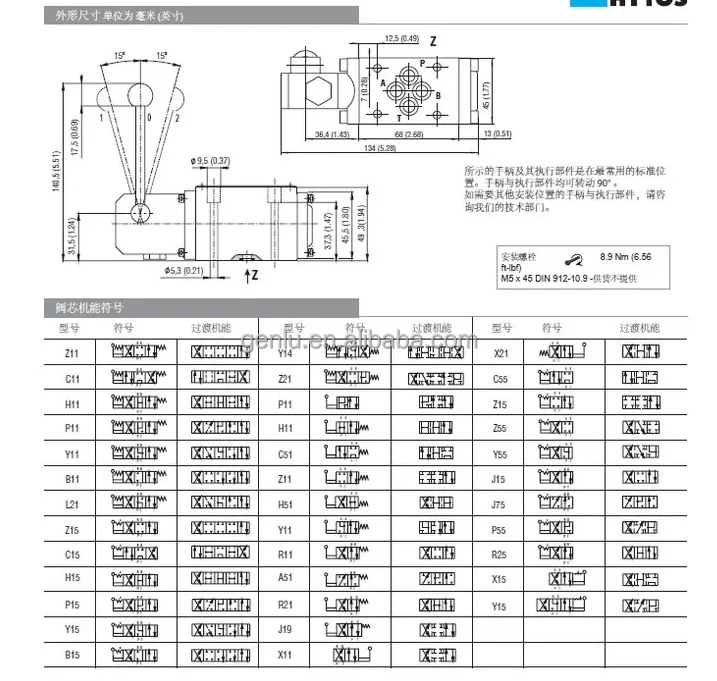

The RPE3 series offers a wide range of spool symbols (Z51, Y11, R11, C11, H11, etc.), multiple solenoid coil voltages (12 V DC, 24 V DC, 42 V DC, 48 V DC, 115 V AC, 230 V AC, etc.), and various electrical connector options (with rectifier, with LED indicator, with quenching diode, etc.). All solenoids are interchangeable, allowing customers to flexibly select or replace coils based on actual requirements without replacing the entire valve body.

Application Areas

• Injection Molding Machinery: Directional control for clamping, injection, ejection, and other hydraulic cylinder sequences

• Hydraulic Presses & Die-Casting Machines: High-frequency, reliable shifting control for slides and ejector cylinders

• Mobile Machinery (Construction Equipment) : Directional control for hydraulic implements on loaders, excavators, forklifts, etc.

• Machine Tool Hydraulic Systems: Directional control for tool feed, table reversal, and workholding clamping

• Metallurgical & Mining Equipment: Hydraulic directional control in rolling mills and mining machinery

• Test Rigs & Laboratory Equipment: High-frequency switching and precise directional control for hydraulic testing systems

• Marine & Offshore Equipment: Directional control for deck machinery, steering gears, and other hydraulic systems

Expert Maintenance Tips

1. Hydraulic Fluid Cleanliness Control
The RPE3 series features extremely tight clearances (micron-level) between the spool and housing, making it highly sensitive to fluid contamination. Maintain system fluid cleanliness at ISO 4406 16/13 (or NAS 1638 Class 8) or better, with a return-line filter of no less than 10 μm absolute upstream. Fluid contamination is the primary cause of spool sticking and shifting failure.

2. Solenoid Coil Selection & Voltage Matching
This model (code “02400”) is equipped with a 24 V DC / 1.29 A solenoid coil. Prior to installation, verify that the power supply voltage remains stable within ±10% of the rated value. Over-voltage will cause coil overheating and burnout; under-voltage may result in insufficient electromagnetic force and incomplete spool shifting. Never connect AC power directly to a DC-rated coil.

3. Mounting Surface Cleaning & Seal Inspection
Thoroughly clean the mounting surface prior to installation and verify that surface roughness meets ISO 4401 requirements. Inspect O-ring seals (NBR material, compatible with mineral-oil-based hydraulic fluids) for aging, damage, or deformation—replace seals with new ones after every disassembly. Tighten mounting bolts in a diagonal sequence over multiple passes to the torque values specified in the HA 4010 technical data sheet.

4. Manual Override Operation
When using the manual override push-button, confirm that the T-port pressure does not exceed 25 bar—above this limit, manual actuation force increases dramatically, potentially damaging the button or failing to shift the spool. Use the appropriate tool (e.g., hex wrench) to apply gentle, controlled pressure—never use excessive force.

5. Scheduled Maintenance
Perform preventive maintenance every 2,000 operating hours or every six months:

• Inspect solenoid coil resistance and insulation integrity

• Check electrical connectors for looseness, oxidation, or arcing damage

• Inspect O-ring seals for aging, hardening, or damage

• Verify manual override functionality

• If shifting response becomes sluggish, spool sticking occurs, or abnormal noise is detected, promptly check fluid cleanliness and clean or replace the spool as necessary.
