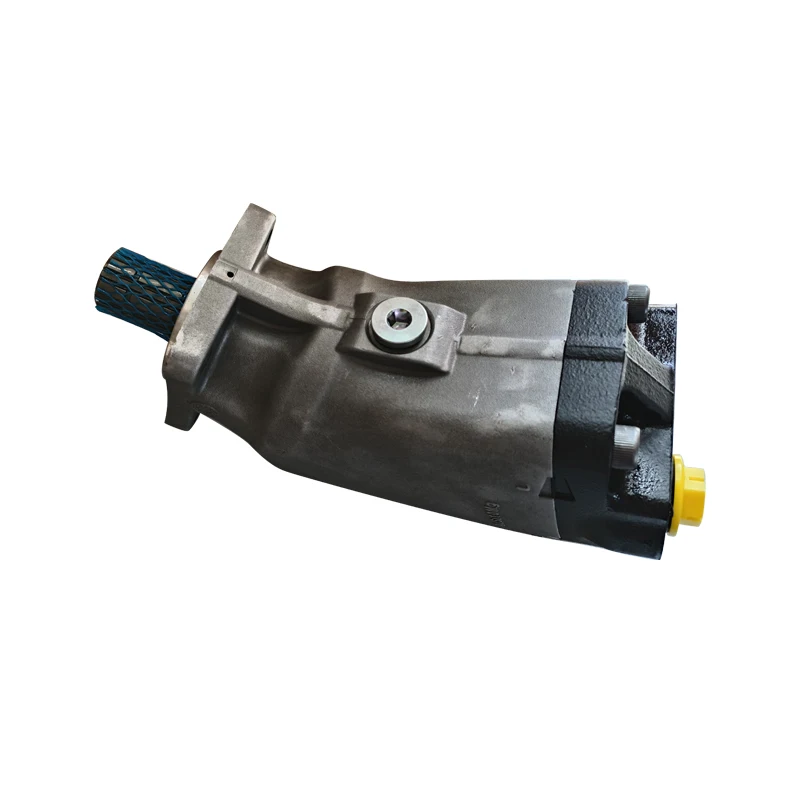

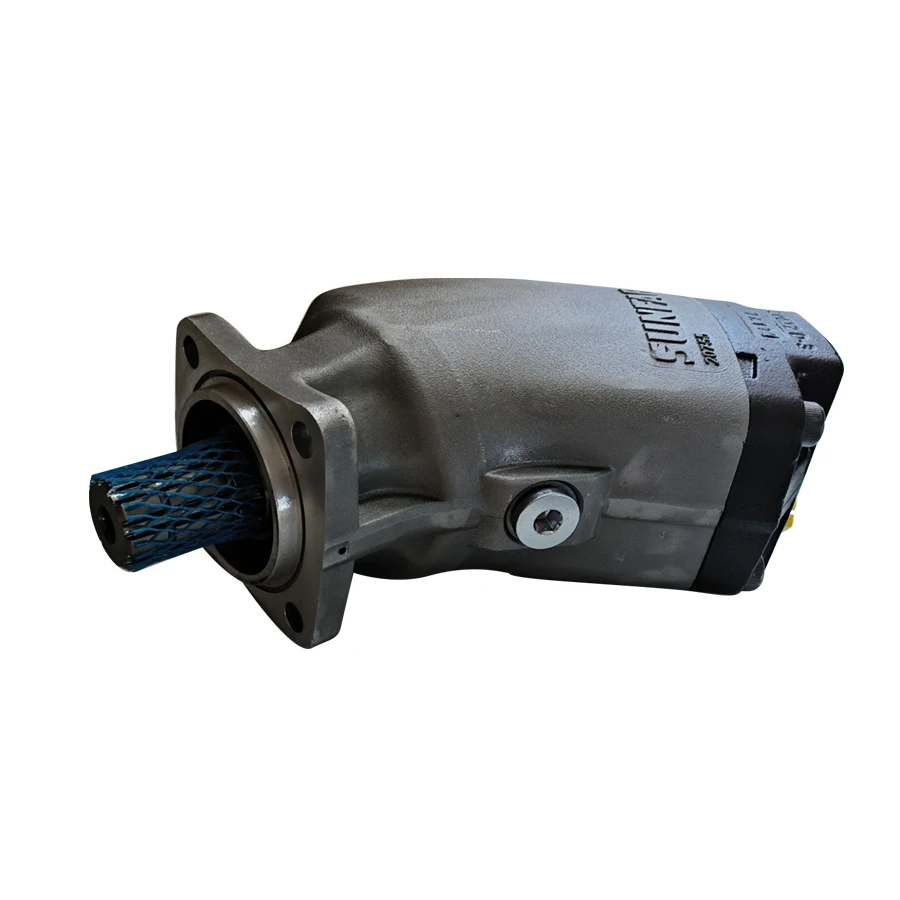

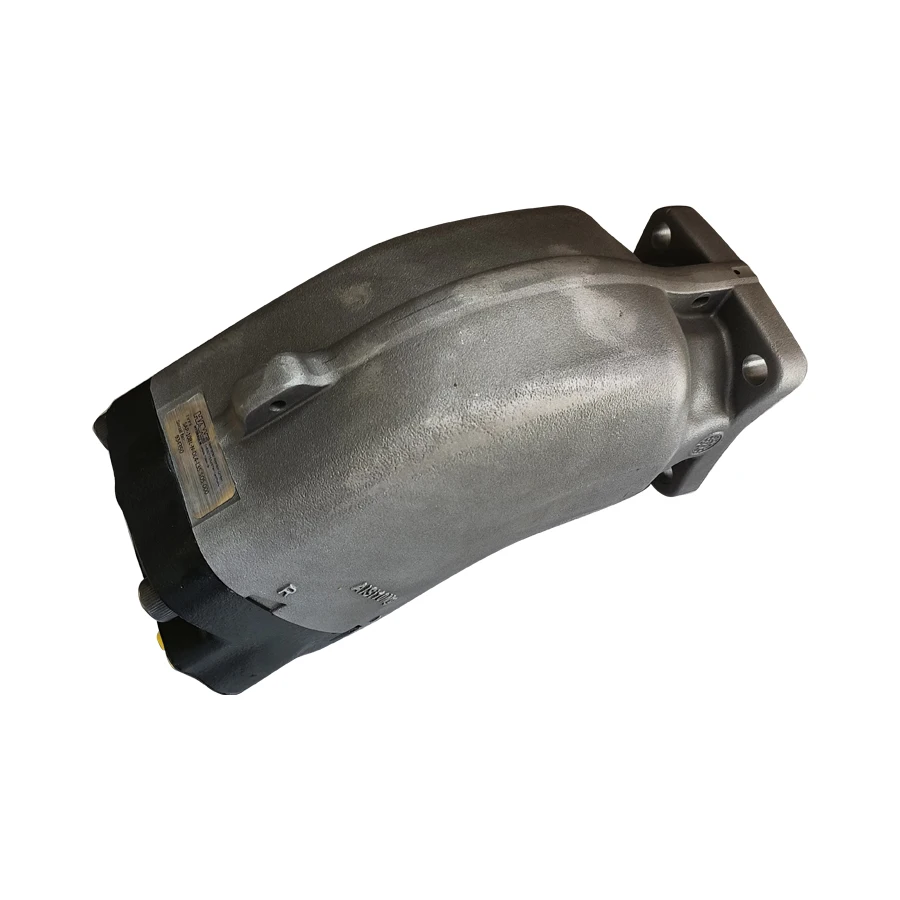

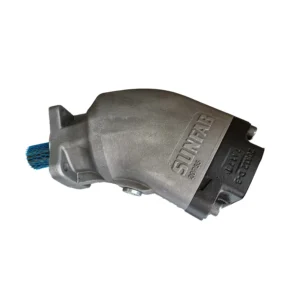

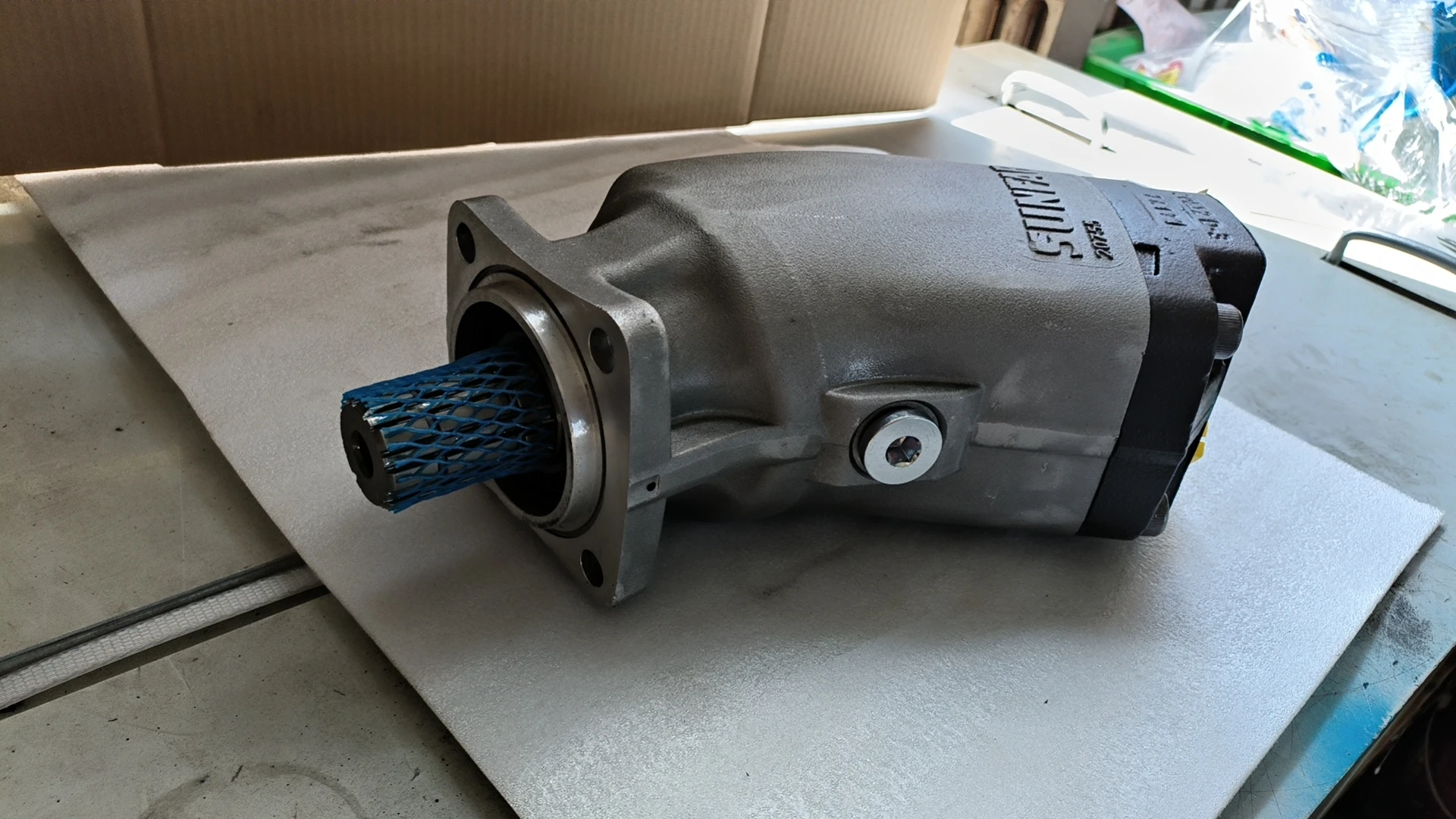

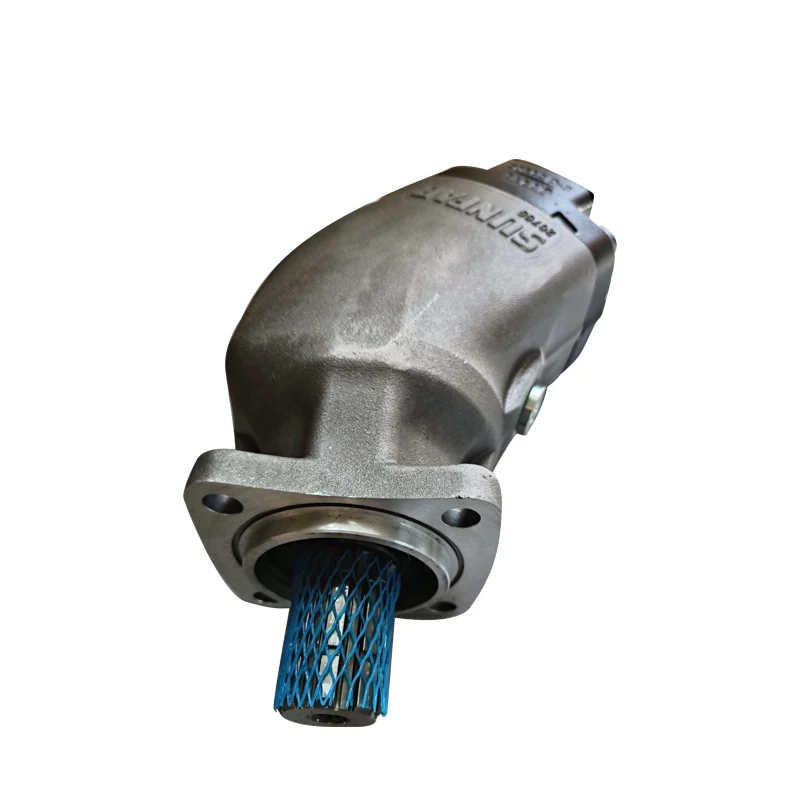

SCP-064R-V-DL4-L35-S0S-000 Sunfab Piston Pump

Product Overview

The SUNFAB SCP Series is a family of fixed-displacement axial piston pumps developed for demanding mobile hydraulic applications. Sunfab’s official documentation highlights high speed capability, low noise, smooth operation across the speed range, and long service life supported by high-quality bearings and seals.

The models covered here are:

• SCP-064R-V-DL4-L35-S0S-000
• SCP-034L-N-I42-W30-S0S-100

The second model was entered as SCP-034L-N-142-W30-SOS-100. Based on Sunfab’s official ordering-code structure, the technically standardized representation is SCP-034L-N-I42-W30-S0S-100:

• I42 = ISO 4-hole, Ø100 mounting flange
• W30 = DIN 5480 W30 spline
• S0 = 40° Sunfab standard connection cover
• S = Sunfab standard connections
• 1 = external drainage
• 00 = no accessories.

Both are fixed-displacement pumps, so they do not use a variable-displacement regulator. Output flow is fundamentally determined by pump displacement and shaft speed.

Our replacement engineering process focuses on in-place interchangeability, including displacement, rotation, flange, shaft, ports, connection cover and drain configuration, followed by 100% simulated working-condition testing.

Technical Specifications

SCP-064R-V-DL4-L35-S0S-000

• Manufacturer: SUNFAB Hydraulics AB
• Series: SCP
• Pump Type: Fixed-displacement axial piston pump
• Displacement: 63.6 cm³/rev
• Maximum Continuous Working Pressure: 350 bar
• Maximum Continuous Speed: 1,900 rpm
• Maximum Intermittent Speed: 2,500 rpm
• Theoretical Flow at 500 rpm: 32 L/min
• Theoretical Flow at 1,000 rpm: 64 L/min
• Theoretical Flow at 1,500 rpm: 95 L/min
• Approx. theoretical flow at 1,900 rpm: 121 L/min
• Approx. theoretical flow at 2,500 rpm: 159 L/min
• Control: Fixed displacement
• Rotation: R = right-hand / clockwise
• Mounting flange: DL4 = DIN 4-hole, ISO 7653-D
• Shaft: L35 = DIN 5462 / ISO 14, 8×32×34.9 mm
• Connection cover: S0 = 40° Sunfab standard
• Connections: S = Sunfab standard
• Accessories: 000 = none
• Weight: 11.7 kg.

Code verification note: the current Sunfab ordering guide identifies V¹ as an HNBR high-temperature sealing option for SAP/SCP. Because the supplied code is written ...R-V-..., the sealing material of the exact legacy/variant code should be confirmed from the pump nameplate or original order documentation rather than inferred.

SCP-034L-N-I42-W30-S0S-100

Original input: SCP-034L-N-142-W30-SOS-100

• Manufacturer: SUNFAB Hydraulics AB
• Series: SCP
• Standardized Model Code: SCP-034L-N-I42-W30-S0S-100
• Pump Type: Fixed-displacement axial piston pump
• Displacement: 34.2 cm³/rev
• Maximum Working Pressure: 400 bar
• Maximum Speed, nmax: 2,250 rpm
• Maximum Admissible Speed, nmax limit: 4,550 rpm, subject to increased inlet pressure conditions
• Theoretical Flow at 500 rpm: 17 L/min
• Theoretical Flow at 1,000 rpm: 34 L/min
• Theoretical Flow at 1,500 rpm: 51 L/min
• Approx. theoretical flow at 2,250 rpm: 77 L/min
• Control: Fixed displacement
• Rotation: L = left-hand / counterclockwise
• Seal: N = Nitrile / NBR
• Mounting flange: I42 = ISO 4-hole, Ø100
• Shaft: W30 = DIN 5480, W30×2×14×9g
• Connection cover: S0 = 40° Sunfab standard
• Connections: S = Sunfab standard
• Additional option: 1 = external drainage
• Accessories: 00 = none
• Maximum power: 50 kW
• Weight: 8.5 kg
• Mass moment of inertia: 1.1 × 10⁻³ kg·m².

Key Technical Advantages

1. Fixed-Displacement Axial-Piston Design

SCP pumps use a fixed-displacement axial-piston architecture. Theoretical flow is determined primarily by displacement and rotational speed, allowing predictable output in PTO-driven hydraulic systems.

2. High-Pressure Capability

The official SCP DIN specification rates the 064 displacement at 350 bar maximum working pressure, while the SCP 012–130 ISO family rates the 034 configuration at 400 bar. These values should not be generalized across every flange and configuration.

3. High Speed with Low Noise

Sunfab identifies high maximum speed while maintaining low noise as a key SCP benefit. This is particularly relevant for PTO-driven mobile systems where increasing pump speed is a common method of increasing hydraulic flow without increasing displacement.

4. Smooth Operation Across the Speed Range

Sunfab specifies smooth operation over the entire speed range. This is useful for commercial vehicles and mobile machines where PTO speed can vary substantially with engine operating conditions.

5. High-Quality Bearings and Seals

Sunfab explicitly highlights high material requirements for bearings, seals and related components to support long service life.

6. O-Rings and Double Shaft Seals

The SCP documentation emphasizes O-rings at contact surfaces and double shaft seals to reduce oil leakage from the pump and PTO interface.

7. Multiple Mounting and Shaft Standards

The Sunfab coding system supports DIN, SAE and ISO mounting configurations, together with DIN 5462 / ISO 14 and DIN 5480 spline options. This allows engineering teams to match the pump to different PTO and vehicle installation interfaces.

Application Areas

Sunfab positions the SCP family for demanding mobile hydraulics and applications where the pump can be mounted directly to a PTO or installed on a frame bracket through an intermediate shaft.

Typical applications include:

• Road-maintenance vehicles
• Refuse collection vehicles
• Concrete mixers
• Truck-mounted hydraulic equipment
• Hydraulic cranes
• Forestry machinery
• Municipal service vehicles
• PTO-driven hydraulic power units

Sunfab’s general pump-selection guidance specifically covers gearbox-mounted PTOs, engine-mounted PTOs and combination vehicles such as road-maintenance equipment.

Expert Maintenance Tips

1. Verify PTO Ratio Before Final Pump Selection

Sunfab specifies the relationship:

n pump = z × n engine

Therefore, actual pump speed depends on both engine speed and PTO ratio. For SCP-064, the installation should remain within 1,900 rpm continuous and 2,500 rpm intermittent under the applicable configuration.

2. Do Not Treat nmax Limit as Normal Self-Priming Speed

The SCP-034 ISO documentation lists 2,250 rpm nmax and 4,550 rpm nmax limit. The higher limit requires suitable increased inlet pressure and must not be interpreted as a normal unrestricted operating speed.

3. Protect the Suction Circuit

At high speed, suction-side pressure loss and air ingress can strongly affect piston-pump reliability. Check reservoir level, suction-pipe size, filter restriction, inlet losses and PTO speed whenever abnormal noise, vibration, heat or reduced flow occurs.

4. Maintain External Drainage Where Specified

For SCP-034L-N-I42-W30-S0S-100, the 1 in the additional-option position indicates external drainage. The drain circuit should therefore be retained and correctly routed during replacement installation.

5. Control Hydraulic Cleanliness

The axial-piston rotating group relies on close-tolerance surfaces, bearings and seals. Contamination introduced during oil filling, hose replacement or pump installation can accelerate wear and reduce volumetric performance.

6. Check PTO and Intermediate-Shaft Alignment

When an intermediate shaft and frame bracket are used, verify shaft alignment, coupling condition, bracket rigidity and spline engagement. Avoid imposing unnecessary radial or bending loads on the pump shaft.

7. Confirm Seal Code Before Ordering

The two models use different seal designations:

• SCP-064R-V-DL4-L35-S0S-000: the supplied code uses V; Sunfab’s current public code table lists V¹ as the HNBR option for SAP/SCP.
• SCP-034L-N-I42-W30-S0S-100: N is Nitrile/NBR.

For replacement orders, the nameplate and original Sunfab order code should take precedence over a normalized web listing.
