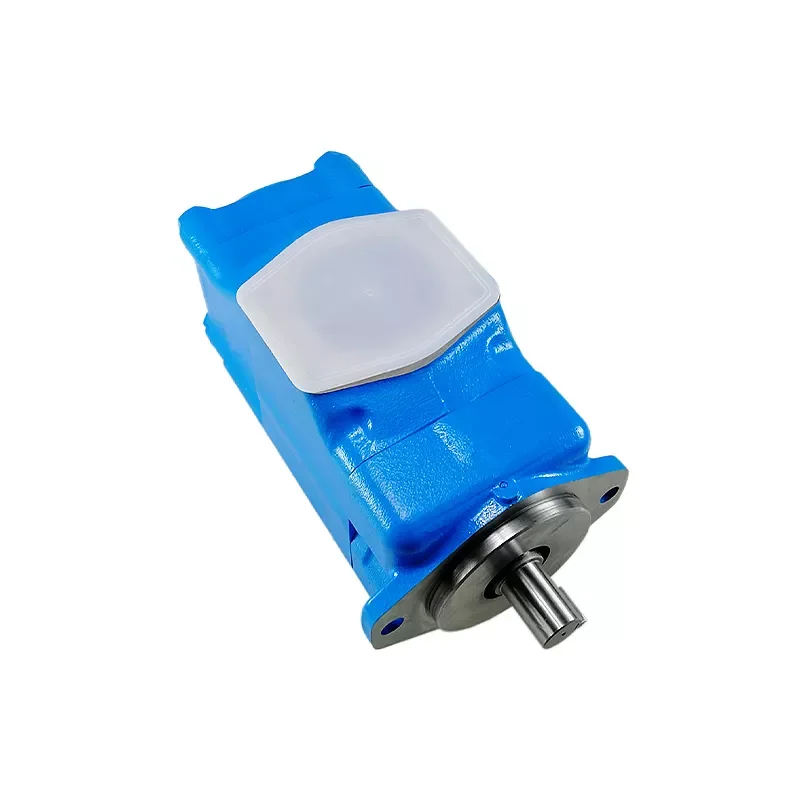

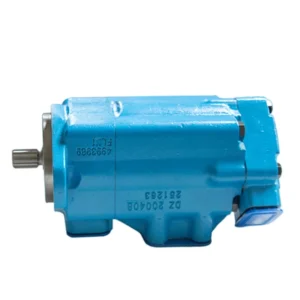

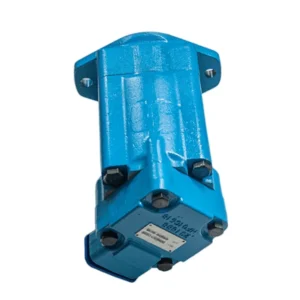

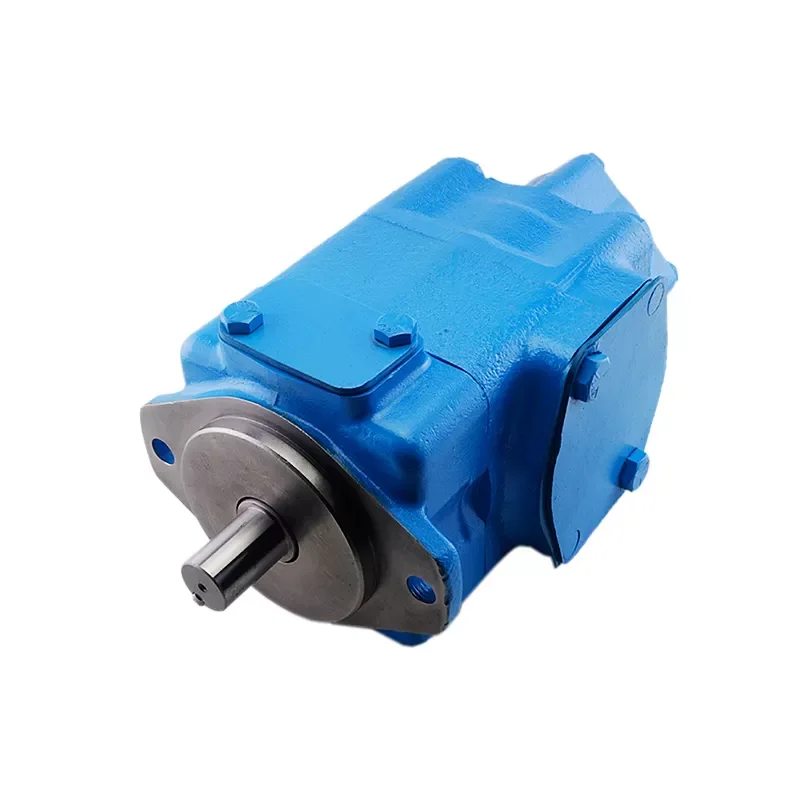

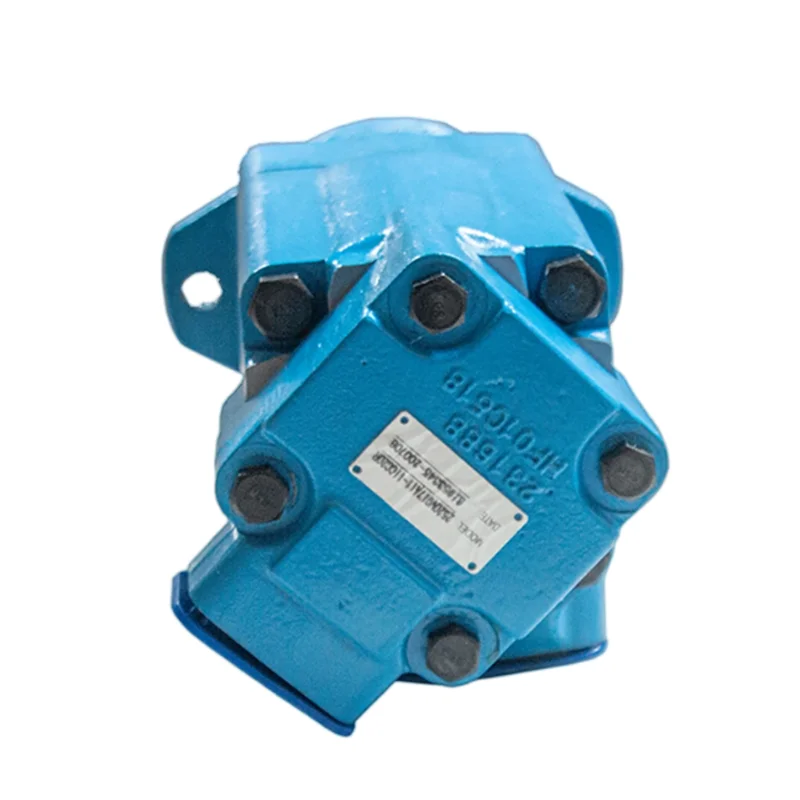

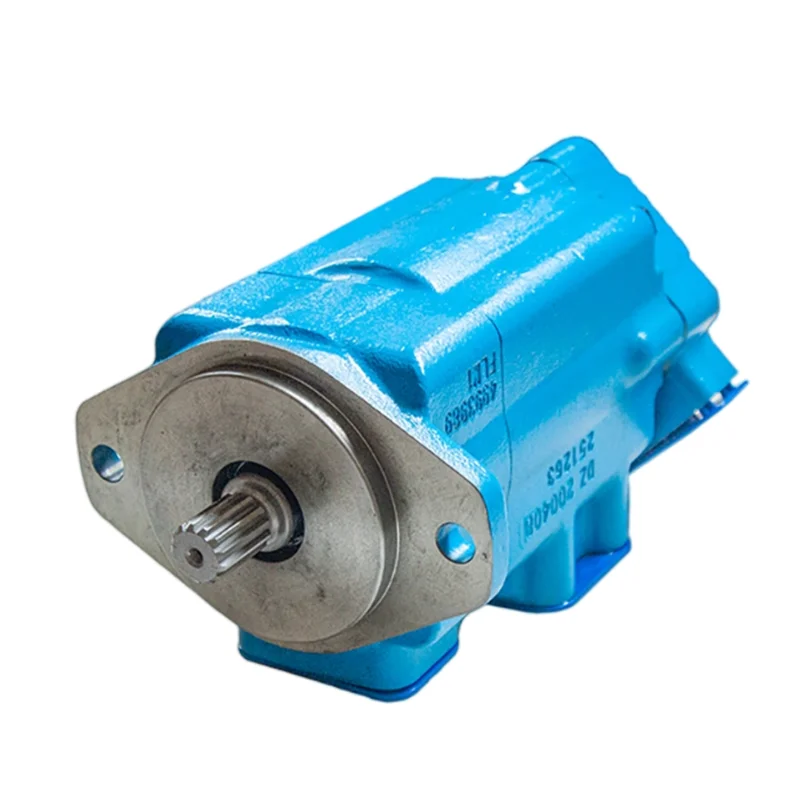

Eaton Vickers 45V Vane Pump Replacement | 45V42A 45V50A 45V60A

Genlu Hydraulic excels as a world-class engineered fluid power component manufacturer, industrial rotary hydraulic displacement machinery specialist, and strategic B2B global supplier of high-pressure hydraulic components. The 20V, 25V, 35V, 45V, and 45VQ Series High-Pressure Axial Balanced Displacement Intra-Vane Pumps—including high-frequency targeted engineering codes such as F3-45V42A-11A22R, F3-45V50A-11A22R, F3-45V60A-1B22R, and F3-45VQ50A-1A20—are engineered and precision-manufactured as premium, heavy-duty, and 100% drop-in interchangeable replacements for the definitive global industrial market benchmark: the Eaton Vickers V Series (Industrial) and VQ Series (Mobile) intra-vane pumps. This platform is universally recognized for its balanced geometric configuration, exceptional acoustic quietness, and minimal flow pulsations. It serves as the primary hydraulic power generator inside high-tonnage plastics injection molding machinery, rubber vulcanizing presses, metal-cutting machine tool clamping fixtures, scrap metal/paper balers, and specialized mobile vocational equipment chassis.

Operating as the reliable constant-flow engine inside both closed and open-circuit hydraulic networks, vane pumps are exposed to continuous friction profiles along the internal stator ring profile. Standard alternative vane pumps frequently fail under sustained high pressures (up to 172 bar) due to severe vane-tip scoring or stator cam ring washing. Genlu’s Vickers-style replacement pump assemblies and cartridge kits match the exact metallurgy compositions, heat treatment boundaries, and fluid-static balance profiles detailed in the original factory technical manuals. We ensure absolute drop-in cross-compatibility across F3-designated Viton seals (fully optimized for phosphate ester fire-resistant fluids or petroleum-based oils), standard SAE 2/4-bolt mounting flanges, nominal keyed or splined drive shafts, and flanged pipe ports. Prior to warehouse release, every single pump assembly undergoes 100% Full-Simulation Condition Testing on multi-channel digital test beds to verify zero-slip volumetric performance, low operational thermal footprints, and low acoustic signatures under continuous full-rated load thresholds.

Technical Specifications

• Product Design Series: V / VQ Series Industrial and Mobile Heavy-Duty High-Pressure Intra-Vane Pumps (100% cross-compatible with Eaton Vickers)

• Specific Model Designation Code Breakdowns:

  • F3-45V42A-11A22R (F3: Viton seals package; 45V: Frame size 45 industrial single vane pump; 42A: Nominal displacement code 42; 11A: Standard SAE 4-bolt mounting flange with inline inlet/outlet port layout; 22: Cylindrical straight keyed drive shaft; R: Right-hand clockwise rotation)

  • F3-45V50A-11A22R (Size 45 standard pump, displacement code 50, straight keyed drive shaft, clockwise rotation)

  • F3-45V60A-1B22R (Size 45 standard pump, displacement code 60, 1B 90-degree offset rear port layout, straight keyed shaft, clockwise rotation)

  • F3-45VQ50A-1A20 (45VQ: Frame size 45 ruggedized mobile-grade vane pump incorporating bimetallic flex sideplates; 50A: Displacement code 50; 1A: Port orientation code; 20: Engineering design generation code)

• Comprehensive Nominal Flow/Displacement Matrix (Rated at 1200 RPM / 100 PSI):

  • 20V Series: Covers 7 to 13 GPM (Nominal geometric volume ~22.0 to 42.0 $cc/rev$)

  • 25V Series: Covers 12 to 21 GPM (Nominal geometric volume ~39.0 to 67.0 $cc/rev$)

  • 35V Series: Covers 25 to 38 GPM (Nominal geometric volume ~81.0 to 121.0 $cc/rev$)

  • 45V / 45VQ Series: Covers 42, 50, and 60 GPM (Precise geometric displacements: 138.0 $cc/rev$ for 42A, 162.0 $cc/rev$ for 50A, and 193.0 $cc/rev$ for 60A)

• Continuous Rated Operating Pressure Boundary: 172 bar (17.2 MPa / 2500 PSI) for industrial applications

• Maximum Intermittent Peak Pressure Capability: Up to 207 bar (20.7 MPa / 3000 PSI) tailored for the 45VQ heavy mobile equipment matrix

• Permissible Operational Velocity Boundaries:

  • Industrial V Series: 600 RPM minimum to 1800 RPM maximum

  • Mobile VQ Series: Extended engine coupling capability up to 2200 RPM – 2700 RPM

• Volumetric Efficiency Performance Index: Maintained at $\ge$ 94% under continuous full-load working parameters

• Acoustic Sound Pressure Rating: Low 62 to 68 dB(A) signature under peak loading (Industry-leading quiet operating envelope)

• Total Pump Assembly Net Dry Mass: 45V/45VQ Series weights range from approximately 34.0 kg to 36.5 kg

Key Technical Advantages:

• Proprietary Intra-Vane Hydrostatic Balancing Technology: The core engineering of the 45V series cartridge relies on a dual-vane configuration where a smaller insert vane fits inside the main tracking vane. System pressure oil is directed to the cavity between these elements, ensuring that the outward tracking force against the cam ring profile scales with working pressure. This prevents excessive mechanical friction, reducing cam ring track wear by 60% while maintaining high-pressure sealing up to 172 bar.

• Symmetric Symmetrical Dual-Chamber Hydraulic Radial Balance: The internal stator ring geometry features a twin-inlet, twin-outlet port configuration. The drive shaft completes two suction and two discharge cycles per rotation, which cancels out the internal radial forces resulting from the pressure differential across the axis line. This design shields the drive shaft and main bearings from radial fluid loads, preventing eccentric bearing failure.

• Flex-Sideplate Pressure Balancing Matrix for 45VQ Heavy-Duty Applications: The mobile-focused 45VQ series integrates bimetallic bronze flex-sideplates on both ends of the rotating group. As pressure rises, system oil feeds behind the sideplates to create a controlled axial clamp against the rotor face. This design accommodates thermal expansion at high temperatures while preventing internal slip and protecting the rotor end-faces from binding or scoring.

• Modular Drop-In Cartridge Component Encapsulation: Genlu’s 20V/25V/35V/45V(Q) series uses a self-contained cartridge design that integrates the cam ring, rotor, vanes, and sideplates into a single module. Maintenance teams can replace the internal cartridge without disconnecting the main pump housing from the system’s hard piping. This design reduces standard overhaul times from hours to 10 minutes by requiring only the removal of the rear cover bolts.

Application Areas:

• Heavy-Duty Industrial Plastics Injection Molding & Rubber Vulcanizing Presses: Primary clamping circuits, high-tonnage toggle-lock actuation lines, and heavy-duty rubber track curing press setups.

• Metal-Cutting Machine Tools, High-Density Hydraulic Shearers & Balers: High-density scrap metal shearing machinery, industrial paper baling structures, and heavy-duty gantry machine tool clamping modules.

• Heavy Mobile Machinery, Municipal Tool Carriers & Specialized Rig Chassis: Secondary high-pressure circuits for mobile exploration drilling rigs, straddle carriers, and large-scale street sweeper auxiliary drives.

Expert Maintenance Tips:

• Mandatory Pre-Commissioning Casing Priming and Dry-Run Prohibitions: The contact surfaces within the 45V/45VQ cartridge rely on the hydraulic oil layer for hydrodynamic protection at startup. Before starting the pump for the first time or after a cartridge replacement, fill the housing with at least 1.5 liters of clean hydraulic oil through the inlet or top drain port, and manually rotate the shaft 5 turns. Operating dry will cause immediate thermal binding of the rotor faces.

• Low-Pressure Air Bleeding Routine During First System Startup: Because vane pumps rely on centrifugal force to extend the vanes into contact with the cam ring, trapped air or system back-pressure can prevent proper extension, causing tracking chatter. On initial startup, back off the main relief valve to zero pressure, jog the electric motor for 2-3 seconds several times, and verify that all air has bled from the discharge line before gradually applying system load.

• Inlet Line Vacuum Boundary Maintenance to Prevent Cavitation Erosion: Vane pumps require a reliable supply line; ensure all inlet flange bolts are tightened evenly and use fresh, high-durometer O-rings. Air ingress through minor seals or lines can cause cavitation when bubbles collapse in high-pressure zones, producing a distinctive metallic rattling sound and rapidly pitting the internal cam ring surfaces. Maintain system filtration with a 25-micron suction screen and a 10-micron high-pressure return filter to preserve fluid cleanliness at or above NAS Grade 8.
