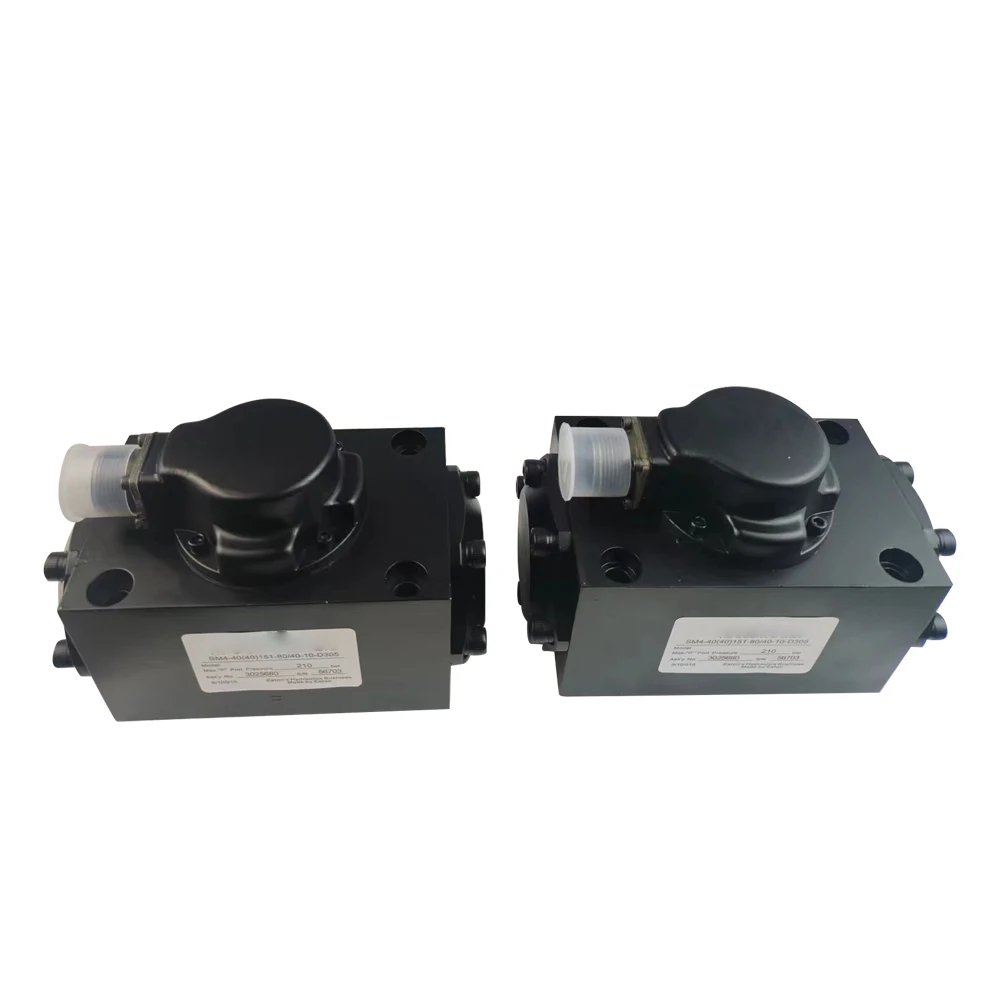

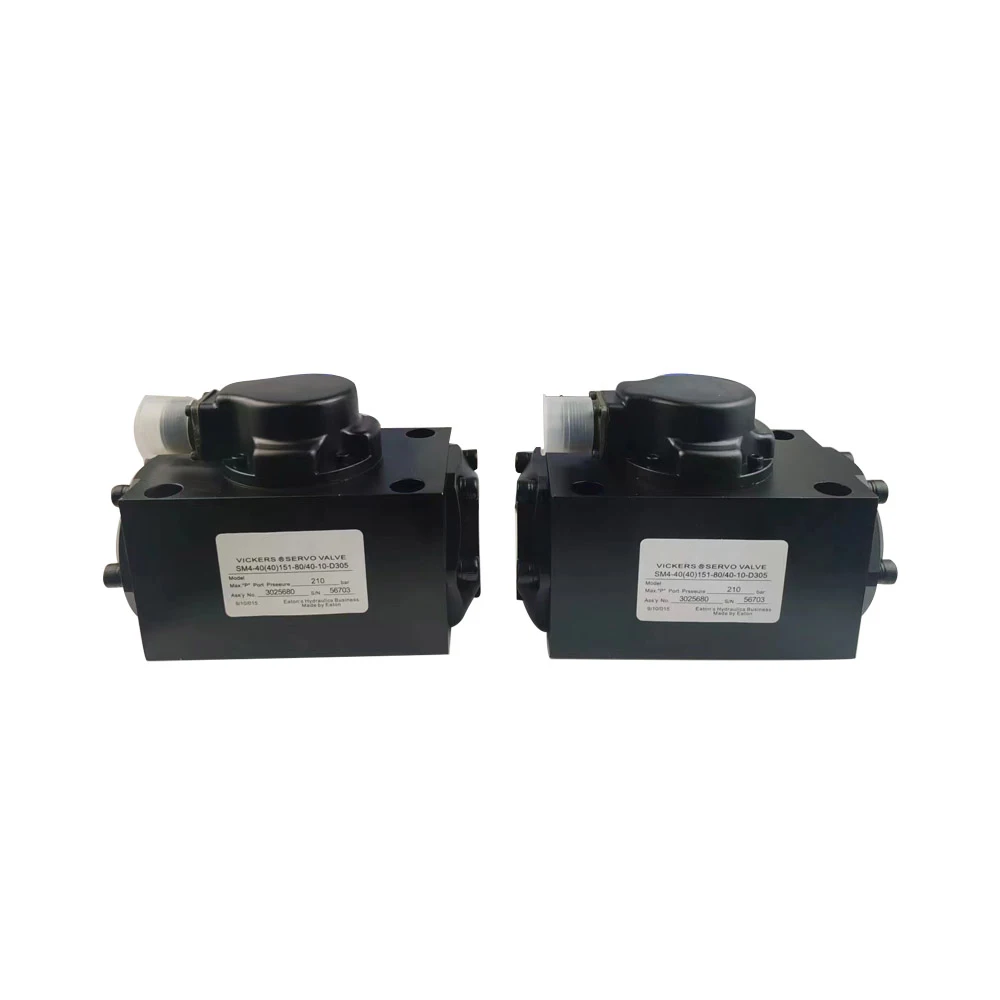

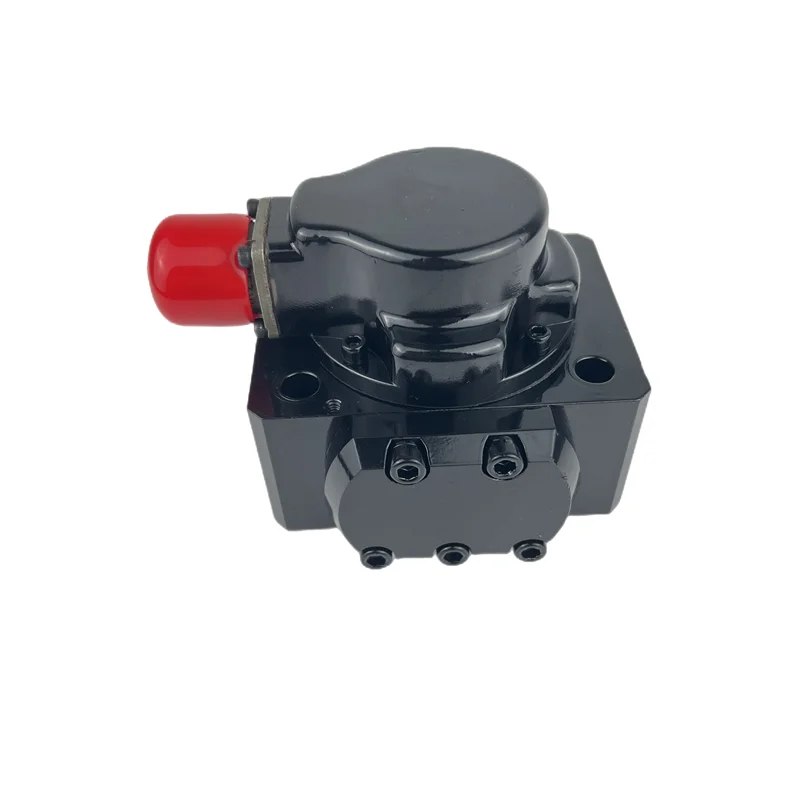

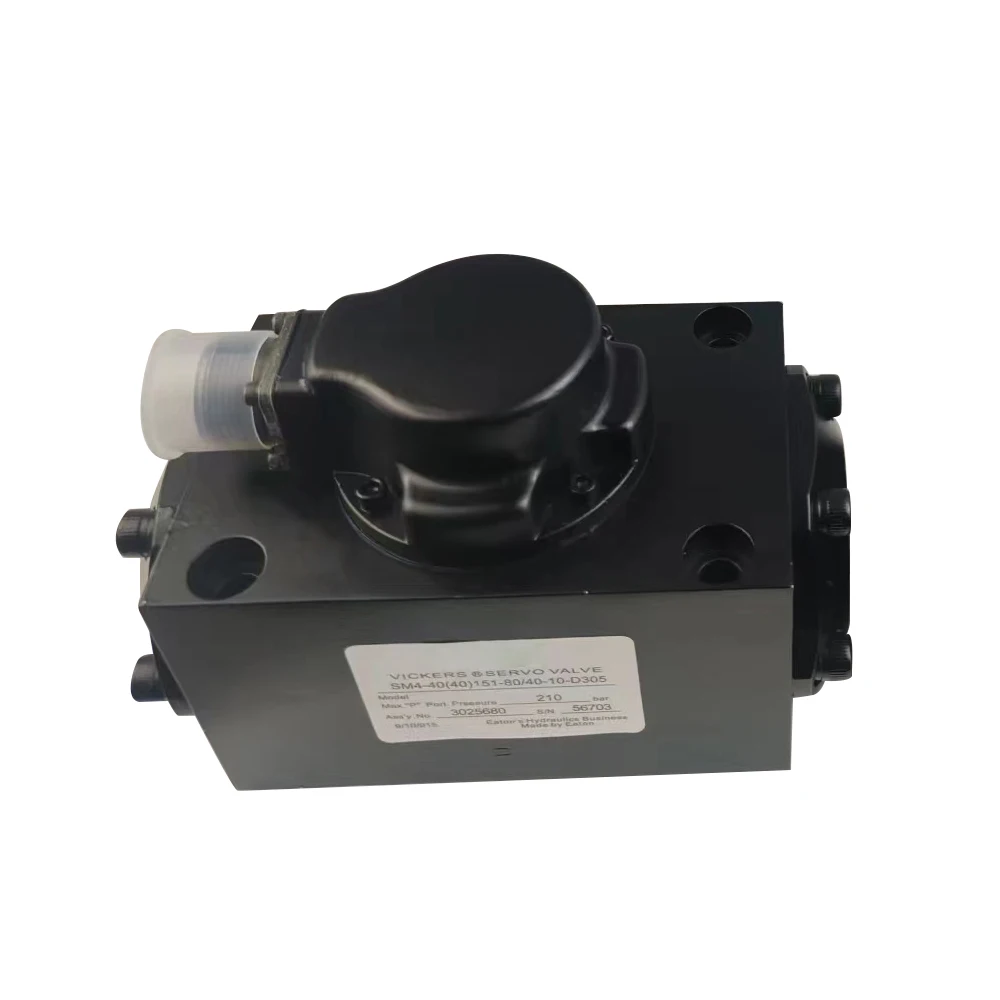

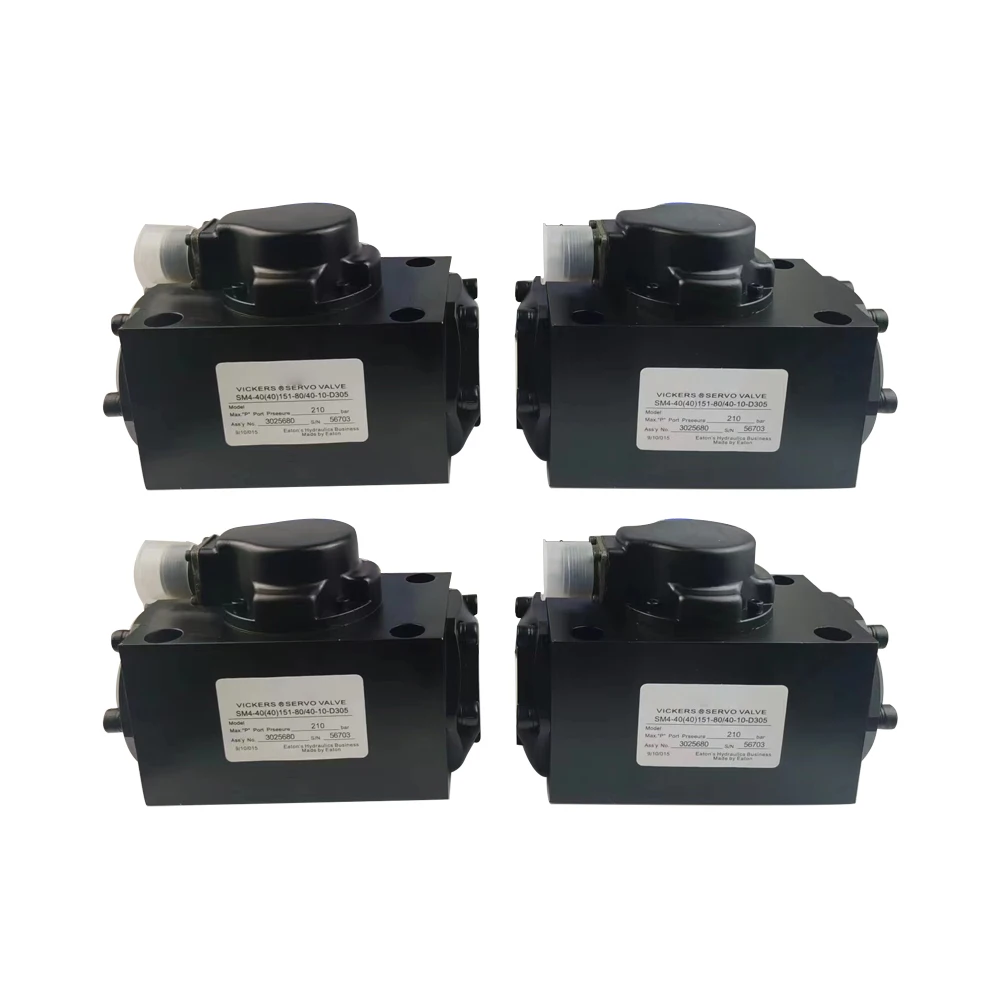

SM4-20 Moog Proportional Servo Valve 210bar

Product Overview:

The SM4 series of high-precision electro-hydraulic proportional servo valves (featuring specific model codes such as SM4-20(15)57-80/40-10-H607H) represents the pinnacle of industrial automation and closed-loop hydraulic control components. Designed with a proven two-stage layout consisting of a nozzle-flapper pilot stage and a four-way sliding spool main stage, this series is engineered specifically for applications demanding exceptional dynamic response, high-precision position, velocity, and force control. Fully benchmarked against original Moog engineering specifications, our SM4-20 valves guarantee 100% drop-in interchangeability in both mounting footprint and fluid performance. Every single valve is subjected to 100% full-load dynamic frequency response and leakage testing on simulated operational test benches prior to delivery, ensuring ultimate reliability in mission-critical industrial applications.

Technical Specifications:

• Model Series: SM4-20 (including variant code SM4-20(15)57-80/40-10-H607H)

• Rated Flow: 80 L/min (at $\Delta p = 70\text{ bar}$ valve pressure drop / per spool edge)

• Max. Operating Pressure: Ports P, A, and B up to 210 bar (3000 psi); Port T up to 30 bar

• Pilot Control Type: Double nozzle-flapper pilot stage with mechanical feedback wire

• Frequency Response: -90° phase lag frequency exceeding 90 Hz, ensuring ultra-fast step response

• Internal Leakage: < 2.5 L/min (at 210 bar rated pressure in center position)

• Electrical Input: Standard differential coil current input (e.g., ±15 mA, ±40 mA configuration)

• Mounting Interface: ISO 10372-04-04-0-92 standard four-port rectangular pattern

• Operating Fluid: Mineral oil (HL, HLP) according to DIN 51524

• Temperature Range: -20°C to +80°C

• Weight: Approx. 3.2 kg

Key Technical Advantages:

1. Superior Dynamic Response & Control Accuracy: Powered by an optimized nozzle-flapper pilot stage and a high-sensitivity mechanical feedback mechanism, the valve delivers sub-millisecond step responses, ensuring minimal steady-state position errors and outstanding trajectory tracking in closed-loop setups.

2. 100% Seamless Drop-In Interchangeability: The mounting footprint, port distributions, pin locations, and bolt sizing strictly conform to international servo valve standards. It allows a direct, damage-free replacement of original Moog SM4-20 valves without modifying manifolds or controller software.

3. Precision Nozzle & Spool Match-Fitting: Internal restriction nozzles and main spool edges are micro-machined from special alloy steels. Combined with precise edge sharpness control, deadband is minimized, yielding exceptional linearity and micro-positioning performance.

4. Rigorous 100% Dynamic Simulation Testing: Each valve undergoes automated computer-controlled testing covering frequency response, internal leakage, null bias drift, and high-pressure fatigue endurance. This guarantees zero defects out of the box for demanding high-end machinery.

Application Areas:

• High-Precision Plastics Machinery: Closed-loop injection velocity and mold clamping pressure control in advanced injection molding machines.

• Metallurgical & Steel Mill AGC Systems: Hydraulic automatic gauge control (AGC) cylinders ensuring tight sheet metal thickness tolerances.

• Aerospace & Defense Simulators: Multi-axis motion simulators, vibration test rigs, and hardware-in-the-loop load simulation systems.

• Heavy-Duty Material Testing Machines: Dynamic load testing and servo-hydraulic universal testing machines.

Expert Maintenance Tips:

• Critical Fluid Cleanliness Standards: Due to extremely fine internal clearances (typically in the micron range), servo valves are highly sensitive to contamination. Systems must feature high-efficiency flushing and filtration systems, maintaining fluid cleanliness strictly at ISO 4406 class 16/14/11 or better.

• Cold Start & Warm-Up Protection: When starting the system in cold ambient environments (< 10°C), circulate the hydraulic fluid at no-load condition until it warms up above 30°C before engaging closed-loop servo control. This prevents sluggish response or nozzle clogging caused by high oil viscosity.

• Electrical Null Bias Adjustment: If minor null drift occurs during operation, preferentially compensate using the controller’s software or amplifier potentiometer. Never dismantle the valve body to manually adjust internal mechanical linkages, as this will compromise factory calibration accuracy.
