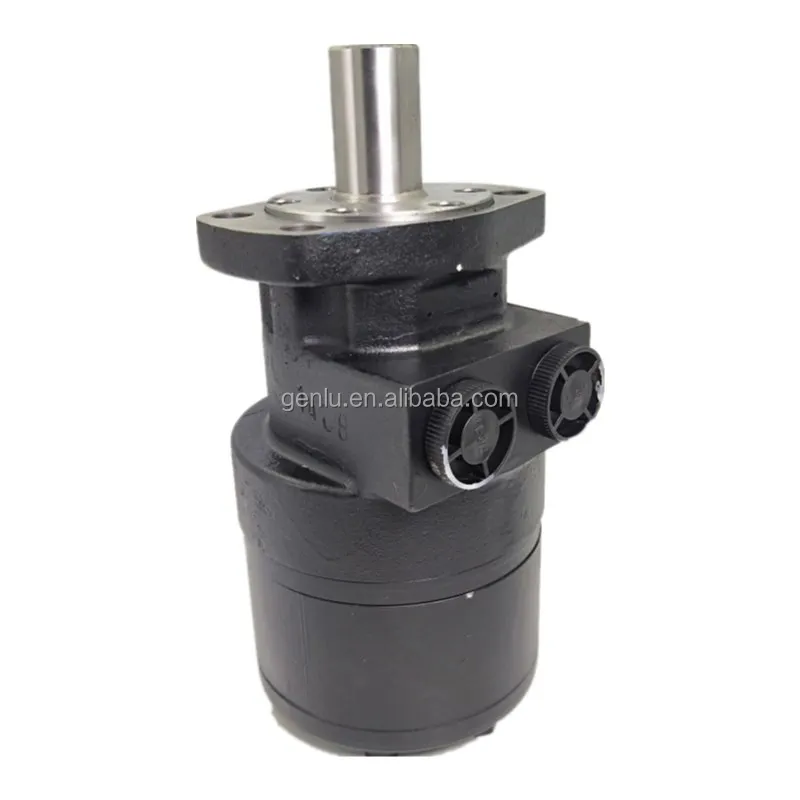

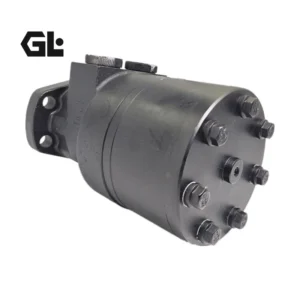

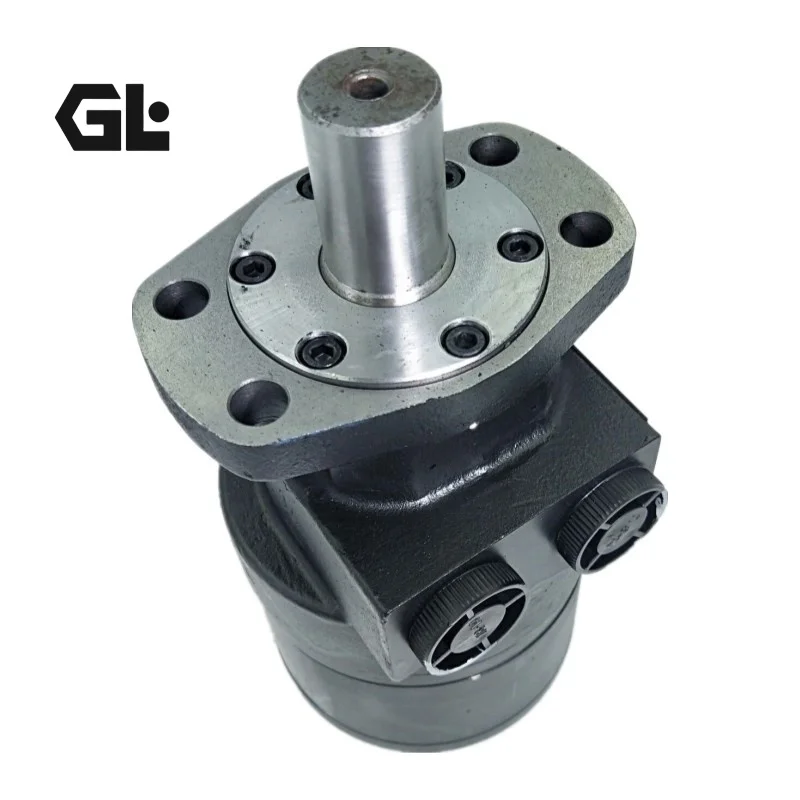

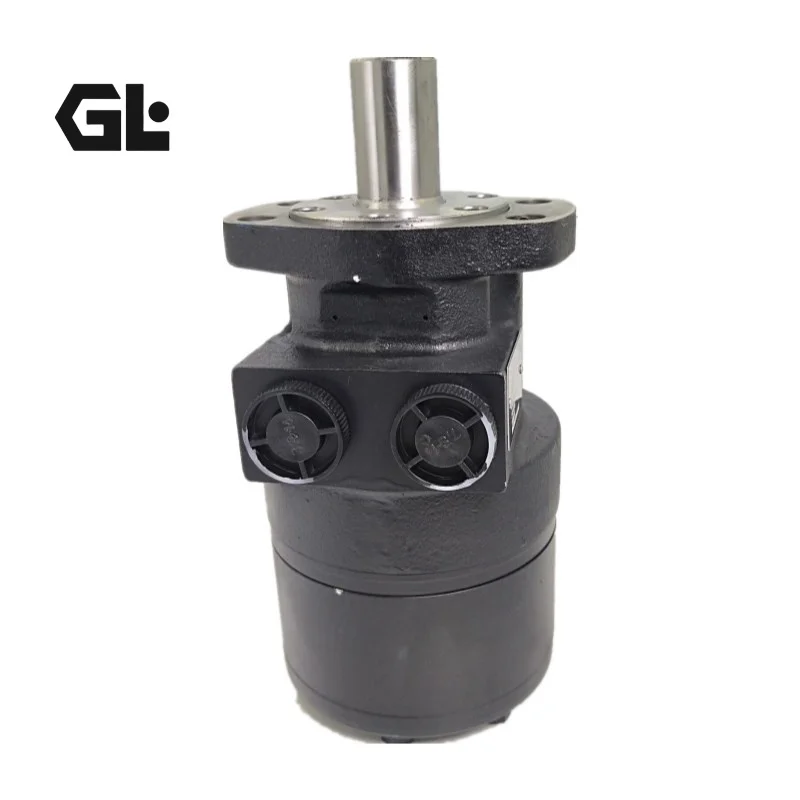

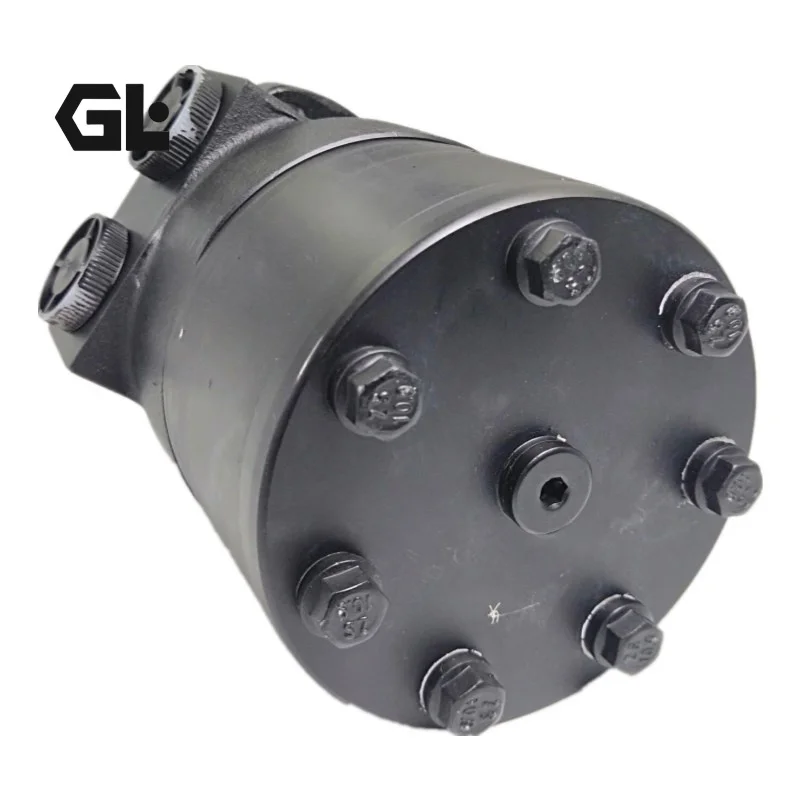

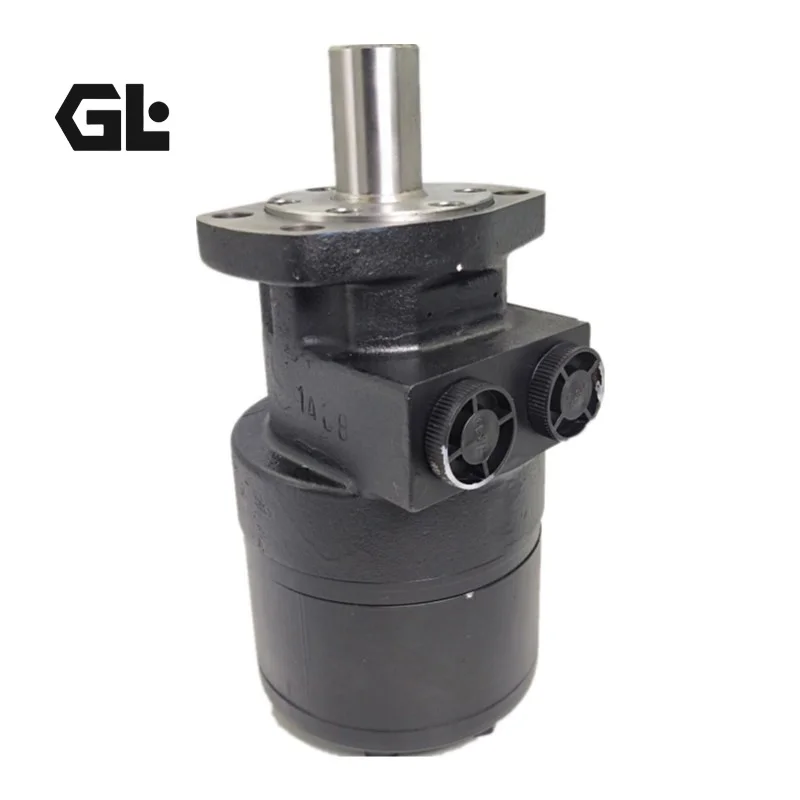

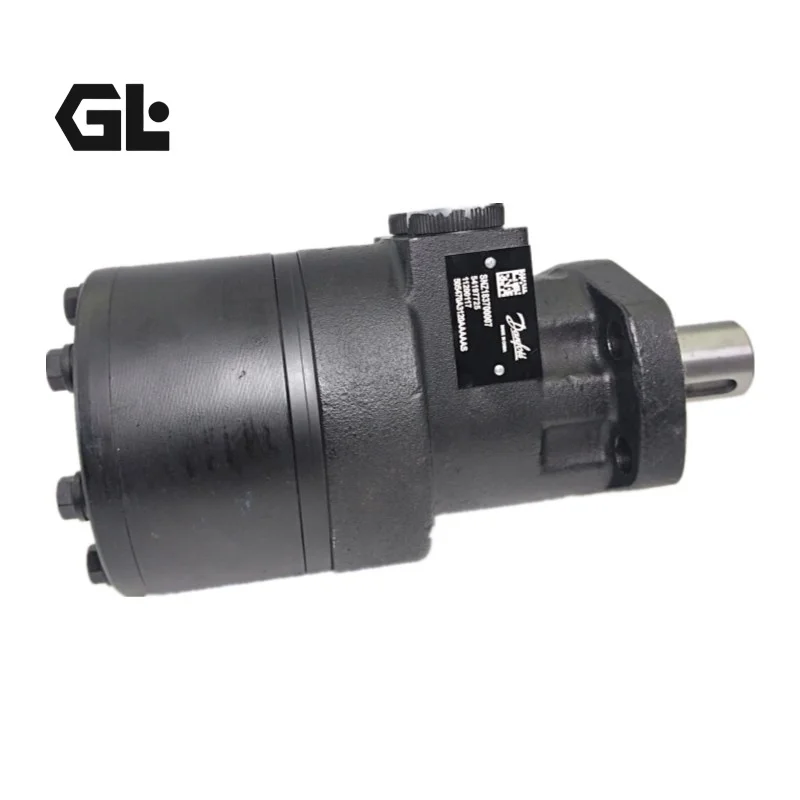

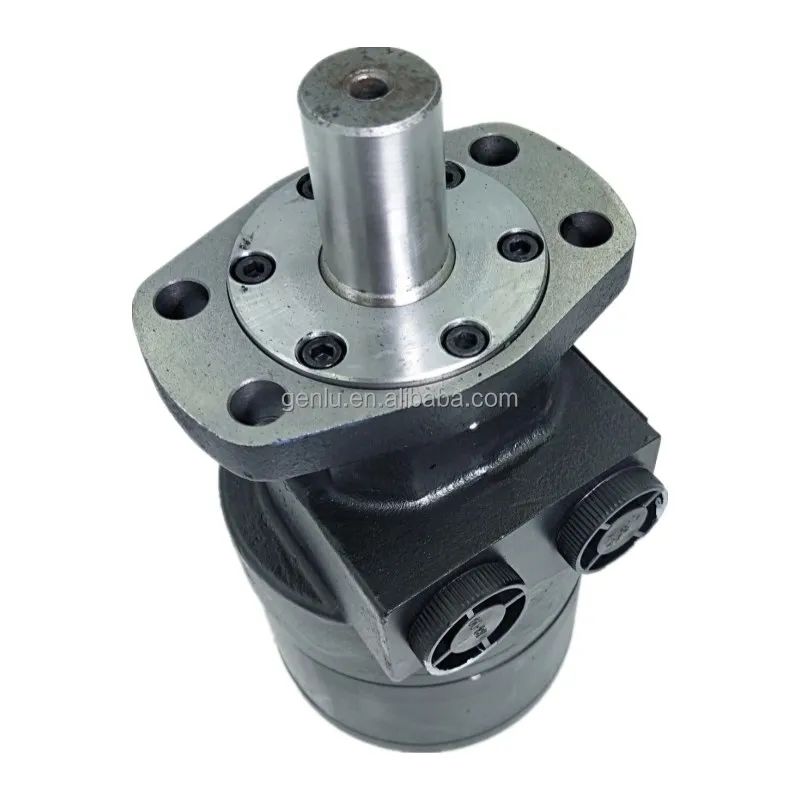

Danfoss SNW SNZ Series Orbital Motor | SNZ234301852AS SNZ231207259AS Replacement

Genlu Hydraulic proudly introduces our SNW and SNZ Series high-power heavy-duty hydraulic orbital motors. This series is fully engineered as a seamless, high-value, drop-in replacement for the classic Danfoss SNW/SNZ series heavy-duty disc valve orbital motors, aligning perfectly with intricate customized configurations including SNZ234301852AS, SNZ231207259AS, SNZ231005494BP, SNZ183700007, SNZ202309922, and SNZ192313184. Purpose-built for rugged mobile equipment and challenging industrial rotating grids, these motors feature an advanced Roll-gertor gear set framework driven by an independent disc distribution valve and supported by high-capacity dual tapered roller bearings. Genlu guarantees 100% Drop-in Interchangeability across standard mounting options (such as SAE 4-bolt or magneto flange patterns), output shaft styles (parallel keyed, involute splined, or 1:10 tapered layouts), and specialized fluid ports centerlines compared to original Danfoss benchmarks. Every single orbital motor undergoes 100% low-speed high-torque simulation testing to certify elite mechanical efficiency, low breakaway starting resistance, and robust operational lifecycles under extreme shock conditions.

Technical Specifications

• Product Series: Danfoss SNW / SNZ Series Disc Valve Heavy Duty Hydraulic Orbital Motors

• Key Model Targets Matrix: SNZ234301852AS, SNZ231207259AS, SNZ231005494BP, SNZ183700007, SNZ202309922, SNZ192313184

• Geometric Displacement Boundaries: Full scalability covering 80 cc/rev to 400 cc/rev profiles (defined precisely per target identification suffix)

• Nominal Operating Pressure: 20.0 MPa (200 bar)

• Peak Transient Circuit Pressure: 24.0 MPa (240 bar)

• Maximum Permissible Output Torque: Up to 850 Nm (attained consistently at peak frame displacement scales)

• Operational Speed Matrix: 300 rpm to 800 rpm (deeply optimized for Low-Speed High-Torque LSHT profiles)

• Drive Shaft Options: 32mm / 35mm Parallel Keyed, Involute Splined, or 1:10 Tapered Shaft (denoted via specific designations like AS/BP)

• Case Drain Configuration: Equipped with an independent auxiliary casing drainage port to shield the vital shaft face seals

Key Technical Advantages:

• Premium Roll-gertor Component Geometry: Moving past the high-friction sliding tooth rings found in light-duty orbital motors, the SNW/SNZ series integrates a hardened, precision-ground rolling-pin cam matrix. Converting sliding friction into rolling contact minimizes stick-slip vibration down to an ultra-low 1 rpm, keeping the starting torque efficiency tightly above 90% even under sudden maximum loads.

• Independent Hydraulically-Balanced Disc Valve System: The primary flow distribution system runs independent of the main drive shaft utilizing a flat disc valve layout. This configuration allows automatic axial gap compensation based on dynamic circuit load increases, maintaining exact fluid allocation tolerances up to 20 MPa and decreasing internal cross-bypass leakage by 40% over standard shaft-valve platforms.

• Integrated Large-Capacity Tapered Roller Main Bearings: The front mounting enclosure houses a heavy-set dual tapered roller bearing matrix. This arrangement allows the primary output shaft to absorb intense radial weight shifting and aggressive axial tensile loads generated by wheel traction or cable pull, discarding any need for outboard supportive pillow blocks.

• Highly Adaptable Multi-Functional Rear Enclosure Valving: The SNZ platform architecture (as demonstrated by suffix configurations like 852AS or 494BP) offers excellent space-saving manifold modularity. The back-cover seamlessly integrates shock relief blocks, shuttle spools, counter-balance logic, or low-pressure brake release lines, radically cleaning up structural vehicle plumbing arrays.

Application Areas:

• Municipal Engineering & Road Infrastructure: Direct track wheel drives for compact skid-steer loaders, dynamic rotary cutters for embankment shearers, self-propelled mower wheel drives, and snow plow rotary broom actuators.

• Industrial Material Handling & Marine Winches: Primary cable winch drums for compact harbor cranes, mooring anchor windlasses chain drives, and heavy head-drive pulleys for automated factory conveyor lines.

• Modern High-Yield Agricultural Machinery: Reel speed drives for large grain combines, fertilizer metering system inputs for advanced air seeders, and high-load rotators for forestry log loaders.

Expert Maintenance Tips:

• Mandatory External Case Drain Connection under Backpressure (Critical Protocol): Although the SNW/SNZ series features internal check valves to manage internal pressure, high system return line backpressures or tandem multi-motor connections will rapidly strain the front seal cavity. You must run an un-restricted case drain line from the housing opening straight back to the reservoir. Blocking this port creates massive localized heat and pressure buildup, causing immediate blowout or rapid failure of the shaft lip seal.

• Guard Against Transient Vacuum Cavitation in High-Inertia Cycles: When driving high-inertia components such as heavy snow brooms, crane drums, or combine reels, sudden control valve neutral shifts transform the motor into a pump driven by vehicle momentum. Without anti-cavitation check valves or a proper boost makeup loop integrated into the circuit, a severe localized vacuum will develop in the intake chamber, pitting the Roll-gertor surfaces through cavitation.

• Enforce Viscosity Threshold Checks & Prevent Thermal Breakdown: Continuous low-speed high-torque operation relies on robust boundary oil film strength across the moving components. Keep system operating temperatures strictly under $75^\circ\text{C}$ using premium anti-wear fluid. If the oil overheats and the working viscosity drops beneath $13 \text{ mm}^2/\text{s}$, micro-metallic contact will occur across the disc valve and gear sets, causing abrupt power degradation and destructive scuffing wear.
