SNZ234301852AS Hydraulic Orbital Motor | High-Pressure Interchangeable Replacement

Product Overview

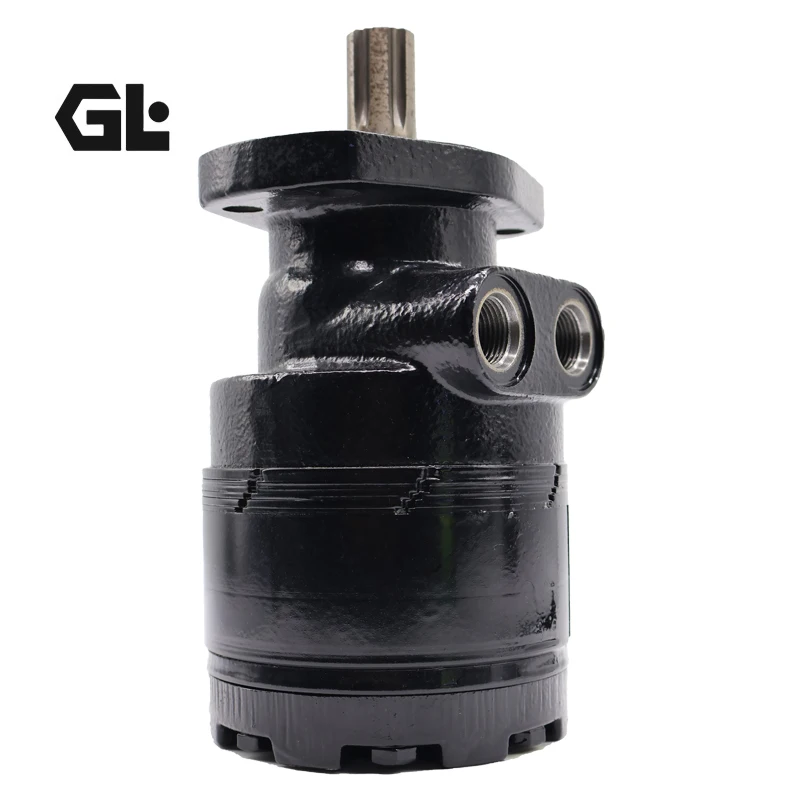

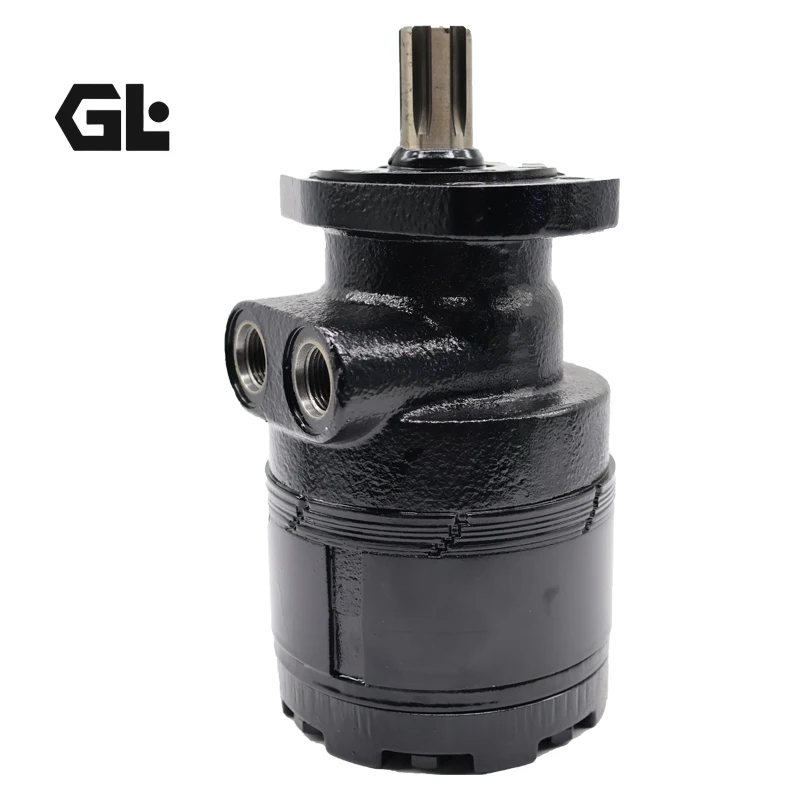

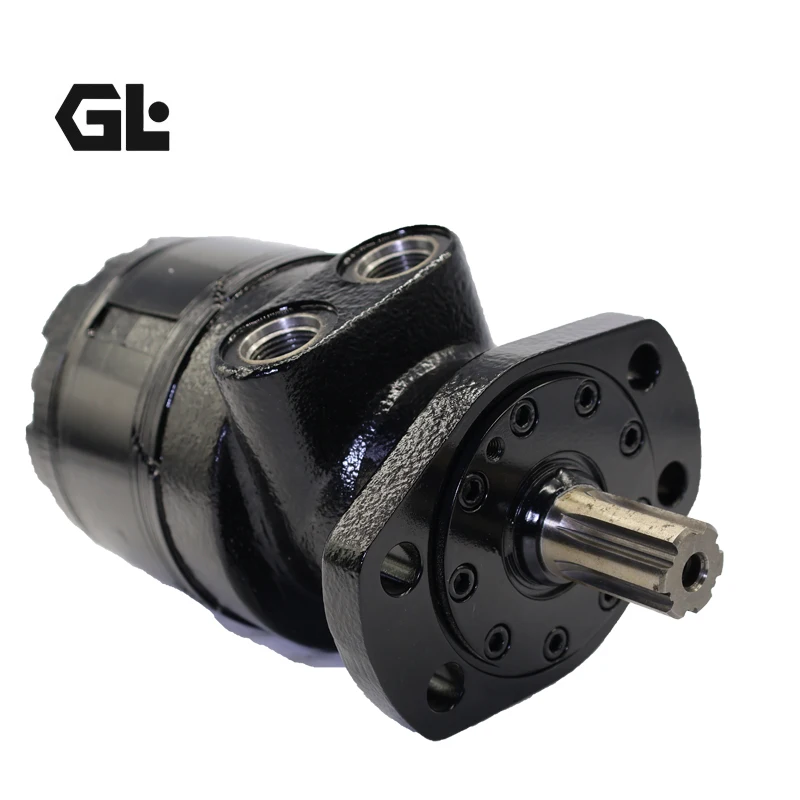

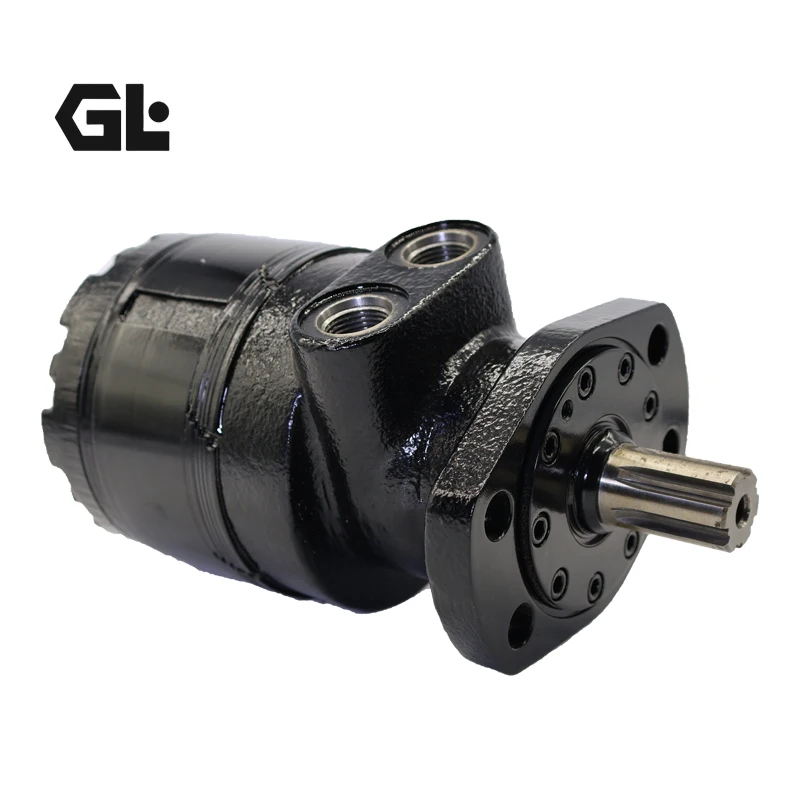

The SNZ234301852AS is a high-performance hydraulic orbital motor engineered for hydraulic drive systems demanding high torque density, smooth low-speed operation, and superior starting characteristics. This model offers true drop-in interchangeability with the original SNZ-series motor — no modification to mounting interfaces or plumbing is required for replacement.

Manufactured to OEM geometric and performance specifications, the critical motion components — the rotor-stator pair and distribution mechanism — are produced using precision CNC form grinding. Every unit undergoes 100% simulated operating-condition bench testing, including rated pressure loading, continuous running temperature rise verification, and internal leakage measurement. Each motor’s test data is traceable to its individual serial number, ensuring delivery consistency.

Technical Specifications

• Model: SNZ234301852AS

• Motor Type: Hydraulic Orbital Motor

• Displacement: Refer to OEM technical manual (unverified data omitted)

• Rated Pressure: Refer to OEM technical manual

• Peak Pressure: Refer to OEM technical manual

• Max Speed (Continuous/Intermittent): Refer to OEM technical manual

• Control Method: Refer to OEM technical manual (typically shaft or plate distribution)

• Mounting Flange: Refer to OEM technical manual (commonly SAE 2-bolt or 4-bolt)

• Port Size: Refer to OEM technical manual

• Shaft Type: Refer to OEM technical manual (keyed or splined options available)

• Weight: Refer to OEM technical manual

Engineering Note: The SNZ-series orbital motor range spans medium to medium-high pressure duty. When selecting a replacement, always verify against the equipment’s original hydraulic schematic rated operating parameters — not visual appearance alone.

Key Technical Advantages

1. Precision Rotor-Stator Pair via CNC Form Grinding
The rotor and stator tooth profiles are machined by CNC form grinding with micron-level contour tolerance. This ensures sealing integrity of the displacement chambers across the full speed range, maintaining stable volumetric efficiency. Compared to conventional milling, the reduced surface roughness significantly minimizes stick-slip tendency at low speeds.

2. Advanced Gerotor Gear Set Design
Utilizing the Gerotor (internal cycloidal gear) meshing principle, the motor achieves continuous hydraulic drive with minimal moving parts. Its inherent low-speed high-torque characteristic delivers near-rated torque at start-up, with starting mechanical efficiency exceeding 0.92. The compact axial layout yields high power density within a limited envelope.

3. High-Pressure Shaft Seal with Back-Pressure Tolerance
The output shaft seal is constructed from high-pressure composite materials, permitting reliable operation under elevated return-line back pressure and supporting parallel or series circuit configurations. This is critical in travel-drive systems and multi-actuator circuits where back pressure rise could otherwise compromise seal integrity.

4. Long-Life Bearings with Wide Speed Turndown
The output shaft is supported by high-capacity bearings capable of withstanding external radial and axial loads. Stable operation is maintained even at 1 r/min, with a broad speed regulation range suitable for winch, swing, and travel drives requiring fine speed control.

Application Areas

• Construction Machinery: Mini-excavator swing drives, skid-steer loader travel drives, vibratory roller wheel drives

• Agricultural Equipment: Combine harvester reel drives, tractor front-loader attachment drives, irrigation hose reel drives

• Industrial Equipment: Conveyor drives, mixing units, wind/unwind mechanisms

• Specialty Vehicles: Street sweeper brush drives, aerial work platform travel drives

• Marine & Offshore: Deck machinery auxiliary drives, winch drives

Expert Maintenance Tips

Installation:

• Inspect flange pilot and shaft extension fit before mounting; ensure coaxiality deviation ≤0.05 mm to prevent premature seal failure from misalignment.

• Pre-fill the housing with clean hydraulic oil before first start-up to avoid dry-friction damage to the distribution face.

• Use a torque wrench to tighten port connections to OEM specifications; over-torquing may deform aluminum housing threads.

Operation & Service:

• Maintain system fluid cleanliness at NAS 8 (ISO 17/14/11) or better — orbital motors are more sensitive to particulate contamination than vane or piston motors.

• Replace the return filter element after the first 100 operating hours, then follow the equipment service interval.

• If pronounced stick-slip or torque loss occurs at low speed, first check internal leakage (via case drain flow measurement) rather than assuming motor failure.

• After extended shutdown, manually rotate the shaft to confirm free movement before applying pressure.
