SV3-10-C-3G-230AG Eaton Coil 300AA00086A Solenoid Valve

Product Overview

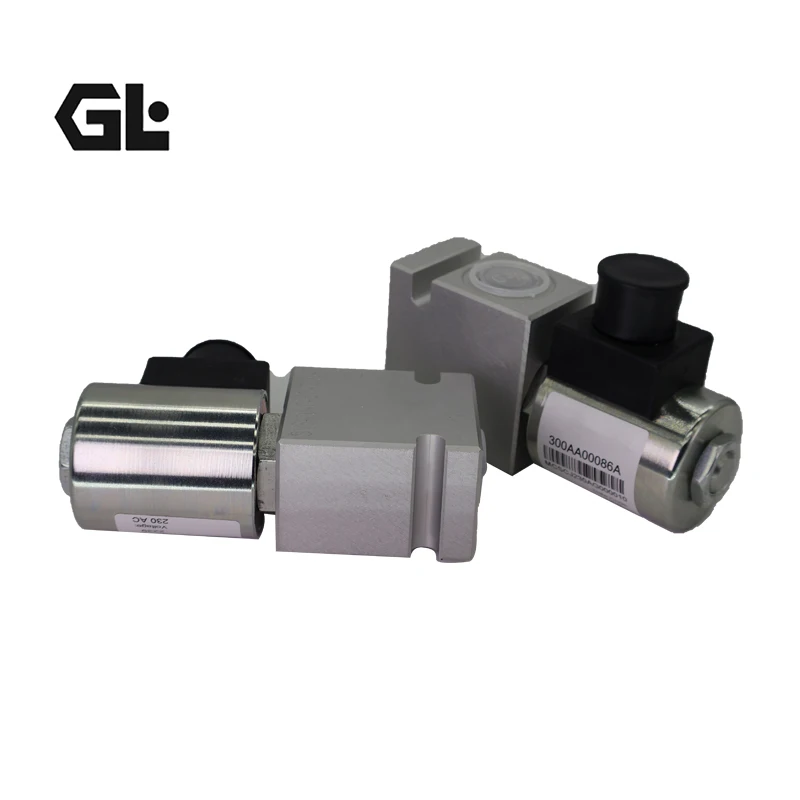

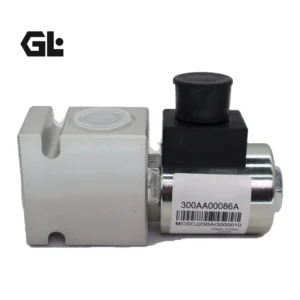

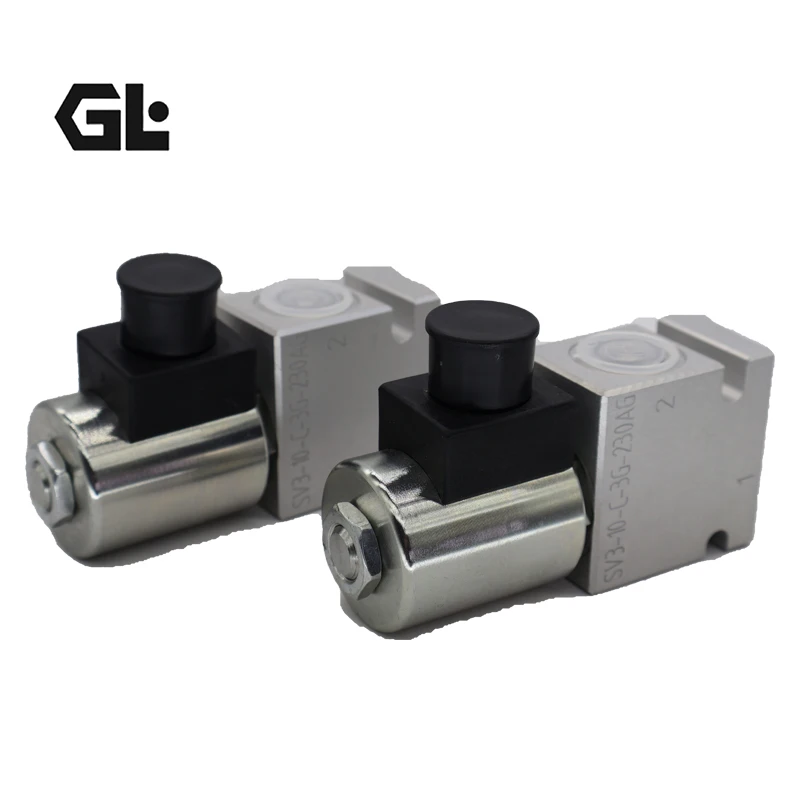

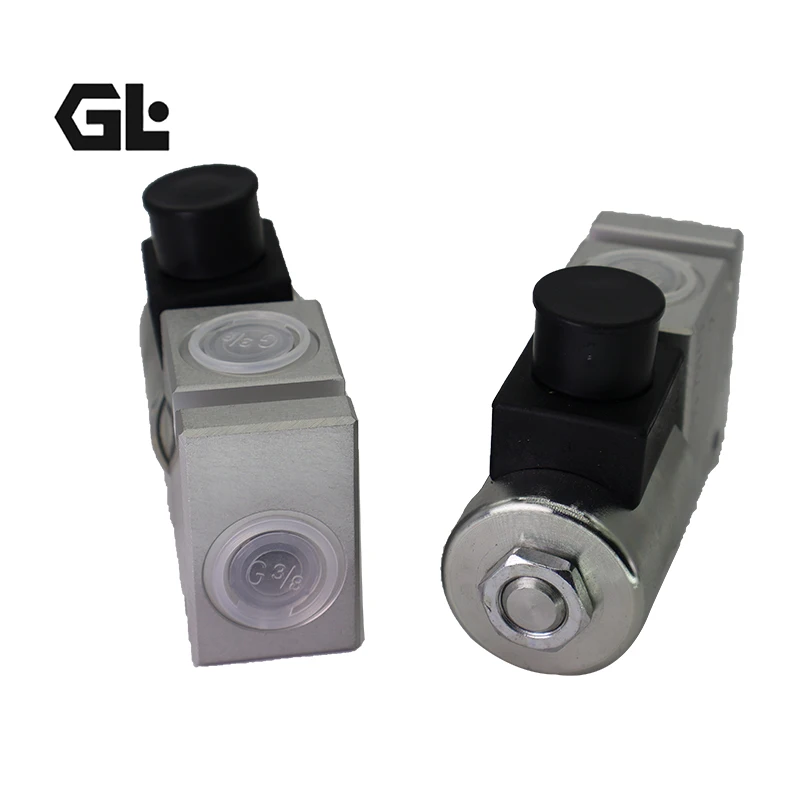

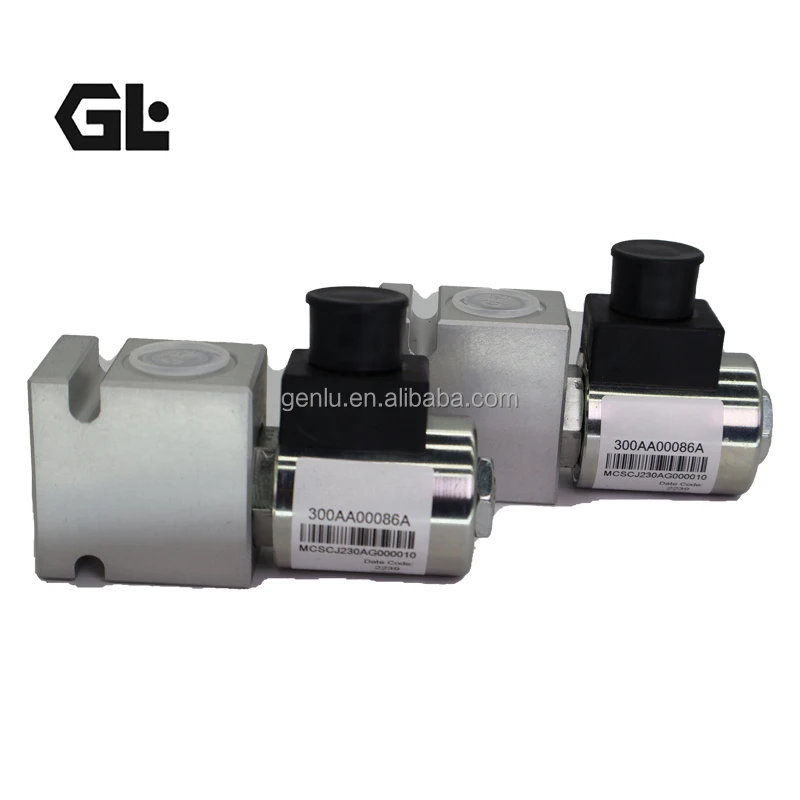

The SV3-10-C-3G-230AG with coil 300AA00086A is an Eaton/Vickers by Danfoss SV3 Series screw-in cartridge solenoid valve and dedicated J-Series coil. The SV3-10-C is a 2-way, 2-position, pilot-operated, poppet-type, normally closed solenoid valve rated at 45 L/min and 210 bar. The coil is a continuous-duty J-Series 230 VAC unit with DIN 43650 (G) connector and internal rectification. Fully interchangeable with original SV3-8-C, SV3-8-CM, SV3-12-0-00 and SV3-12-C-00 assemblies, every unit undergoes 100% simulated operating-condition testing to deliver low-leakage, reliable on/off control in mobile and industrial hydraulic systems.

Technical Specifications

• Models: SV3-10-C-3G-230AG / 300AA00086A (compatible with SV3-8-C, SV3-8-CM, SV3-12-0-00, SV3-12-C-00 series)
• Type: Screw-in cartridge solenoid valve (2-way, 2-position, poppet, normally closed) + J-Series coil
• Rated flow: 45 L/min (12 USgpm) (SV3-10-C)
• Rated pressure: 210 bar (3000 psi)
• Internal leakage: <5 drops/min max @ 210 bar
• Cavity: C-10-2 (SV3-10); corresponding C-8/C-12 for size 8/12
• Operating temperature: -40 °C to +120 °C
• Coil series: J Series (typically 23 W)
• Coil voltage: 230 VAC (internally rectified)
• Connector: DIN 43650 / ISO 4400 (G style)
• Coil duty rating: Continuous from 85% to 110% of nominal voltage
• Encapsulation: Glass-filled nylon
• Seals: Standard Buna-N (Viton optional)
• Recommended filtration: ISO 4406 18/16/13 or cleaner
• Installation torque (aluminum housing): 47–54 Nm

Key Technical Advantages:

1. Low-leakage poppet design: Hardened and ground working parts with lapped seat deliver minimal internal leakage, ideal for load-holding and safety shut-off applications.
2. Continuous-duty J-Series coil: Glass-filled nylon encapsulation with internal rectification supports continuous operation at 85–110% voltage, offering excellent vibration and temperature resistance.
3. Full interchangeability: Exact match to Eaton/Vickers/Danfoss SV3-8/10/12 interfaces and electrical specifications for drop-in replacement of original coils and cartridges.
4. Wide temperature and fluid compatibility: -40 °C to 120 °C range, compatible with MIL-H-5606, SAE 10/20 and similar hydraulic fluids for mobile and industrial duty.
5. 100% factory testing and compact form: Validated under simulated conditions, low pressure drop and reliable response in a space-efficient package.

Application Areas

• Load-holding circuits on agricultural and construction machinery (harvesters, refuse haulers, etc.)
• Safety shut-off and bypass functions in industrial hydraulic systems
• 2-way on/off and unloading control on mobile equipment
• Low-leakage pilot or main-stage control in open- or closed-circuit systems
• OEM service and aftermarket replacement of SV3 Series valves and coils

Expert Maintenance Tips

1. De-energize and depressurize the system before coil replacement; do not exceed 5–8 Nm on the valve tube nut to avoid damaging the cartridge.
2. Use only matching J-Series coils (230 VAC internally rectified) and ensure the DIN 43650 connector seal remains intact to prevent moisture ingress.
3. Maintain fluid cleanliness to ISO 4406 18/16/13 or better; regularly inspect filtration to protect the seat and extend coil life.
4. Clean the cavity and sealing surfaces thoroughly during installation; fit the correct O-rings (Buna-N or Viton) and torque aluminum/steel housings to specification.
5. Coil heating during continuous duty is normal; investigate abnormal temperature rise or delayed response by verifying voltage is within 85–110% and checking coil resistance.
