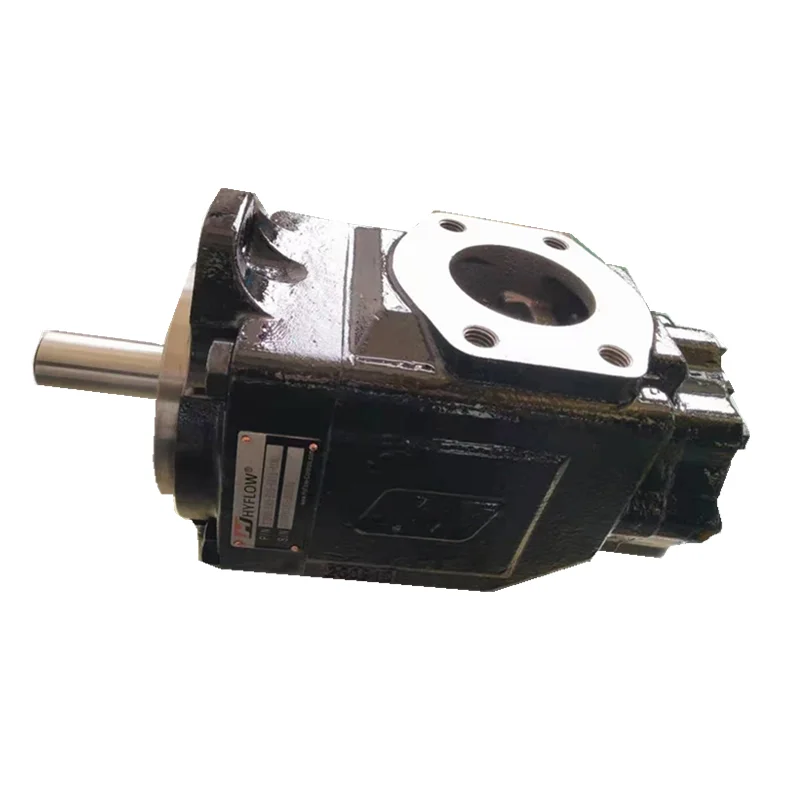

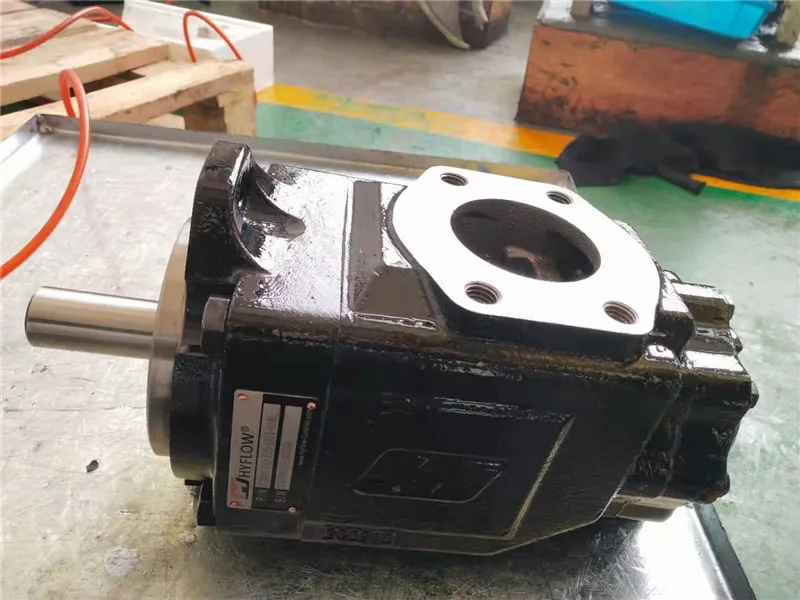

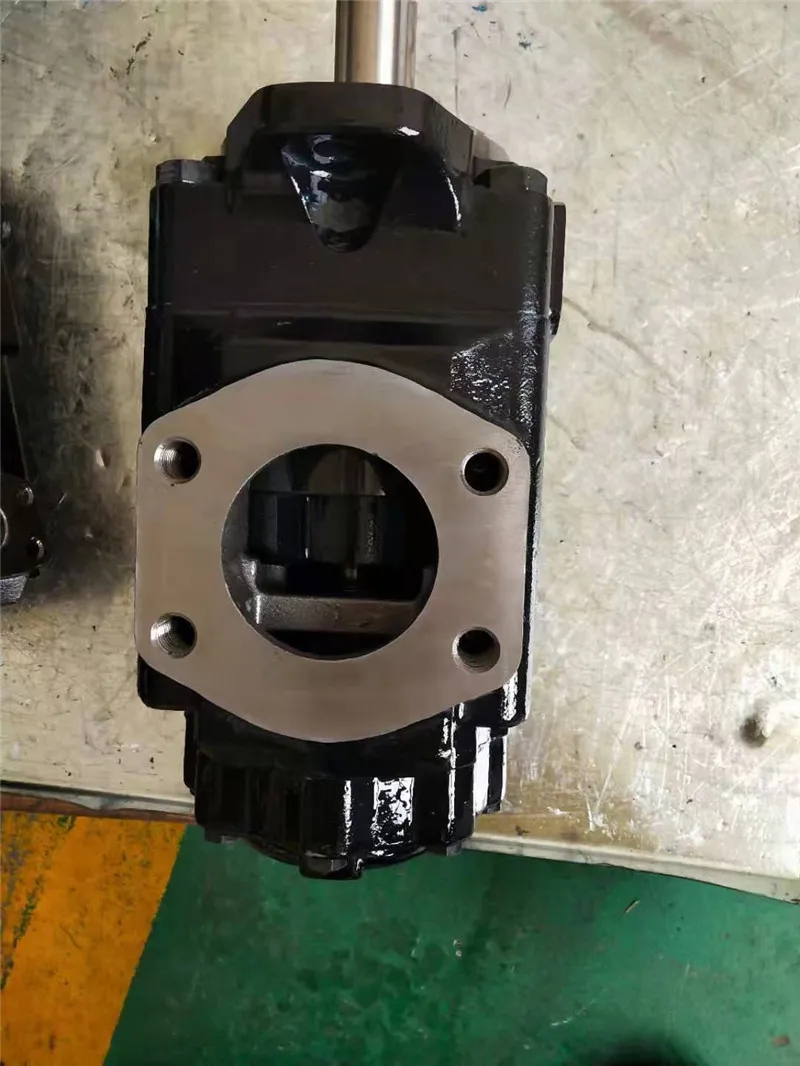

T7DBS-E42-E15-1R11-A1 Parker Denison Double Vane Pump 187.5 cc 260 bar

Model 1: T7DBS-E42-E15-1R11-A1

Product Overview

The T7DBS-E42-E15-1R11-A1 is a Parker Denison T7DBS Series heavy-duty hydraulic double fixed displacement vane pump. This double pump configuration features a P1 (front pump) displacement of 137.5 cc/rev and a P2 (rear pump) displacement of 50.0 cc/rev, with a total displacement of 187.5 cc/rev and a maximum operating pressure of 260 bar.

The T7DBS Series belongs to the D-Series frame (medium-to-large displacement double pumps) within the T7 family, specifically engineered for hydraulic systems requiring two different pressure/flow combinations. The T7DBS features SAE J744 standard C-type 2-bolt mounting flange, compatible with SAE C standard drive shaft interfaces.

T7 Series variable speed vane pumps are especially dedicated to providing an ideal solution for modern servo controlled machines. When driven with asynchronous or synchronous electric motors and piloted by frequency controllers, they operate in the most efficient and reliable ways, allowing maximum energy savings.

As a premium aftermarket alternative to original Parker Denison hydraulic pumps, this product offers 100% direct interchangeability with identical mounting dimensions and performance specifications, requiring zero modification to existing systems.

Every unit undergoes 100% simulated duty cycle testing prior to shipment, guaranteeing performance reliability under actual working conditions.

Technical Specifications (Bulleted List)

• Model: T7DBS-E42-E15-1R11-A1

• Brand: Parker Denison

• Series: T7DBS Heavy-Duty Double Vane Pump

• Pump Type: Double Fixed Displacement Vane Pump

• P1 Displacement (Front Pump): 137.5 cc/rev

• P2 Displacement (Rear Pump): 50.0 cc/rev

• Total Displacement (P1+P2): 187.5 cc/rev

• P1 Cam Ring Code: E42 (137.5 cc/rev)

• P2 Cam Ring Code: E15 (50.0 cc/rev)

• P1 Maximum Intermittent Pressure: 240/260 bar

• P1 Maximum Continuous Pressure: 210/230 bar

• P2 Maximum Intermittent Pressure: 240/280 bar

• P2 Maximum Continuous Pressure: 210/240 bar

• Rated Speed: 1800/3000 RPM

• Rotation: Clockwise (R: viewed from shaft end)

• Shaft Type: SAE C standard keyed shaft

• Mounting Flange: SAE J744-SAE C 2-bolt flange

• Inlet Port Connection: 3″ 4-bolt SAE flange J518 (UNC threads)

• Outlet Port 1 Connection: 1-1/4″ 4-bolt SAE flange J518 (UNC threads)

• Outlet Port 2 Connection: 1″ 4-bolt SAE flange J518 (UNC threads)

• Seal Material: BUNA N

• Weight: Approx. 38.6 kg

• Fluid Compatibility: Mineral oils, biodegradable oils, water-based fluids; recommended viscosity 10~100 cSt

• Temperature Range: -20°C ~ +80°C

Key Technical Advantages

1. Fully Pressure Balanced Concept
The T7 Series incorporates a fully pressure balanced design that extends pump life across the entire operating range. Double lip vanes reduce sensitivity to fluid contamination. This design ensures balanced internal forces under high-pressure operation, minimizing wear on critical components.

2. Double Lip Vane Technology
Parker’s patented double lip vane design achieves superior sealing between vanes and the cam ring inner surface, delivering high volumetric efficiency — typically 0.93~0.94. The double lip geometry also enhances tolerance to particulate contamination, significantly improving pump reliability and service life.

3. Variable Speed Drive Optimization
The T7 Series is specifically designed for variable speed drive applications, offering a wide speed range of 600~3000 RPM. When paired with frequency-controlled motors, it enables up to 70% electrical energy savings while reducing noise emissions and total system costs.

4. Low Noise & Low Pressure Ripple
Denison Vane Technology allows very low noise levels over the entire operating range and during the whole life of the pump. Pressure ripple is as low as ±2 bar, with operating noise 3~5 dB(A) lower than conventional pumps.

5. Cartridge Kit Design & Flexible Configuration
Various pumping units (cartridge kits) can be combined with other pumping unit sizes in multiple pumps, creating a wide range of multi-flow pump configurations. 64 port position combinations are available to suit various system layouts. Multiple displacements are offered for the same installation size, enabling powerful and compact pump assemblies.

Application Areas

The T7DBS-E42-E15-1R11-A1 double vane pump is widely deployed across the following applications:

• Injection Molding Machines

• Die Casting Machines

• Oil Press / Hydraulic Presses

• Plastic Industrial Equipment

• Auto Industrial Equipment

• Variable Speed Drive Hydraulic Systems

Expert Maintenance Tips

1. Pre-Start Priming: Prior to initial start-up, fill the pump housing with hydraulic fluid through the drain port to ensure adequate lubrication of internal components.

2. Fluid Cleanliness: Maintain system fluid cleanliness to NAS Class 7 (ISO 4406 16/14/11) or better to maximize vane and cam ring service life. Install a 10 μm suction strainer.

3. Mounting Torque: For SAE C 2-bolt flange mounting, refer to Parker Service Manual (Bulletin HY29-0036-M1/UK) for specified torque values.

4. Rotation Confirmation: Verify pump rotation direction matches system requirements before installation. This model is configured for clockwise rotation (R: viewed from shaft end).

5. Variable Speed Operation: When used in variable speed drive systems, ensure frequency controller parameters match the pump’s speed range (600~3000 RPM). Minimum stable speed is approximately 400 RPM.

6. Temperature Control: Maintain fluid temperature within 15~60°C range, with maximum not exceeding 80°C.

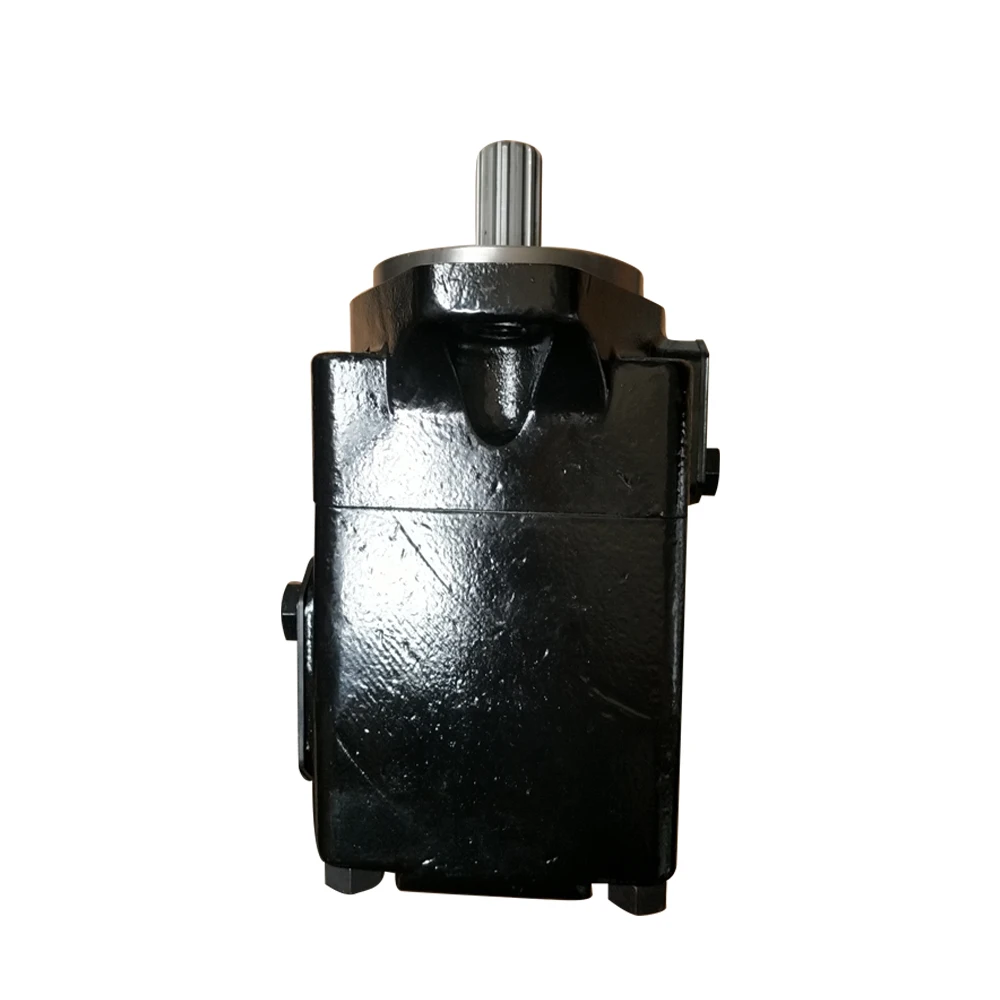

Model 2: T7DBS-B35-B15-4R05-A1M5

Product Overview

The T7DBS-B35-B15-4R05-A1M5 is a Parker Denison T7DBS Series heavy-duty hydraulic double fixed displacement vane pump. This double pump configuration features a P1 (front pump) displacement of 113.4 cc/rev and a P2 (rear pump) displacement of 50.0 cc/rev, with a total displacement of 163.4 cc/rev.

The T7DBS Series belongs to the D-Series frame (medium-to-large displacement double pumps) within the T7 family, specifically engineered for hydraulic systems requiring two different pressure/flow combinations. The T7DBS features SAE J744 standard C-type 2-bolt mounting flange, compatible with SAE C standard drive shaft interfaces.

T7 Series variable speed vane pumps are especially dedicated to providing an ideal solution for modern servo controlled machines. When driven with frequency-controlled motors, they operate in the most efficient and reliable ways, allowing maximum energy savings.

As a premium aftermarket alternative to original Parker Denison hydraulic pumps, this product offers 100% direct interchangeability with identical mounting dimensions and performance specifications, requiring zero modification to existing systems.

Every unit undergoes 100% simulated duty cycle testing prior to shipment, guaranteeing performance reliability under actual working conditions.

Technical Specifications (Bulleted List)

• Model: T7DBS-B35-B15-4R05-A1M5

• Brand: Parker Denison

• Series: T7DBS Heavy-Duty Double Vane Pump

• Pump Type: Double Fixed Displacement Vane Pump

• P1 Displacement (Front Pump): 113.4 cc/rev

• P2 Displacement (Rear Pump): 50.0 cc/rev

• Total Displacement (P1+P2): 163.4 cc/rev

• P1 Cam Ring Code: B35 (113.4 cc/rev)

• P2 Cam Ring Code: B15 (50.0 cc/rev)

• Maximum Intermittent Pressure: 240 bar

• Maximum Continuous Pressure: 210 bar

• Speed Range: 600~2200 RPM (large displacement B35)

• Rotation: Clockwise (R: viewed from shaft end)

• Shaft Type: SAE C standard keyed shaft

• Mounting Flange: SAE J744-SAE C 2-bolt flange

• Seal Material: M5 — Viton®

• Weight: Approx. 38.6 kg

• Fluid Compatibility: Mineral oils, biodegradable oils, water-based fluids; recommended viscosity 10~100 cSt

• Temperature Range: -20°C ~ +80°C

Key Technical Advantages

1. Fully Pressure Balanced Concept
The T7 Series incorporates a fully pressure balanced design that extends pump life across the entire operating range. Double lip vanes reduce sensitivity to fluid contamination. This design ensures balanced internal forces under high-pressure operation, minimizing wear on critical components.

2. Double Lip Vane Technology
Parker’s patented double lip vane design achieves superior sealing between vanes and the cam ring inner surface, delivering high volumetric efficiency — typically 0.93~0.94. The double lip geometry enhances tolerance to particulate contamination, significantly improving pump reliability and service life.

3. Wide Speed Range & Flexible Operation
The T7DBS Series offers a speed range of 600~2200 RPM. When paired with frequency-controlled motors, it enables up to 70% electrical energy savings while reducing noise emissions and total system costs.

4. Low Noise & Low Pressure Ripple
Denison Vane Technology allows very low noise levels over the entire operating range and during the whole life of the pump. Pressure ripple is as low as ±2 bar, with operating noise 3~5 dB(A) lower than conventional pumps.

5. Cartridge Kit Design & Flexible Configuration
The cartridge kit design enables rapid cartridge replacement, significantly reducing downtime. 64 port position combinations are available to suit various system layouts. Various pumping units can be combined with other pumping unit sizes in multiple pumps, creating a wide range of multi-flow pump configurations.

6. Viton® Seal Configuration
This model is equipped with Viton® (fluorocarbon rubber) seals (M5), offering excellent high-temperature and chemical resistance. Suitable for a broader range of hydraulic media and higher operating temperature ranges.

Application Areas

The T7DBS-B35-B15-4R05-A1M5 double vane pump is widely deployed across the following applications:

• Injection Molding Machines

• Die Casting Machines

• Oil Press / Hydraulic Presses

• Harvester Header Lift Mechanisms

• Milling Machine Hydraulics

• Plastic & Auto Industrial Equipment

• Variable Speed Drive Hydraulic Systems

Expert Maintenance Tips

1. Pre-Start Priming: Prior to initial start-up, fill the pump housing with hydraulic fluid through the drain port to ensure adequate lubrication of internal components.

2. Fluid Cleanliness: Maintain system fluid cleanliness to NAS Class 7 (ISO 4406 16/14/11) or better to maximize vane and cam ring service life.

3. Mounting Torque: For SAE C 2-bolt flange mounting, refer to Parker Service Manual (Bulletin HY29-0036-M1/UK) for specified torque values.

4. Rotation Confirmation: Verify pump rotation direction matches system requirements before installation. This model is configured for clockwise rotation (R: viewed from shaft end).

5. Variable Speed Operation: When used in variable speed drive systems, ensure frequency controller parameters match the pump’s speed range (600~2200 RPM). Maximum speed for large displacement (B35) is 2200 RPM.

6. Seal Compatibility: This model is equipped with Viton® seals (M5), compatible with mineral oils and a wide range of synthetic hydraulic fluids. For other fluid types, verify seal material compatibility.

7. Temperature Control: Maintain fluid temperature within 15~60°C range, with maximum not exceeding 80°C.
