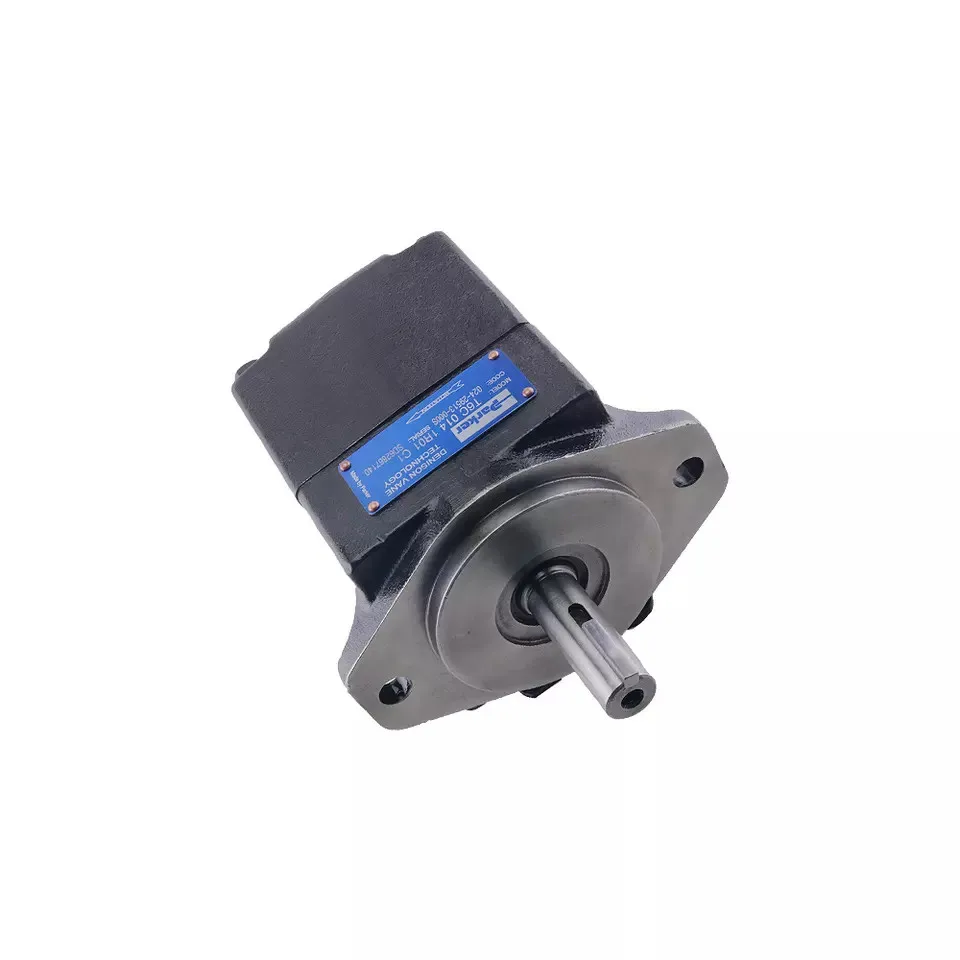

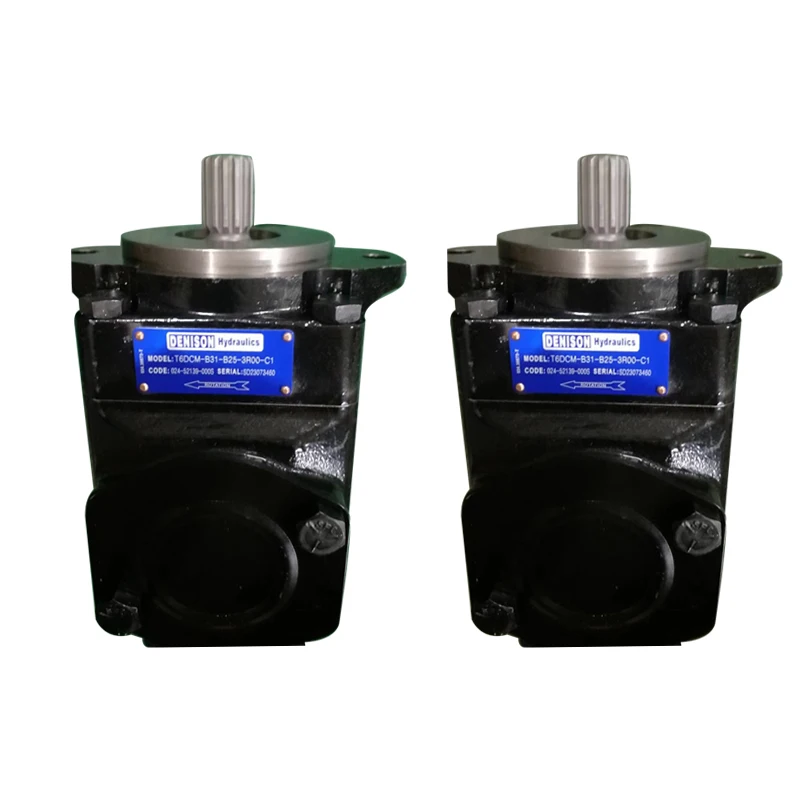

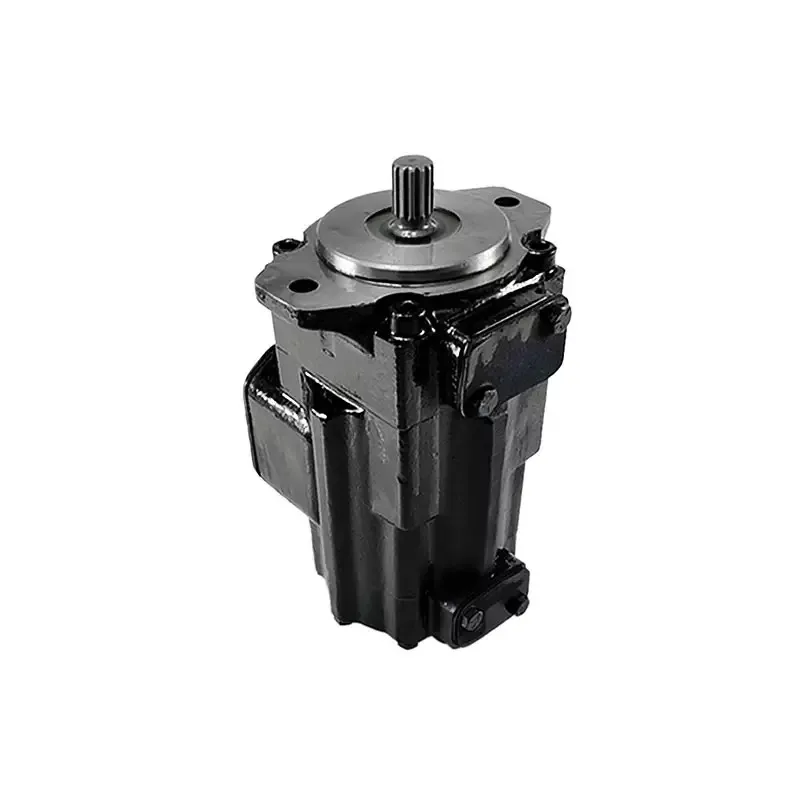

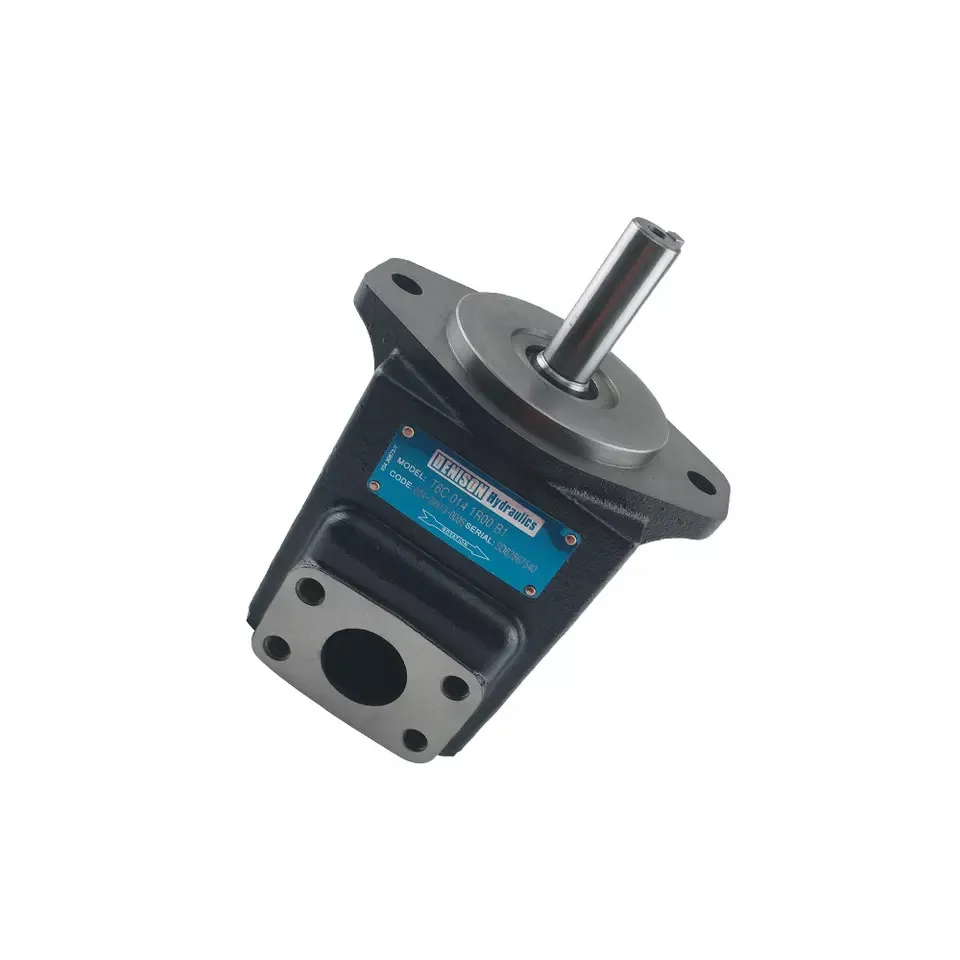

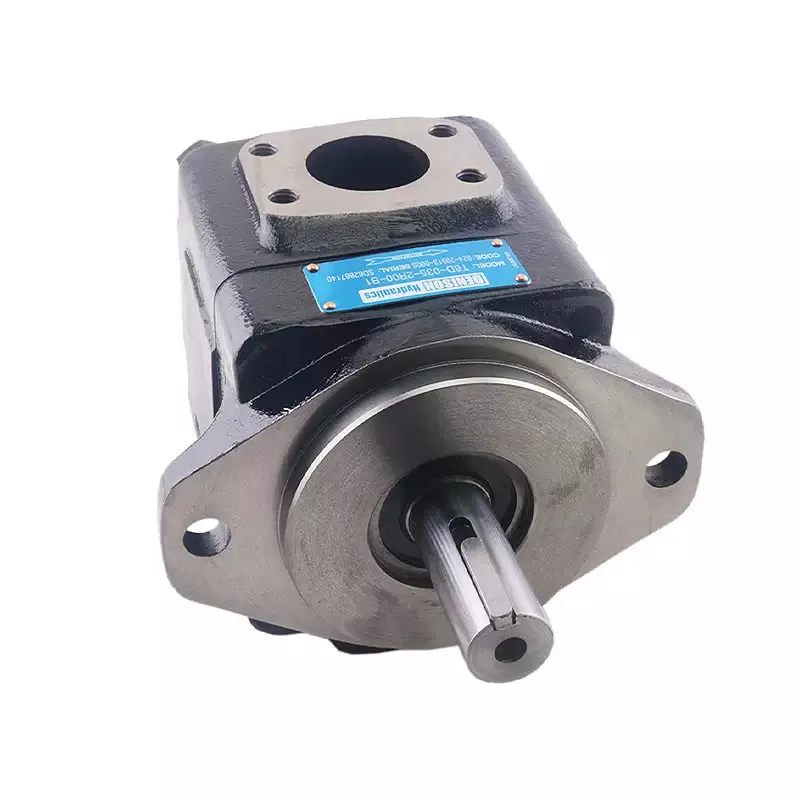

Denison T7D T7DS Vane Pump | Parker T7DS Series Industrial Hydraulic Vane Pump Replacement

Genlu Hydraulic proudly introduces our T7D & T7DS Series high-performance industrial high-pressure vane pumps. This series is engineered as a seamless, direct-fit replacement for the classic Denison (Parker) T7 series. Optimized for injection molding machines, die-casting equipment, and heavy-duty industrial presses, the T7DS series is celebrated for its high pressure ratings, exceptional contamination tolerance, and ultra-low noise profile. Our signature modular cartridge design allows for field-serviceability, enabling cartridge kits to be replaced without removing the pump housing. Genlu guarantees 100% Drop-in Interchangeability in mounting dimensions, shaft profiles, and port configurations compared to original Denison/Parker units. Every T7DS pump undergoes 100% simulation testing to ensure optimal volumetric efficiency and durability under heavy industrial load cycles.

Technical Specifications

• Product Series: Denison/Parker T7DS Series Industrial High-Pressure Vane Pump

• Typical Configuration Model: T7DS-B17-2R00-A1MO

• Rated Operating Pressure: Up to 25 MPa (250 bar)

• Peak Pressure: Up to 30 MPa (300 bar)

• Speed Range: 600 rpm – 2500 rpm

• Displacement Range: Various specifications available

• Control Mode: Fixed displacement vane type

• Rotation: Clockwise (R) or Counter-Clockwise (L)

• Mounting Interface: Industrial Standard SAE/ISO Flange

Key Technical Advantages:

• Ultra-Low Noise Profile: Featuring an optimized dual-action stator design, the T7DS balances axial forces and streamlines fluid paths, maintaining operational noise below 65 dB(A) for strict industrial compliance.

• Modular Cartridge Maintenance: The unique cartridge kit design simplifies field maintenance; replace the core components in minutes without the need for complex shaft realignment or downtime.

• Superior Contamination Resilience: Vane pump dynamics are inherently more tolerant of fine particulate contaminants compared to piston pumps. Combined with our hardened surface coatings, this ensures long-term endurance in challenging factory environments.

• Auto-Pressure Compensation: Internal pressure-balancing mechanisms automatically optimize clearances between the rotor and side plates, maintaining consistent high volumetric efficiency even under peak load.

Application Areas:

• Injection Molding & Die Casting: Primary power source providing pulsation-free fluid flow for high-precision forming processes.

• Metal Forging & Presses: Driving slide actuation, pressure-holding circuits, and auxiliary clamping systems.

• Heavy Industry Drives: Metallurgical auxiliary equipment, hydraulic test benches, and large-scale material handling machinery.

Expert Maintenance Tips:

• Inlet Vacuum Maintenance: Ensure inlet absolute pressure remains above 0.8 bar. Optimize inlet line sizing to prevent cavitation, which is the leading cause of premature rotor vane failure.

• Strategic Component Replacement: If operational noise or pressure instability increases, there is no need to replace the entire pump. A quick swap of the Genlu Cartridge Kit will restore like-new performance at a fraction of the cost.

• Cleanliness Protocol: While robust, we recommend 20µm system filtration. Regularly monitor hydraulic fluid for water and particulate contaminants to maximize the lifespan of the internal vane cartridge.
