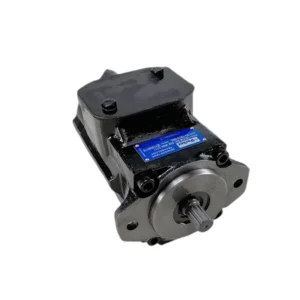

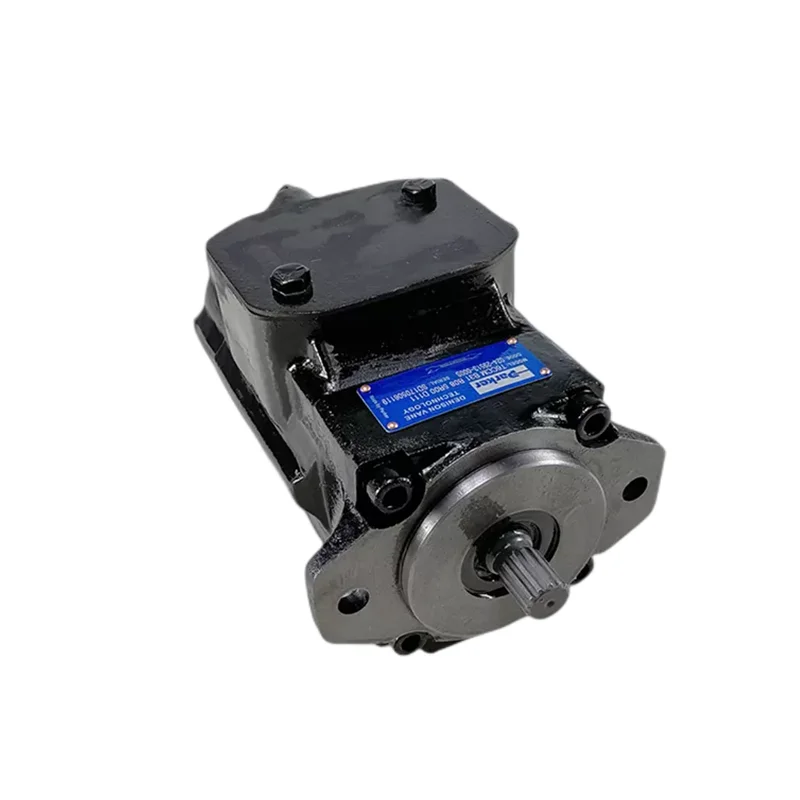

T7DS B35 3R00 A1M0 Parker Vane Pump 113.4cc 280bar

Product Overview

The T7DS B35 3R00 A1M0 is a high-pressure variable displacement vane pump from the Parker Hannifin Denison T7DS series—an iconic product line within Parker’s Denison brand portfolio. The T7DS series is specifically engineered for high-pressure, variable speed drive applications, featuring proven pressure-compensated variable displacement technology and widely deployed in injection molding machines, die-casting machines, hydraulic presses, and forging machine servo hydraulic systems.

The T7DS series represents the medium-to-large frame size within Parker’s T7 family, featuring SAE C 2-bolt flange mounting and covering displacements from 44.0 to 158.0 cc/rev. The series employs fully pressure balanced design and double lip vane technology, delivering high efficiency, low noise, and extended service life.

The T7DS B35 is a flagship displacement model within the series, with “B35” indicating a displacement of 113.4 cc/rev. This model features a 3R00 splined shaft (SAE C 14-tooth spline, clockwise rotation) and A1M0 port configuration. Maximum working pressure reaches 250–280 bar with maximum speed of 2800 rpm.

Designed as a 100% interchangeable direct replacement for the original Parker Denison T7DS B35 3R00 A1M0, this product matches OEM specifications in mounting dimensions, porting interfaces, and performance characteristics. Every unit undergoes 100% simulated duty cycle testing prior to shipment, validating volumetric efficiency, mechanical efficiency, and sealing integrity under actual operating load conditions.

Technical Specifications

• Model: T7DS B35 3R00 A1M0

• Brand: Parker Hannifin Denison

• Series: T7DS High Pressure Variable Vane Pump

• Product Type: Pressure Compensated Variable Vane Pump

• Volumetric Displacement: 113.4 cc/rev

• Max Working Pressure: 250–280 bar (3,625–4,060 psi)

• Maximum Speed: 2800 rpm

• Minimum Speed: 600 rpm

• Direction of Rotation: R = Clockwise (viewed from shaft end)

• Shaft Type: 3 = SAE C 14-tooth splined shaft (12/24DP, 55.6L)

• Mounting Flange: SAE C 2-bolt flange (SAE J744)

• Port Configuration: A1M0 (SAE 4-bolt flange, UNC threads)

• Seal Class: M0 = Standard BUNA N seal, 0.7 bar max backpressure

• Weight: Approx. 40 kg

• Circuit Type: Open circuit

• Hydraulic Fluids: Mineral oil and approved hydraulic fluids

• Operating Temperature Range: 30–90°C

Key Technical Advantages

1. Fully Pressure Balanced Design for Extended Service Life

The T7DS series features a fully pressure balanced concept that significantly extends pump service life across the entire operating range. This design ensures stable performance under various pressure and speed conditions, making it particularly suitable for continuous high-load industrial applications.

2. Double Lip Vane Technology with Low Contamination Sensitivity

Double lip vanes effectively reduce sensitivity to fluid contamination. Compared to traditional single lip vanes, the double lip design provides superior sealing performance and contamination resistance, significantly extending cartridge kit service life and reducing maintenance frequency.

3. Low-Noise Operation

Denison vane pump technology is renowned for its extremely low operating noise levels. Optimized internal flow paths and precision-machined friction pairs enable the T7DS series to maintain low-noise operation throughout the entire operating range and over the full service life. This makes it particularly suitable for indoor industrial equipment with strict noise requirements.

4. Wide Speed Range with Variable Speed Drive Compatibility

The T7DS series supports a wide speed range of 600–2800 rpm, specifically optimized for variable speed drive applications. When driven with asynchronous or synchronous motors controlled by frequency inverters, energy savings of up to 70% can be achieved. The wide speed range enables flexible adaptation to various flow requirements.

5. 100% Interchangeability – Zero-Modification Drop-In Replacement

Manufactured to exact OEM mounting dimensions, porting specifications, and performance standards, this pump achieves 100% interchangeability with the original Parker Denison T7DS B35 3R00 A1M0. No machine modifications are required—simply replace and resume operation, minimizing downtime and reducing maintenance costs.

6. 100% Simulated Duty Cycle Testing for Extreme Environment Reliability

Every pump undergoes 100% simulated duty cycle testing before shipment, validating performance under rated pressure and maximum speed conditions—ensuring long-term reliability in demanding injection molding, die-casting, and industrial applications.

7. Cartridge Kit Structure for Easy Maintenance

The T7DS series features a cartridge kit structure design that enables repair by simply replacing the cartridge kit without removing the entire pump housing. This significantly simplifies maintenance procedures, reducing maintenance costs and downtime.

8. Modular Configuration for Versatile Application Adaptation

The T7DS series offers multiple displacement options (B14–050, covering 44.0–158.0 cc/rev), multiple shaft types (keyed/splined), and multiple port configuration options. The B35 displacement (113.4 cc/rev) is a flagship model in the series, widely deployed in injection molding machines, die-casting machines, hydraulic presses, forging machines, and other servo hydraulic systems.

Application Areas

• Injection Molding Machinery: Servo hydraulic systems for injection molding machines

• Die-Casting Machinery: Servo hydraulic systems for die-casting machines

• Forging & Pressing: Forging presses, hydraulic press systems

• Servo Hydraulic Systems: Variable speed drive servo hydraulic systems

• Industrial Hydraulic Systems: General industrial hydraulic power units

• Rubber & Plastics Machinery: Rubber and plastics machinery hydraulic systems

Expert Maintenance Tips

1. Pre-Installation Preparation: Before using the T7DS series vane pump, read and understand the complete Parker Denison service manual (Bulletin MSG29-0074-M1/UK). For first commissioning, fill the pump housing with hydraulic fluid through the case drain port—never operate the pump without fluid.

2. Drain Line Requirements: The T7DS series has strict housing backpressure limits. Standard BUNA N seals (M0) allow maximum backpressure of 0.7 bar. Ensure the case drain line is unobstructed and returns to a separate oil tank to prevent seal damage from excessive housing pressure. For higher backpressure capability, VITON seals (S5, 7 bar max backpressure) are available.

3. Suction Line Design: The inlet line should be short and large in diameter, with inlet filter flow capacity ≥ 2× pump rated flow. Strictly prevent air suction and cavitation. Ensure adequate suction pressure at minimum speed (600 rpm).

4. Coupling Alignment: Precise alignment between the pump shaft and drive shaft is required with minimal tolerance. After installation, manually rotate the coupling to verify smooth operation. The pump shaft must not bear radial or axial external loads.

5. Oil Cleanliness Control: Recommended system filtration not less than ISO 4406 19/17/14. Regular oil analysis is recommended with filter change intervals adjusted based on contamination levels.

6. Operating Temperature Control: Ensure the hydraulic system operating oil temperature remains within the recommended range (30–90°C) to prevent viscosity reduction and seal degradation from excessive temperatures.

7. Variable Speed Drive Tuning: The T7DS series is specifically designed for variable speed drive applications. During commissioning, ensure the frequency inverter’s acceleration/deceleration times are properly set to avoid frequent start/stop cycles that could damage the cartridge kit. Consider installing a dV/dt filter at the inverter output for motor and pump protection.

8. Regular Inspection Schedule: Regular inspection of the hydraulic system and pump is recommended. Check hydraulic fluid level daily and monitor operating temperature, noise levels, and case drain flow regularly. Abnormal increases may indicate internal wear or seal degradation.
